Functional Purpose: Used for voltage transformation, electrical isolation, and load power supply; configured to comply with PLN grid connection point requirements and load-side 230/400 V, 50 Hz specifications — core interface verification for transformer-substation systems.

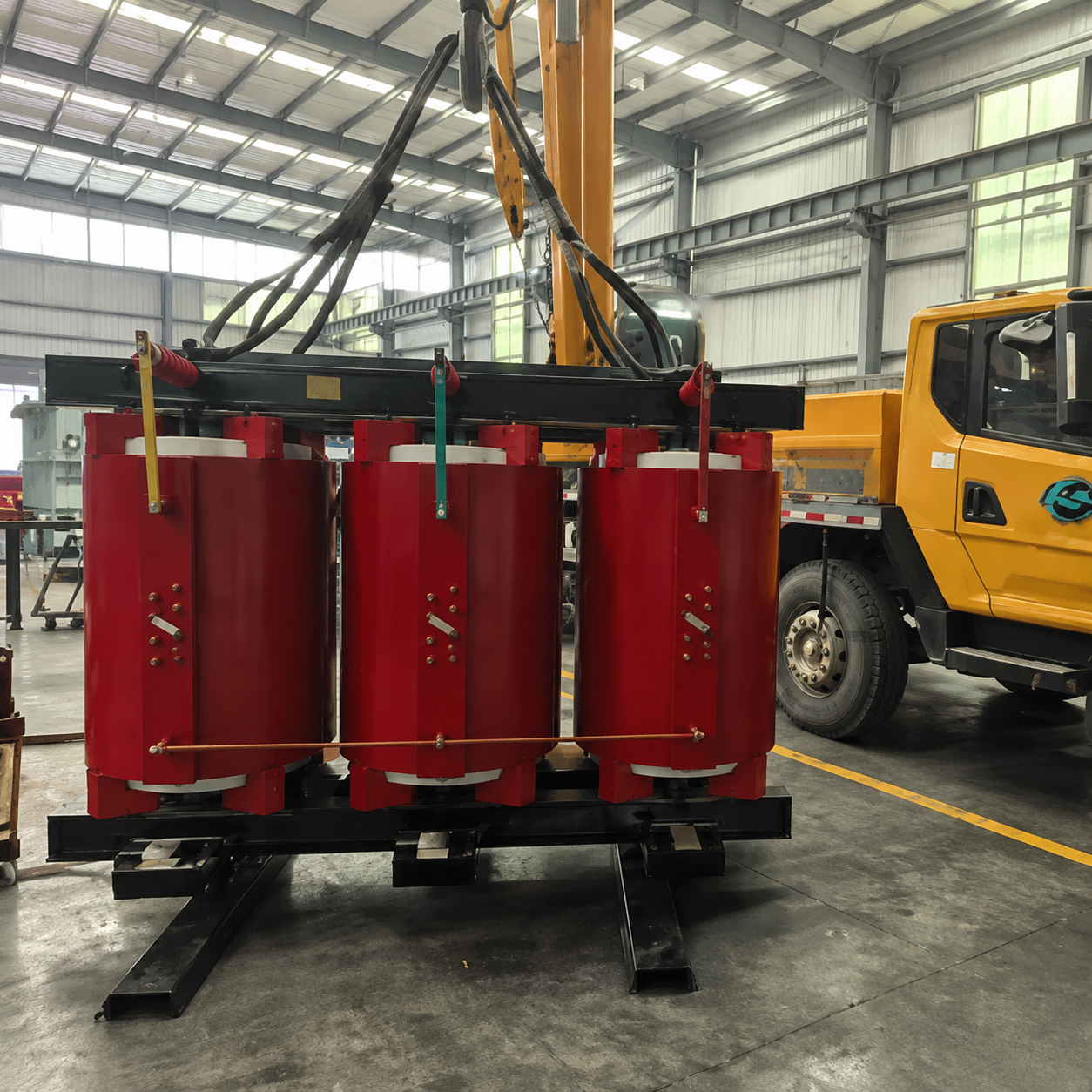

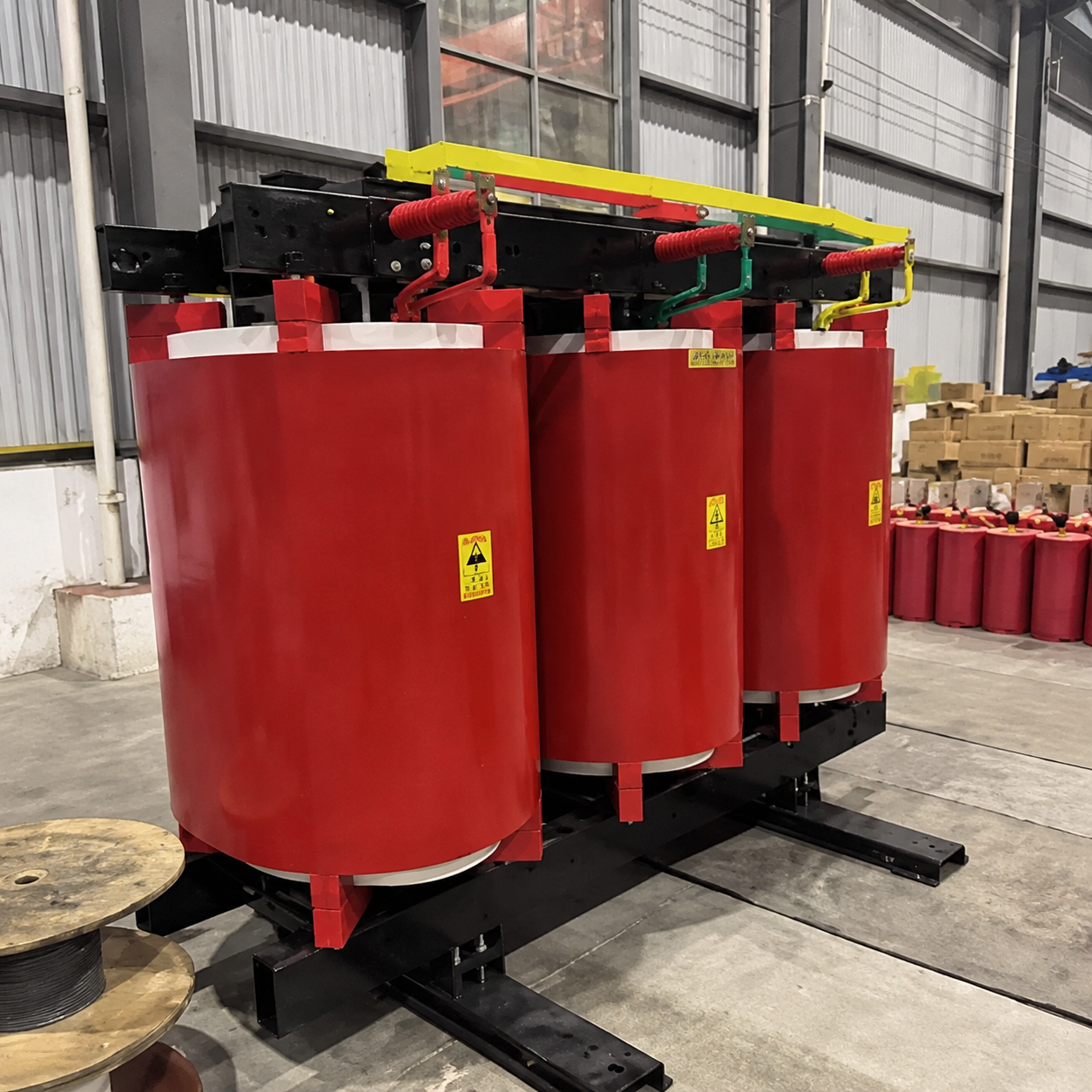

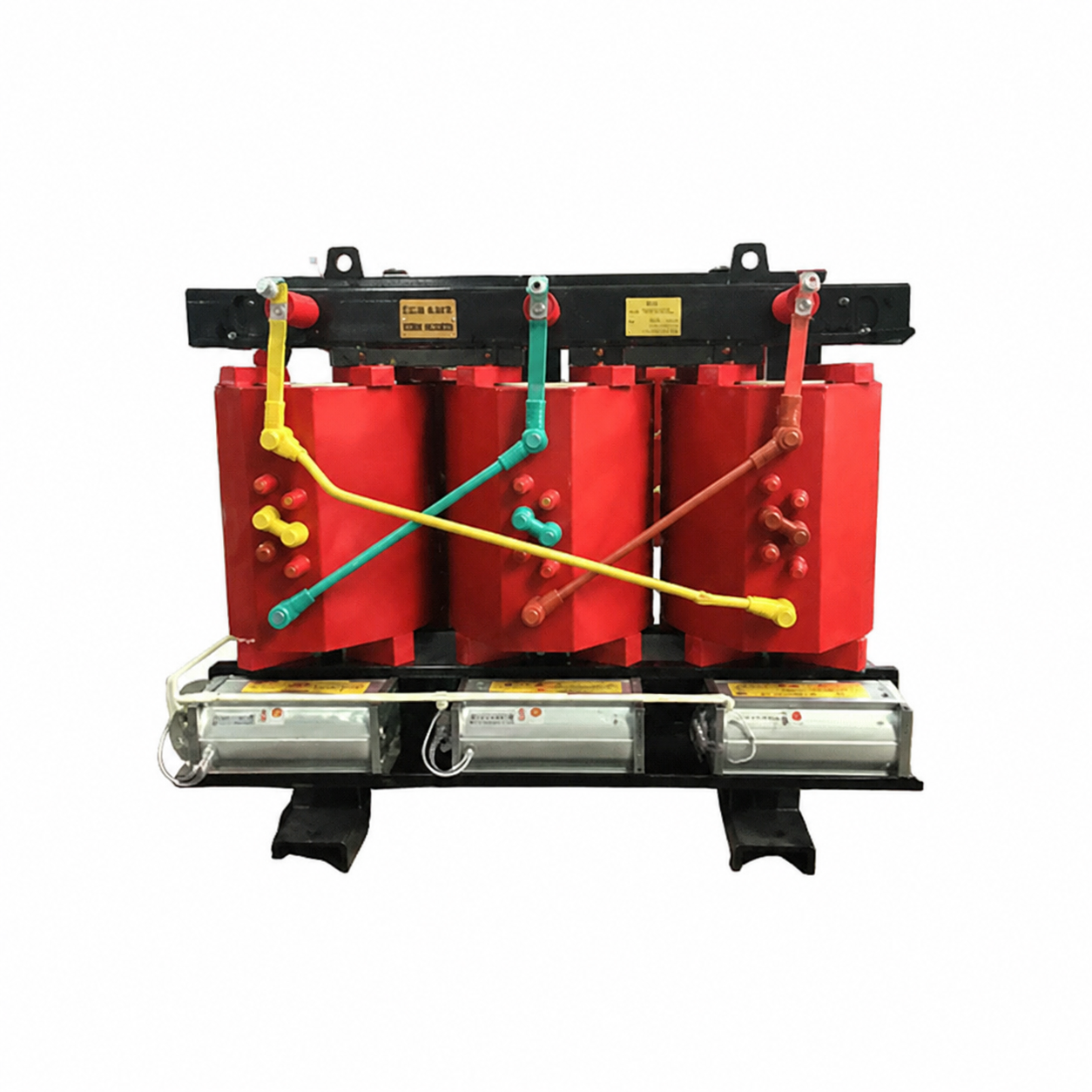

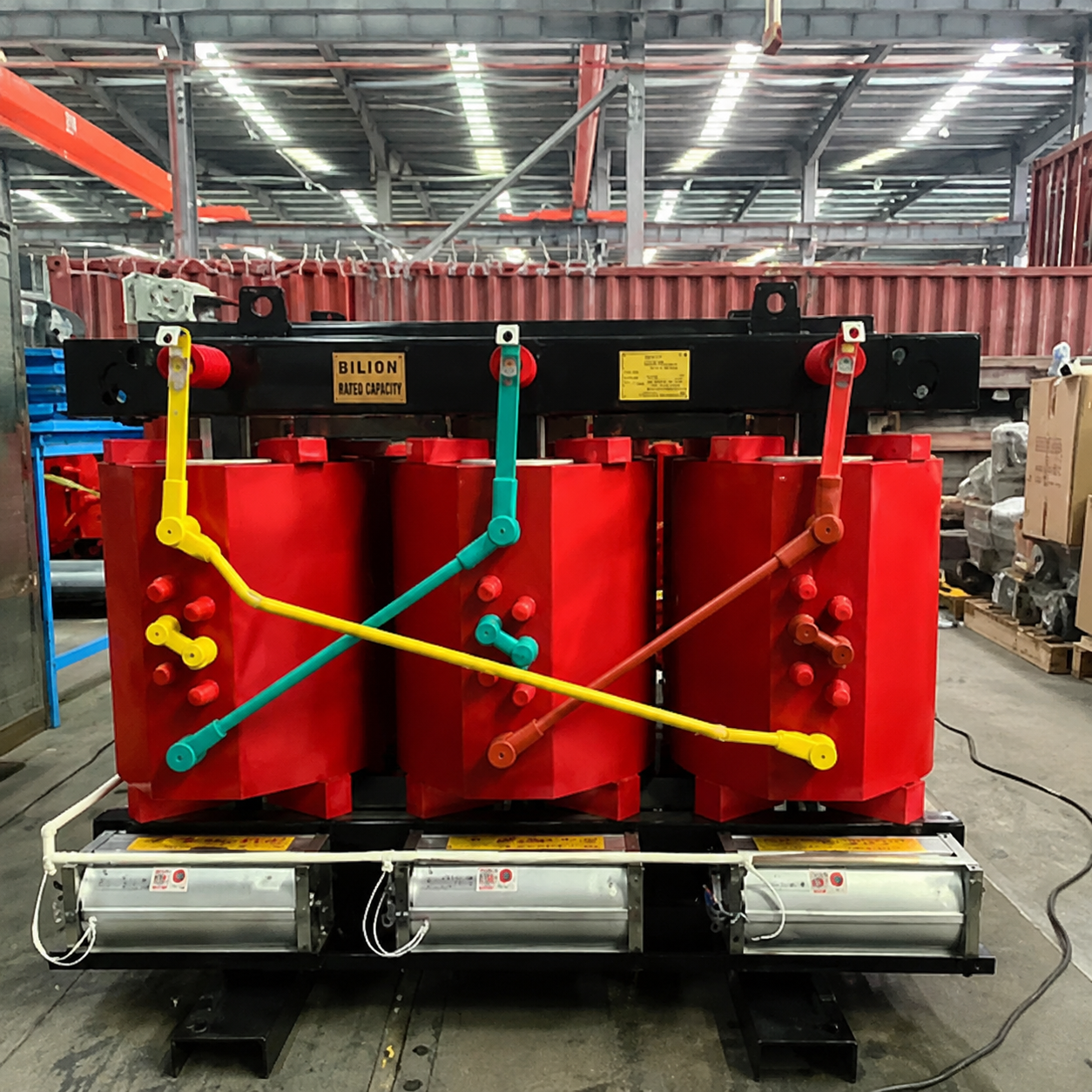

Application Scenarios: Dry-type transformer, high-voltage SCB14-500/kVA, 400/0.4 kV, 20 kV — deployed in Indonesian industrial parks, commercial buildings, mining sites, photovoltaic/wind power step-up substations, and remote island power supply systems.
Product Configuration: P-019; Model SCB14; Secondary voltages: 0.4 kV; Primary voltages: 20 kV, 10 kV, 11 kV, 15 kV, 22 kV, 33 kV.
Indonesian Adaptation: For humid-tropical environments, attention must be paid to insulation class, condensation resistance, and thermal management; coastal projects require salt fog corrosion resistance verification; remote island deployments necessitate spare parts provisioning and lifting/transportation condition allowances.
Requirement confirmation
Application, rating, quantity and drawings are checked first.
Factory matching
Supplier capacity, certificates and production slot are reviewed.
Order transaction
Confirm commercial terms, sign the commercial contract, and confirm the related document checklist.
Shipment control
Packing photos, inspection records and delivery status are tracked.
