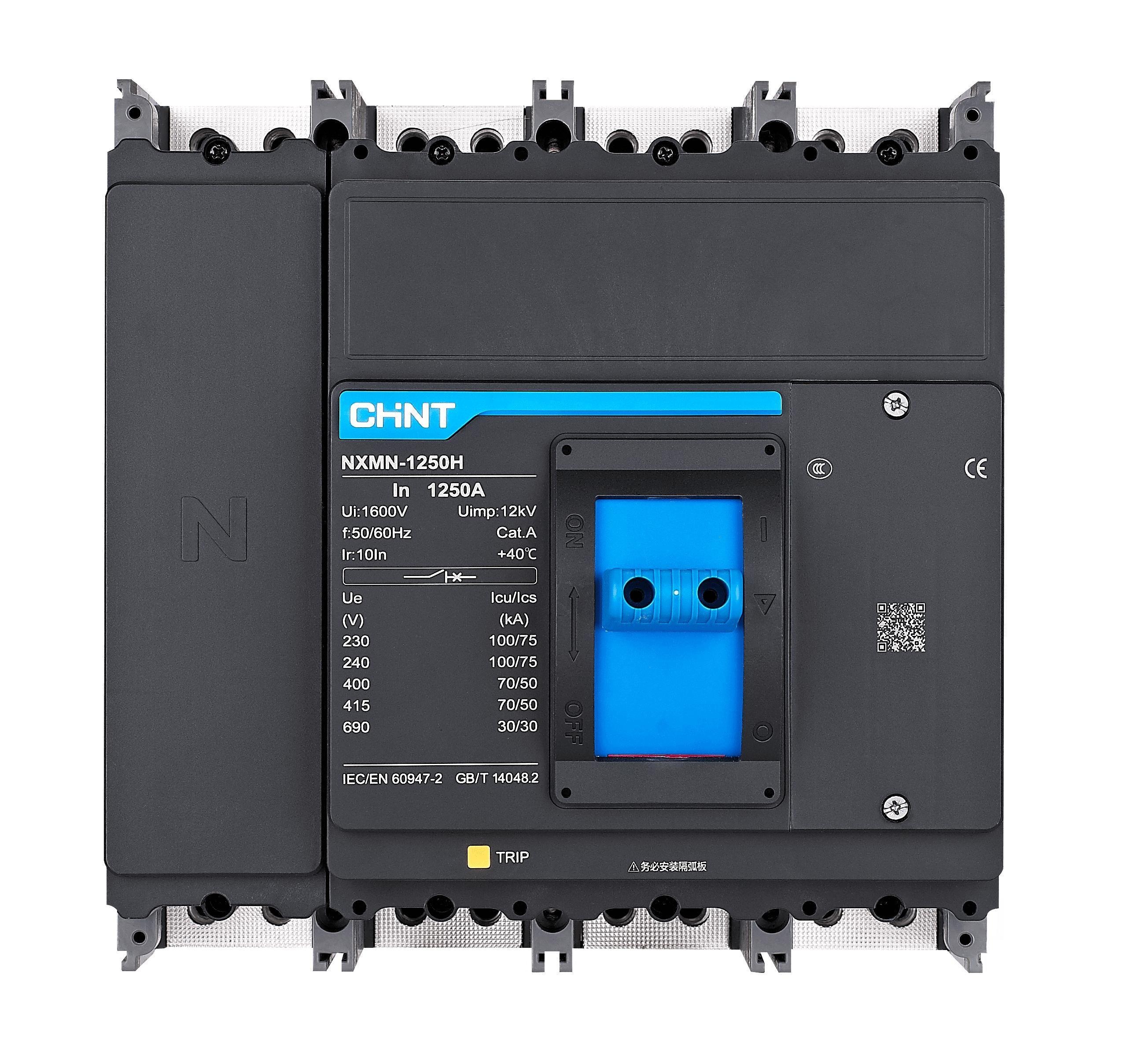

Function and use
Flexible and easy to use: compact product design, universal modular design of internal accessories; safe and reliable: double-layer cover double insulation design; convenient operation and maintenance: comprehensive application of QR code digitalization
Detailed description
Parameters:
Operating breaking capacity: Ics=36/50
Ultimate breaking capacity: Icu=50/70
Advantages/core functions:
01 Flexible and easy to use

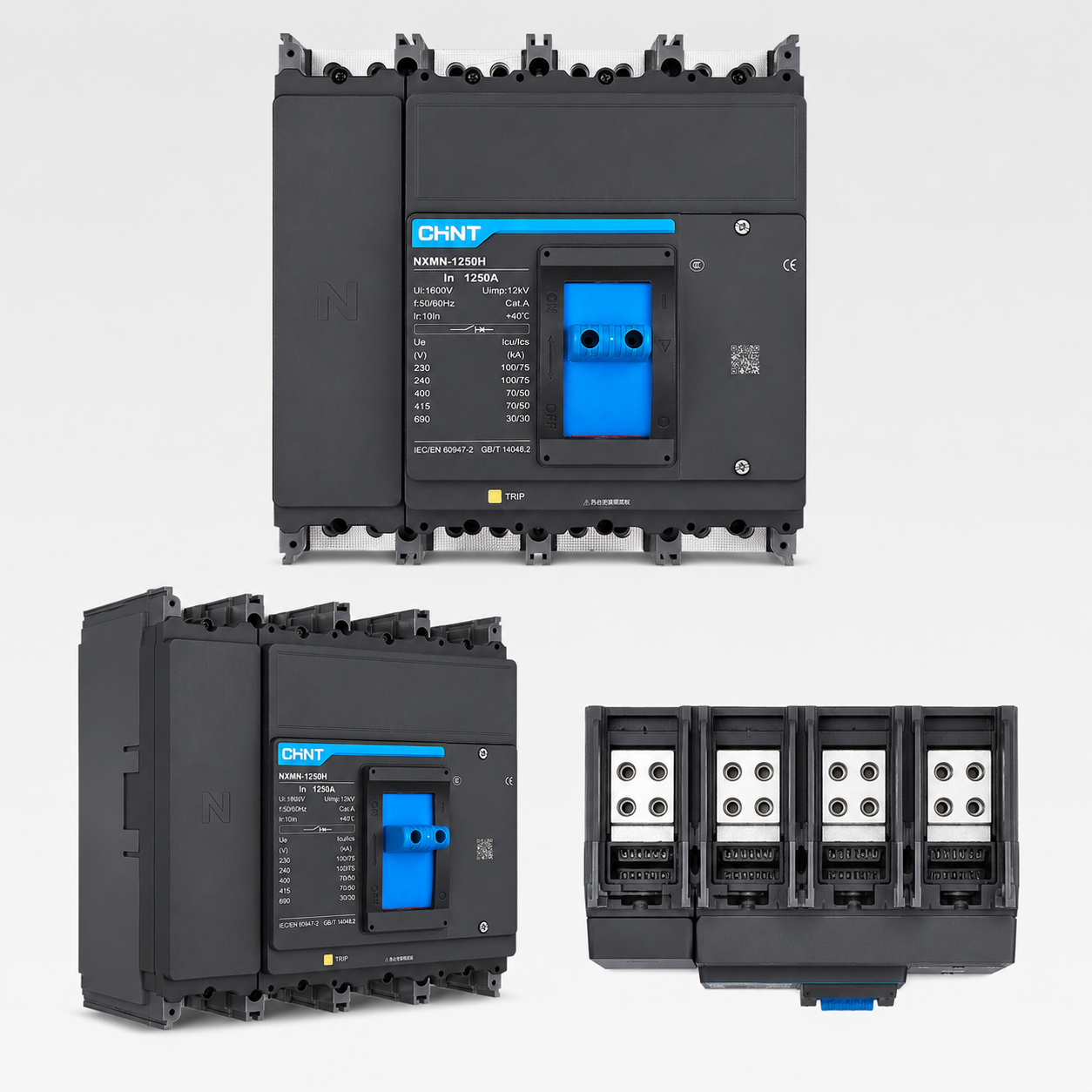

Industry-leading miniaturization, universal and modular design of accessories, 4 internal accessories can be installed independently at the same time, improving the functional expansion and convenience of the product
The product design is compact, small in size, the height and size are reduced by 23%, and the electric operation height is reduced by 26%, making customer installation more flexible and convenient, significantly improving installation efficiency and space utilization
02 Safe and reliable
AC690V circuit breaker has a high breaking capacity of 30kA and a double-layer cover and double insulation design, which effectively improves the safety, reliability and application convenience of the product

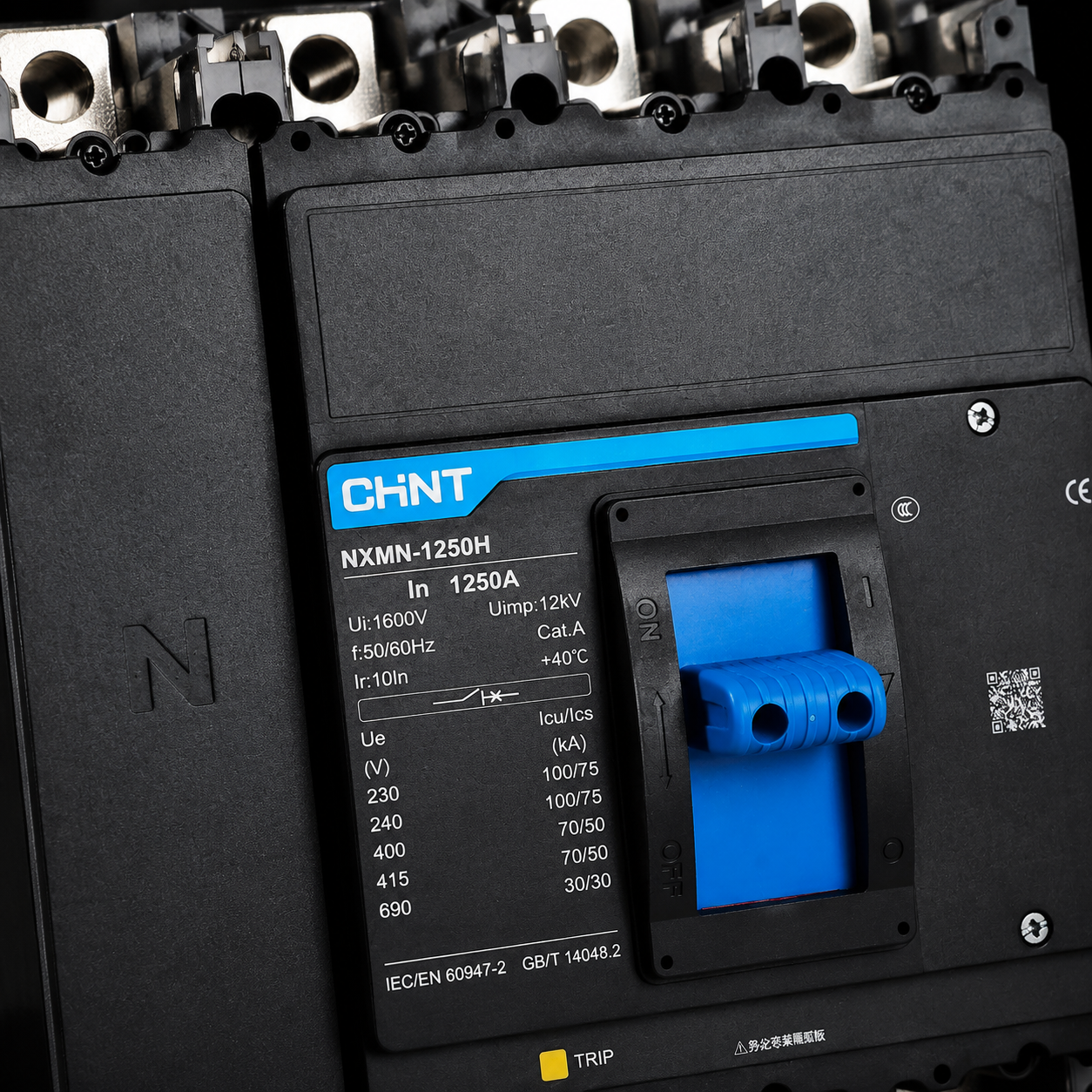

Provides active safety protection functions such as handles and electric padlocks to prevent product misoperation and ensure the safety of equipment and operators
03 Convenient operation and maintenance
The comprehensive application of QR code digital technology enables customers to achieve paperless and convenient operation and maintenance management

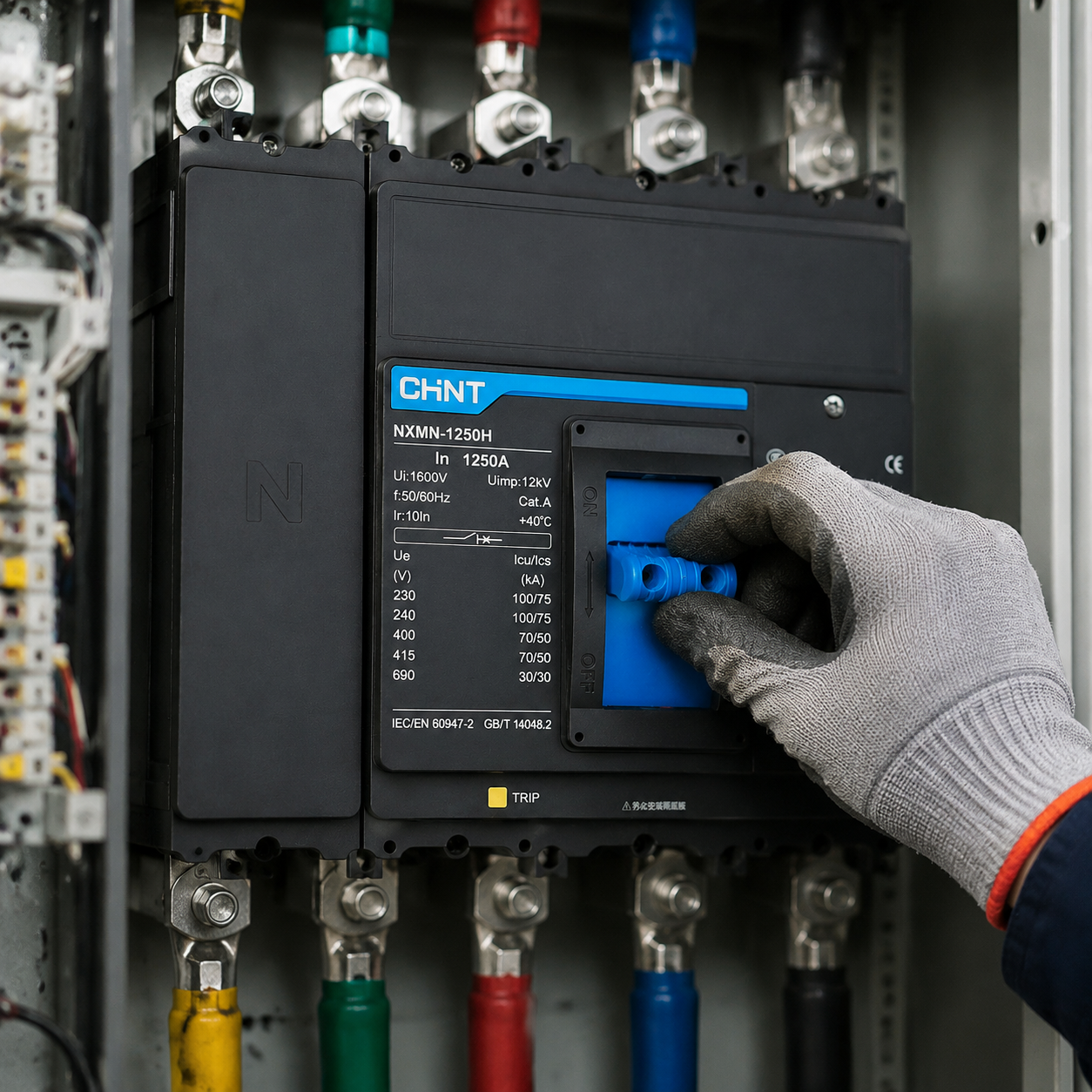

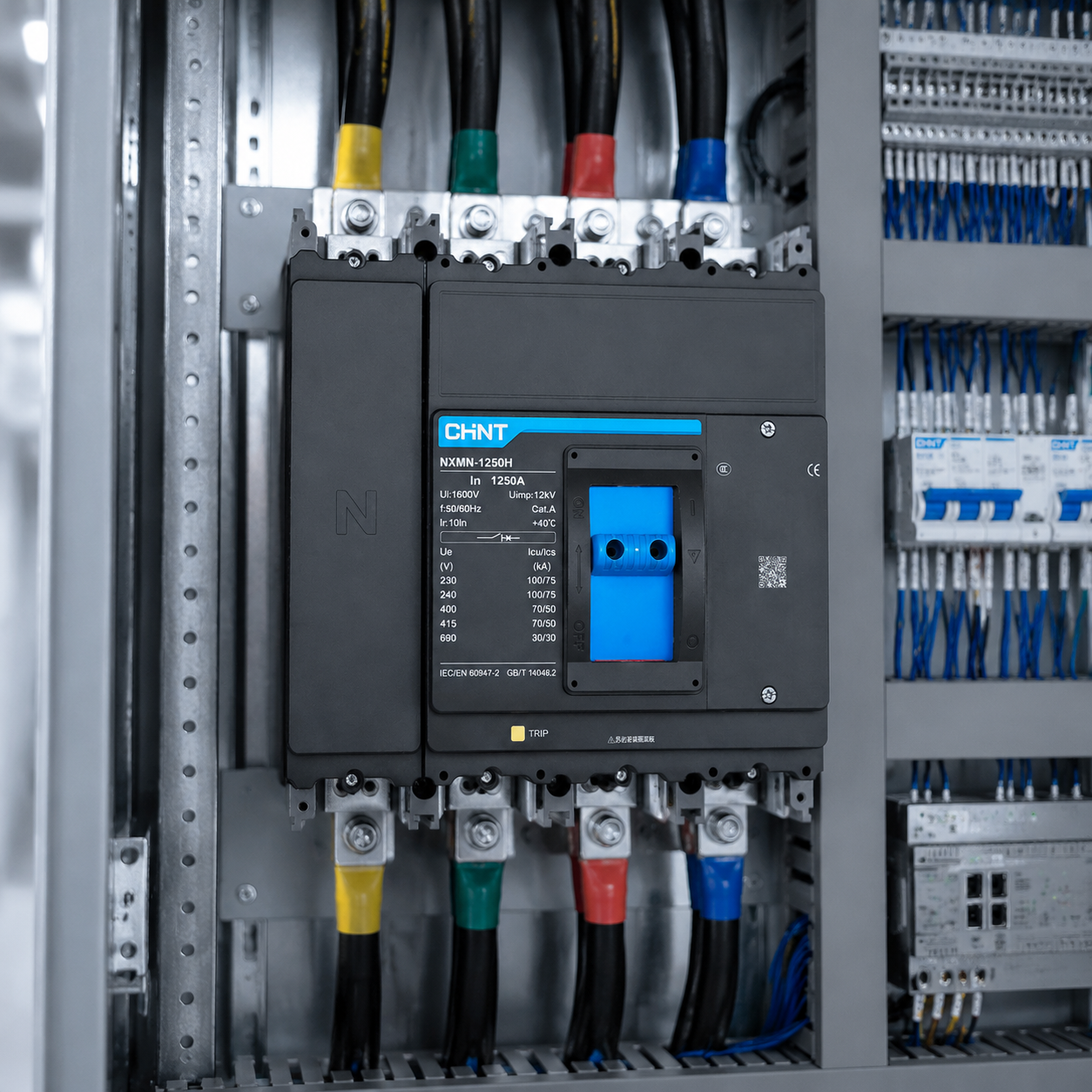

The extended handle can be configured to assist in the closing, opening and re-opening operations of the circuit breaker, making on-site operation and maintenance labor-saving and convenient
Detailed parameters
< tr>< /tr>
| Parameter classification | Parameter item | Parameter value |
|---|
| Main technical parameter table | Frame current Inm(A) | 1 250 |
| | 1600 |
| Rated current In(A) | 800, 1000, 1250< /td> |
| | 1000, 1250, 1600 |
| Rated impulse withstand voltage Uimp(kV) | 1 2 |
| | 12 |
| Rated insulation voltage UI(V) | 1000 |
| | 1000 |
| Breaking capacity code | S |
| | H |
| | S |
| | H |
| Number of poles (P) | 3P |
| | 4P (3P+N, 4P) |
| Rated ultimate short-circuit breaking capacity Icu(kA) | AC 230V/240V 75 |
| | 100 |
| | 7 5 |
| | 100 |
| | AC 400V/415V 50 |
| | 70 |
| | 5 0 |
| | 70 |
| | AC 690V 30 |
| | 30 |
| | 30 |
| | 30 |
| Rated operating short-circuit breaking capacity Ics(kA) | AC 230V/240V 50 |
| | 75 |
| | 5 0 |
| | 75 |
| | AC 400V/415V 36 |
| | 50 |
| | 3 6 |
| | 50 |
| | AC 690V 30 |
| | 30 |
| | 30 |
| | 30 |
| Comply with standards | IEC/EN 60947-2，GB/T 14048.2 |
| Optional type | A |
| < /td> | A |
| Isolation function | ■ |
| Use Working environment temperature | -35℃～+70℃ |
| Arc distance (mm) | ≤100 |
| | ≤100 |
| Mechanical life/time | With maintenance 10000 |
| | 10000 |
| | Maintenance-free 5000 |
| | 5000 |
| Electrical life/time | AC415V, In 2500 |
| | 2500 |
| | AC690V, In 1000 |
| | 1000 |
| Thermal magnetic tripper | Distribution protection ■ |
| | Motor protection ■ |
| | Front coupling plate ■ |
| | Manual operating mechanism ■ |
| | Electric operating mechanism ■ |
| | Alternate arc plates ■ |
| | Handle lock ■ |
| External accessories | Auxiliary contacts ■ |
| | Alarm contact ■ |
| | Alarm contact ■ |
| | Shunt release ■ |
| | Undervoltage release ■ |
| Internal accessories | |
| Outline dimensions (mm) Width (3P/4P) | 210/280 |
| | 210/280 |
| Height (H) | 286 |
| | | 286 |
| Deep(D) | 167 |
| | 167 |
