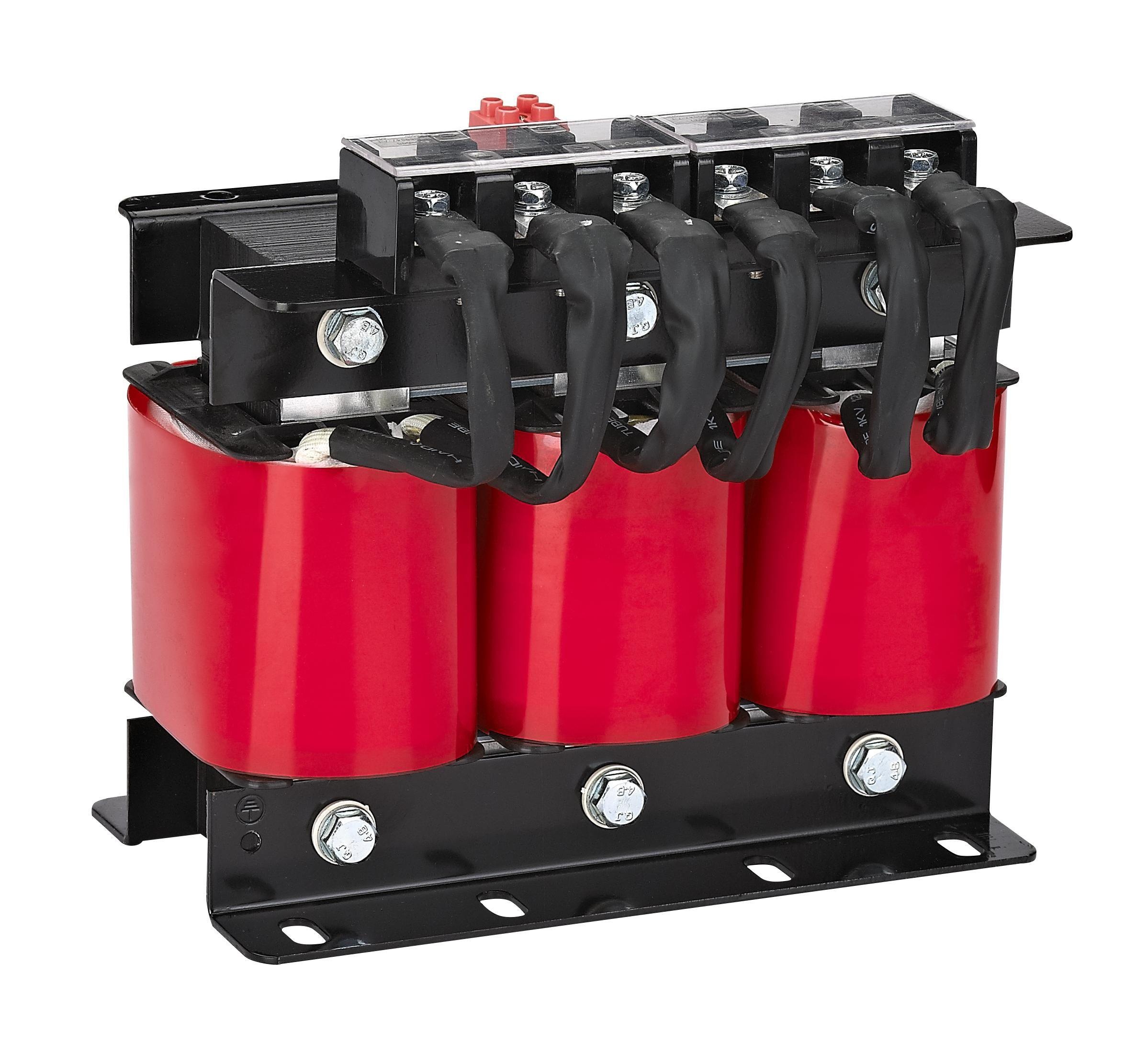

CKSG2 Series Three-phase Series Reactor

Product category:: Series reactor
Product code:: P-588
Model:: CKSG2

Function & Use (Application Scenarios)

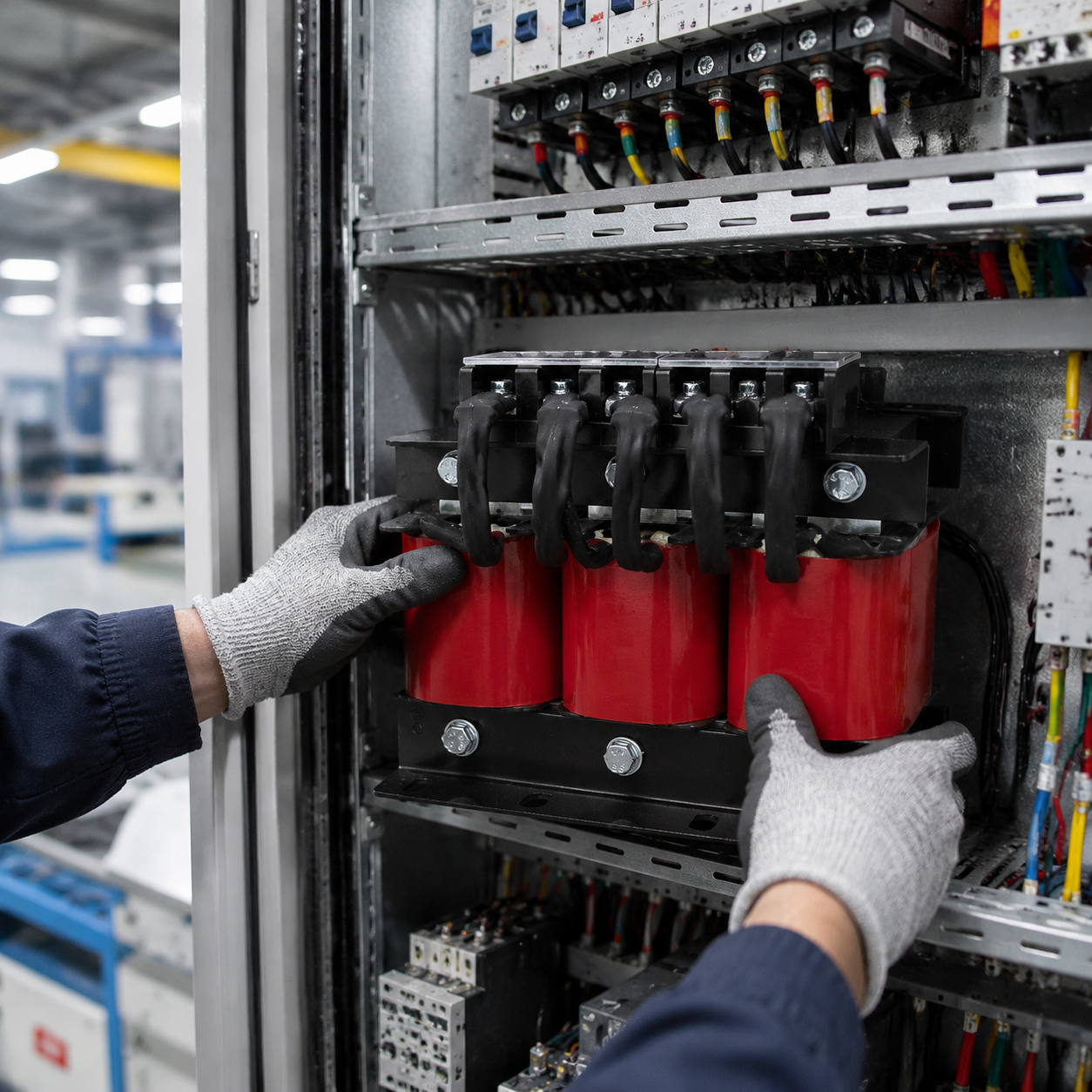

Power electrical appliances and reactor products are mainly applicable for use with low-voltage capacitors, assembled in low-voltage capacitor compensation cabinets, used to absorb grid harmonics, improve grid power factor, and enhance grid quality

Surprise on inquiry

Product highlights

Harmonic suppression capability
Engineering Application Compatibility
Stable and reliable operation
Easy system integration

Model

CKSG2

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryReactorsSecondary CategorySeries reactor

Product details

Function and Application

CKSG2 series three-phase series reactors are used with low-voltage capacitors and installed in low-voltage capacitor compensation cabinets, used to absorb power grid harmonics, improve the power factor of the power grid, and improve the power grid quality.

Detail Parameters

Parameter Table 1

Parameter Category	Parameter Item	Parameter Value
External Installation Dimensions	A±3
	Bmax
	C±3
	Dmax
	Emax
	F
	J
	V
	1:2

Parameter Table 2

Parameter Category	Parameter Item	Parameter Value
Reactor Capacity	kvar	0.7, 0.84, 0.98, 1.05, 1.12, 1.4, 1.75, 2.1, 2.45, 2.8, 3.15, 3.5, 4.2, 4.9, 5.6
Rated Voltage	kV	0.45
Reactance Rate	%	7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7
Matching Capacitor Capacity	kvar	10, 12, 14, 15, 16, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80
External Dimensions (mm)	Bmax	182, 225, 225, 225, 225, 225, 225, 242, 252, 252, 252, 252, 282, 320, 320
	Dmax	125, 135, 135, 135, 145, 145, 155, 180, 190, 195, 205, 210, 215, 250, 250
	Emax	185, 185, 185, 185, 185, 185, 185, 220, 220, 220, 225, 225, 260, 330, 330
Installation Dimensions (mm)	A	145, 185, 185, 185, 145, 185, 155, 220, 220, 220, 225, 225, 260, 330, 330
	C	85, 94, 94, 94, 104, 104, 114, 105, 110, 115, 125, 125, 130, 140, 140
Installation Hole (mm)	K	8, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10
	J	15, 20, 20, 20, 20, 20, 20, 20, 20, 20, 20, 20, 20, 20, 20
