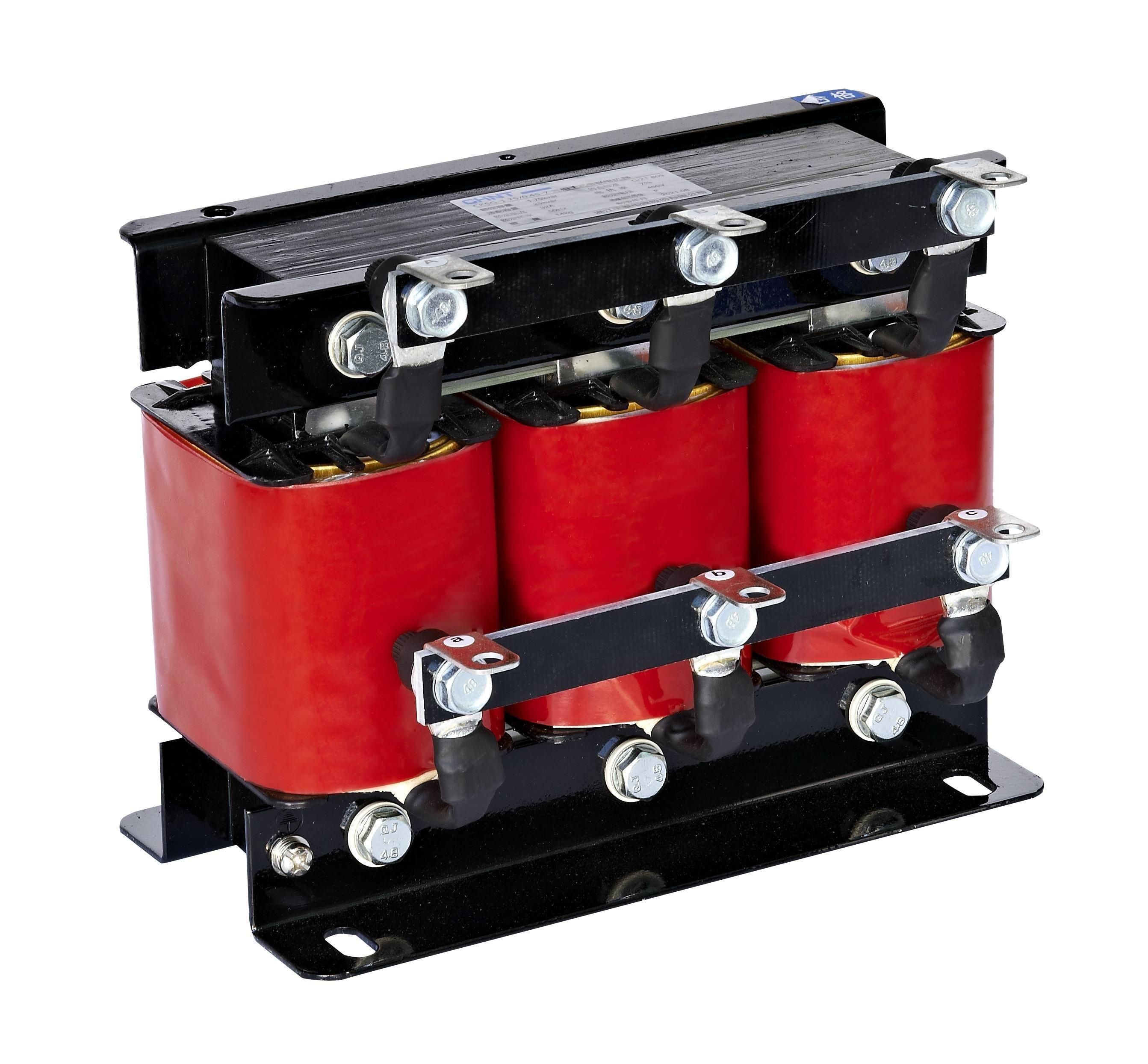

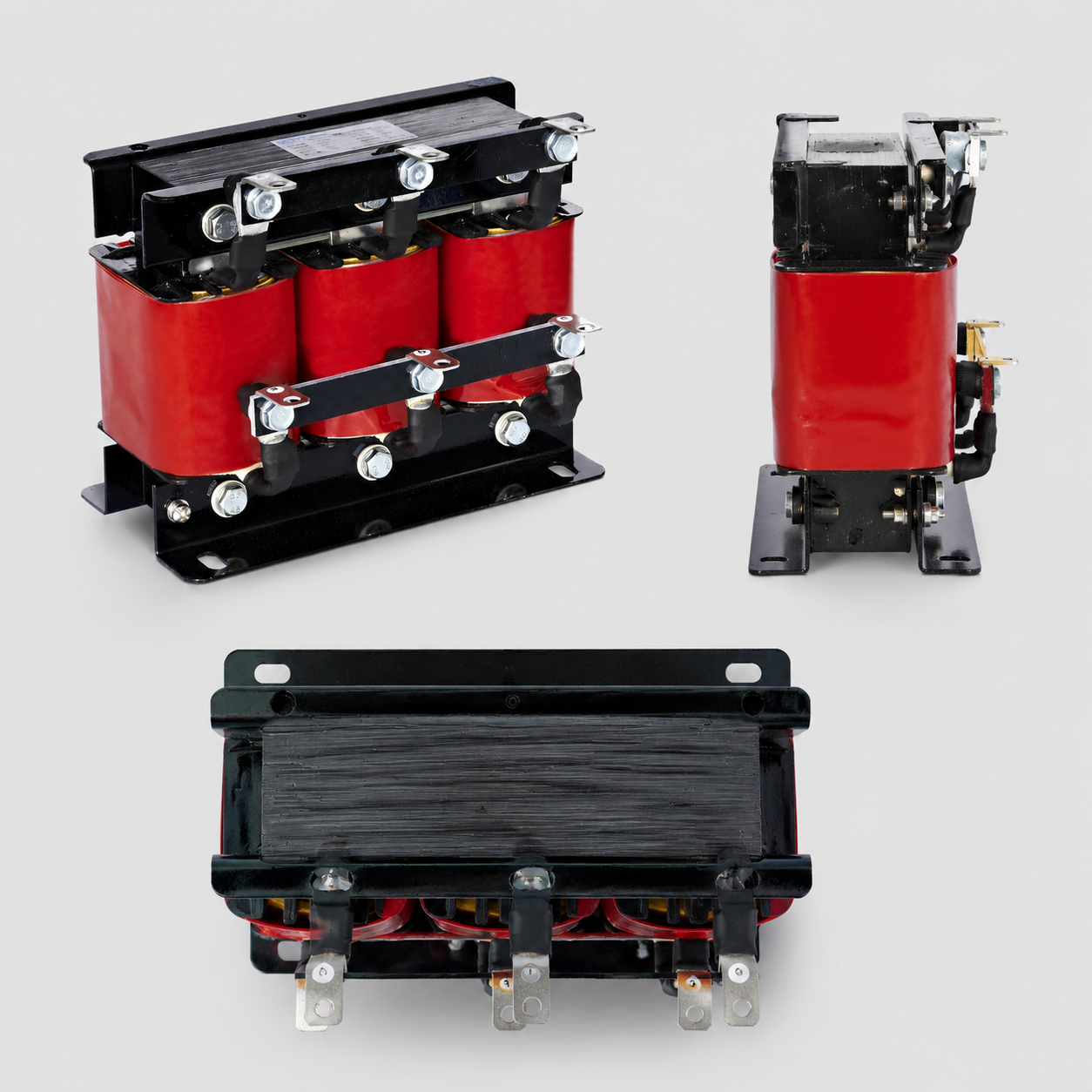

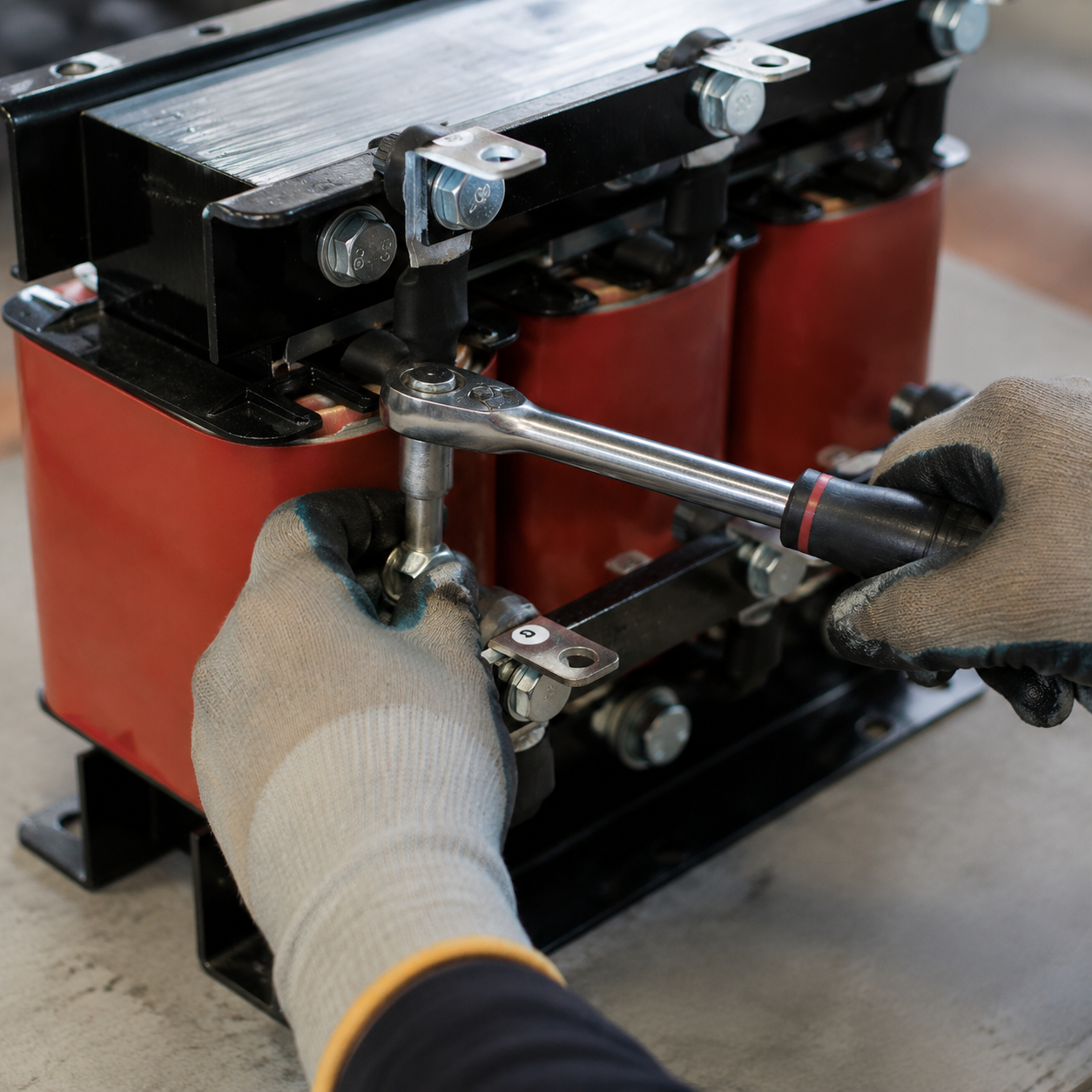

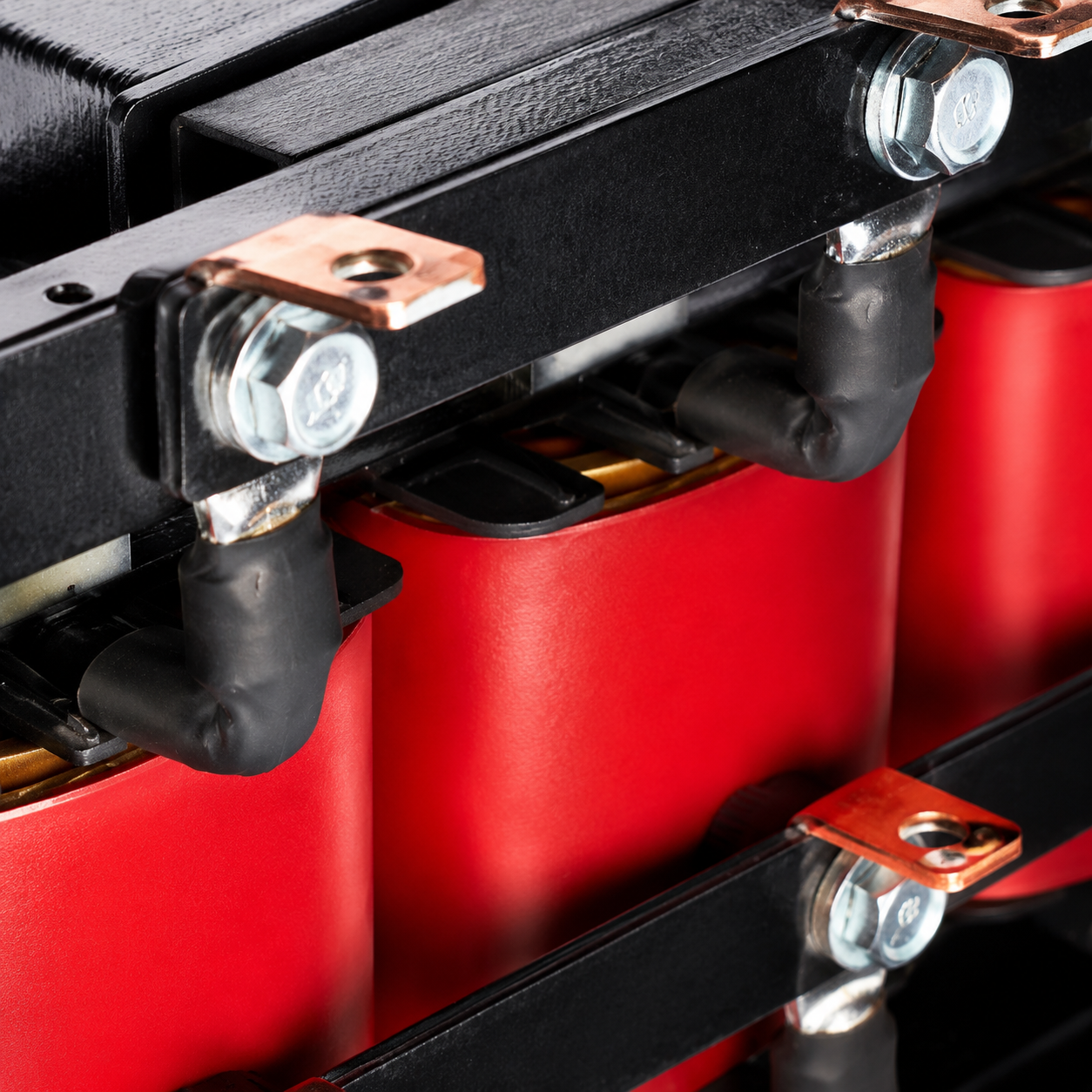

CKSG Series Three-phase Series Reactor

Product category:: Series reactor
Product code:: P-590
Model:

Function & Use (Application Scenarios)

Power electrical appliances and reactor products are mainly applicable for use with low-voltage capacitors, assembled in low-voltage capacitor compensation cabinets, used to absorb grid harmonics, improve grid power factor, and improve grid quality

Surprise on inquiry

Product highlights

Harmonic suppression capability
Engineering Application Compatibility
Stable and reliable operation
Easy system integration

Model

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryReactorSecondary categorySeries Reactor

Product details

Function and Application

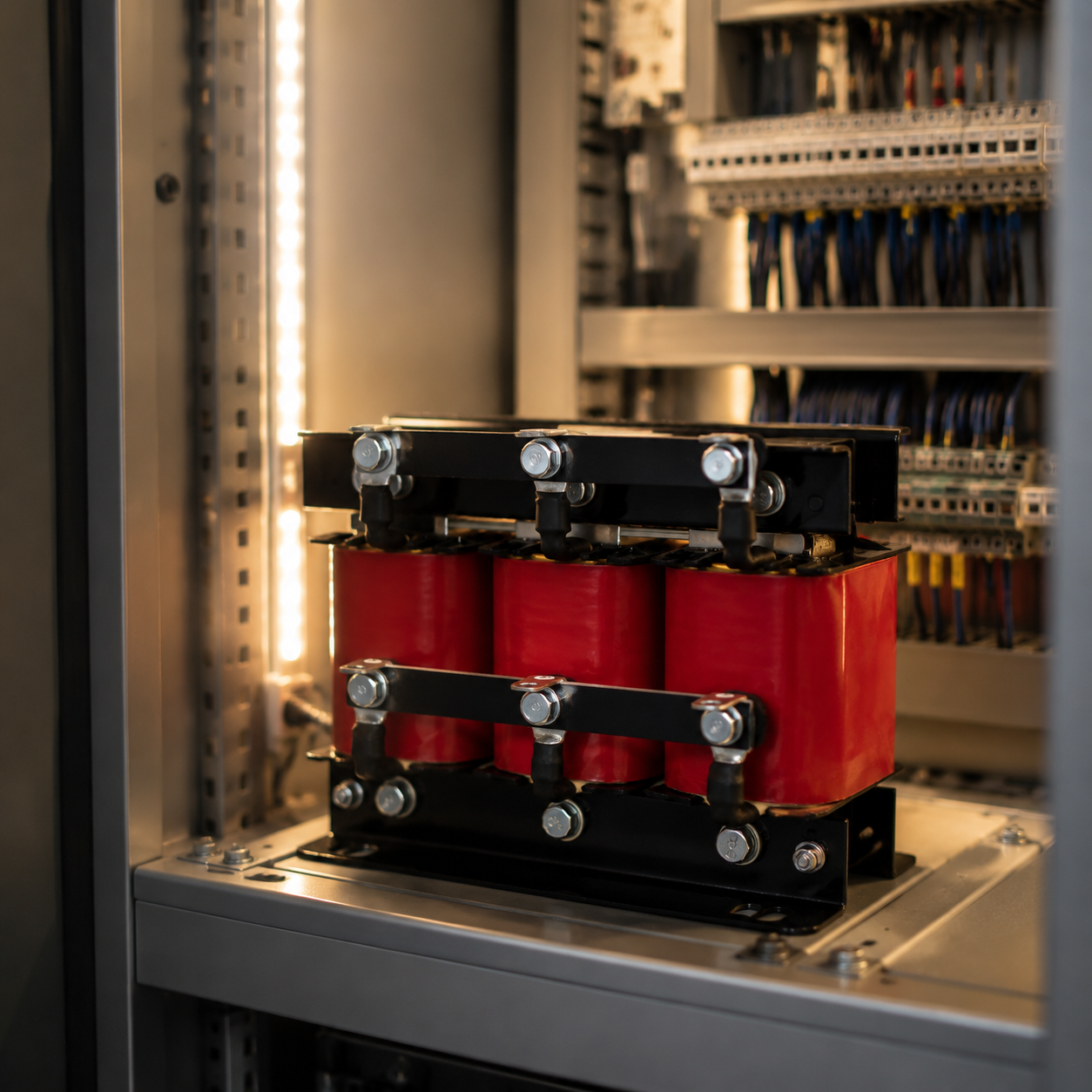

CKSG series three-phase series reactors are used in conjunction with low-voltage capacitors and are installed in low-voltage capacitor compensation cabinets to absorb power grid harmonics, improve the power factor of the power grid, and enhance the quality of the power grid.

Detailed Parameters

Parameter Table 1

Parameter Category	Parameter Item	Parameter Value
Dimensions	A±3	Bmax
	C±5	Dmax
	Emax	-
Installation Dimensions	F	1:1
	CP	-

Parameter Table 2

Parameter Category	Parameter Item	Parameter Value
Reactor Capacity	kvar	0.35, 0.525, 0.7, 0.84, 0.98, 1.05, 1.12, 1.4, 1.75, 2.1, 2.45, 2.8, 3.15, 3.5, 4.2, 4.9, 5.6
Rated Voltage	kV	0.45
Reactance Rate	%	7
Matching Capacitor Capacity	kvar	5, 7.5, 10, 12, 14, 15, 16, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80
Dimensions (mm)	Bmax	162, 162, 182, 225, 225, 225, 225, 225, 225, 242, 252, 252, 252, 252, 282, 322, 322
	Dmax	100, 120, 150, 170, 170, 170, 180, 180, 180, 185, 190, 190, 200, 215, 220, 230, 230
	Emax	170, 170, 165, 180, 180, 180, 180, 180, 180, 190, 195, 190, 200, 200, 200, 230, 230
Installation Dimensions (mm)	A	130, 130, 145, 200, 200, 200, 200, 200, 200, 200, 210, 210, 200, 210, 235, 330, 330
	C	75, 95, 85, 94, 94, 94, 104, 104, 114, 105, 110, 115, 120, 125, 135, 138, 138
	K	8, 8, 8, 8, 8, 8, 8, 8, 8, 10, 10, 10, 10, 10, 10, 10, 10
	J	15, 15, 15, 15, 15, 15, 15, 15, 15, 20, 20, 20, 20, 20, 20, 20, 20

Requirement confirmation

Application, rating, quantity and drawings are checked first.

Factory matching

Supplier capacity, certificates and production slot are reviewed.

Order transaction

Confirm commercial terms, sign the commercial contract, and confirm the related document checklist.

Shipment control

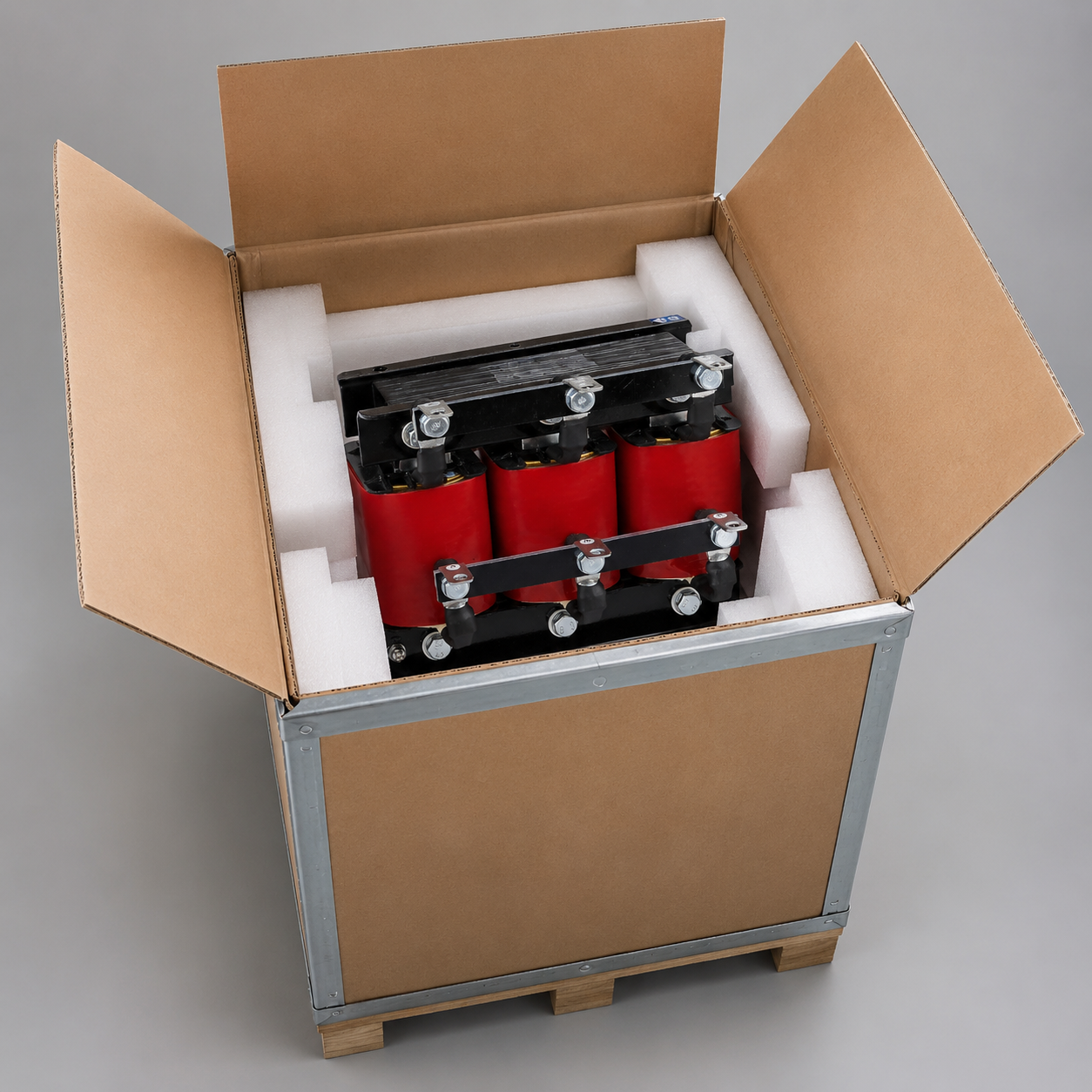

Packing photos, inspection records and delivery status are tracked.
