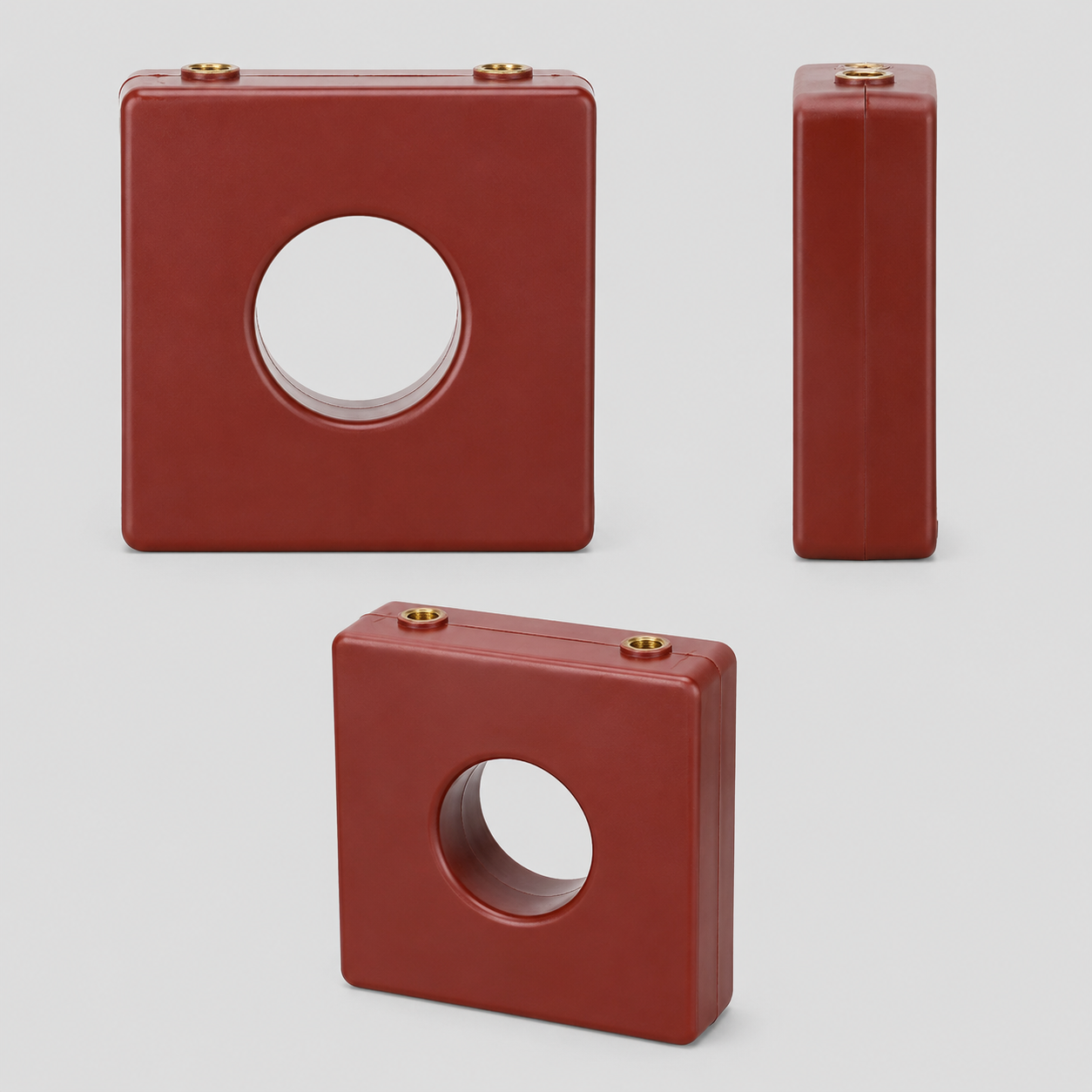

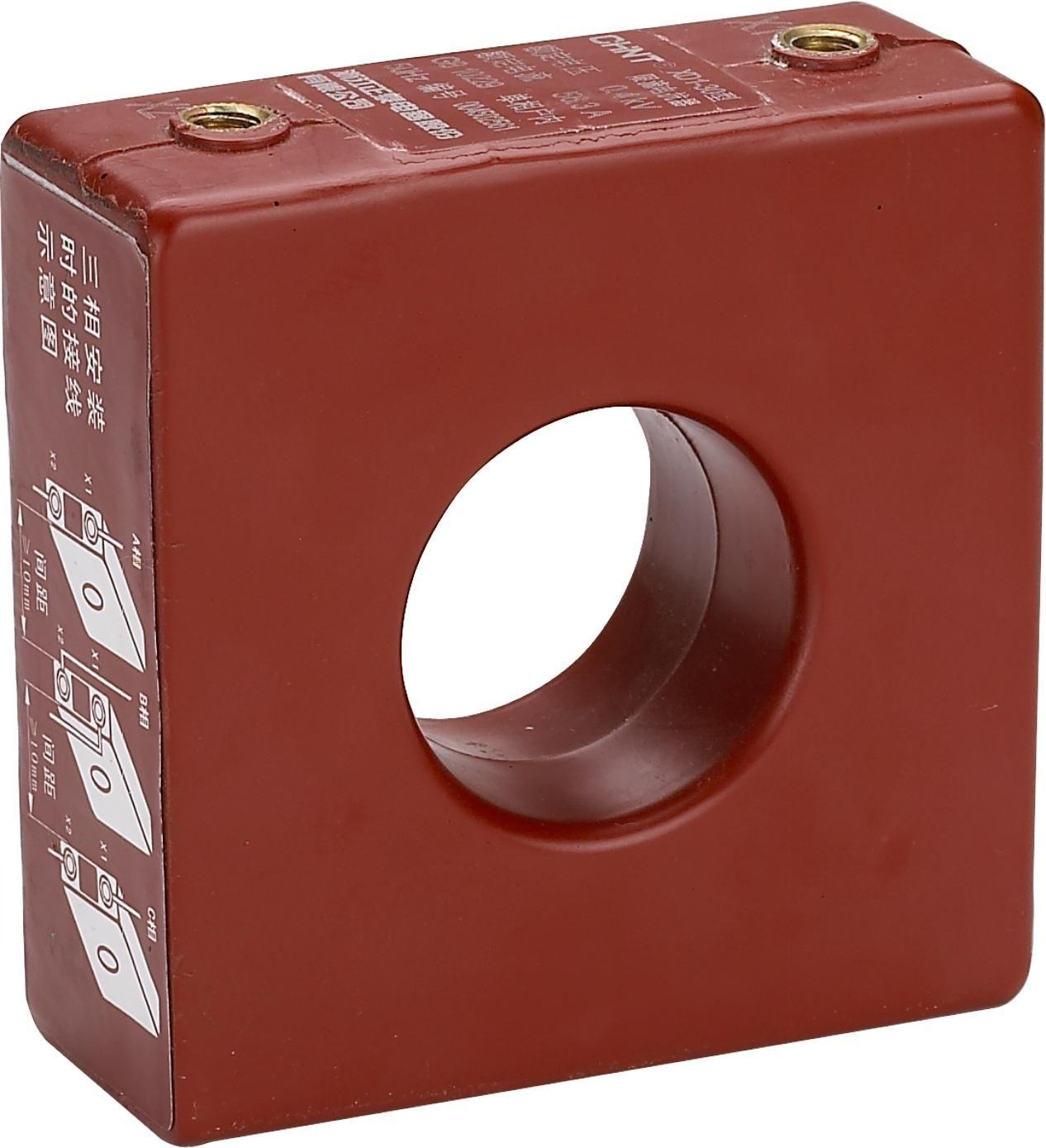

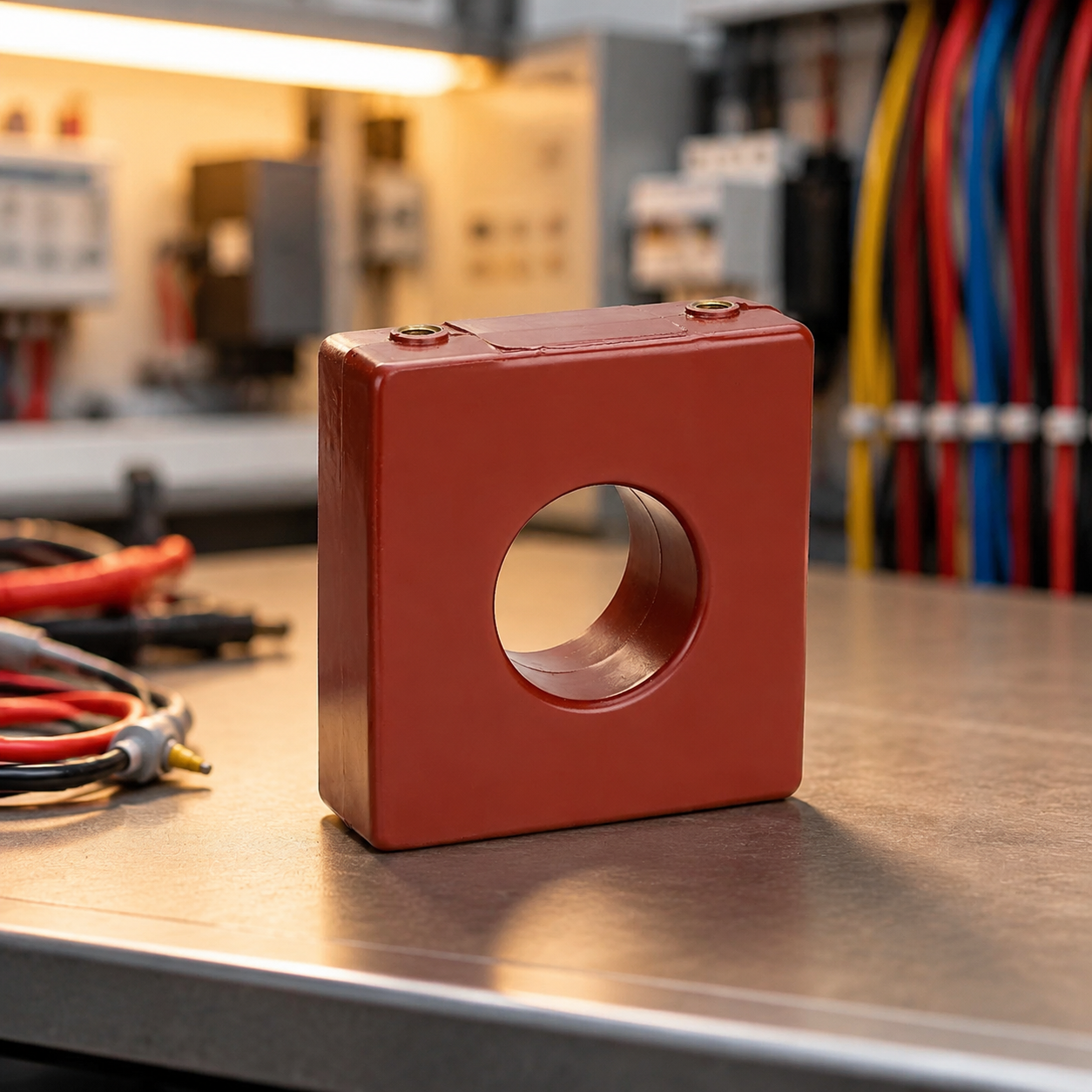

XD1 Current Limiting Reactor

XD1 Current Limiting Reactor

Product category:
Current limiting reactor
Product code:
P-591
Model:
XD1

Function & Use (Application Scenarios)

Power electrical appliances and reactor products are mainly applicable to indoor cast dry-type hollow reactors with a rated frequency of 50Hz and a rated voltage not exceeding 0.4kV. The reactors can be installed in low-voltage capacitor compensation cabinets and connected in series with shunt capacitors to limit the capacitors.

Surprise on inquiry

Product highlights

  • Engineering Application Compatibility
  • Stable and reliable operation
  • Easy system integration

Model

XD1
Request a QuoteChat on WhatsApp

Main Product Parameters

CategoryReactorSecondary CategoryCurrent-limiting reactor

Product details

Function and Application

XD1 current-limiting reactor is suitable for indoor cast dry-type hollow reactors with a rated frequency of 50Hz and a rated voltage not exceeding 0.4kV. The reactor can be installed in low-voltage capacitor compensation cabinets, connected in series with parallel capacitors to limit the switching inrush current of the capacitors and the external inrush current caused by the switching of adjacent capacitors.

Detailed Parameters

Parameter CategoryParameter ItemParameter Value
Product ModelXD1-12
Rated Current A17.3
Three-phase Capacitor Capacity kvar12
External Dimensions and Installation Size
Product ModelXD1-14
Rated Current A20.2
Three-phase Capacitor Capacity kvar14
External Dimensions and Installation Size
Product ModelXD1-15
Rated Current A21.7
Three-phase Capacitor Capacity kvar15
External Dimensions and Installation Size
Product ModelXD1-16
Rated Current A23.1
Three-phase Capacitor Capacity kvar16
External Dimensions and Installation Size
Product ModelXD1-18
Rated Current A26.0
Three-phase Capacitor Capacity kvar18
External Dimensions and Installation Size
Product ModelXD1-20
Rated Current A28.9
Three-phase Capacitor Capacity kvar20
External Dimensions and Installation Size
Product ModelXD1-25
Rated Current A36.1
Three-phase Capacitor Capacity kvar25
External Dimensions and Installation Size
Product ModelXD1-30
Rated Current A43.3
Three-phase Capacitor Capacity kvar30
External Dimensions and Installation Size
Product ModelXD1-35
Rated Current A50.5
Three-phase Capacitor Capacity kvar35
External Dimensions and Installation Size
Product ModelXD1-40
Rated Current A57.7
Three-phase Capacitor Capacity kvar40
External Dimensions and Installation Size
