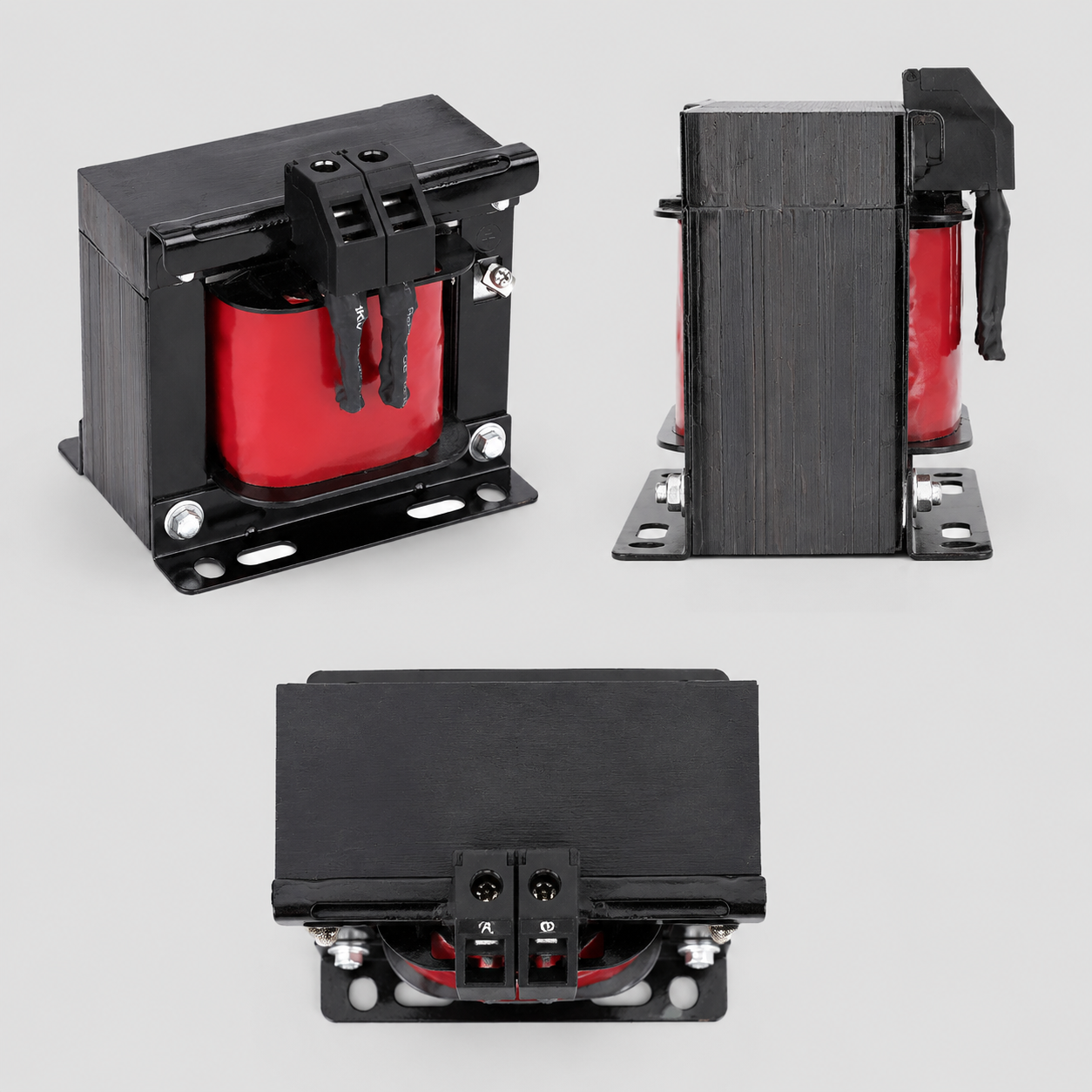

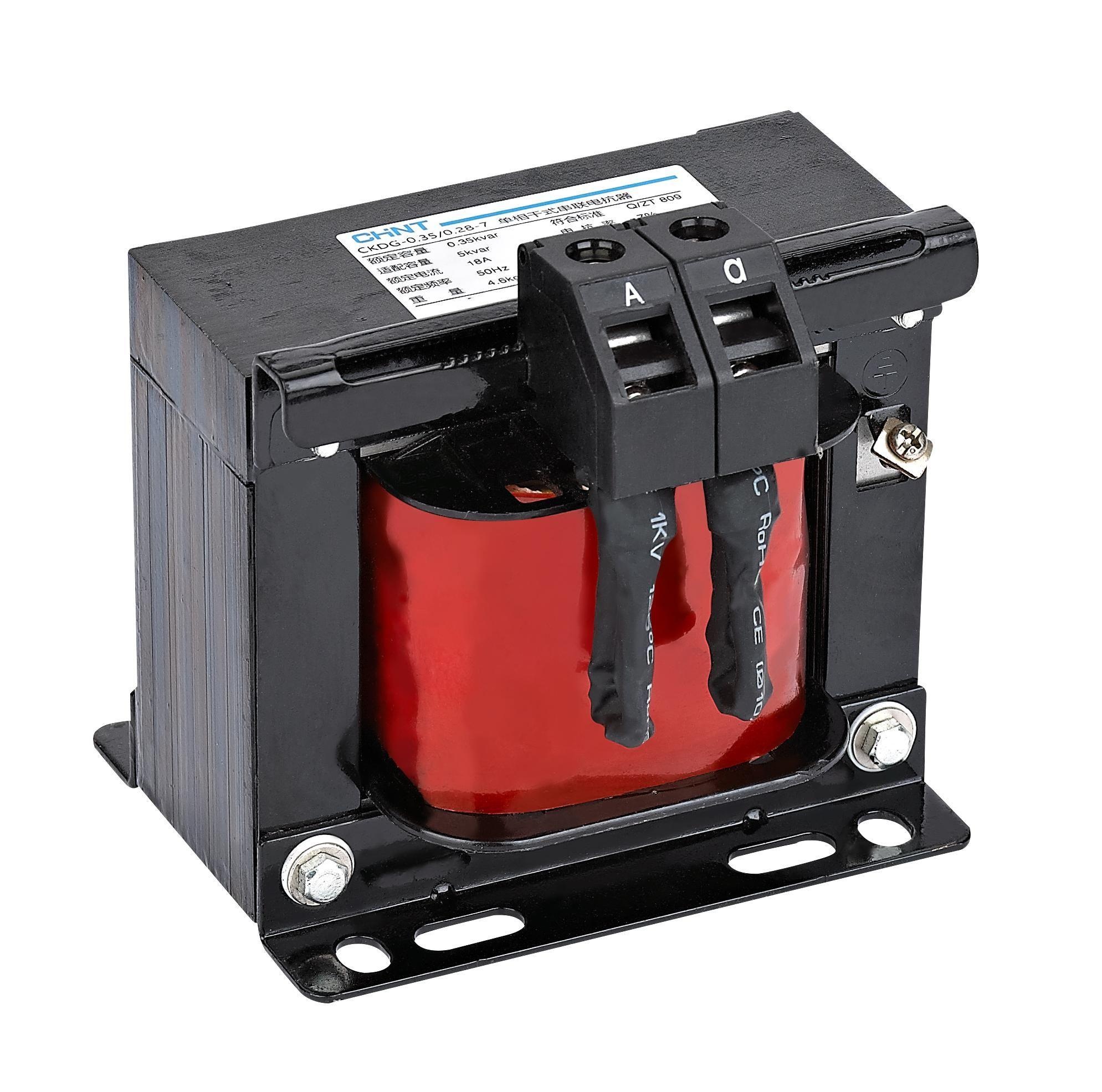

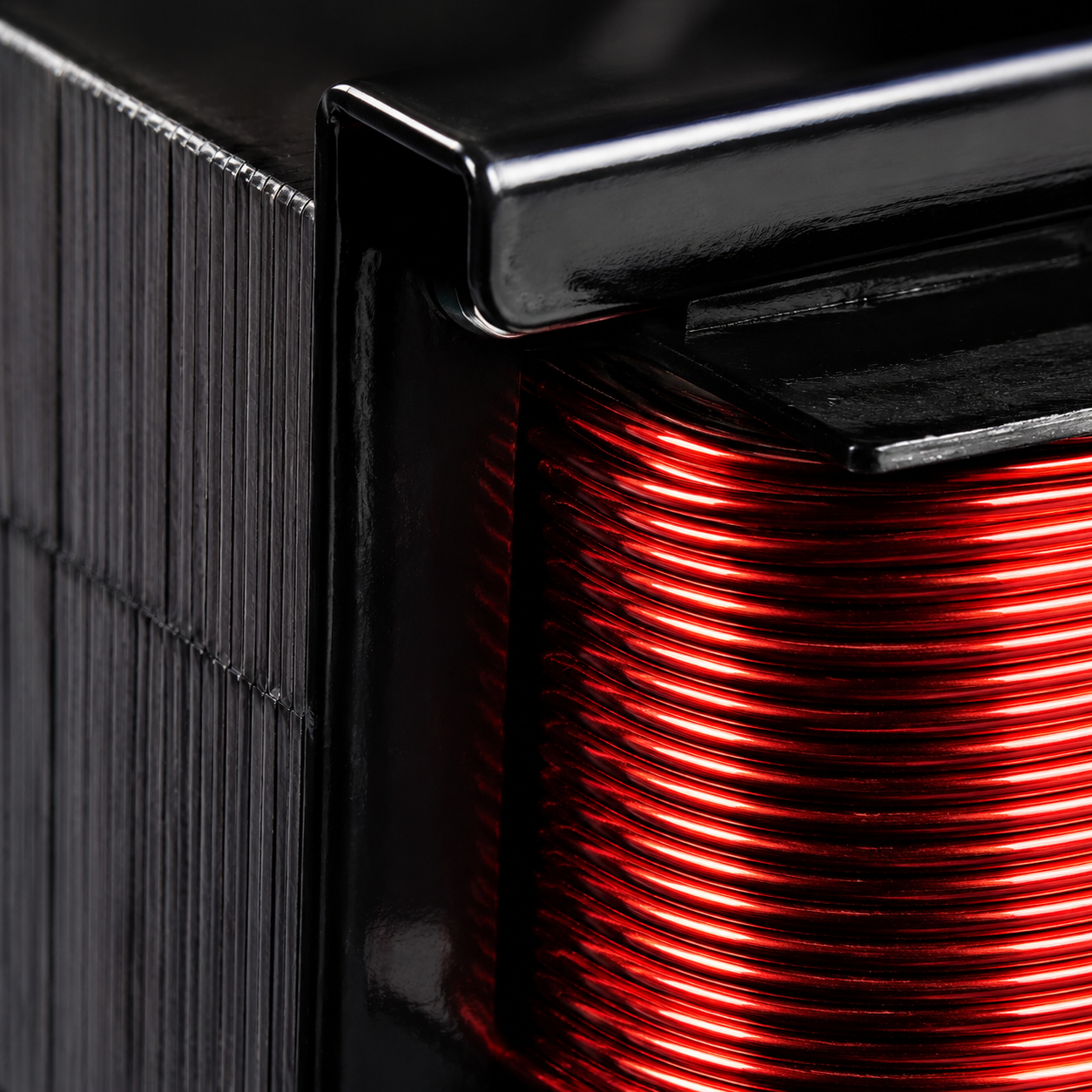

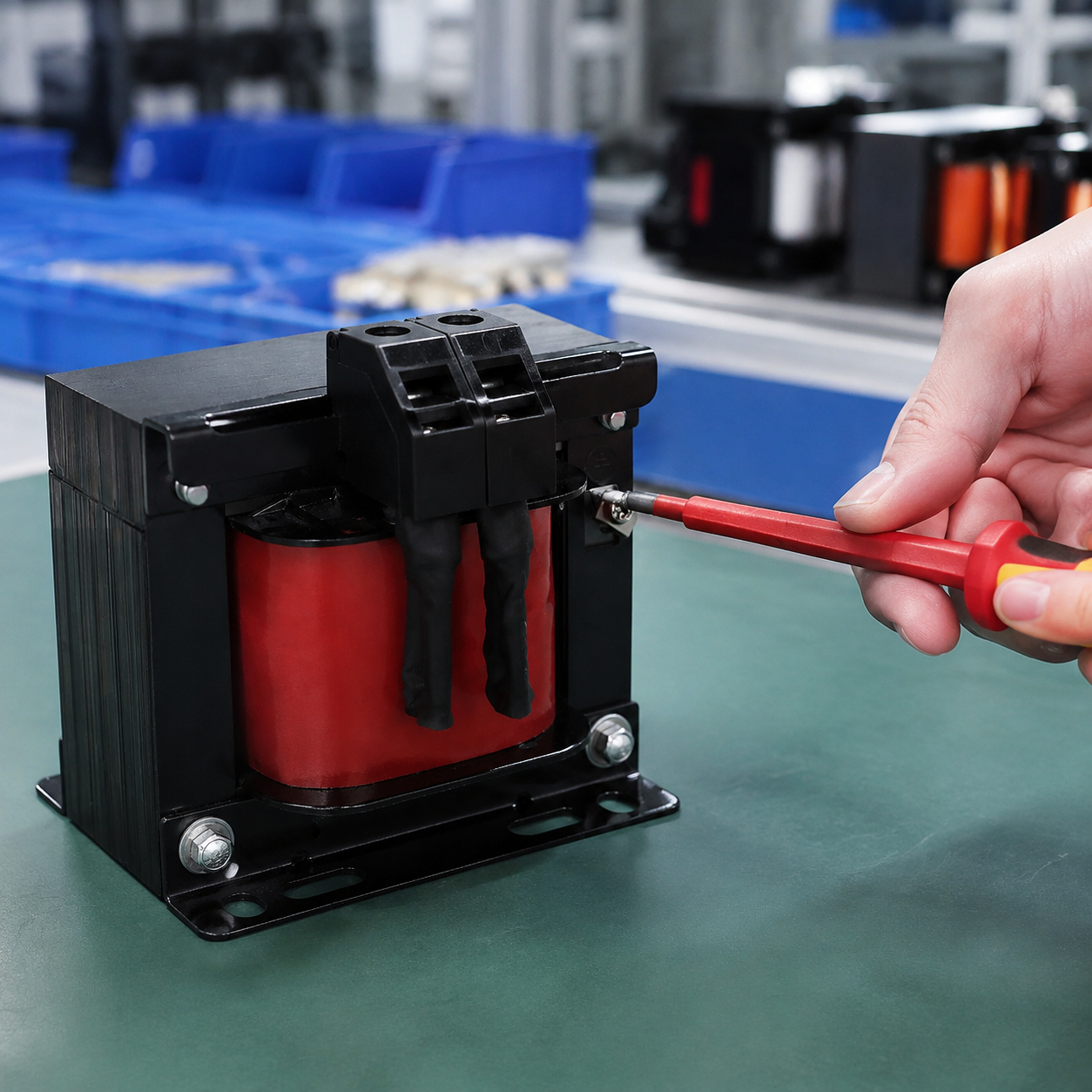

CKDG Series Single-phase Series Reactor

Product category:: Series reactor
Product code:: P-593
Model:

Function & Use (Application Scenarios)

Power electrical appliances and reactor products are mainly used for use with low-voltage phase-separated compensation capacitors or single-phase capacitors, and are assembled in low-voltage capacitor compensation cabinets, used to absorb grid harmonics, improve grid power factor, and improve grid quality

Surprise on inquiry

Product highlights

Harmonic suppression capability
Engineering Application Compatibility
Stable and reliable operation
Easy system integration

Model

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryReactorSecondary CategorySeries Reactor

Product details

Function and Purpose

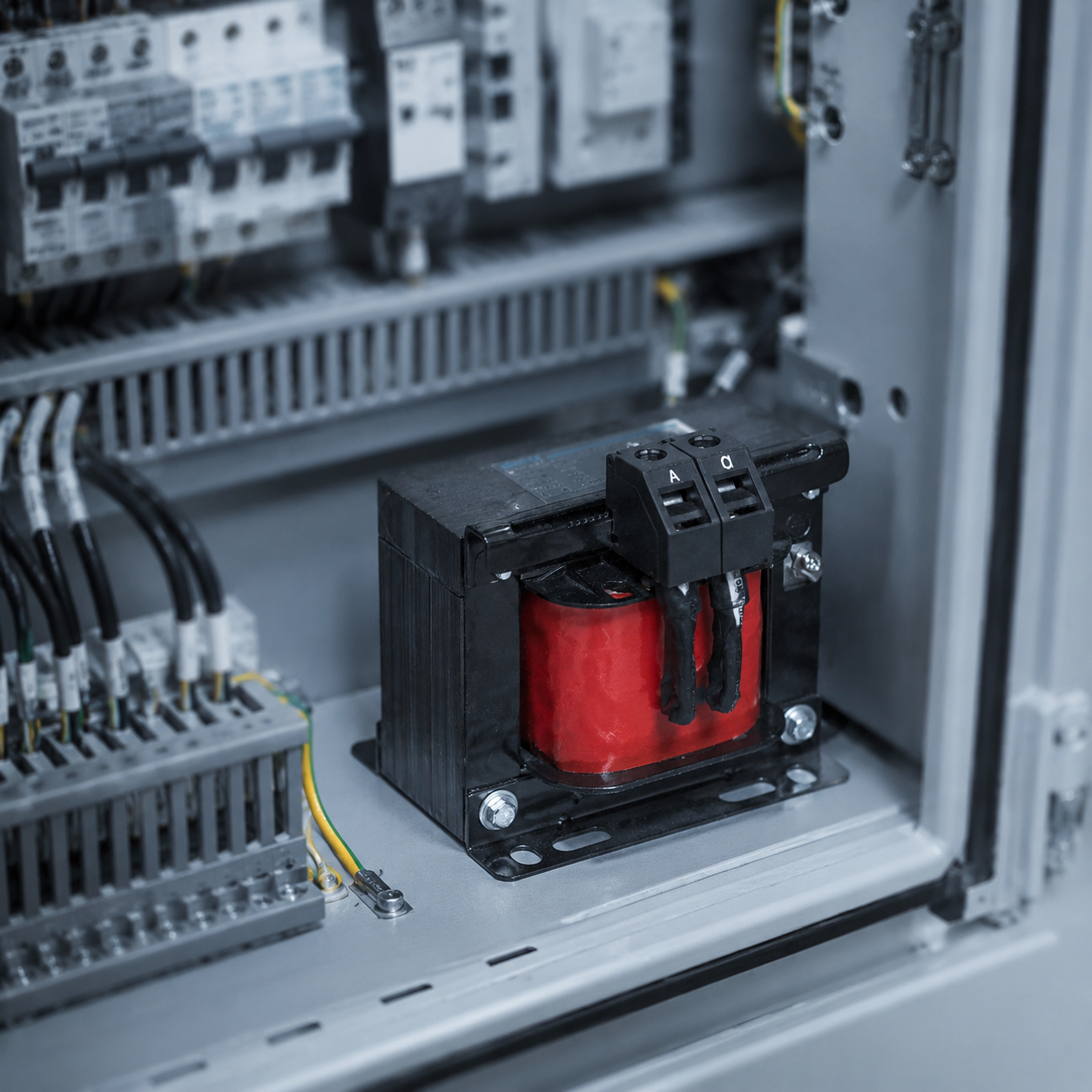

CKDG series single-phase series reactors are used in conjunction with low-voltage phase-separated compensation capacitors or single-phase capacitors, and are installed in low-voltage capacitor compensation cabinets, used to absorb power grid harmonics, improve the power factor of the power grid, and improve the power grid quality.

Details

Table 1

Parameter Category	Parameter Item	Parameter Value
Outline Installation Dimensions	A±2	Bmax
	C±3	Dmax
	Emax	F
	F/1:1	Ø10

Table 2

Parameter Category	Parameter Item	Parameter Value
	Model	CKDG-0.12/ □ -7
	Reactor Capacity kvar	0.12
	Reactance Rate %	7
	Matching Capacitor Capacity kvar	1.66
	Outline Dimensions (mm) Bmax	102
	Outline Dimensions (mm) Dmax	105
	Outline Dimensions (mm) Emax	115
	Installation Dimensions A	85
	Installation Dimensions C	66
	Model	CKDG-0.18/ □ -7
	Reactor Capacity kvar	0.18
	Reactance Rate %	7
	Matching Capacitor Capacity kvar	2.5
	Outline Dimensions (mm) Bmax	102
	Outline Dimensions (mm) Dmax	113
	Outline Dimensions (mm) Emax	115
	Installation Dimensions A	85
	Installation Dimensions C	74
	Model	CKDG-0.23/ □ -7
	Reactor Capacity kvar	0.23
	Reactance Rate %	7
	Matching Capacitor Capacity kvar	3.33
	Outline Dimensions (mm) Bmax	102
	Outline Dimensions (mm) Dmax	125
	Outline Dimensions (mm) Emax	115
	Installation Dimensions A	85
	Installation Dimensions C	85
	Model	CKDG-0.35/ □ -7
	Reactor Capacity kvar	0.35
	Reactance Rate %	7
	Matching Capacitor Capacity kvar	5.0
	Outline Dimensions (mm) Bmax	128
	Outline Dimensions (mm) Dmax	125
	Outline Dimensions (mm) Emax	135
	Installation Dimensions A	100
	Installation Dimensions C	79
	Model	CKDG-0.47/ □ -7
	Reactor Capacity kvar	0.47
	Reactance Rate %	7
	Matching Capacitor Capacity kvar	6.66
	Outline Dimensions (mm) Bmax	128
	Outline Dimensions (mm) Dmax	130
	Outline Dimensions (mm) Emax	135
	Installation Dimensions A	100
	Installation Dimensions C	84
	Model	CKDG-0.58/ □ -7
	Reactor Capacity kvar	0.58
	Reactance Rate %	7
	Matching Capacitor Capacity kvar	8.33
	Outline Dimensions (mm) Bmax	146
	Outline Dimensions (mm) Dmax	180
	Outline Dimensions (mm) Emax	175
	Installation Dimensions A	110
	Installation Dimensions C	114
	Model	CKDG-0.7/ □ -7
	Reactor Capacity kvar	0.7
	Reactance Rate %	7
	Matching Capacitor Capacity kvar	10.0
	Outline Dimensions (mm) Bmax	146
	Outline Dimensions (mm) Dmax	180
	Outline Dimensions (mm) Emax	175
	Installation Dimensions A	110
	Installation Dimensions C	114
	Model	CKDG-0.93/ □ -7
	Reactor capacity kvar	0.93
	Reactance rate %	7
	Matching capacitor capacity kvar	13.33
	Overall dimensions (mm) Bmax	171
	Overall dimensions (mm) Dmax	190
	Overall dimensions (mm) Emax	190
	Installation dimensions A	125
	Installation dimensions C	101

Requirement confirmation

Application, rating, quantity and drawings are checked first.

Factory matching

Supplier capacity, certificates and production slot are reviewed.

Order transaction

Confirm commercial terms, sign the commercial contract, and confirm the related document checklist.

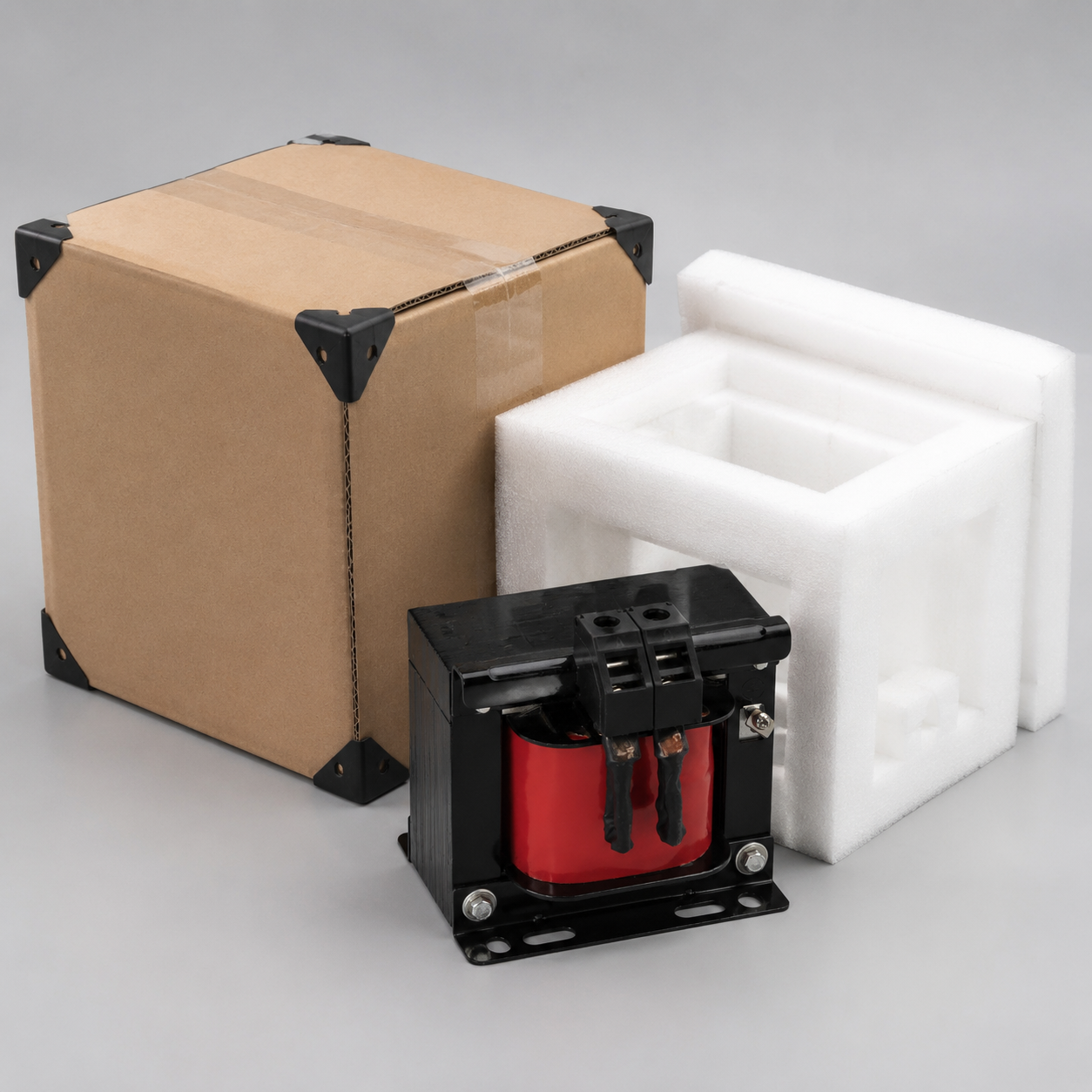

Shipment control
