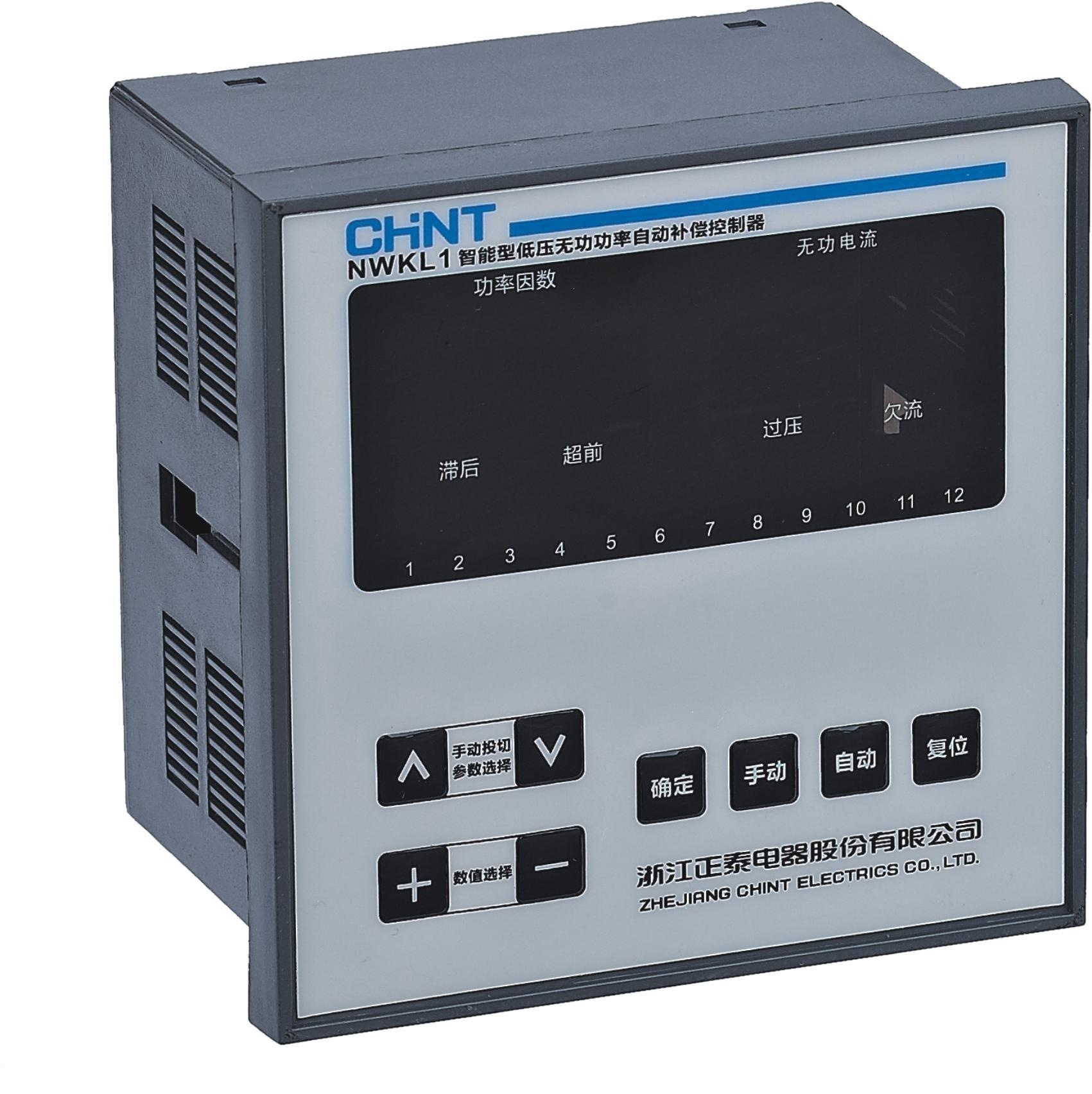

NWKL1 Series Intelligent Low Voltage Reactive Power Automatic Compensation Controller

Product category:: Parallel capacitor bank
Product code:: P-626
Model:: NWKL1

Function & Use (Application Scenarios)

Power electrical appliances, reactive power compensation controller products are mainly applicable to (referred to as controller) and low-voltage parallel capacitor screen devices, suitable for engineering support, installation and maintenance, and long-term stable operation, meeting the needs of on-site electrical system applications.

Surprise on inquiry

Product highlights

Reactive power compensation support
Smart Communication Support
Control response is stable
Engineering Application Compatibility
Stable and reliable operation

Model

NWKL1

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryReactive power compensation deviceSecondary categoryShunt Capacitor Bank

Product details

Function and Use

The NWKL1 series intelligent low-voltage reactive power automatic compensation controller (referred to as the controller) is used in conjunction with low-voltage parallel capacitor screen devices,

Detailed Parameters

Parameter Category	Parameter Item	Parameter Value
Model		NWKL1
System Parameters	Sampled Voltage	AC 380V (±20%)
	Sampled Current	0.15~5A, impedance ≤ 0.1Ω, sampled current has no polarity.
	Rated Frequency	50Hz ±5%
	Engagement Threshold	Self-adaptive greater than 1.1Ic and less than COSΦ preset
	Disengagement Threshold	Leading the COSΦ preset value
	COSΦ Preset	PL engagement power factor, PH disengagement power factor
	Overvoltage Preset	440V~480V adjustable (factory preset 430V)
	Delay Time Preset	10s~180s adjustable (factory preset 20s)
	Working Mode	Automatic, manual cyclic engagement/disengagement
	Control Group Number	4/6, 8/10, 12
	Output Contact Capacity	AC 380V, 3A (resistive) or AC 220V, 5A (resistive)
	Weight	1.0kg
