Function and Application

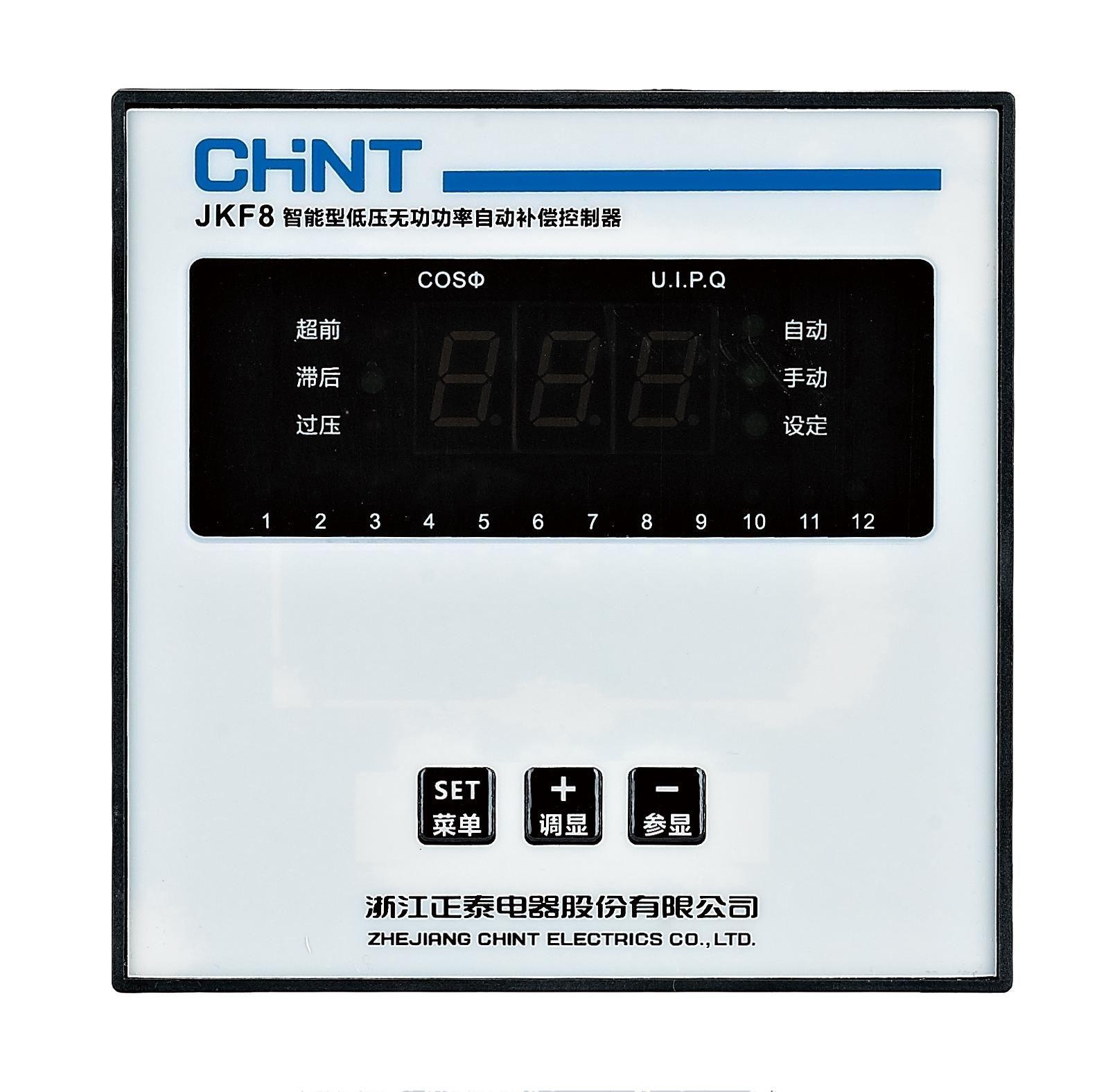

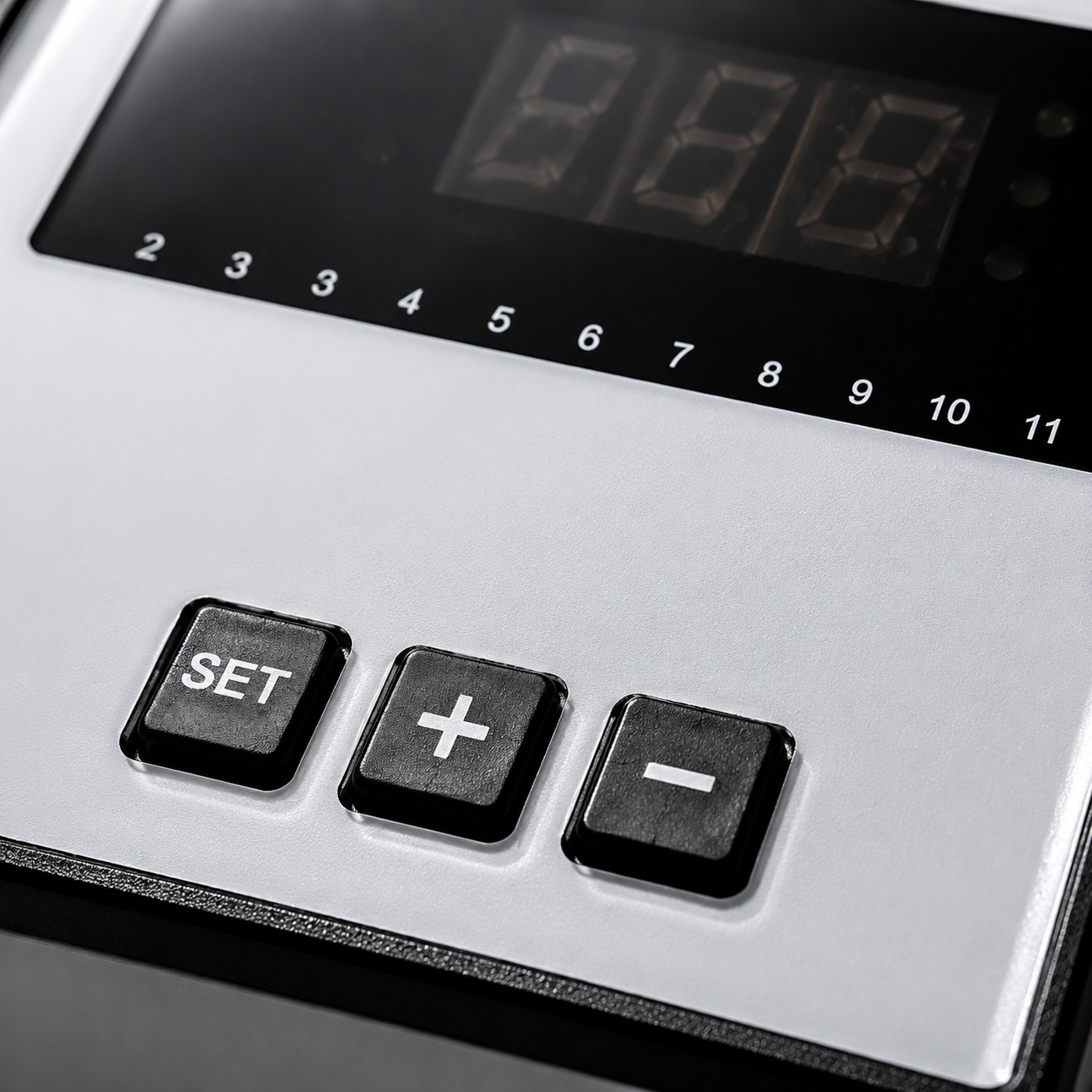

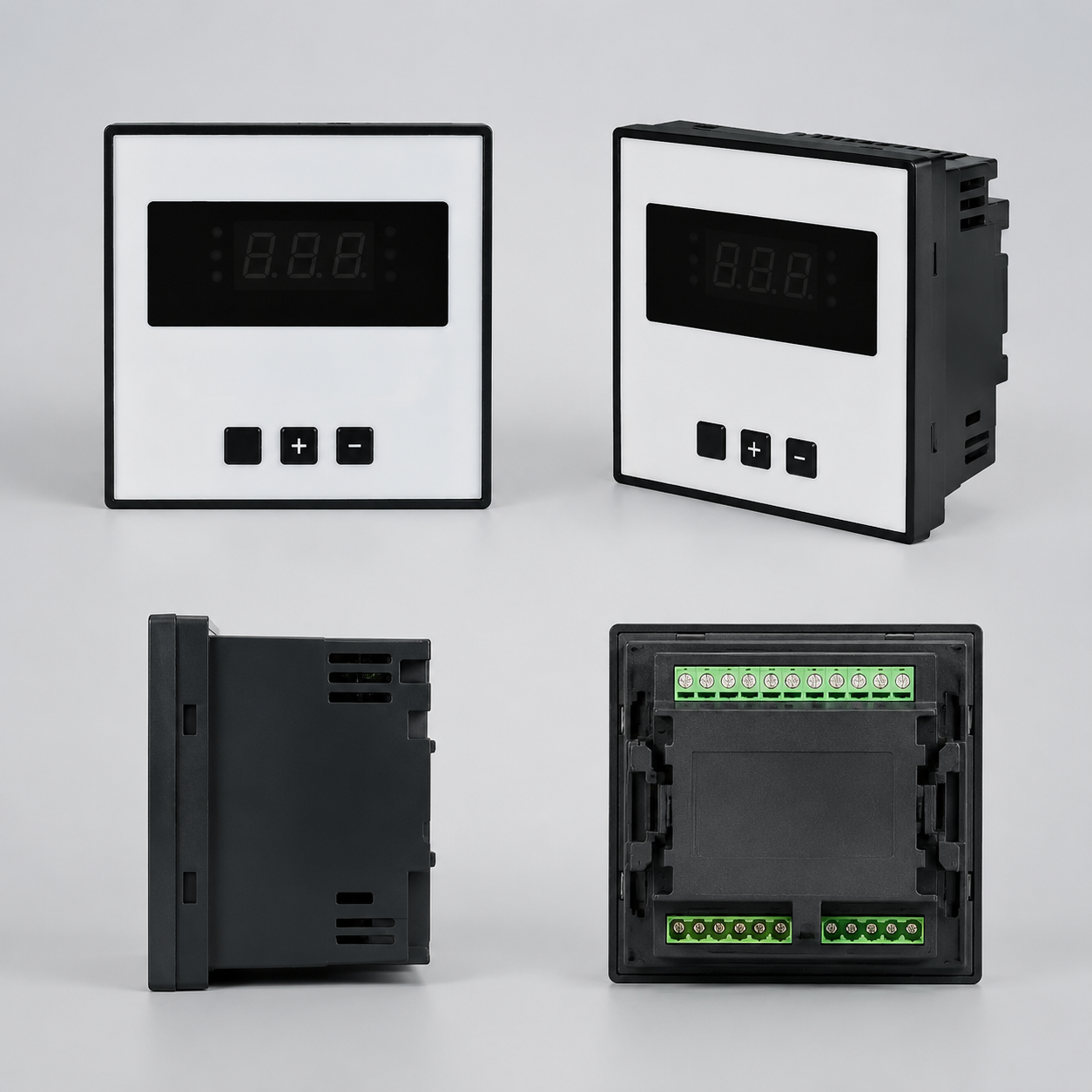

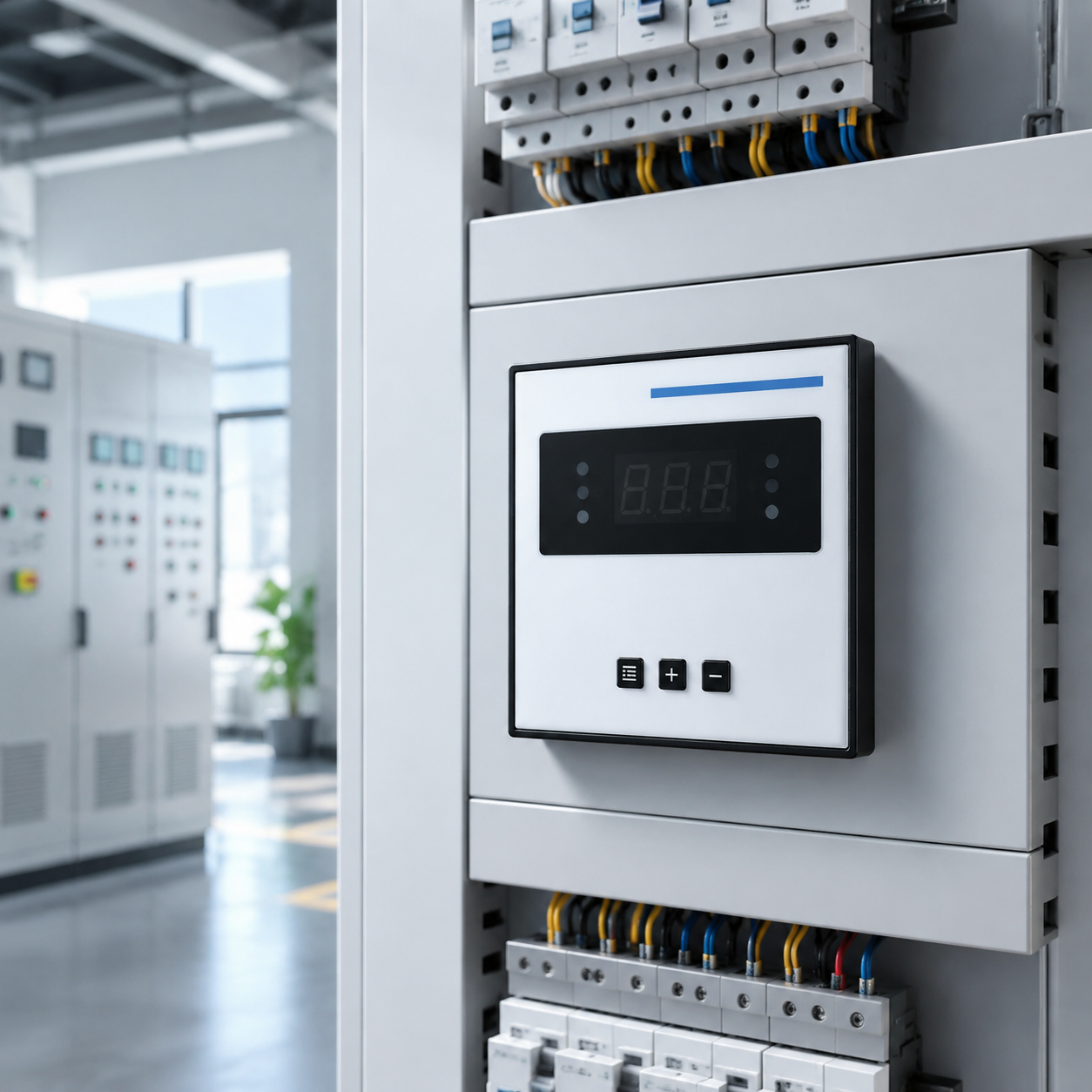

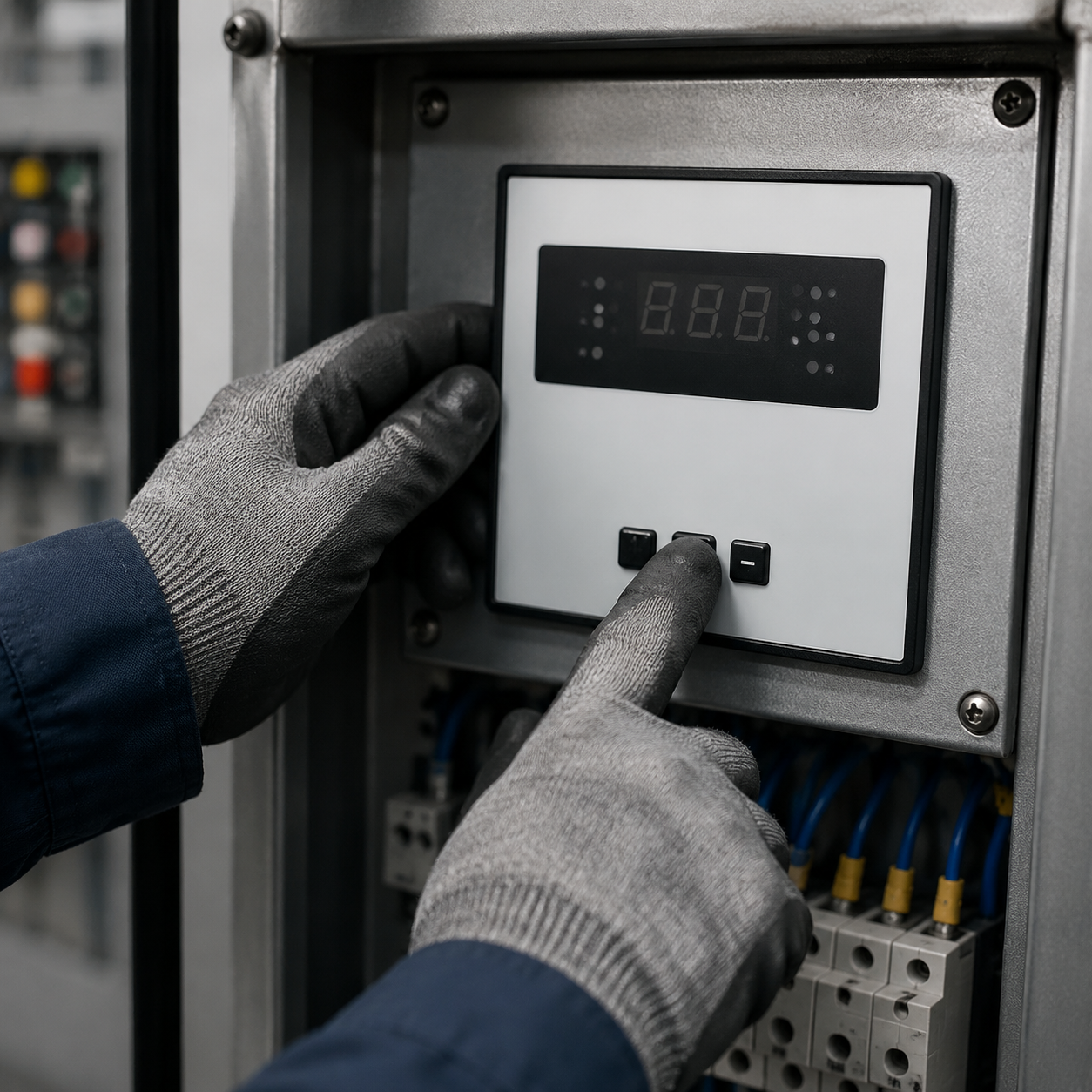

The JKF8 series intelligent low-voltage reactive power automatic compensation controller (referred to as the controller) is used in conjunction with low-voltage parallel capacitor screen devices, suitable for distribution systems with a rated voltage of 380V, AC, 50Hz. It controls the automatic connection and disconnection of parallel capacitors, improves voltage quality, and reduces energy loss. This product has passed the type test by the Power Industry Reactive Compensation Assembled Device Quality Inspection and Testing Center, and its main performance indicators have reached domestic advanced levels. It has a fully automatic mode, a 'dumb' design, and is one of the most cost-effective reactive compensation controllers in China at present.
Detailed Parameters
| Parameter Category | Parameter Item | Parameter Value |
|---|
| System Parameters | Model | JKF8 |
| Sampled Voltage | AC 380V (±20%) |
| Sampled Current | 0.15~5A, impedance 0.2Ω |
| Rated Frequency | 50Hz ±5% |
| Sensitivity | 150mA (minimum sampled current) |
| Parameter Setting Mode | F-O, setting 1 for fully automatic, setting 0 for manual |
| Engagement Threshold | Greater than the preset reactive power value (F-1) |
| Disengagement Threshold | Leading the preset value of cos |
| COSΦ Preset | 0.85~~0.95 continuously adjustable (factory preset 1.00) |
| Overvoltage Preset | 400V~456V adjustable (factory preset 430V) |
| Delay Time Preset | 5s~120s adjustable (factory preset 30s) |
| Working Mode | Automatic, manual cyclic connection/disconnection |
| Control Group Number | 6, 12 |
| Output Contact Capacity | AC 380V, 3A (resistive) or AC 220V, 5A (resistive) |
| Weight | 0.76kg |
