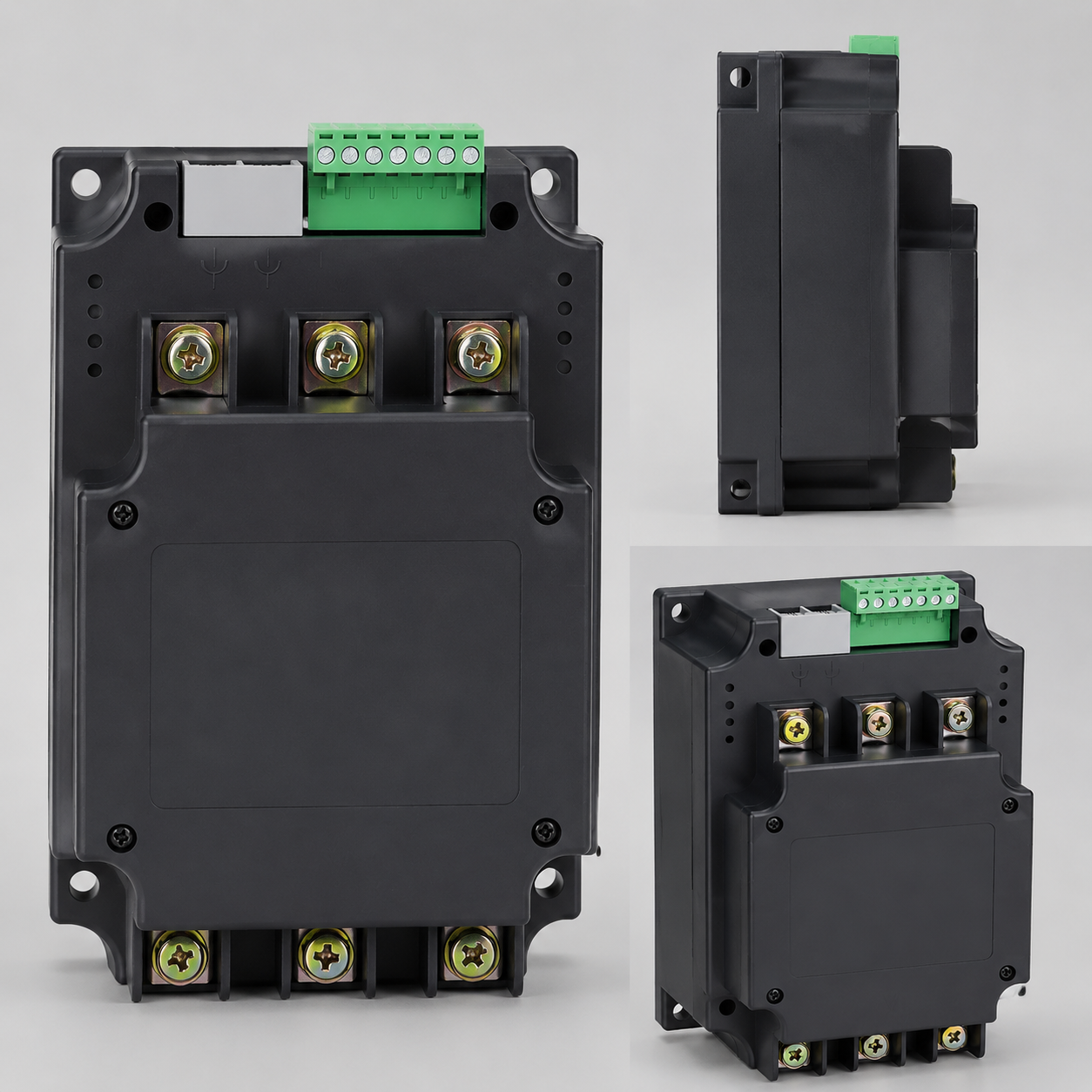

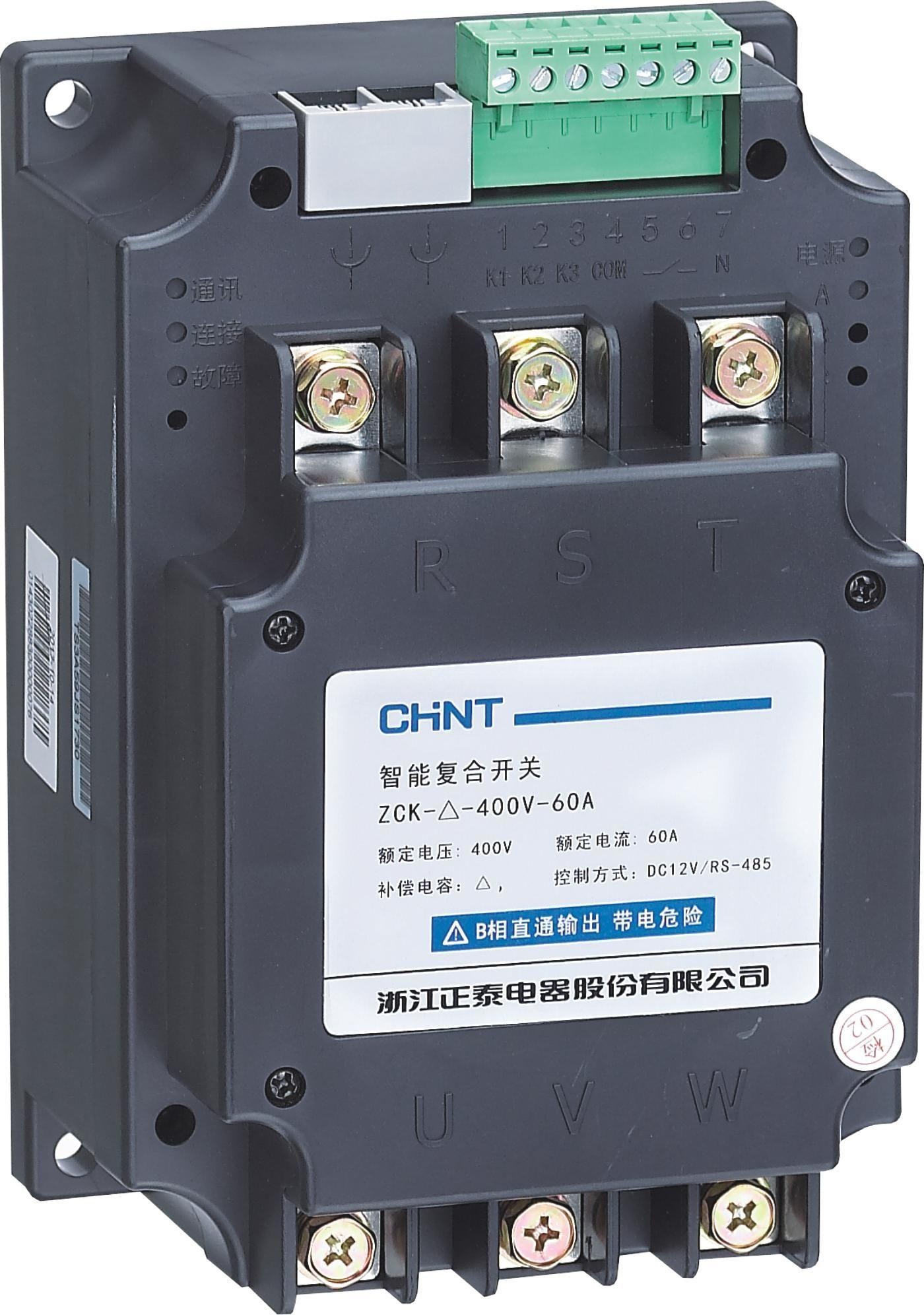

ZCK Smart Composite Switch

ZCK Smart Composite Switch

Product category:
Parallel capacitor bank
Product code:
P-630
Model:

Function & Use (Application Scenarios)

Power electrical appliances, reactive power compensation controller products are mainly applicable to the ZCK series intelligent composite switch, which is a new generation of intelligent control and actuating components. It is carefully developed to address the shortcomings of thyristors and AC contactors in low-voltage compensation applications.

Surprise on inquiry

Product highlights

  • Reactive power compensation support
  • Smart Communication Support
  • Control response is stable
  • Engineering Application Compatibility
  • Stable and reliable operation

Model

Request a QuoteChat on WhatsApp

Main Product Parameters

CategoryReactive power compensation deviceSecondary categoryShunt Capacitor Bank

Product details

Function and Application

The ZCK series intelligent composite switch is an intelligent new control actuator, specially developed to address the shortcomings of thyristors and AC contactors in low-voltage compensation applications, and it is a new generation of low-voltage capacitor composite switch (or called synchronous switch).

Detailed Parameters

Parameter CategoryParameter ItemParameter Value
3 Main Technical Parameters3.1 Rated Operating VoltageCommon Compensation 380VAC±20%/ Separate Compensation 220VAC±20%
3.2 Control Capacitor CapacityThree-phase ≤ 50kvar, Δ connection; Single-phase ≤ 16.6kvar, Y connection
3.3 Rated CurrentDC version 32A, 45A, 60A, 100A; AC version 45A, 63A, 95A
3.4 Inrush Current Multiple≤ 3.0Ic
3.5 Power Consumption<1.5W
3.6 Switch Service LifeCompact Type > 300,000 times, General Type > 1,000,000 times
3.7 Contact Voltage Drop≤ 100mV
3.8 Switch Withstand Voltage≥ 2500V
3.9 Action Response Time≤ 100ms
3.10 Interval Between Each Connection and Disconnection≥ 1S
3.11 Interval Time Between Two Continuous ConnectionsGeneral Type ≥ 150S, Compact Type ≥ 0.5S, Integrated Type ≥ 35S
