RT14 Series Cylindrical Cap Fuse Holder

Product category:
fuse
Product code:
P-642
Model:
RT14

Function & Use (Application Scenarios)

Power electrical appliances and fuse products are mainly applicable to AC 45Hz~62Hz, rated voltage up to 380V, rated current up to 63A, suitable for engineering support, installation and maintenance, and long-term stable operation, meeting the on-site application needs of electrical systems.

Surprise on inquiry

Product highlights

  • Reliable isolation protection
  • Engineering Application Compatibility
  • Stable and reliable operation
  • Easy system integration

Model

RT14

Main Product Parameters

CategoryIsolating Switch / Load SwitchSecondary categoryCircuit breaker

Product details

Function and Application

RT14 series cylindrical cap fuse base is suitable for AC 45Hz~62Hz, rated voltage up to 380V, rated current up to 63A

Detail Parameters

Parameter CategoryParameter ItemParameter Value
4.1 Fuse Support (Base) ParametersModelRT14-20, RT14-32, RT14-63
Rated Voltage (V)AC 380, AC 380, AC 380
Rated Current (A)20, 32, 63
PolesSingle pole, Single pole, Single pole
Dimension B (mm)21max, 27max, 34max
Dimension C (mm)-, 132max, 150max
Dimension L (mm)70max, 105max, 125max
Dimension H (mm)47max, 57max, 66max
Installation MethodScrew Installation, Screw Installation, Screw Installation
4.2 Fuse Support (Base) and Fuse Configuration ParametersFuse Support (Base) ModelRT14-20, RT14-32, RT14-63
Size (mm)10×38, 14×51, 22×58

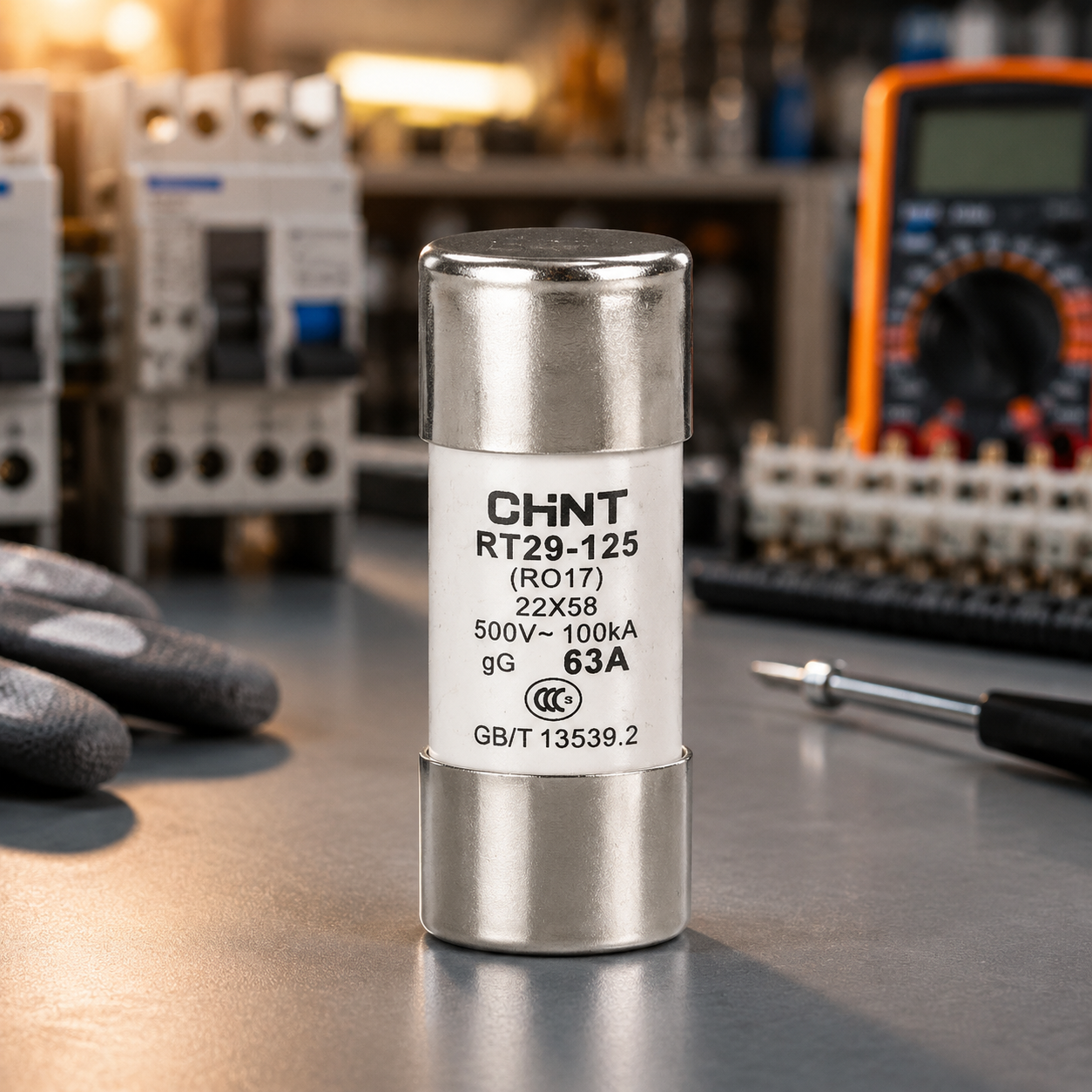

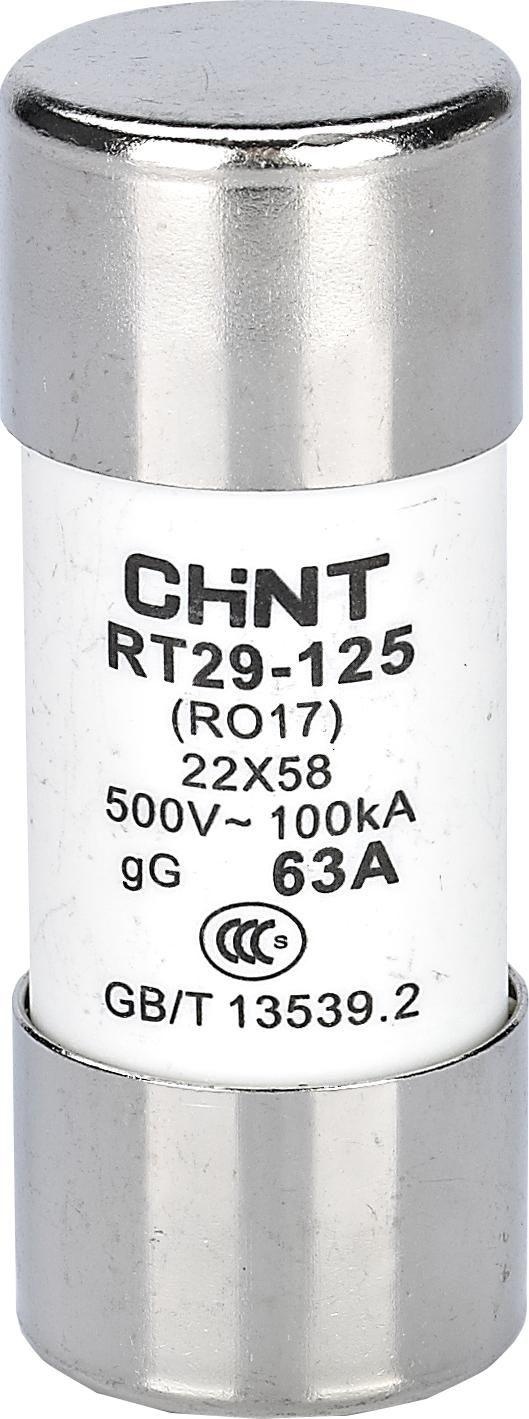

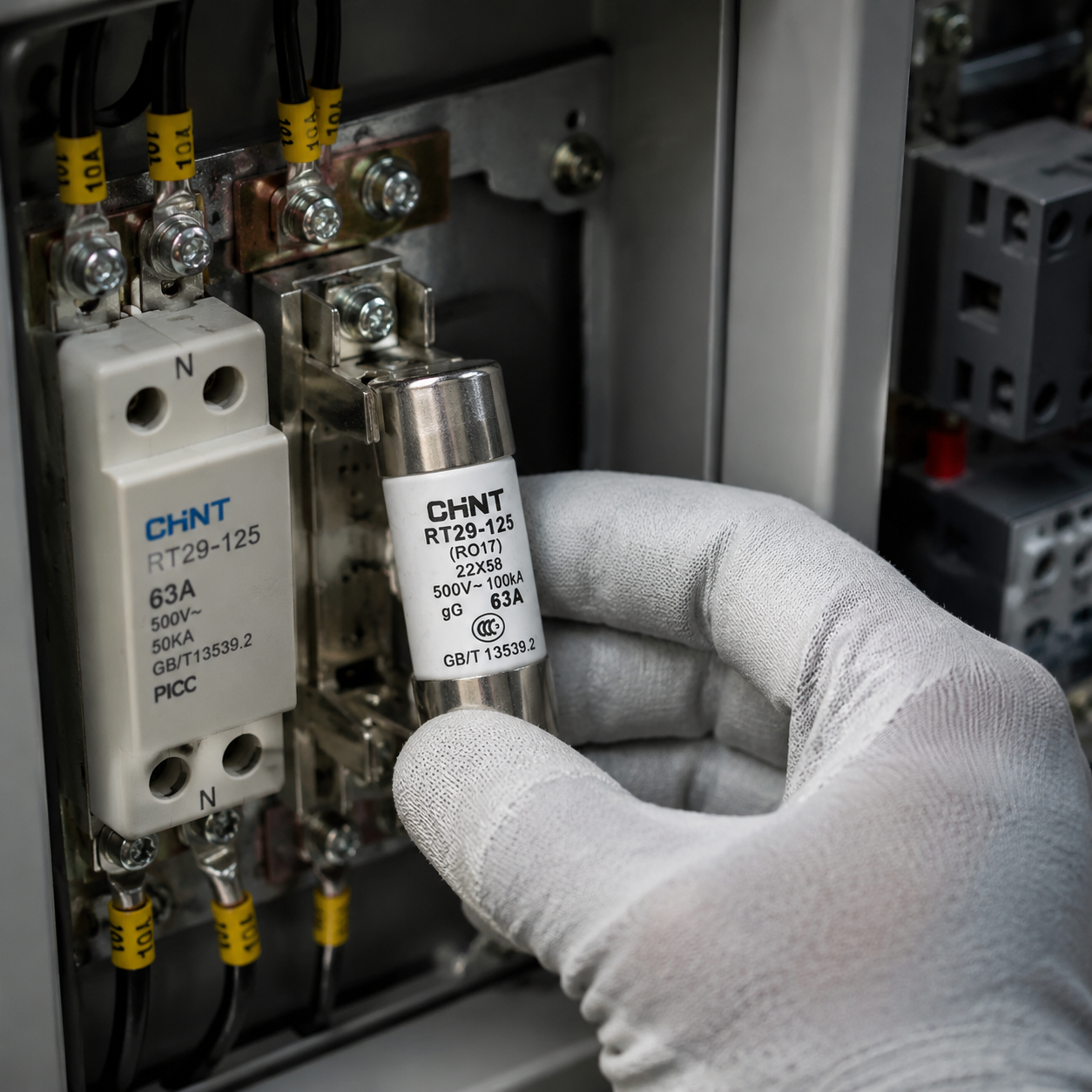

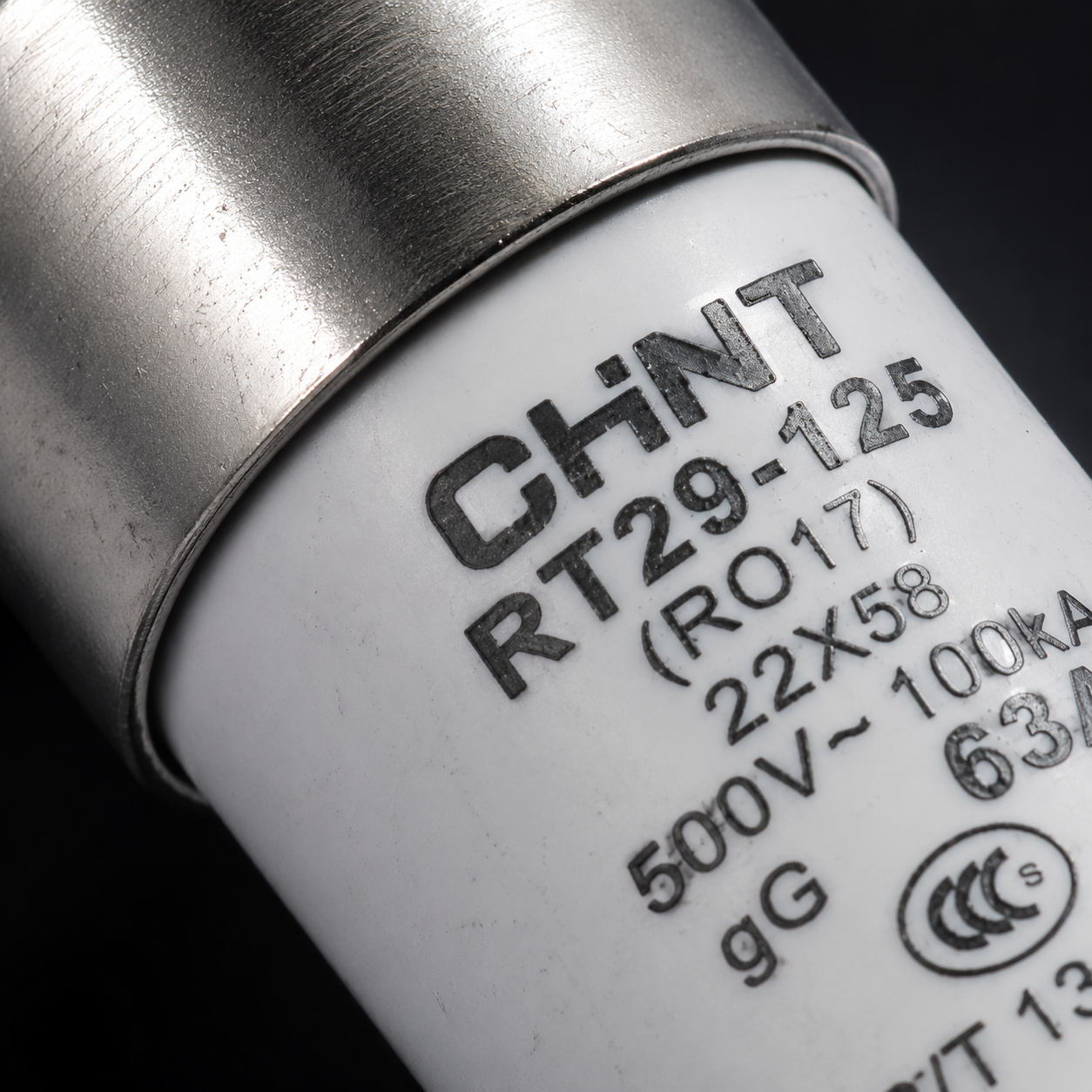

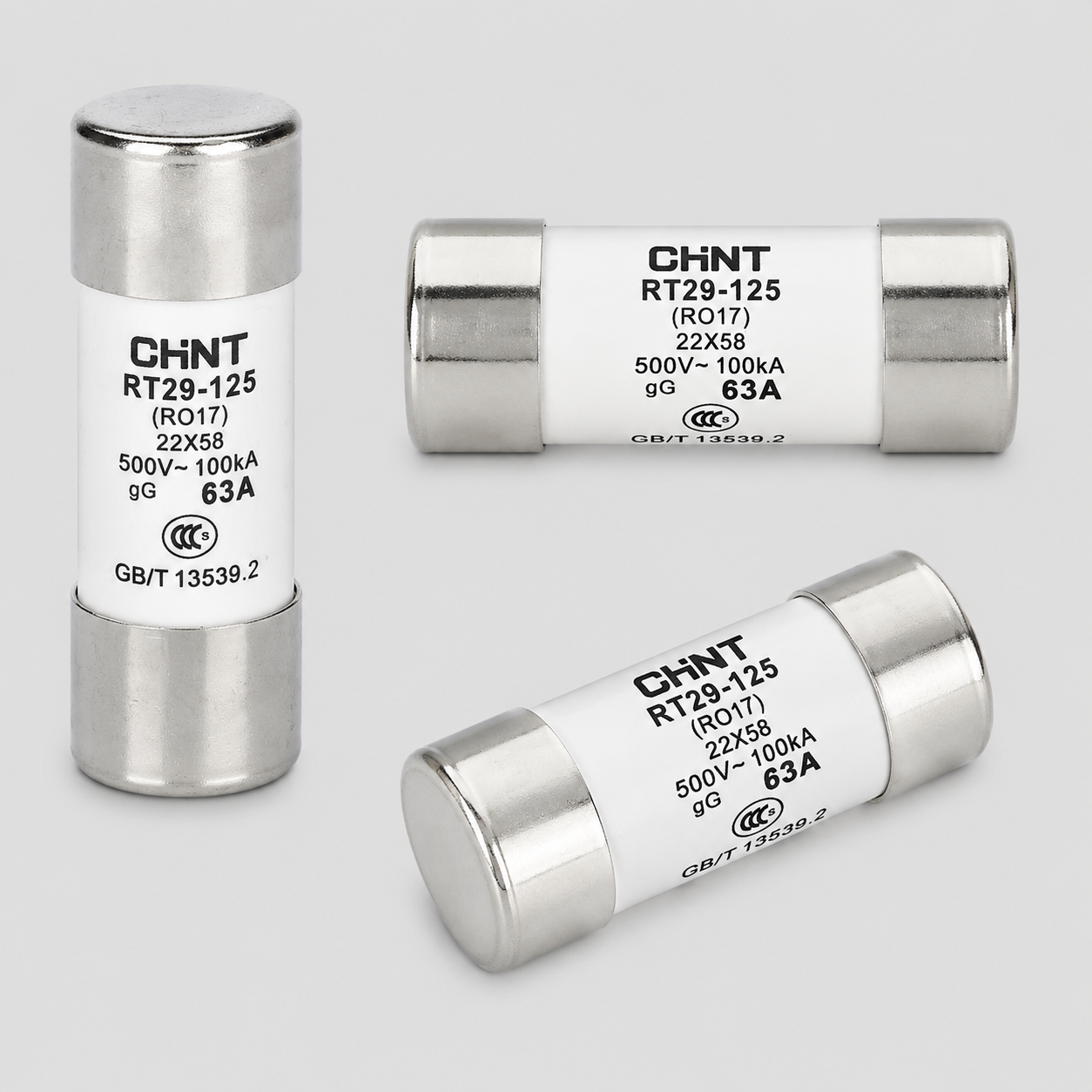

Compatible FuseRT28-32, RO15, RT28-63, RO16, RT29-125, RO17
Current (A)2, 4, 6, 10, 16, 20, 2, 4, 6, 10, 16, 20, 25, 32, 10, 16, 20, 25, 32, 40, 50, 63
