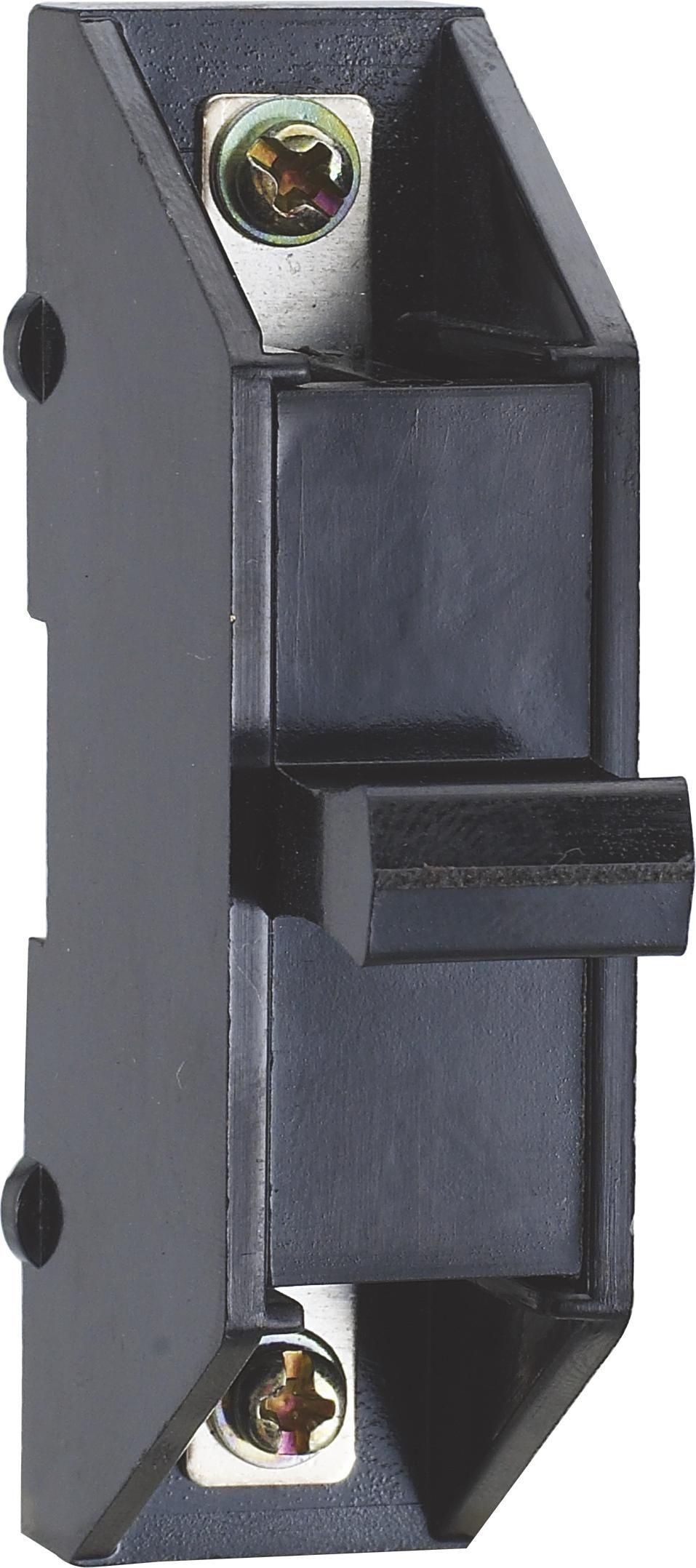

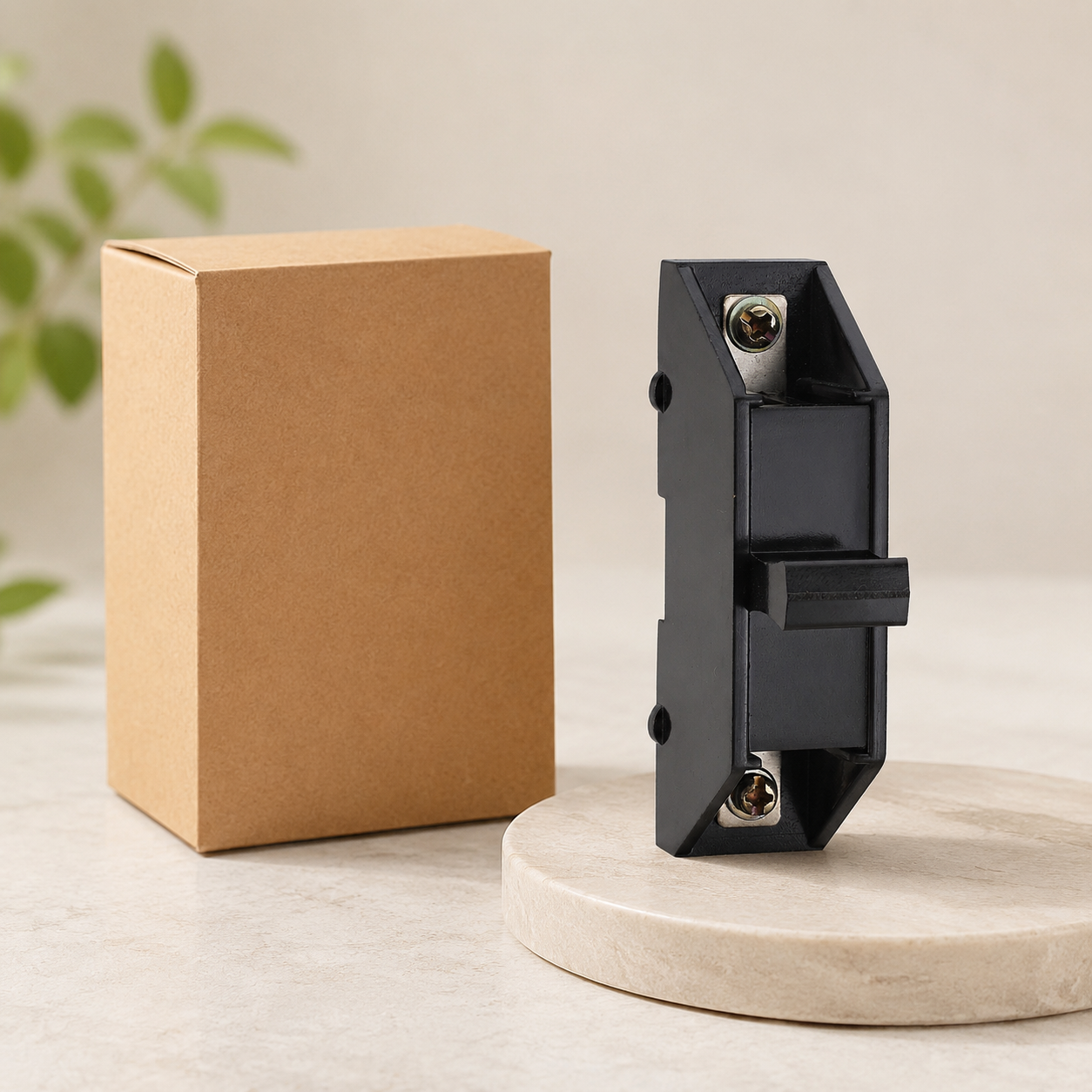

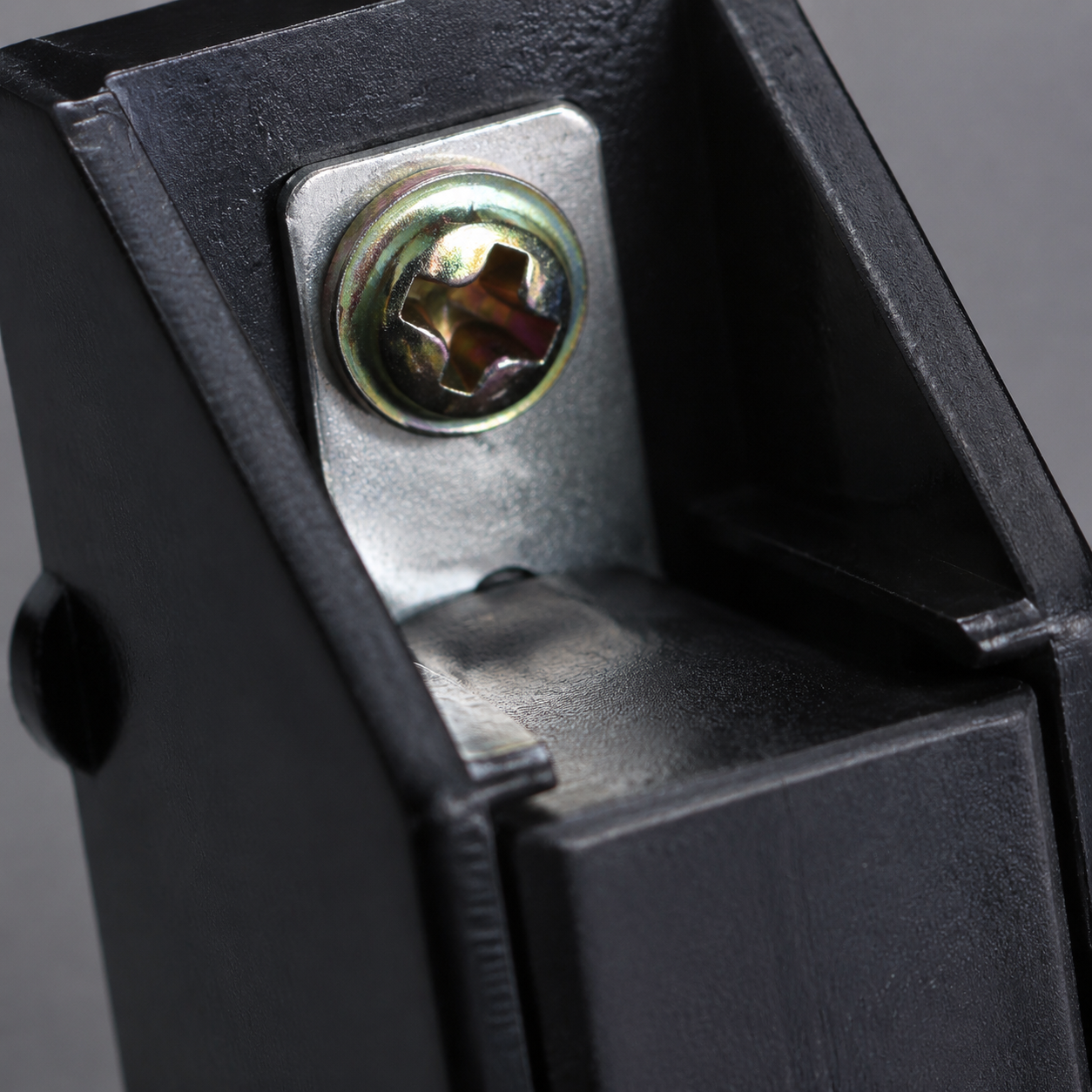

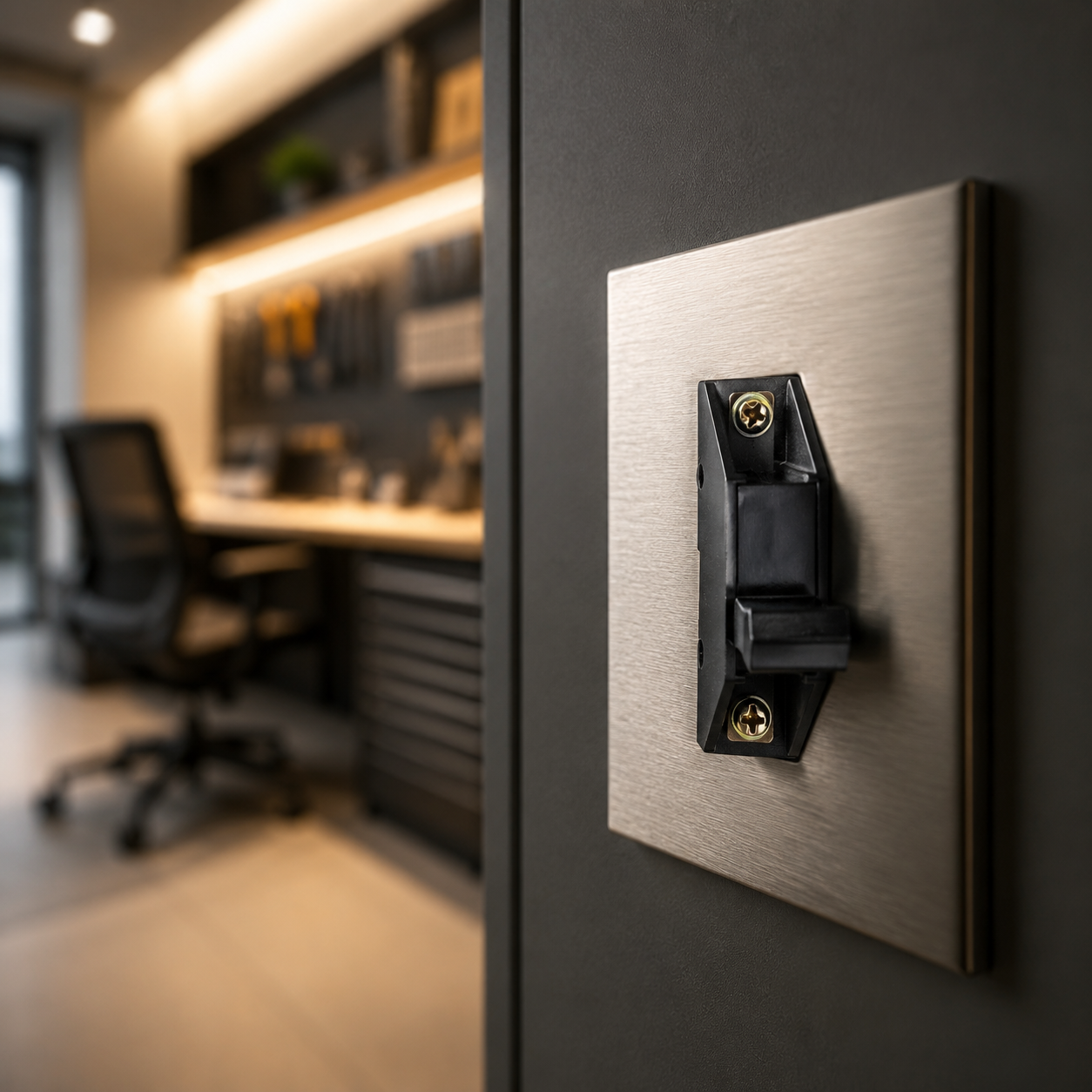

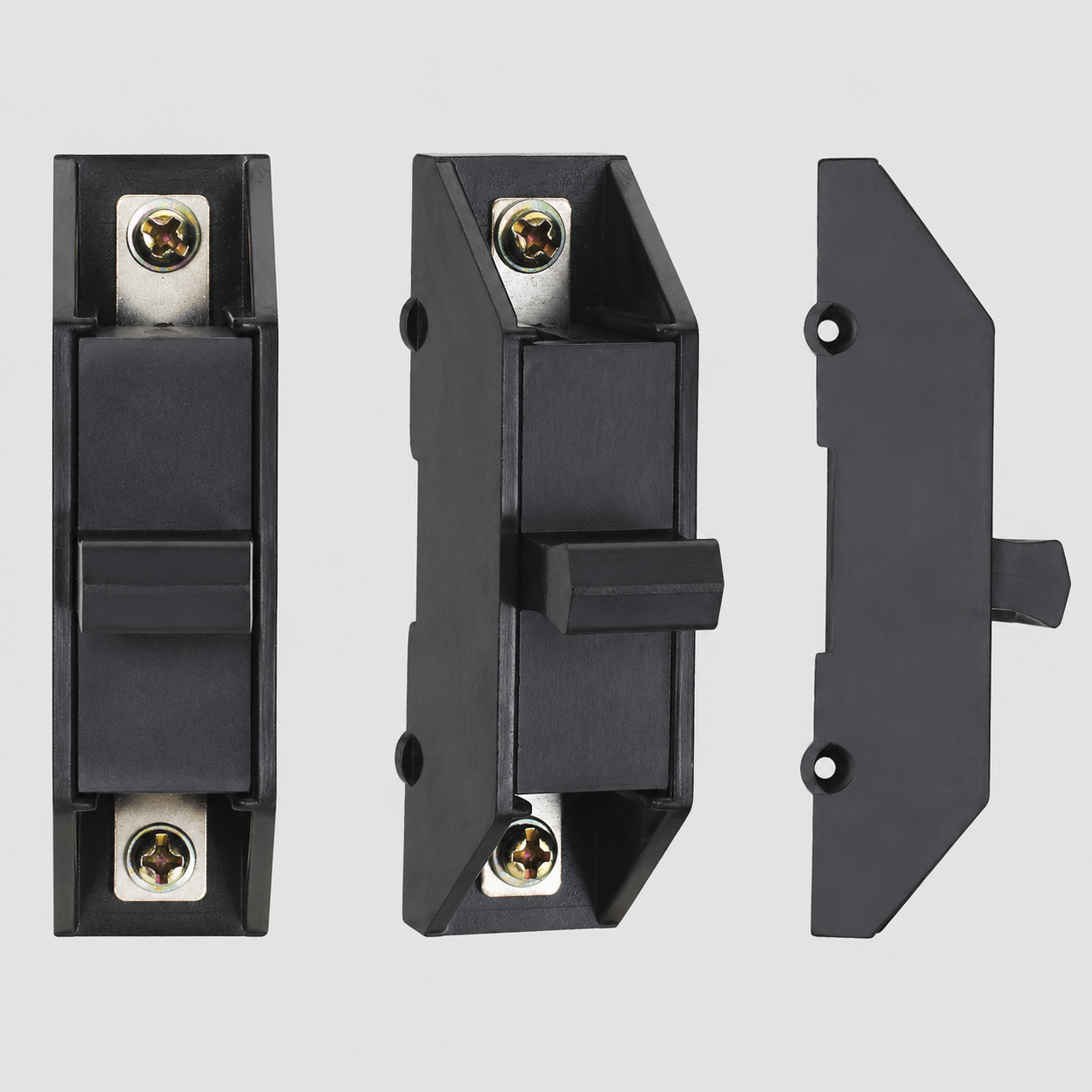

RT29 Series Cylindrical Cap Fuse

Product category:: fuse
Product code:: P-644
Model:: RT29

Function & Use (Application Scenarios)

Power electrical appliances and fuse products are mainly applicable to AC 45Hz~62Hz, rated voltage up to 500V, rated current up to 125A for overload protection and short circuit protection in power distribution lines

Surprise on inquiry

Product highlights

Reliable overload protection
Short-circuit protection capability
Reliable isolation protection
Engineering Application Compatibility
Stable and reliable operation

Model

RT29

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryIsolating Switch/Load SwitchSecondary CategoryCircuit breaker

Product details

Function and Application

RT29 series cylindrical cap fuses are suitable for overload and short circuit protection in power distribution circuits with AC frequencies of 45Hz~62Hz, rated voltage up to 500V, and rated current up to 125A.

Detailed Parameters

Parameter Category	Parameter Item	Parameter Value
4.1 Fuse Support (Base) Parameters	Model	RT29-16
	Domestic and Foreign Equivalent Products	RT19-16, aM1
	Rated Voltage (V)	500
	Rated Current (A)	16
	Length C	70max
	Width E	21max
	Height H	47max

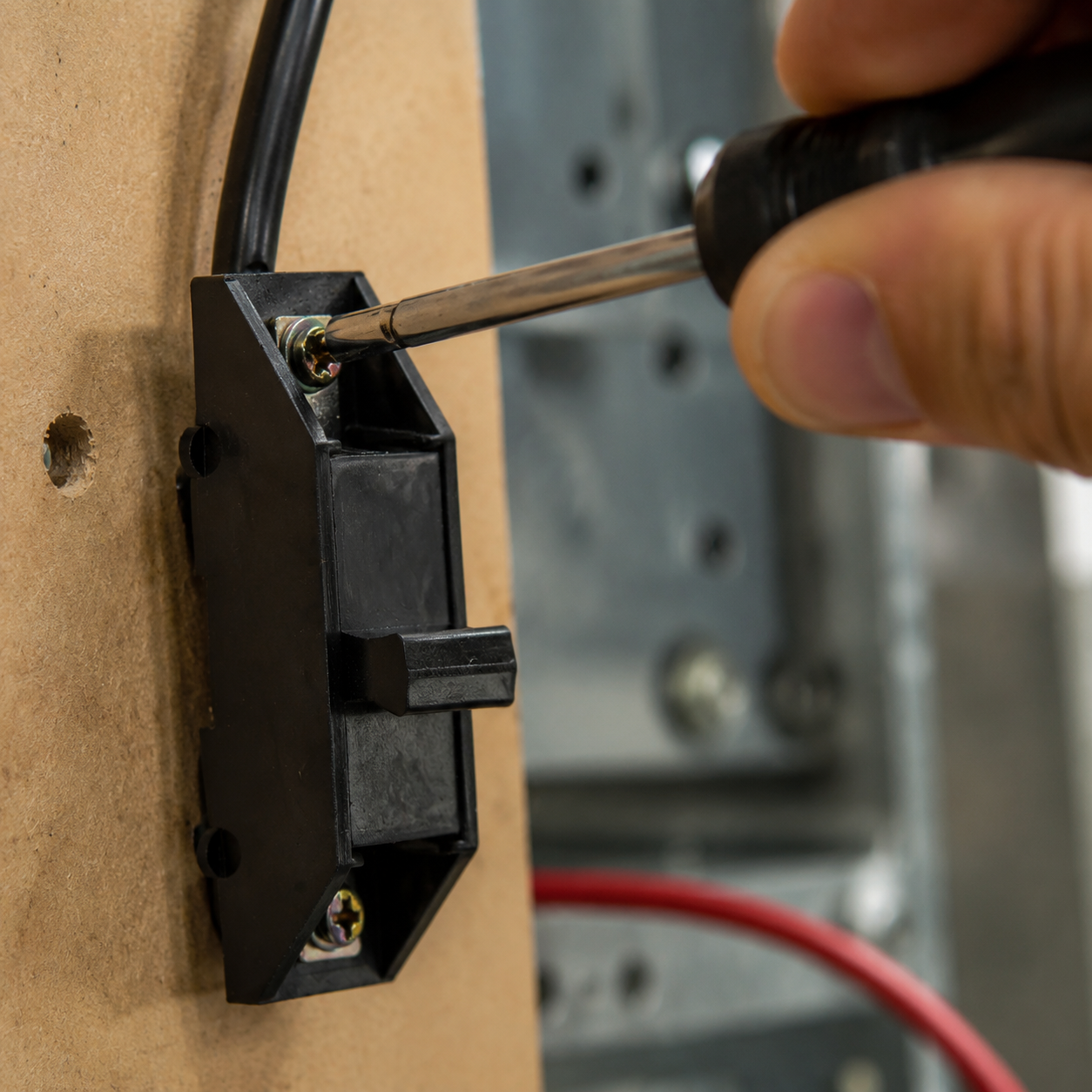

	Installation Method	Screw Installation
4.2 Fuse Body Parameters	Model	RT29-16(RO14)
	Domestic and Foreign Equivalent Products	RT19-16
	Dimensions (B×A)	8×32
	Rated Voltage (V)	AC 500
	Rated Current (A)	2, 4, 6, 10, 16
	Breaking Capacity (kA)	100
	A	31.5±0.5
	B	Φ8.5±0.1
	Model	RT29-125(RO17)
	Domestic and Foreign Equivalent Products	RT19-125
	Dimensions (B×A)	22×58
	Rated Voltage (V)	AC 500
	Rated Current (A)	10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125
	Breaking Capacity (kA)	100
	A	58+0.1-2.0
	B	Φ22.2±0.1
4.3 Fuse Support (Base) and Fuse Body Configuration Parameters	Fuse Base Model	RT29-16
	Corresponding Fuse
	Size (mm)	8×32
	Fuse Model	RT29-16
	Current (A)	2, 4, 6, 10, 16
