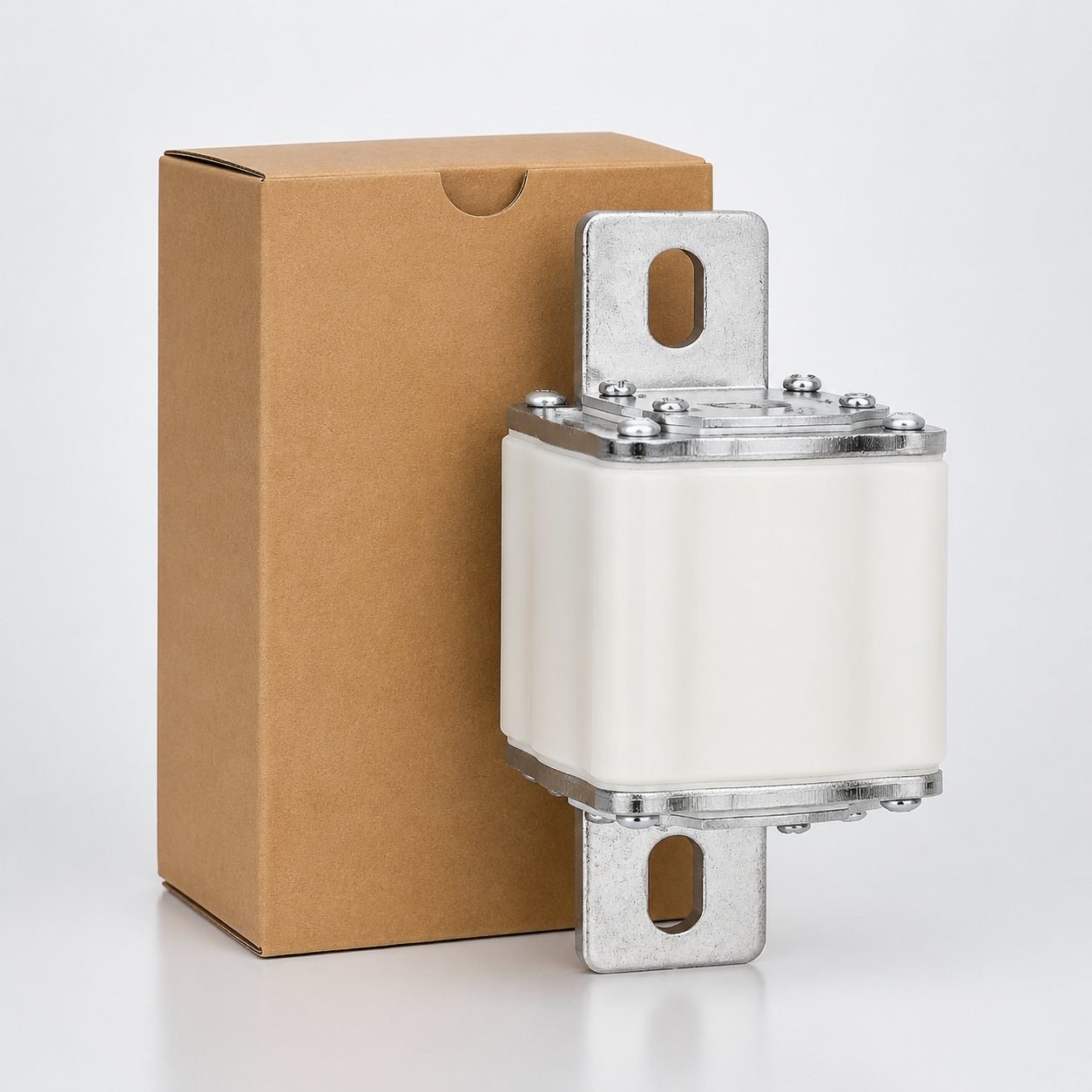

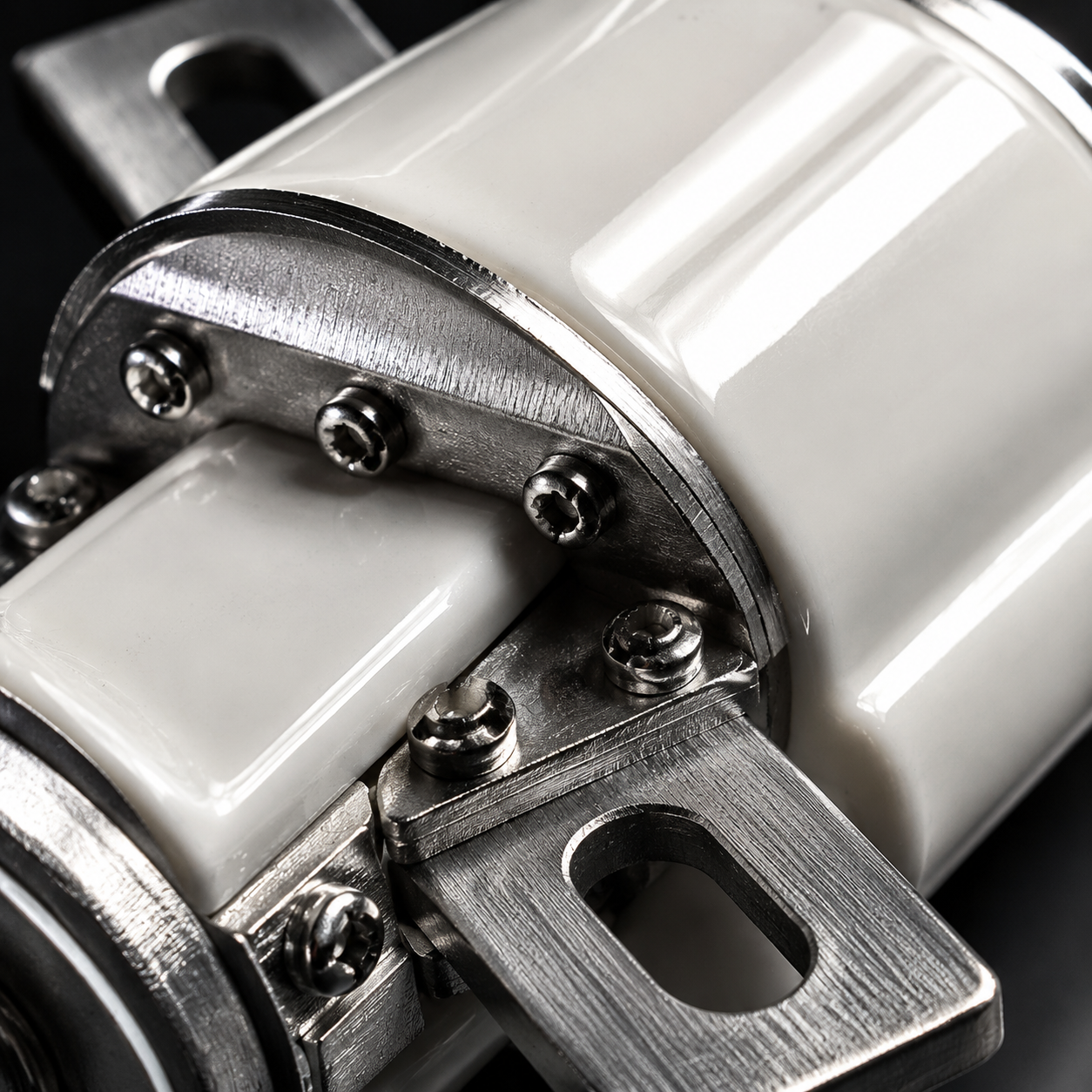

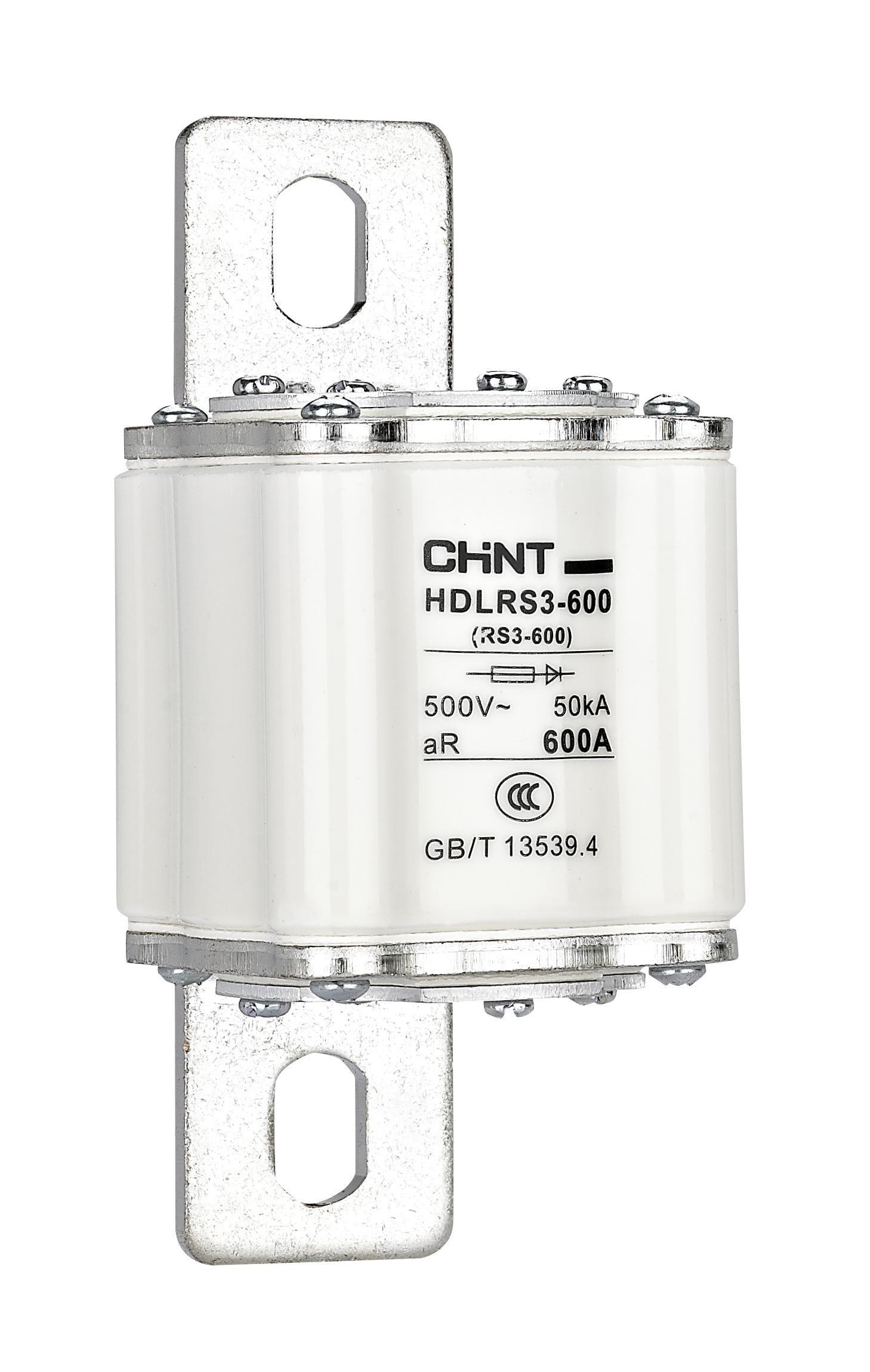

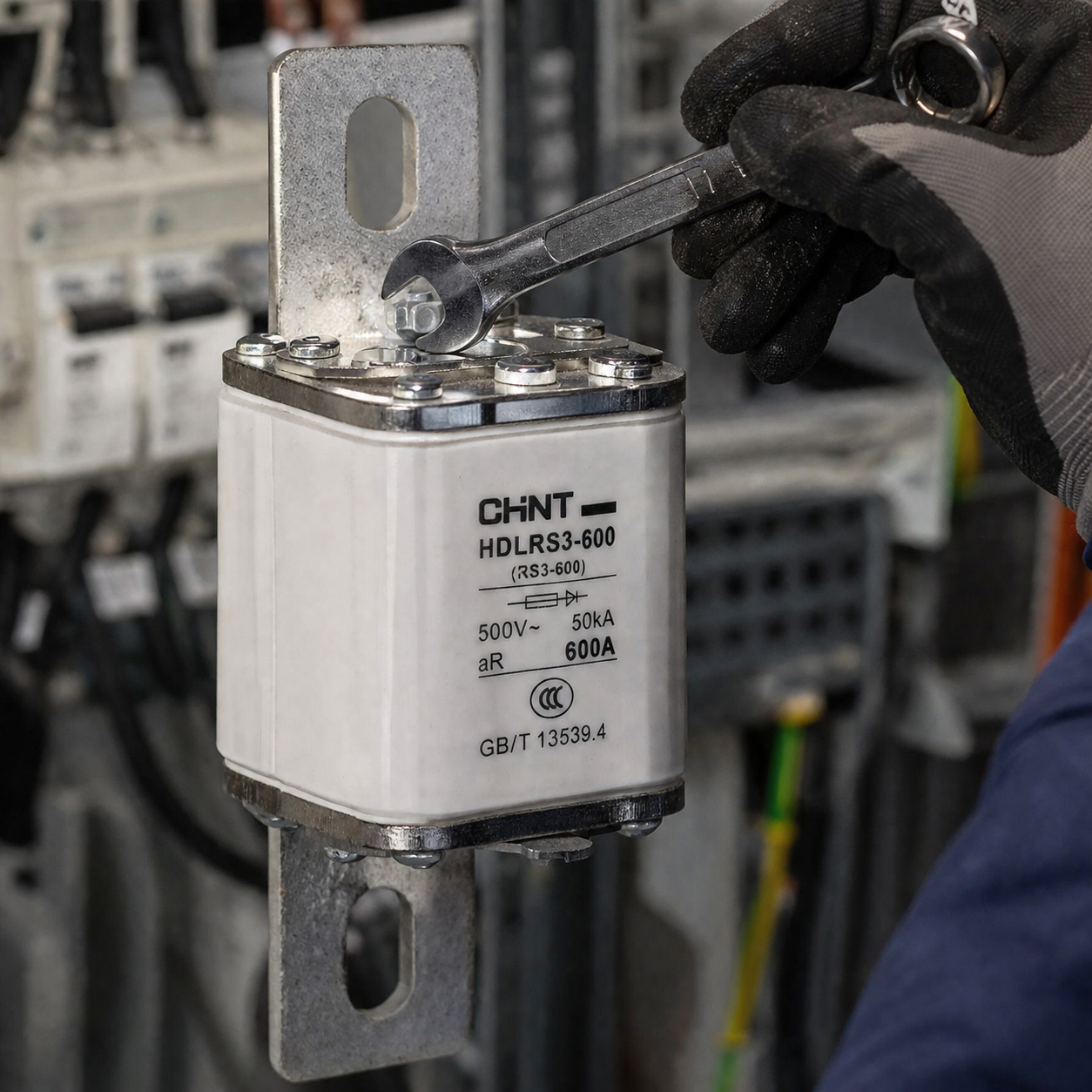

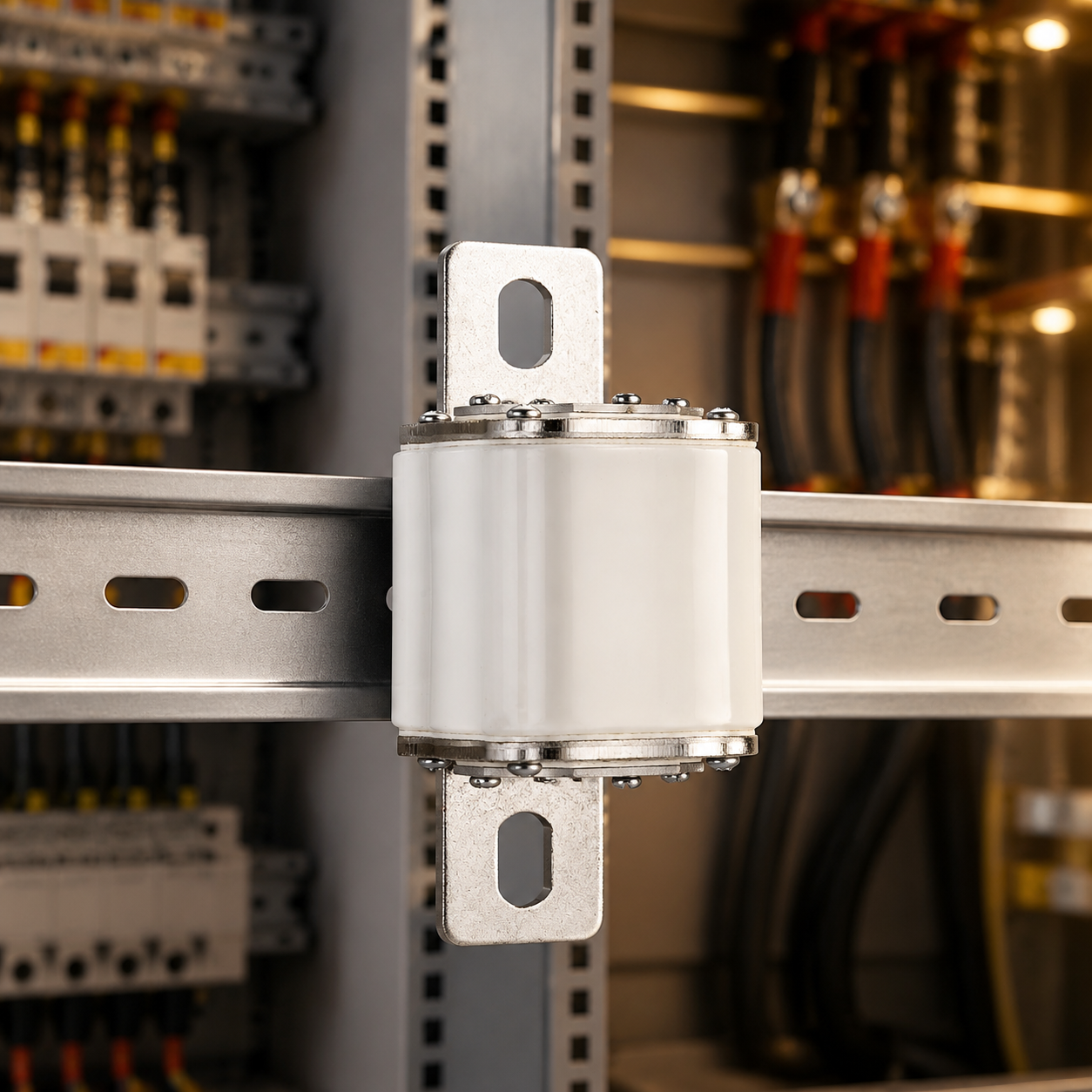

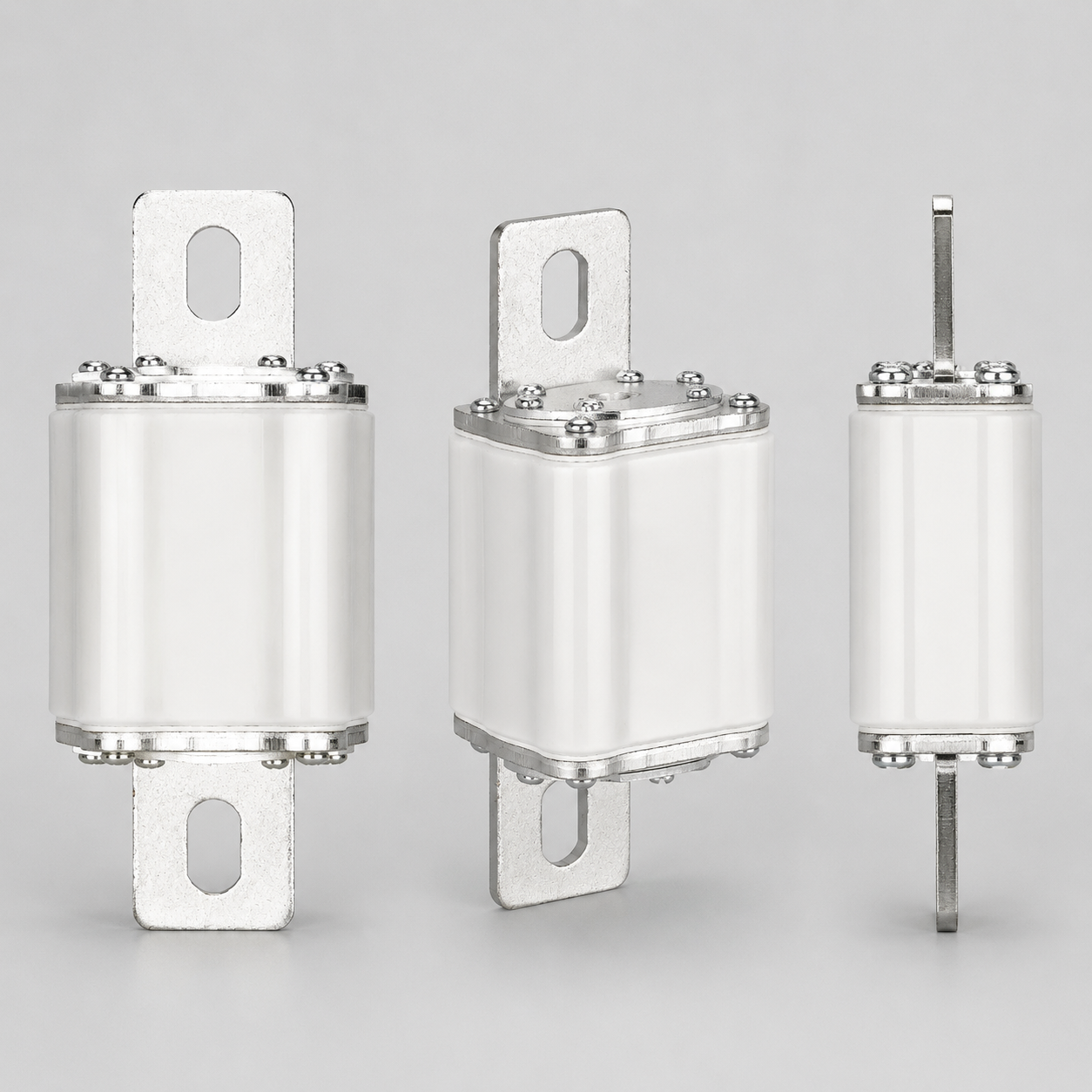

HDLRS3 Series Fuse for Semiconductor Equipment Protection

Product category:: fuse
Product code:: P-646
Model:: HDLRS3

Function & Use (Application Scenarios)

Power electrical appliances, fuse products are mainly applicable to AC 45Hz~62Hz, rated voltage up to 800V, rated current up to 1200A, rated breaking capacity up to 50kA for short-circuit protection of semiconductor equipment and complete sets of devices

Surprise on inquiry

Product highlights

Short-circuit protection capability
Strong breaking capacity
Reliable isolation protection
Engineering Application Compatibility
Stable and reliable operation

Model

HDLRS3

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryIsolating Switch / Load SwitchSecondary categoryCircuit breaker

Product details

Function and Application

HDLRS3 series fuse for semiconductor equipment protection is applicable for AC 45Hz~62Hz, rated voltage up to 800V, rated current up to 1200A, and rated breaking capacity up to 50kA for short circuit protection of semiconductor equipment and their complete sets of devices.

Detailed Parameters

Table 1 - Parameters

Parameter Category	Parameter Item	Parameter Value
4.1 Main Technical Parameters	Rated Voltage (V)	AC500, AC800
	Model	HDLRS3-100, HDLRS3-200, HDLRS3-400, HDLRS3-600, HDLRS3-1000
	Fuse Rated Current (A)	50, 60, 80, 100; 125, 150, 200; 200, 250, 300, 320, 350, 400; 450, 480, 500, 600; 700, 750, 800, 900, 1000, 1200
	Rated Breaking Capacity (kA)	50
	Notes

Table 2 - Parameters

Parameter Category	Parameter Item	Parameter Value
Protection Function	Expected Current (RMS) IP(A)	100A to 1200A
Protection Function	Pre-arcing Time (s)	10^-3 s to 10^2 s
Protection Function	Current Peak (ID) (kA)	50kA to 1200kA
Protection Function	Expected Current (Symmetrical RMS) IP(kA)	1kA to 50kA
