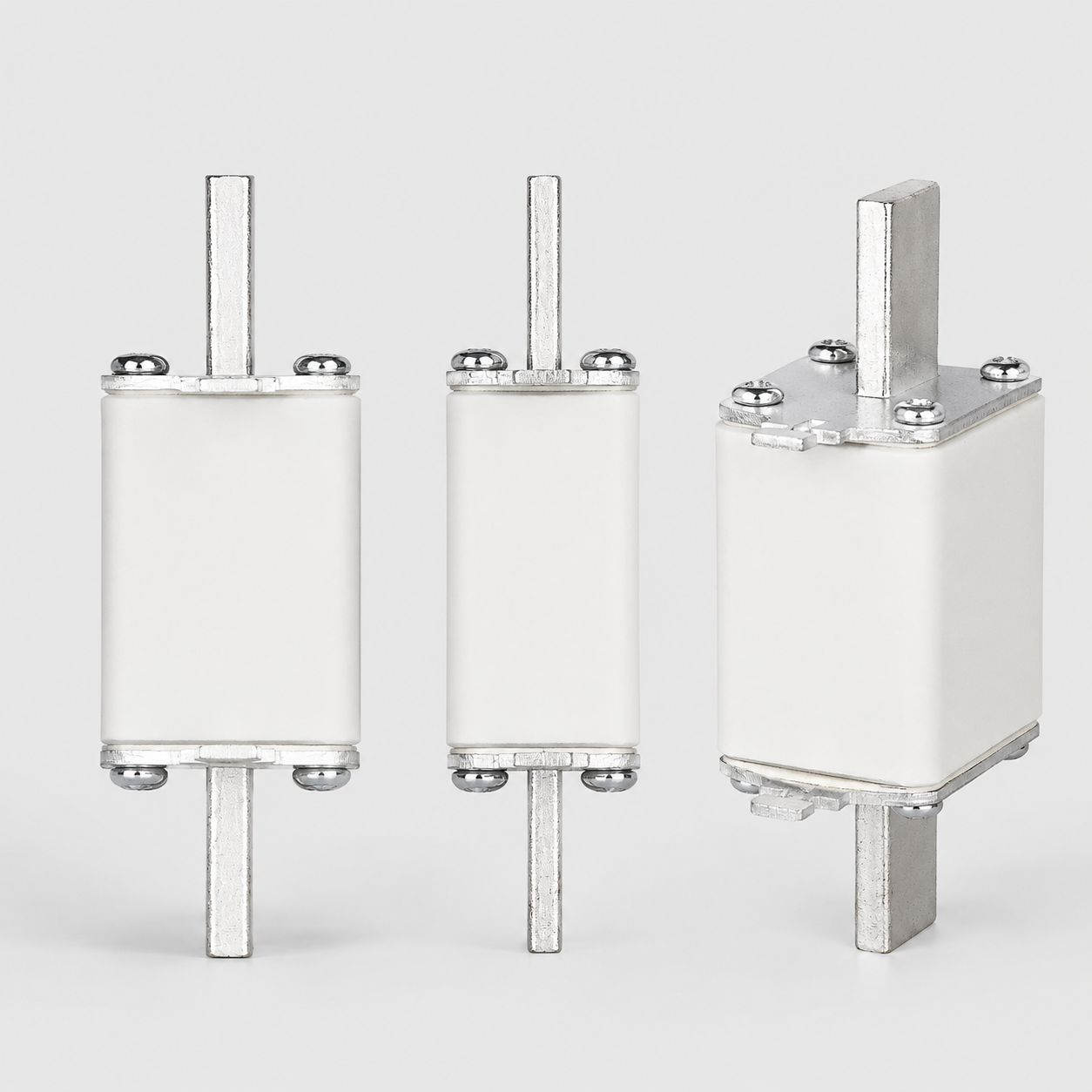

Function and Purpose
RT36 series blade-type fuse holders are suitable for AC 45Hz~62Hz, rated voltage up to 690V, rated current up to 1250A,
Details Parameters
| Parameter Category | Parameter Item | Parameter Value |
|---|
| RT36-0 | Domestic and Foreign Equivalent Models | RT16-0(NT0) |
| Rated Current (A) | 4 |
| | 6 |
| | 10 |
| | 16 |
| | 20 |
| | 25 |
| | 32 |
| | 35 |
| | 40 |
| | 50 |
| | 63 |
| | 80 |
| | 100 |
| | 125 |
| | 160 |
| Rated Voltage (V) | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| | AC500/AC690 |
| Breaking Capacity (kA) | 120/50 |
| | 120/50 |
| | 120/50 |
| | 120/50 |
| | 120/50 |
| | 120/50 |
| | 120/50 |
| | 120/50 |
| | 120/50 |
| | 120/50 |
| | 120/50 |

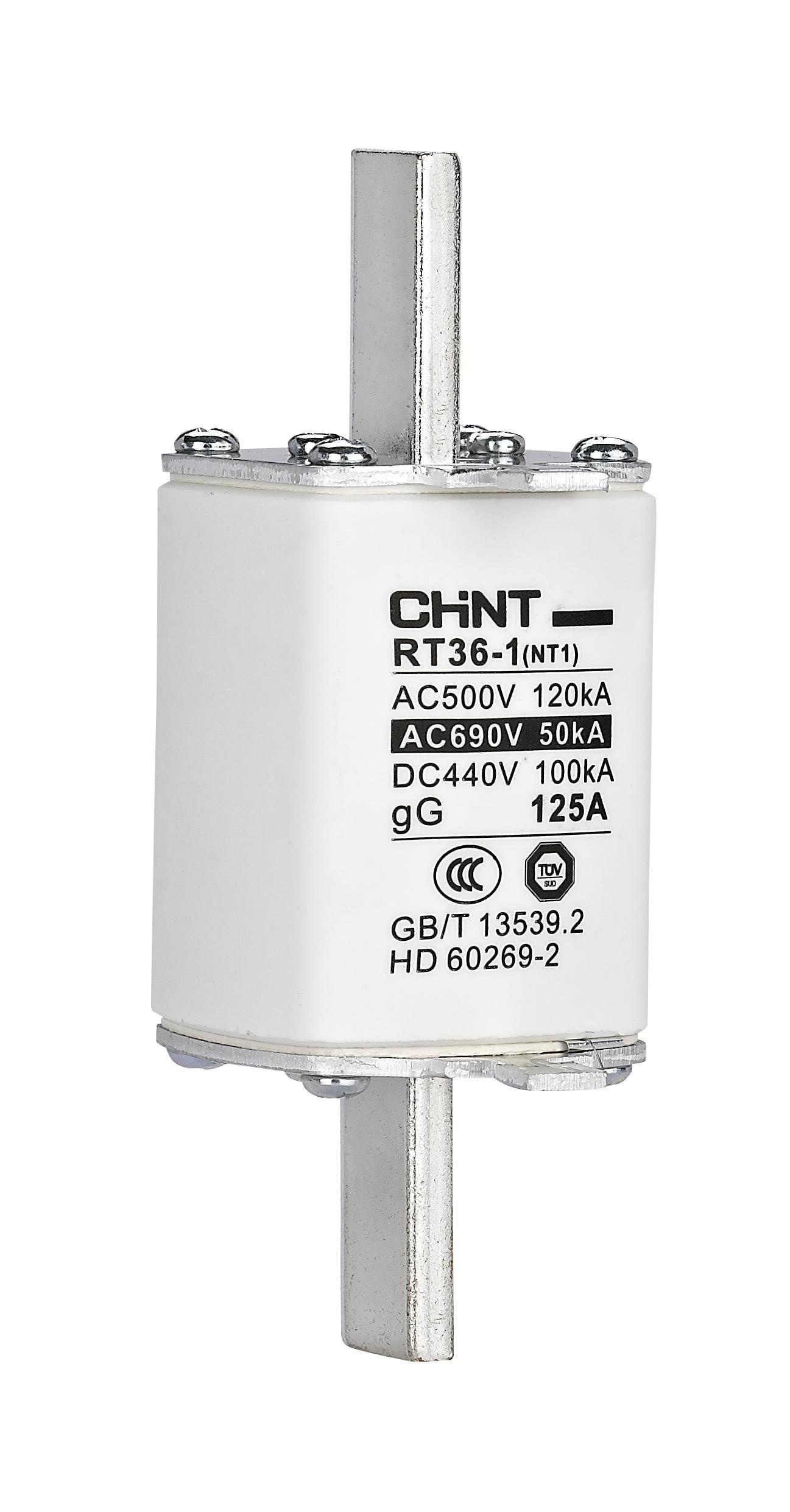

| RT36-1 RT36-1T | Domestic and Foreign Equivalent Models | RT16-1(NT1) |
| Rated Current (A) | 80 |
| | 100 |
| | 125 |
| | 160 |
| | 200 |
| | 224 |
| | 250 |
| Rated Voltage (V) | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| Breaking Capacity (kA) | 120/50/100 |
| | 120/50/100 |
| | 120/50/100 |
| | 120/50/100 |
| | 120/50/100 |
| | 120/50/100 |
| | 120/50/100 |
| RT36-2 RT36-2T | Domestic and Foreign Equivalent Models | RT16-2(NT2) |
| Rated Current (A) | 125 |
| | 160 |
| | 200 |
| | 224 |
| | 250 |
| | 300 |
| | 315 |
| | 355 |
| | 400 |
| Rated Voltage (V) | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
| | AC500/AC690/DC440 |
>AC500/AC690/DC440AC500/AC690/DC440AC500/AC690/DC440AC500/AC690/DC440AC500/AC690/DC440Breaking Capacity (kA)120/50/100120/50/100120/50/100120/50/100120/50/100120/50/100120/50/100120/50/100120/50/100RT36-3 RT36-3TDomestic and Foreign Equivalent ModelsRT16-3(NT3)Rated Current (A)315355400425500630Rated Voltage (V)AC500/AC690/DC440AC500/AC690/DC440AC500/AC690/DC440AC500/AC690/DC440AC500/AC690/DC440AC500/AC690/DC440Breaking Capacity (kA)120/50/100120/50/100120/50/100120/50/100120/50/100120/50/100RT36-4Domestic and Foreign Equivalent ModelsRT16-4(NT4)Rated Current (A)80010001250Rated Voltage (V)AC500AC500AC500Breaking Capacity (kA)120120120
