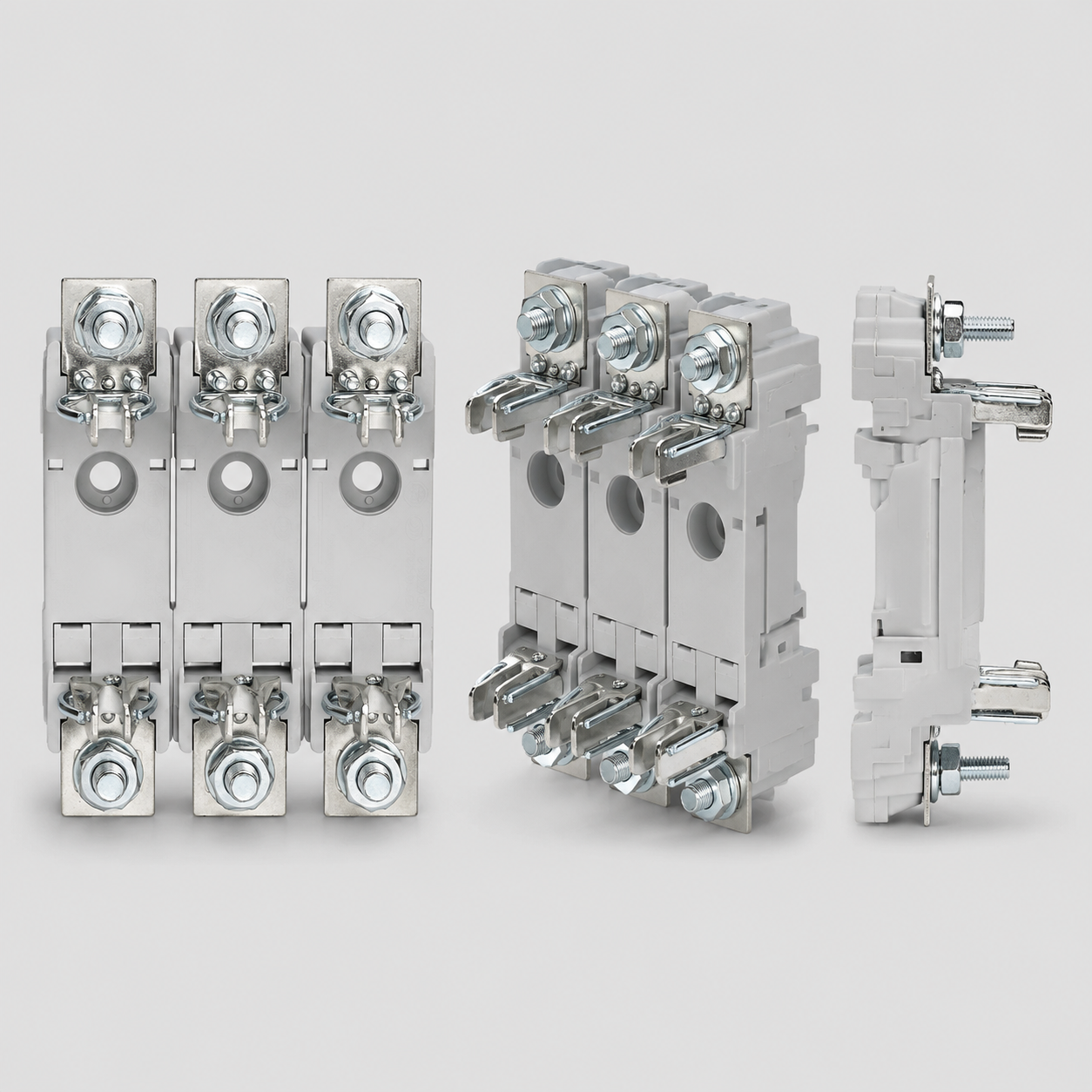

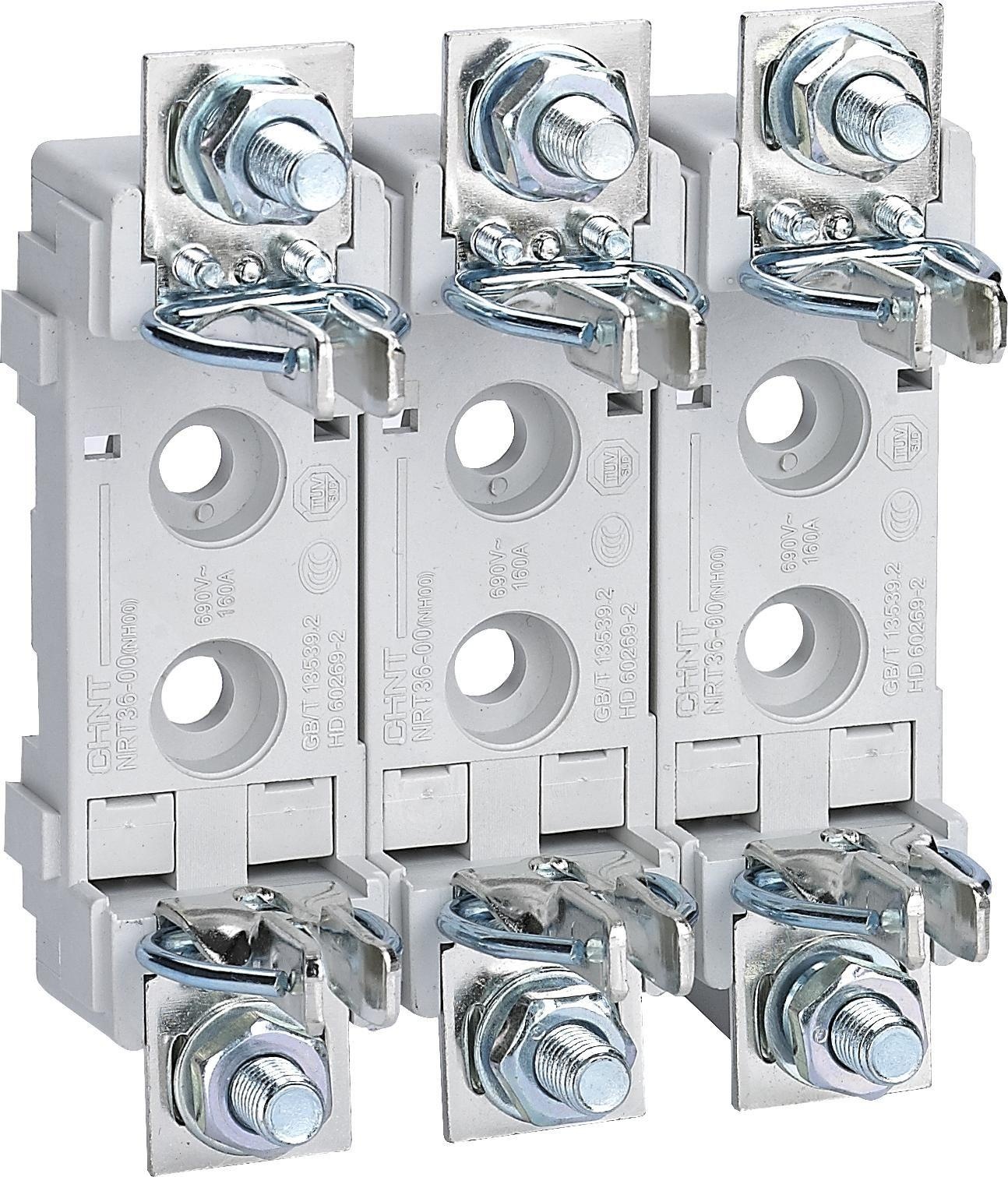

NRT36 Series Blade-Type Fuse

Product category:: fuse
Product code:: P-649
Model:: NRT36

Function & Use (Application Scenarios)

Power electrical appliances, fuse products are mainly suitable for NRT36-00 type blade-type contact fuses, which are applicable to AC 45Hz~62Hz, rated voltage up to 690V, rated current up to 160A, and rated breaking capacity up to 120kA in distribution lines for overload

Surprise on inquiry

Product highlights

Overload protection reliable
Short-circuit protection capability
Strong breaking capacity
Reliable isolation protection
Engineering Application Compatibility

Model

NRT36

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryIsolating Switch / Load SwitchSecondary CategoryFuse

Product details

Function and Application

The NRT36-00 type blade-type fuse is suitable for overload and short-circuit protection in power distribution circuits with AC 45Hz~62Hz, rated voltage up to 690V, rated current up to 160A, and rated breaking capacity up to 120kA.

Detailed Parameters

Parameter Category	Parameter Item	Parameter Value
4.1 Main Technical Parameters	Model Specification	NRT36-00(NH00)
	Rated Voltage(V)	AC 500, AC 690
	Breaking Capacity(kA)	120, 50
	Rated Current(A)	2, 4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100, 125, 160
	Fuse Rated Current(A)	160
