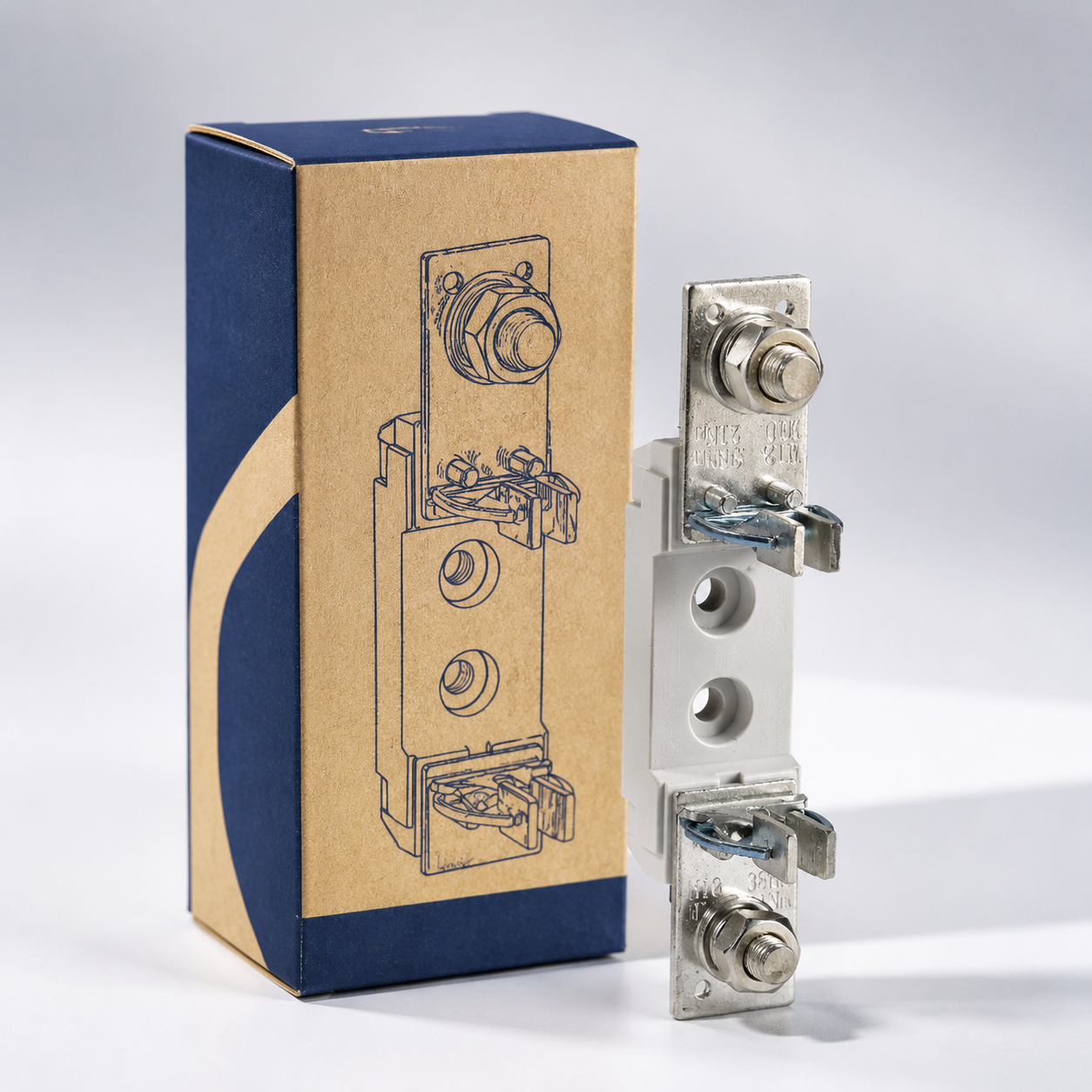

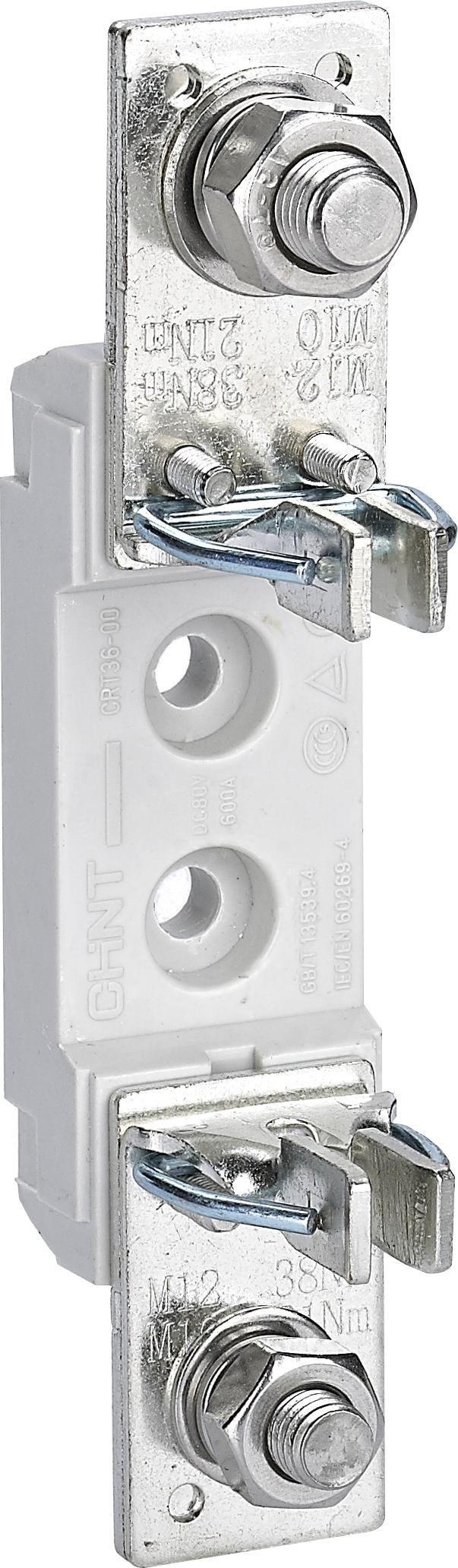

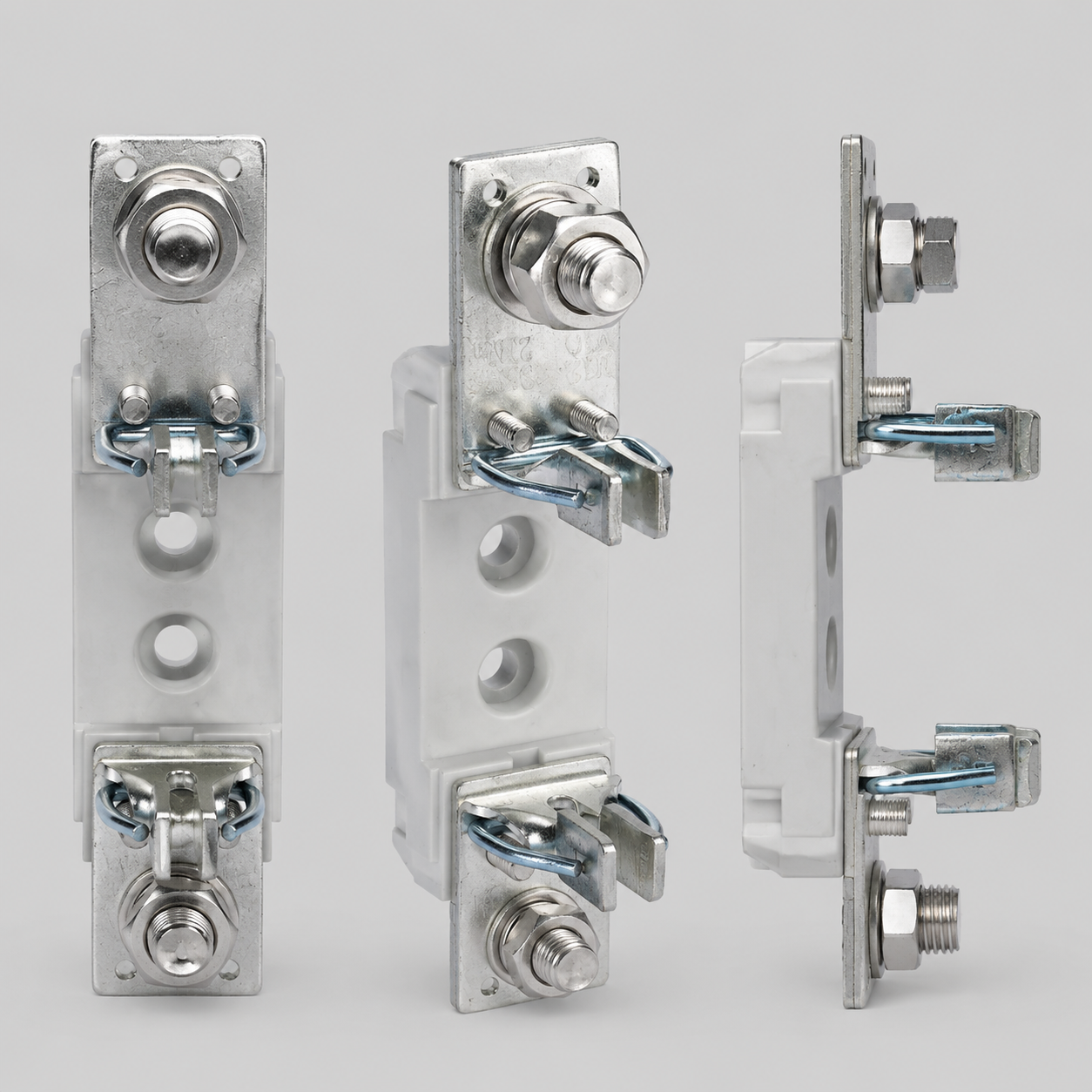

CRT36-00 Series DC Fuse

Product category:: fuse
Product code:: P-651
Model:: CRT36-00

Function & Use (Application Scenarios)

Power electrical appliances, fuse products are mainly applicable to distribution lines with a rated voltage not exceeding DC 80V, rated current not exceeding 600A, and rated breaking capacity not exceeding 25kA for short-circuit protection

Surprise on inquiry

Product highlights

Short-circuit protection capability
Strong breaking capacity
Reliable Isolation Protection
Engineering Application Compatibility
Stable and reliable operation

Model

CRT36-00

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryIsolating switch/load switchSecondary CategoryFuse

Product details

Function and Application

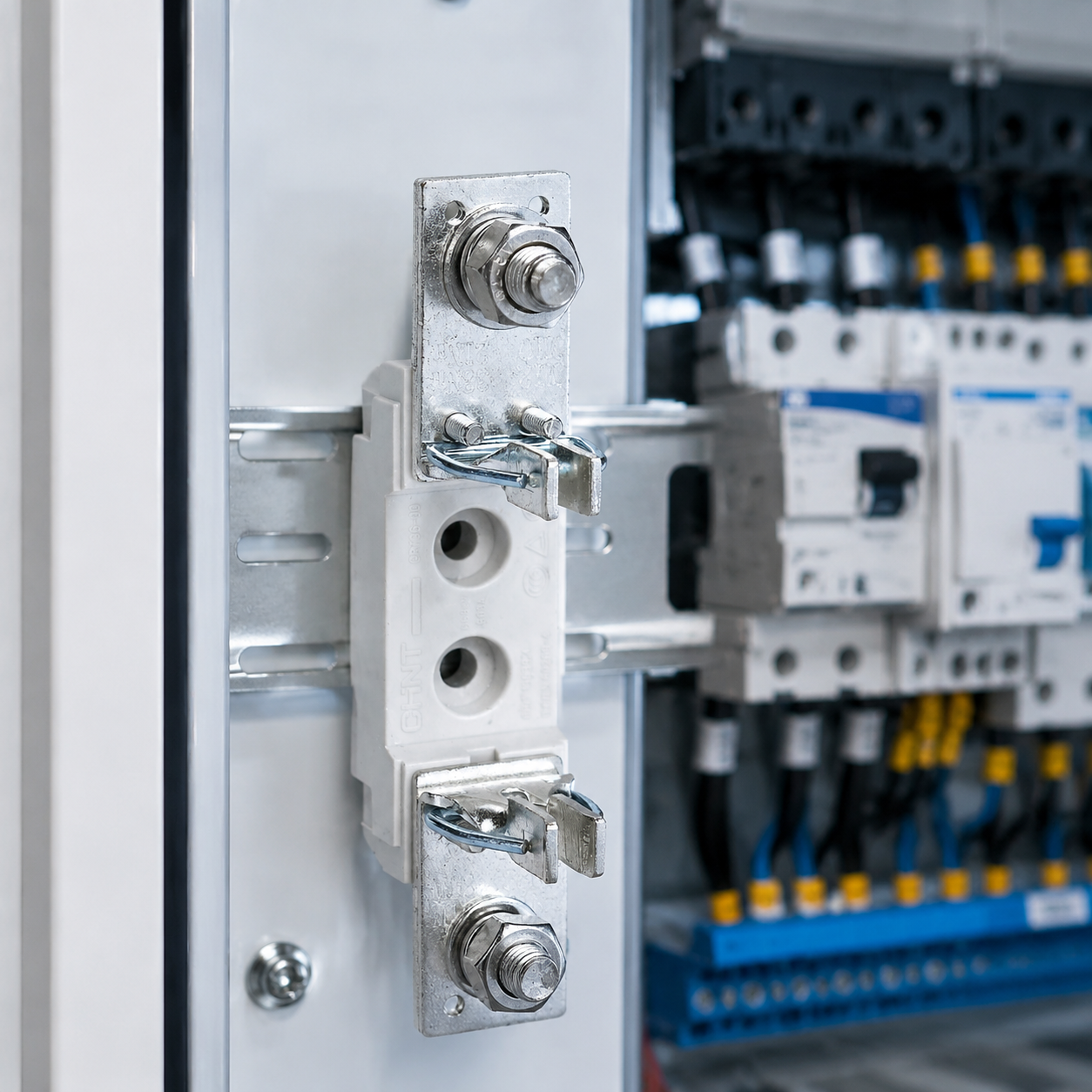

The CRT36-00 series DC fuses are suitable for short-circuit protection in power distribution circuits with a rated voltage not exceeding DC 80V, a rated current not exceeding 600A, and a rated breaking capacity not exceeding 25kA.

Detail Parameters

Parameter Table 1

Parameter Category	Parameter Item	Parameter Value
4.1 Main Technical Parameters	Model Specification	CRT36-00
	Rated Voltage (V)	DC80
	Breaking Capacity (kA)	25
	Rated Dissipation Power (W)	≤30
	Temperature Rise (K)	≤70
	Rated Current (A)	2, 4, 6, 10, 16, 20, 25, 32, 35, 40, 50, 63, 80, 100, 125, 160, 200, 224, 250, 300, 315, 355, 400, 425, 500, 600

Parameter Table 2

Parameter Category	Parameter Item	Parameter Value
Base Size Code and Electrical Parameters	CRT36-00 160A	CRT36-00 250A CRT36-00 600A
Compatible Fuse Number	00	00 00
Rated Current (A)	2A-160A	200A-250A 300A-600A
Rated Voltage (V)	DC80V	DC80V DC80V
Wire Connection Thread Size	M8	M8/M10 M10/M12

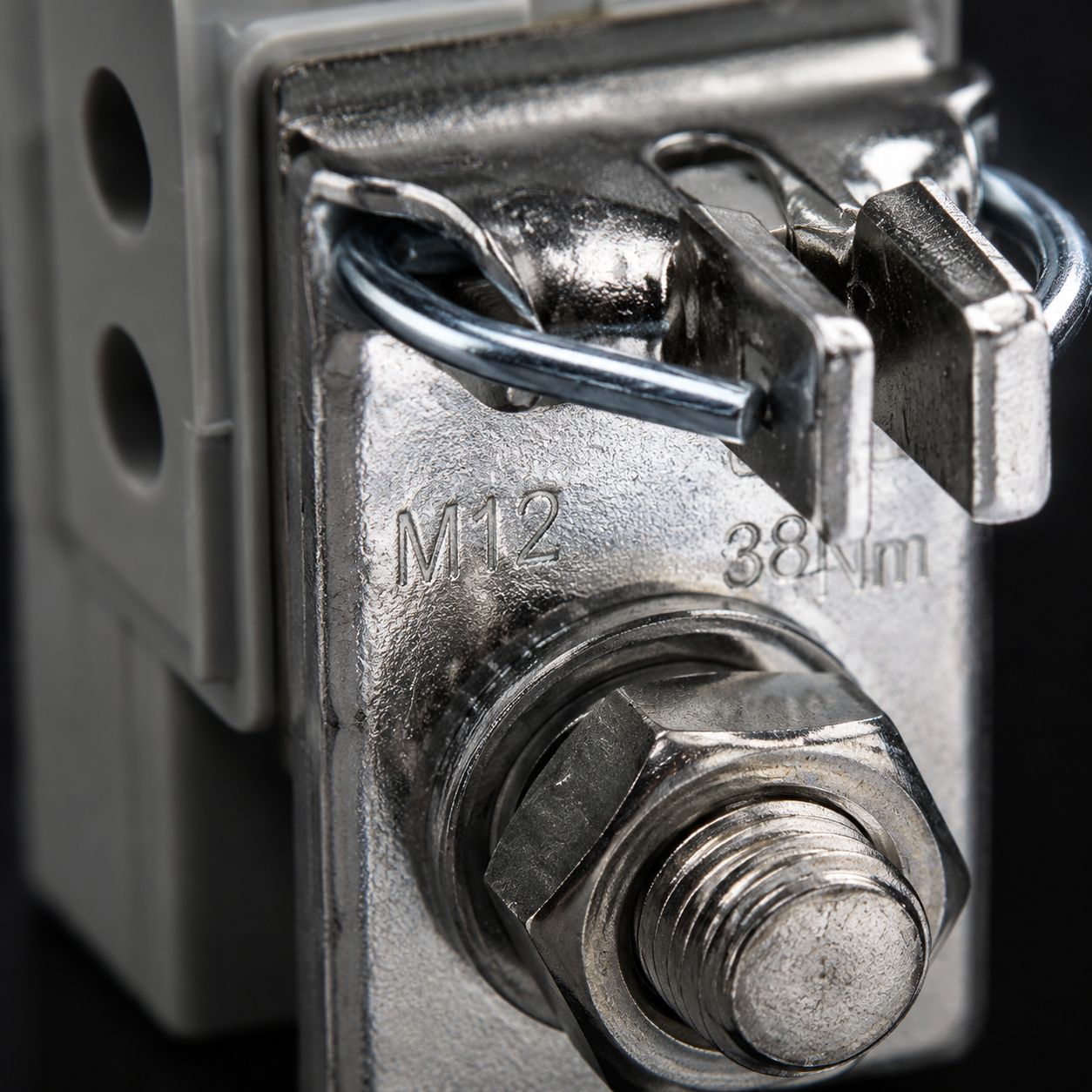

Wire Connection Bolt Tightening Torque (N·m)	11	11/21 21/38
Recommended Copper Conductor Cross Section (mm²)	70	120 400
Characteristic Curve
