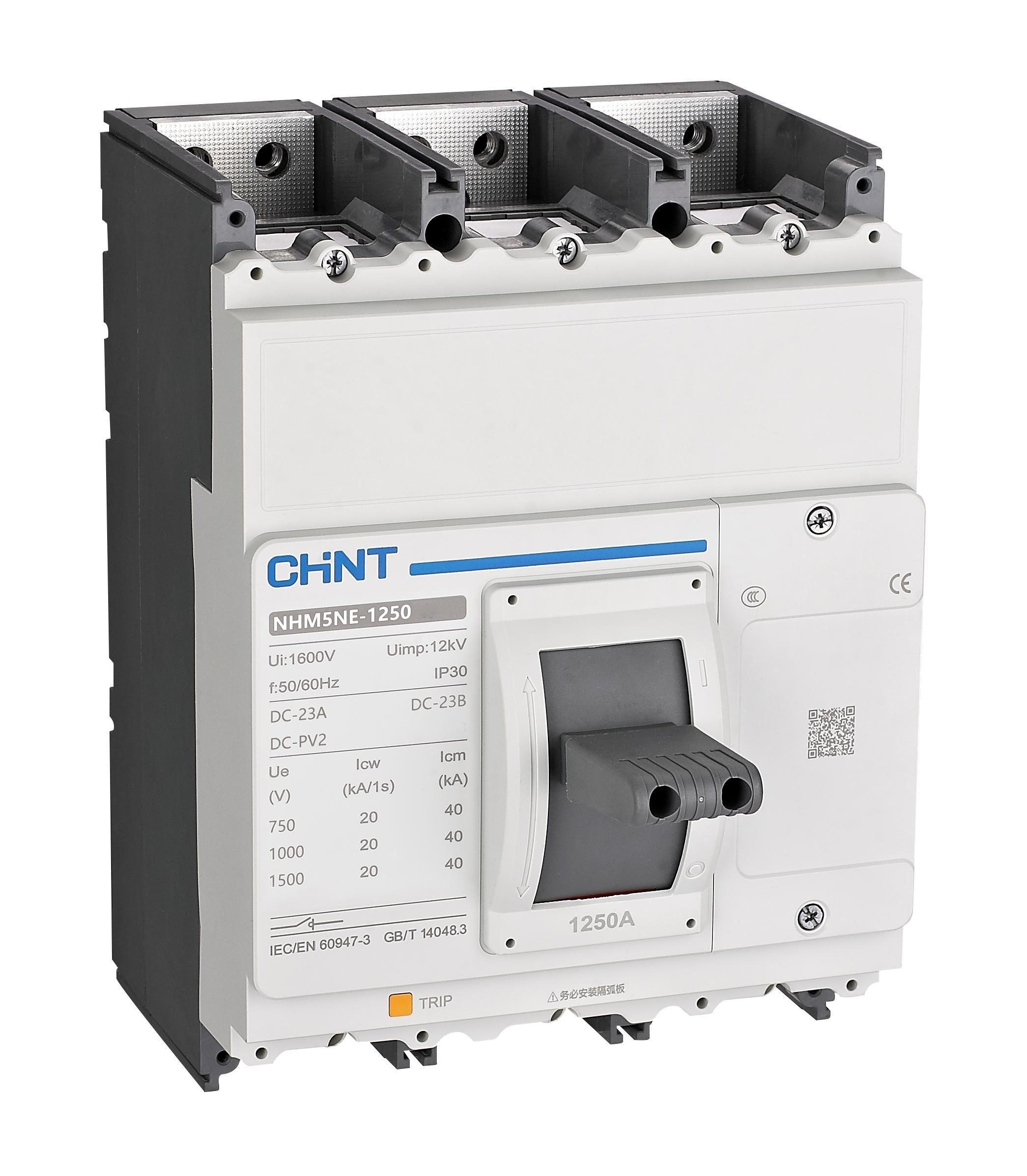

NHM5NE Series Isolating Switch

Product category:: Isolating switch
Product code:: P-674
Model:: NHM5NE

Function & Use (Application Scenarios)

Switching electrical equipment, isolating switches are mainly applicable to the NHR5NE series AC isolating switches of CHINT New Rui. They are applicable to circuits with rated voltage AC1140V and below, and rated current 1250A to 1600A. The product can be operated under load, and are widely used as load and

Surprise on inquiry

Product highlights

Smart Communication Support
New Energy Scene Compatibility
Reliable isolation protection
Engineering Application Compatibility
Stable and reliable operation

Model

NHM5NE

Request a Quote Chat on WhatsApp

Main Product Parameters

CategorySwitchgearSecondary categoryIsolating switch

ParametersRated operating voltage: AC 400V/415V, AC 690V, AC 1140V; Rated current: 1250A, 1600A; Rated insulation voltage: 1600V; Rated short-time withstanding current: 20kA/1sAdvantages/Core Features01 Excellent performance; the rated operating voltage can reach up to AC1140V, meeting the needs of high-voltage AC power supply scenarios; 02 Reliable insulation; the insulation voltage reaches 1600V, and even in environments requiring derating such as high altitude and humidity, it can still maintain high reliability insulation performance; 03 Safe and reliable; the product is suitable for use in an environment of -40~+75℃, and can still operate reliably in various harsh environments

Product details

Function and Usage

Chint New NHM5NE series AC isolating switches are suitable for circuits with rated voltage AC 1140V and below, and rated current 1250A to 1600A. The product can be operated under load and is widely used as isolation between load and power supply to ensure personnel safety during equipment maintenance. The product is widely applicable in power distribution scenarios of various industries such as communications, new energy, and power supply.

Detailed Description

Parameters:
Rated Operating Voltage: AC 400V/415V, AC 690V, AC 1140V
Rated Current: 1250A, 1600A
Rated Insulation Voltage: 1600V
Rated Short-Time Withstand Current: 20kA/1s

Advantages/Core Functions:
01 Excellent Performance
The maximum rated operating voltage can reach AC 1140V, meeting the needs of high-voltage AC power supply scenarios
02 Reliable Insulation
The insulation voltage can reach up to 1600V, maintaining high reliability even in environments requiring derating such as high altitude and humidity
03 Safe and Reliable
The product is suitable for usage environment of -40~+75℃, still reliably operating in various harsh environments
