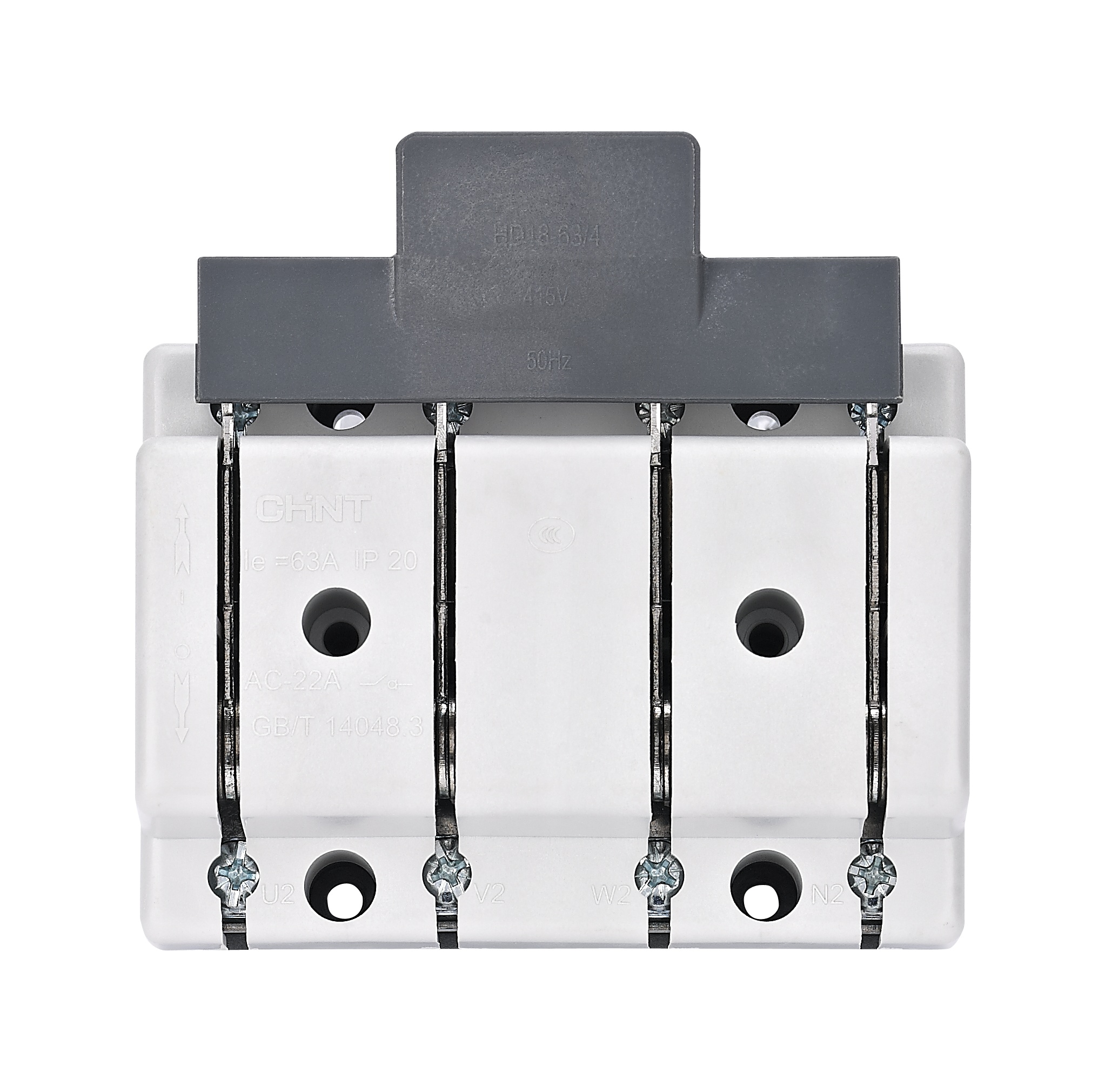

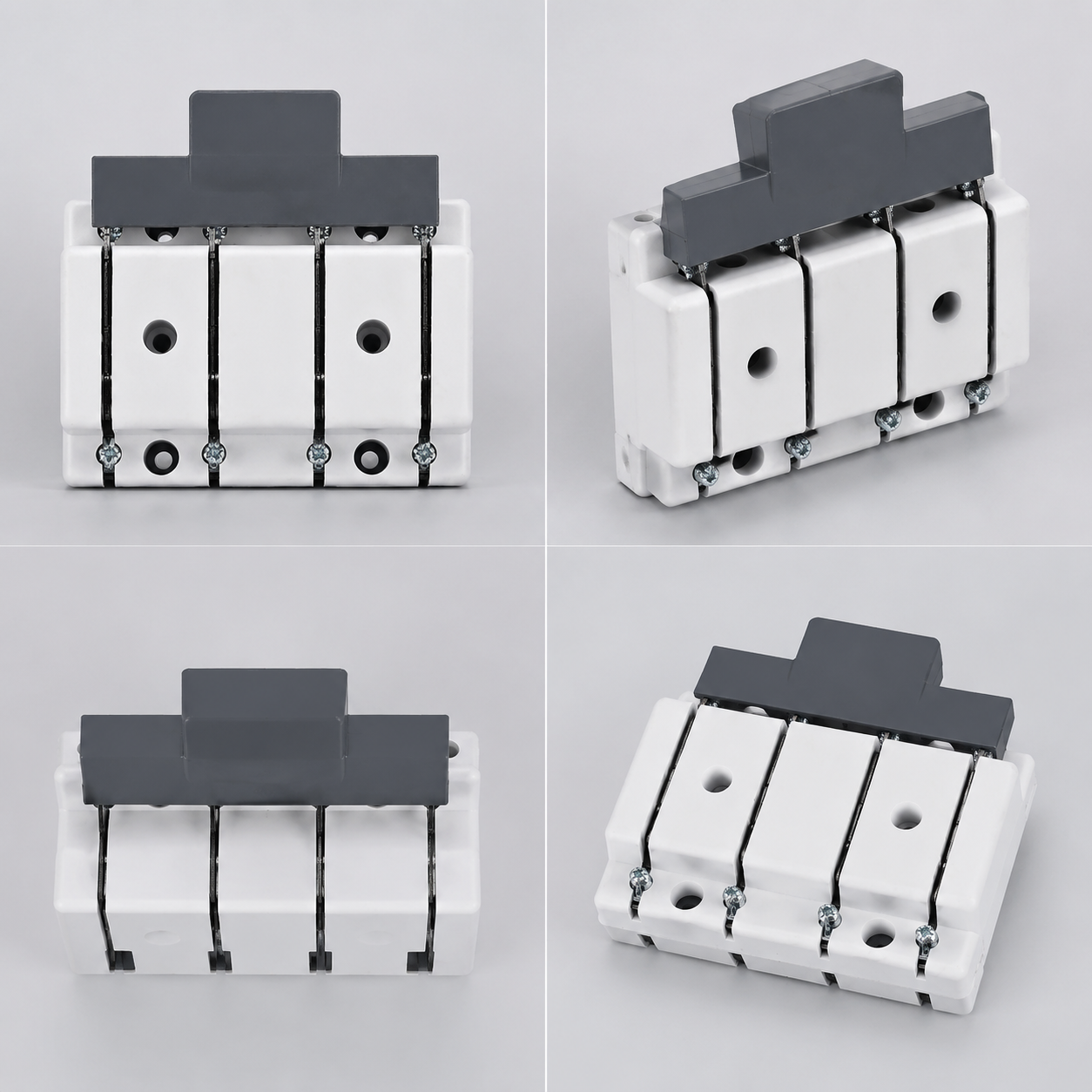

HK18 Isolator

Product category:: Isolating switch
Product code:: P-679
Model:: HK18

Function & Use (Application Scenarios)

Switching electrical equipment, isolating switches are mainly applicable to the HK18 series isolating switch (hereinafter referred to as the switch), whose rated frequency is AC 50/60Hz, working voltage is single-phase 220V, three-phase 415V, working current up to 63A, rated insulation voltage 800

Surprise on inquiry

Product highlights

Strong breaking capacity
New Energy Scene Compatibility
Reliable Isolation Protection
Engineering Application Compatibility
Stable and reliable operation

Model

HK18

Request a Quote Chat on WhatsApp

Main Product Parameters

CategorySwitchgearSecondary CategoryIsolating switch

Product details

Function and Usage

The HK18 series isolating switch (hereinafter referred to as the switch) has a rated frequency of AC 50/60Hz, a working voltage of single-phase 220V, three-phase 415V, a working current up to 63A, and a rated insulation voltage of 800V; it is suitable for frequent manual connection and disconnection of circuits and isolation of circuits in photovoltaic systems, household appliances, and industrial enterprise power distribution systems. However, it is generally not used for direct start-up and shutdown of a single motor.

Detailed Parameters

Parameter Category	Parameter Item	Parameter Value
Rated Voltage (V)		220
	Poles	2
	Rated Current (A)	16
		32
		63
	Usage Category	AC-22A
	Rated short-time withstand current Icw, Is(kA)	0.96
		1.89
	Rated short-circuit making capacity Icm(kA)	1.36
		2.69
	Mechanical Life (times)	8500
	Electrical Life (times)	1500
		415
		3
		16
		32
		63
		415
		4
		16
		32
		63
