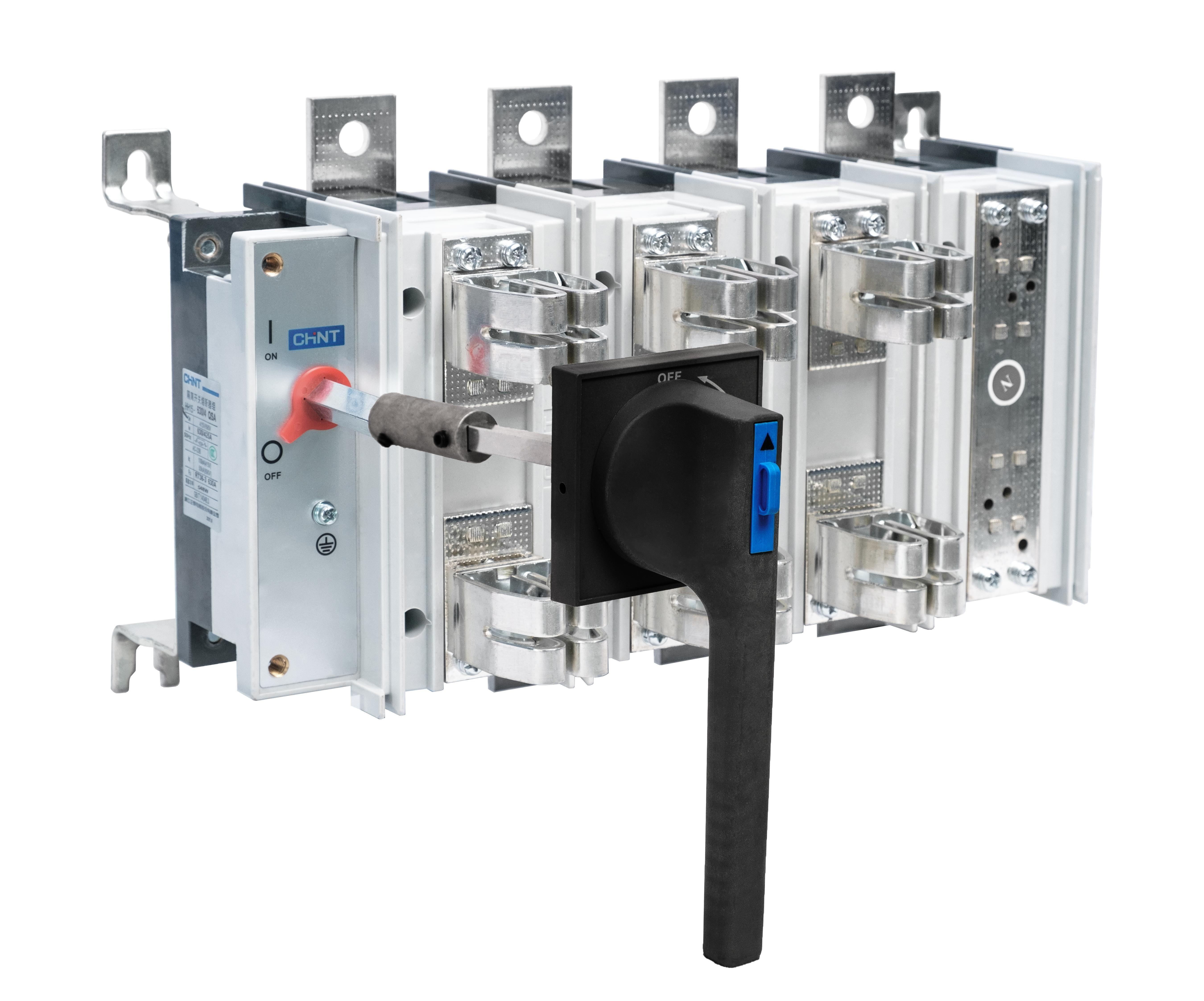

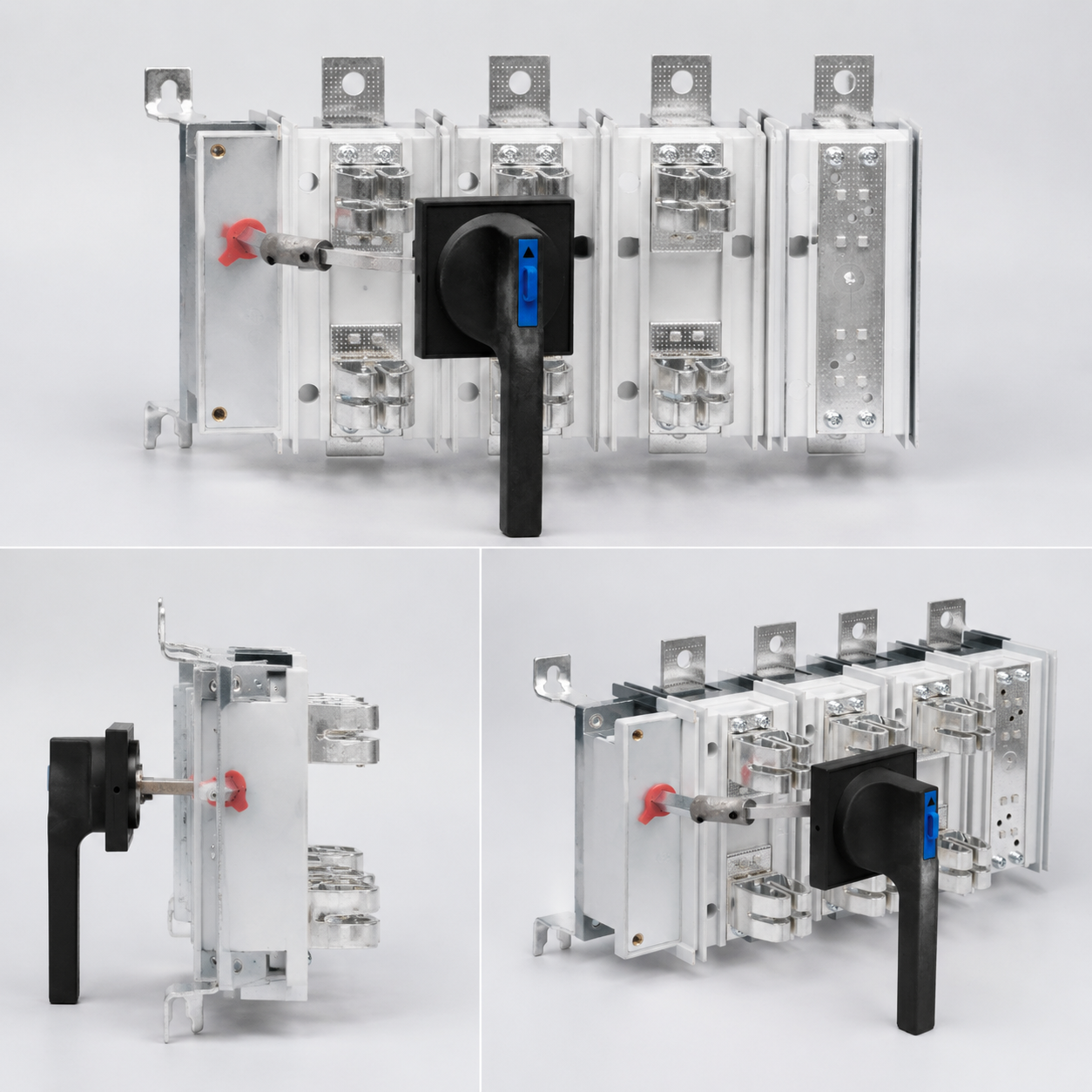

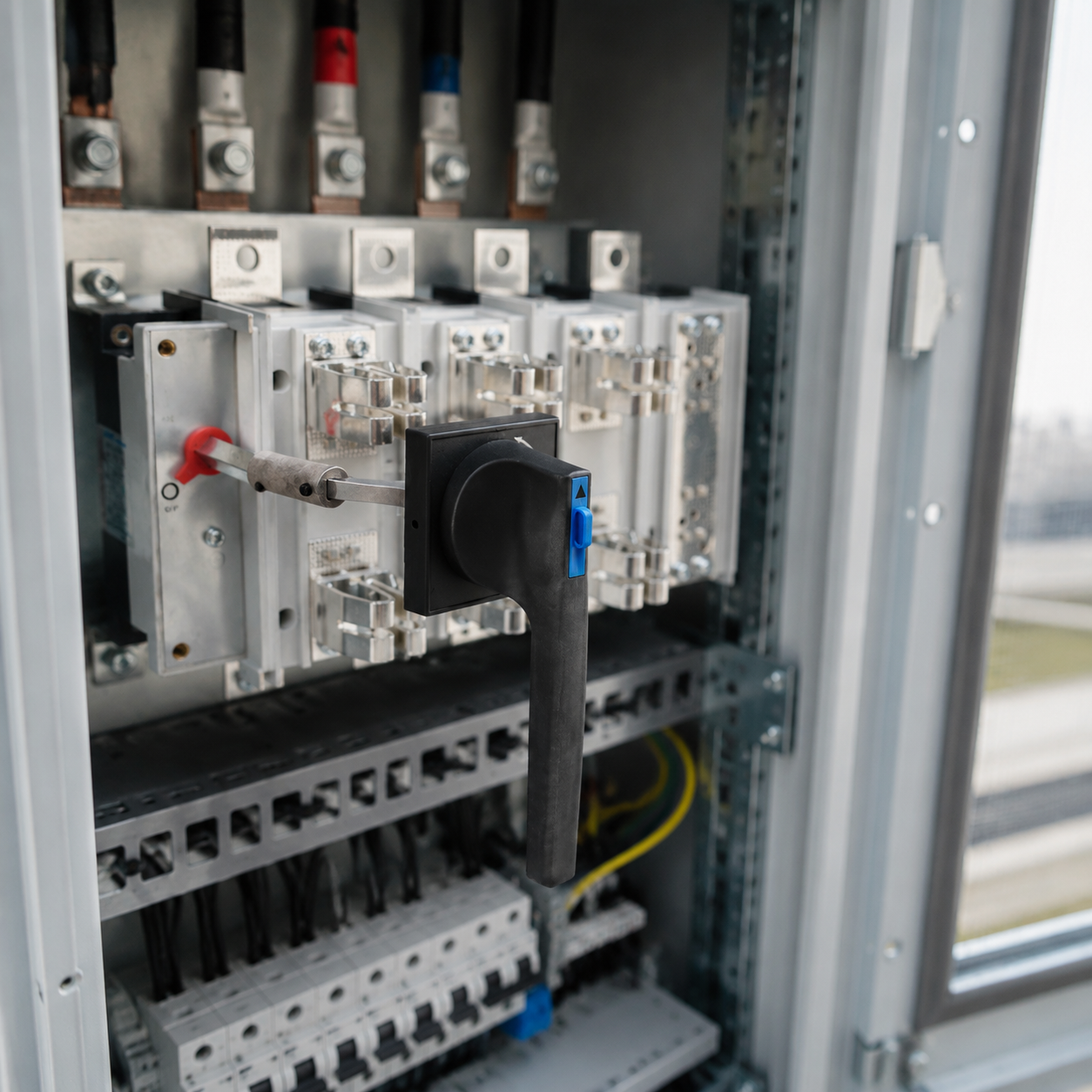

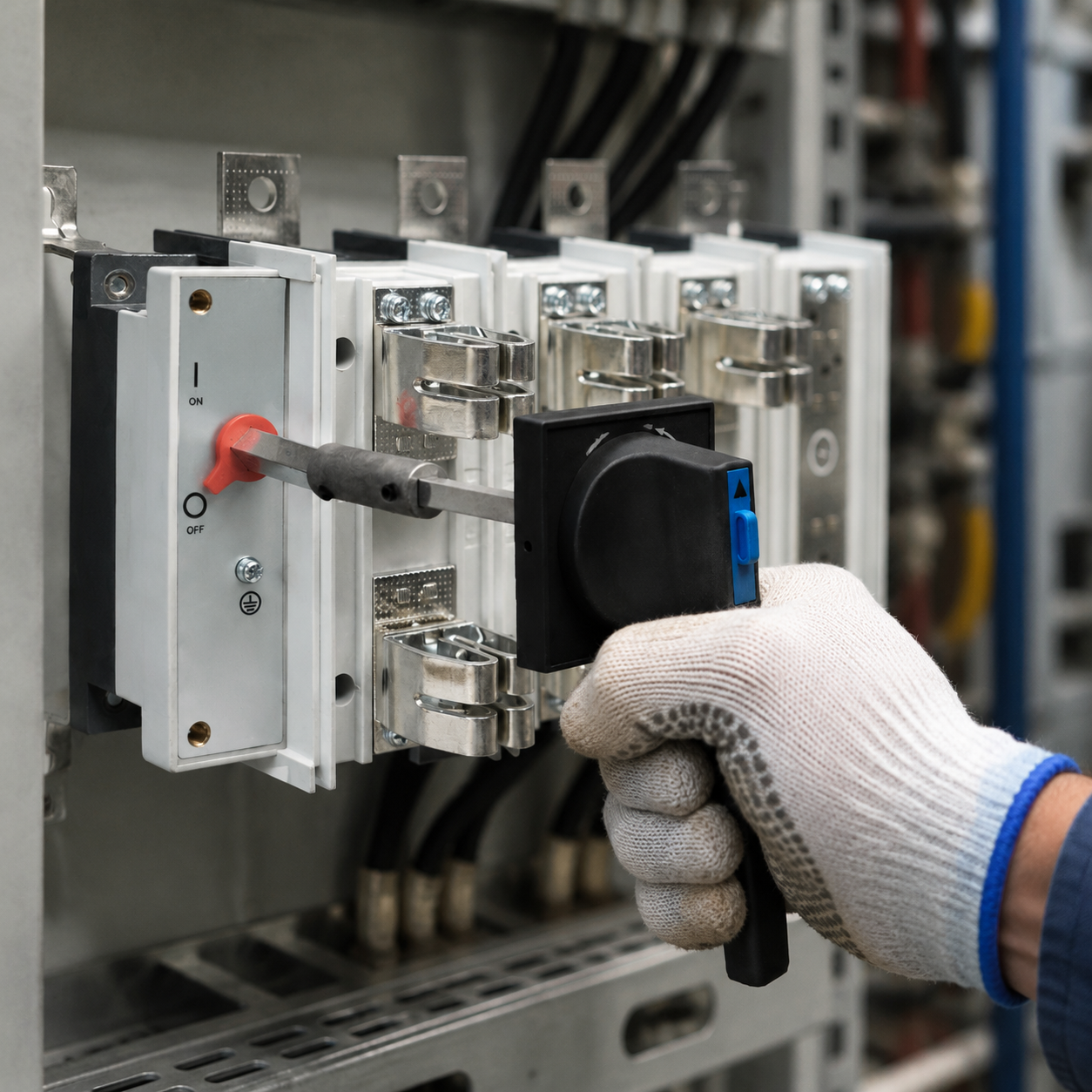

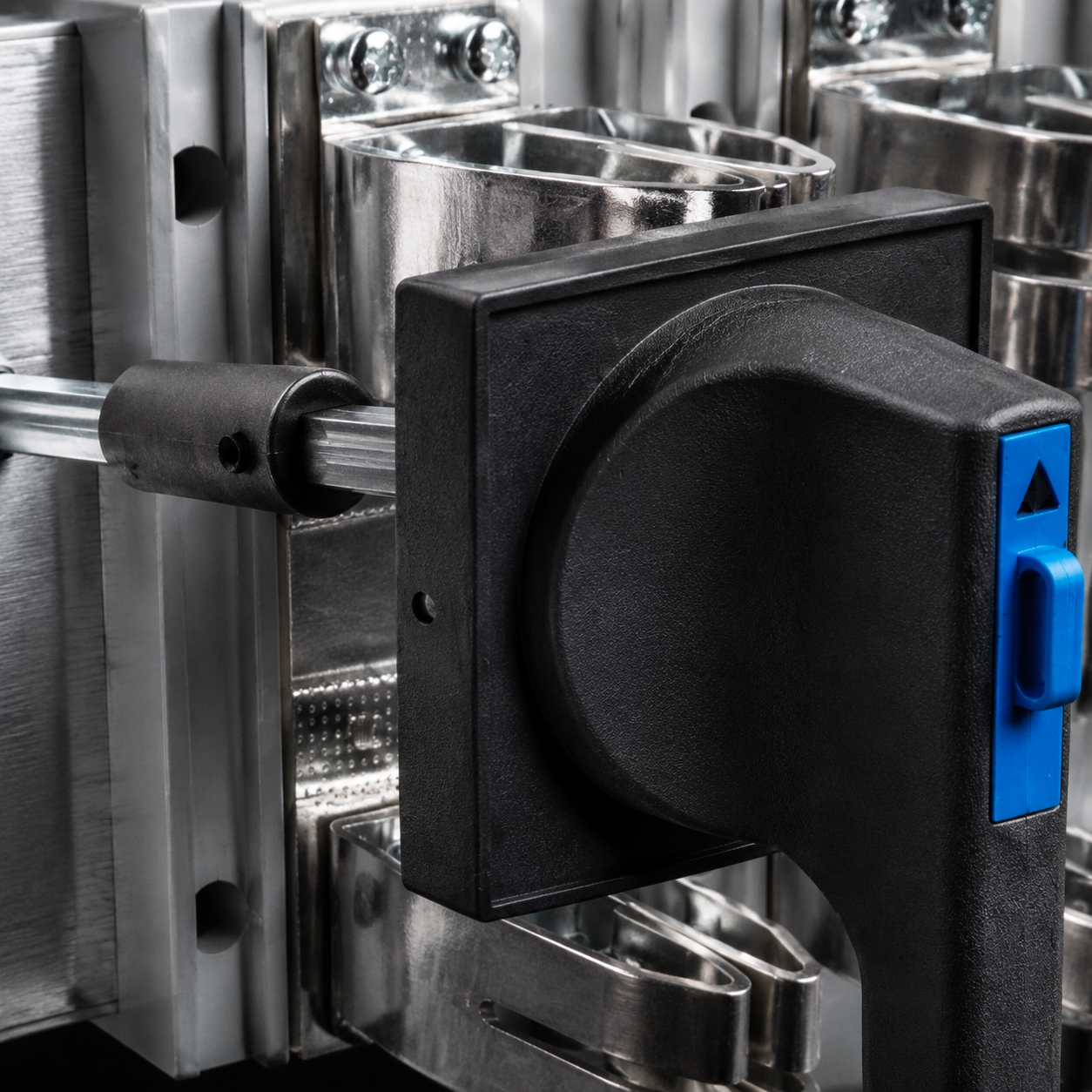

HH15 Series Isolator Fuse Block

Function and Use

HH15 series isolating switch fuse assembly, QA and QP series isolating switches (hereinafter referred to as switches), switches are mainly used in power distribution circuits and motor circuits with high short-circuit current, as manual and infrequent operation main switches or total switches. They are especially suitable for installation in higher-level drawer-type low-voltage complete equipment, but are generally not used for directly switching single motors. Among them, the QA and QP series isolating switches are also not suitable for directly starting single motors.

Detail Parameters

Parameter Table 1

Parameter Category	Parameter Item	Parameter Value
	Specification	63, 125, 160, 250, 400, 630, 800, 1000, 1250, 1600, 2000
	Poles	3, 4, 3+N
	Rated Insulation Voltage Ui(V)	1000
	Rated Operating Voltage Ue(V)	AC 415/690
	Rated Thermal Current Ith(A)	63, 125, 160, 250, 400, 630, 800, 1000, 1250, 1600, 2000
	Rated Operating Current (A)	415V: AC-23B: 63, 125, 160, 250, 400, 630, 800, 1000, 1250, 1600, 2000; 415V: AC-22B: 63, 125, 160, 250, 400, 630, 800, 1000, 1250, 1600, 2000; 690V: AC-22B: 63, 100, 160, 250, 315, 425, 500, 630, 800, 1000, 1250
	Rated Limiting Short-Circuit Current at 415V: (kA)	100, 100, 100, 100, 100, 100, 100, 100, 100, 100, 100
	Rated Limiting Short-Circuit Current at 690V: (kA)	50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50
	Mechanical Life (times)	15000, 15000, 12000, 12000, 12000, 3000, 500, 500, 500, 500, 500
	Electrical Life (times)	300, 200, 200, 200, 200, 100, 100, 100, 100, 100, 100
	Fuse Rated Current (A) at 415V/690V:	63/63, 125/100, 160/160, 250/250, 400/315, 630/425, 800/500, 1000/630, 1250/800, 1600/1000, 2000/1250
	Fuse Model	RT36-00, NT00; RT36-00, NT00; RT36-00, NT00; RT36-1, NT1; RT36-2, NT2; RT36-3, NT3; HDLRS3; HDLRS3; CRM-2000/1600; CRM-2000/2000
	Operating Torque N·m	7.5, 7.5, 16, 16, 30, 40, 40, 40, 40, 40, 40
	Auxiliary Contact Rated Thermal Current Ith 380V, AC-15(A)	5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5
	Specification	125, 160, 200, 400(250), 630, 1000, 1250, 1600
	Poles	3, 4, 3+N
	Rated Insulation Voltage Ui(V)	1000
	Rated Operating Voltage Ue(V)	415/690
	Rated Thermal Current Ith(A)	125, 160, 200, 400, 630, 1000, 1250, 1600
	Rated Operating Current (A)	415V, AC-22B: 125, 160, 200, 400, 630, 1000, 1250, 1600; 690V, AC-22B: 125, 160, 200, 315, 425, 630, 800, 1250; 690V, AC-21B: 125, 160, 200, 400, 630, 800, 1250, 1470
	Rated Short-Circuit Closing Capacity (peak) kA	7.65, 7.65, 7.65, 7.65, 25.2, 67.2, 105, 105
	Rated Short-Time Withstand Current (RMS) kA	5, 5, 5, 12.6, 12.6, 32, 50, 50
	Mechanical Life (times)	15000, 15000, 15000, 12000, 12000, 3000, 1000, 1000
	Electrical Life (times)	200, 200, 200, 200, 200, 100, 100, 100
	Operating Torque N·m	7.5, 7.5, 7.5, 16, 16, 30, 30, 30
	Auxiliary Contact Rated Thermal Current Ith 380V, AC-15(A)	5, 5, 5, 5, 5, 5, 5, 5

Parameter Table 2

>

Parameter Category	Parameter Item	Parameter Value
	Specification	250, 400, 630, 1000, 1250, 1600, 2500, 3150
	Poles	3, 4, 3+N, 3, 4, 3+N, 3, 4, 3+N, 3, 4, 3+N, 3, 4, 3+N, 3, 4, 3+N, 3, 3+N
	Rated Insulation Voltage Ui(V)	1000
	Rated Operating Voltage Ue(V)	AC 415/690
	Rated Thermal Current Ith(A)	250, 400, 630, 1000, 1250, 1600, 2500, 3150
	Rated Operating Current (A)	415V, AC-22B: 250, 400, 630, 1000, 1250, 1600, 2500, 3150; 690V, AC-22B: 250, 400, 630, 630, 800, 800, 1250, 1600; 690V, AC-21B: 250, 400, 630, 1000, 1250, 1470, 2000, 2500
	Rated Short-Circuit Closing Capacity (kA) (peak)	39, 39, 60, 60, 85, 85, 130, 130
	Rated short-time withstand current (RMS) (kA)	5, 12.6, 12.6, 32, 50, 50, 80, 80
	Mechanical life (times)	15000, 15000, 12000, 12000, 1000, 1000, 300, 300
	Electrical life (times)	200, 200, 200, 100, 100, 100, 100, 100
	Operating torque (N·m)	7.5, 7.5, 16, 16, 30, 30, 70, 70
	Auxiliary contact rated holding current Ith 380V, AC-15(A)	5, 5, 5, 5, 5, 5, 5, 5
