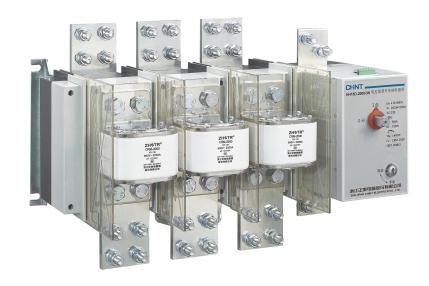

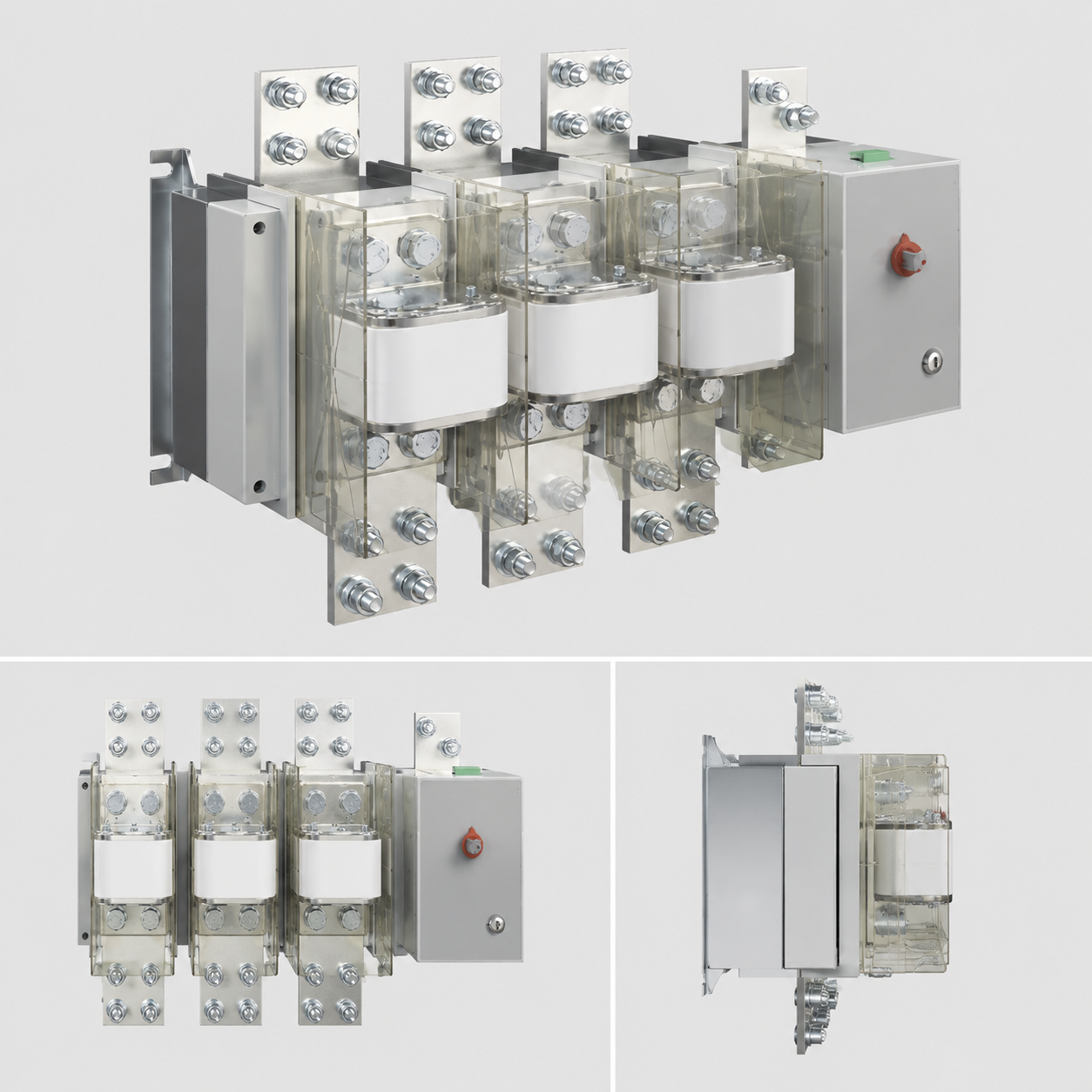

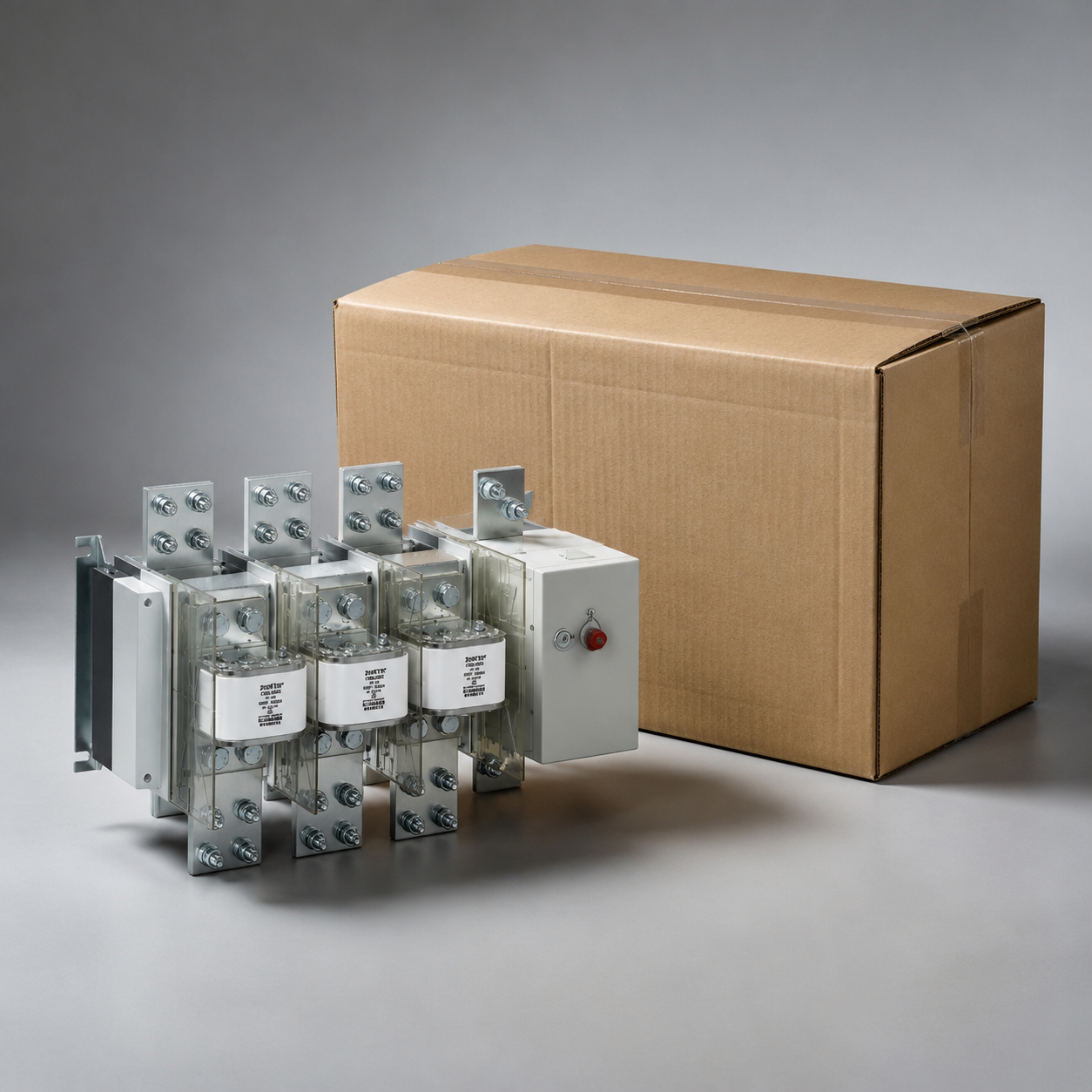

HH15D Series Electric Control Isolator Fuse Unit

Product category:: Isolating switch
Product code:: P-692
Model:: HH15D

Function & Use (Application Scenarios)

Switching electrical appliances, isolating switches are mainly applicable to the HH15D series electric control isolating switch fuse which has electric control and communication functions; in distribution circuits and motor circuits with high short-circuit current, as manual or electric infrequent operation main switch or total switch (generally not used as)

Surprise on inquiry

Product highlights

Smart Communication Support
Short-circuit protection capability

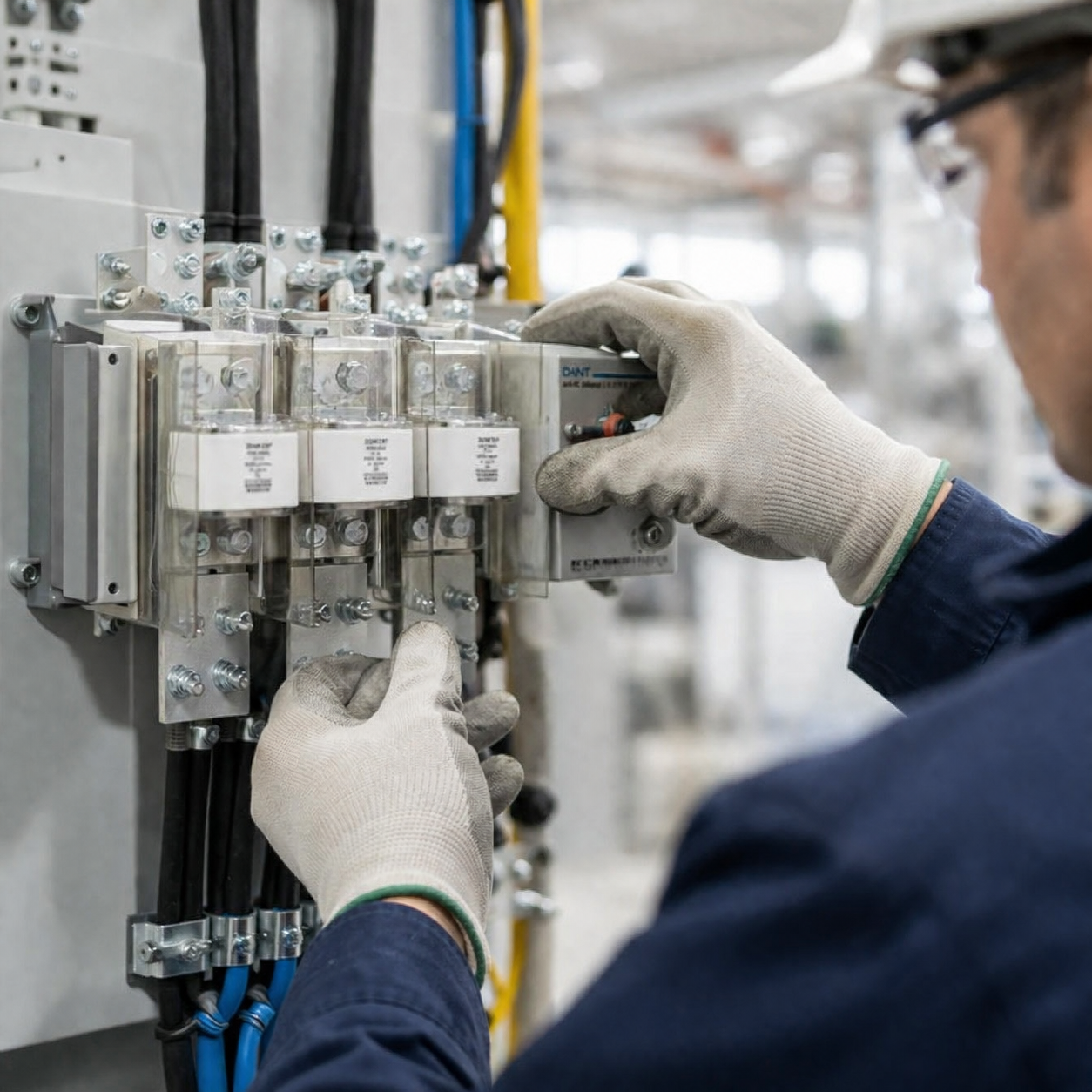

Convenient installation and maintenance

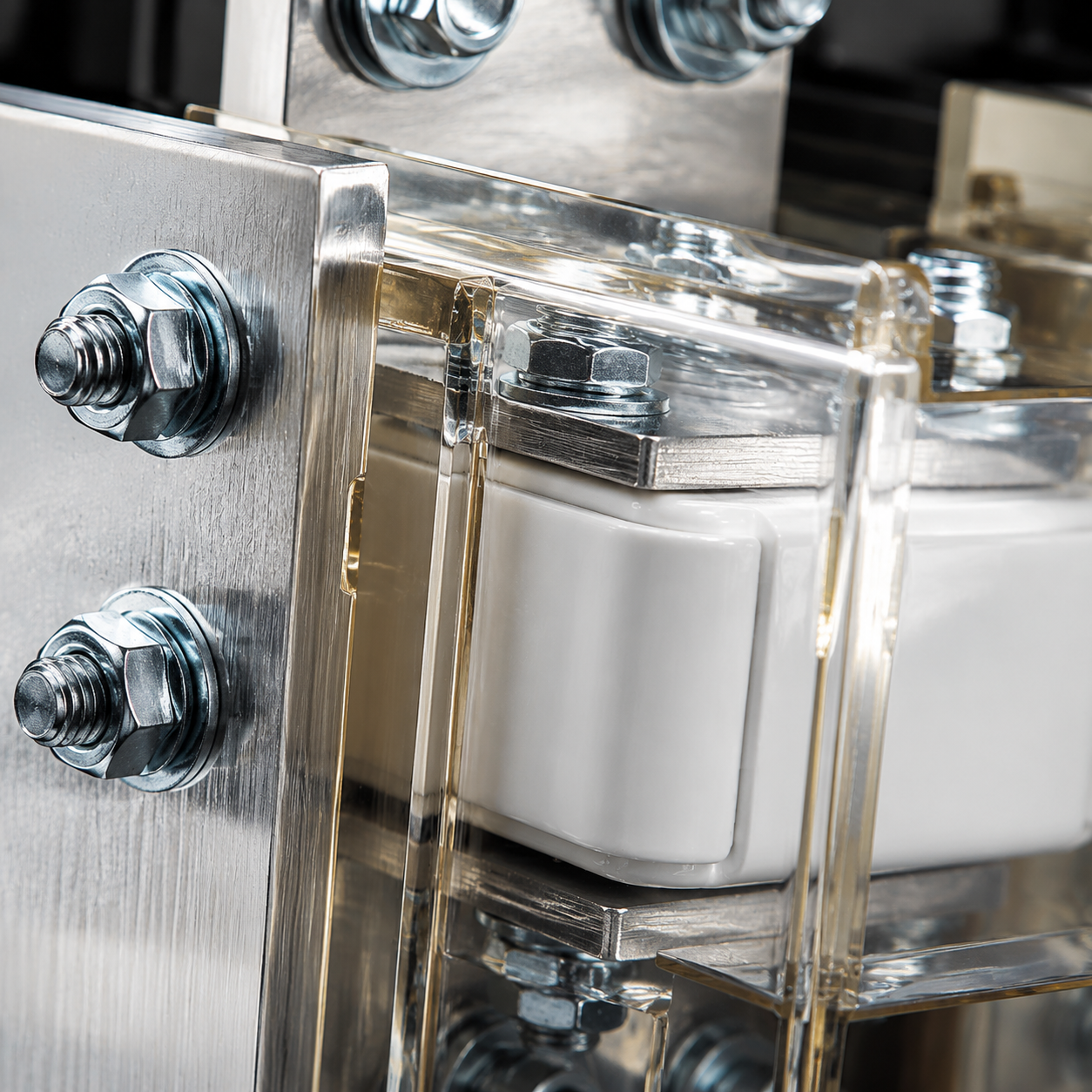

Reliable isolation protection
Engineering Application Compatibility

Model

HH15D

Request a Quote Chat on WhatsApp

Main Product Parameters

CategorySwitchgearSecondary CategoryIsolator

Product details

Function and Application

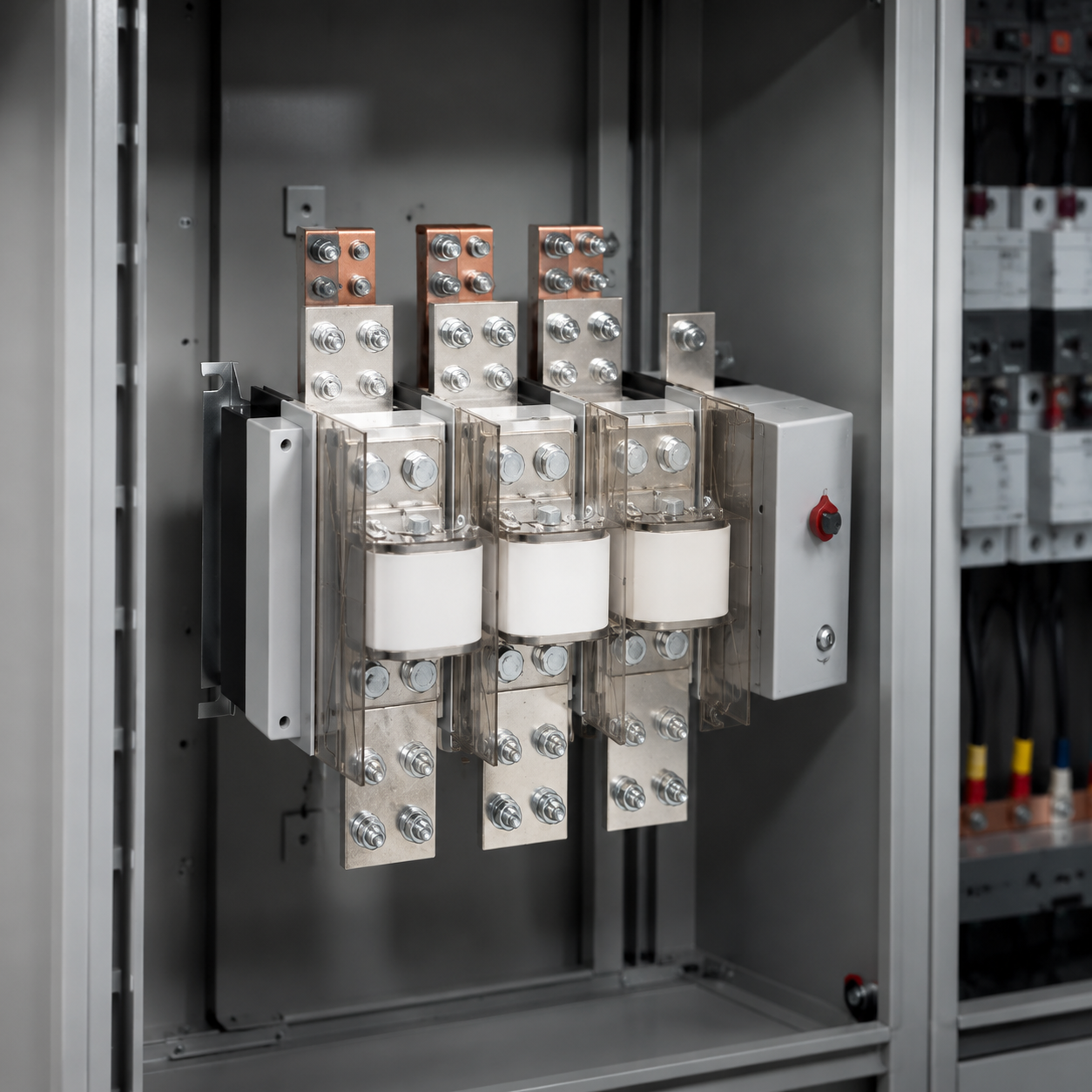

The HH15D series electric control isolating switch with fuse has electric control and communication functions; in distribution circuits and motor circuits with high short-circuit current, it is used as a main switch or main switch for manual or electric infrequent operations (generally not used as a direct switch for single motors), especially suitable for installation in more advanced drawer-type low-voltage complete equipment. The operating handle and contact system have a reliable connection structure, ensuring that the opening of the handle corresponds to the opening of the contacts, so the position of the handle can be a reliable indication of the contact position, and the product realizes internal cabinet operation.

Detailed Parameters

Parameter Category	Parameter Item	Parameter Value
	Rated Thermal Current	63, 100, 125, 160, 200, 250, 315
	Rated Insulation Voltage (V)	1000
	Rated Operating Voltage (V)	415/690
	Rated Operating Current (A)	63, 100, 125, 160, 200, 250, 315
	Rated Limited Short-Circuit Current (kA)	100/50, 100/50, 100/50, 100/50, 100/50, 100/50, 100/50
	Usage Category	AC-22B
	Rated Control Power (W)	325, 325, 325, 325, 325, 325, 355
		62, 62, 62, 62, 62, 62, 74
	Operating Force (N)	65~100, 65~100, 65~100, 65~100, 65~100, 65~100, 75~120
	Rated Thermal Current	400, 630, 800, 1000, 1250, 1600, 2000
	Rated Insulation Voltage (V)	1000
	Rated Operating Voltage (V)	415/690
	Rated Operating Current (A)	400, 630, 800, 1000, 1250, 1600, 2000
	Rated Limited Short-Circuit Current (kA)	100/50, 100/50, 100/50, 100/50, 100/50, 100/50, 100/50
	Usage Category	AC-22B
	Rated Control Power (W)	355, 355, 400, 400, 400, 400, 400
		74, 74, 80, 80, 80, 80, 80
	Operating Force (N)	75~120, 75~120, 200~300, 200~300, 200~300, 200~300, 200~300
