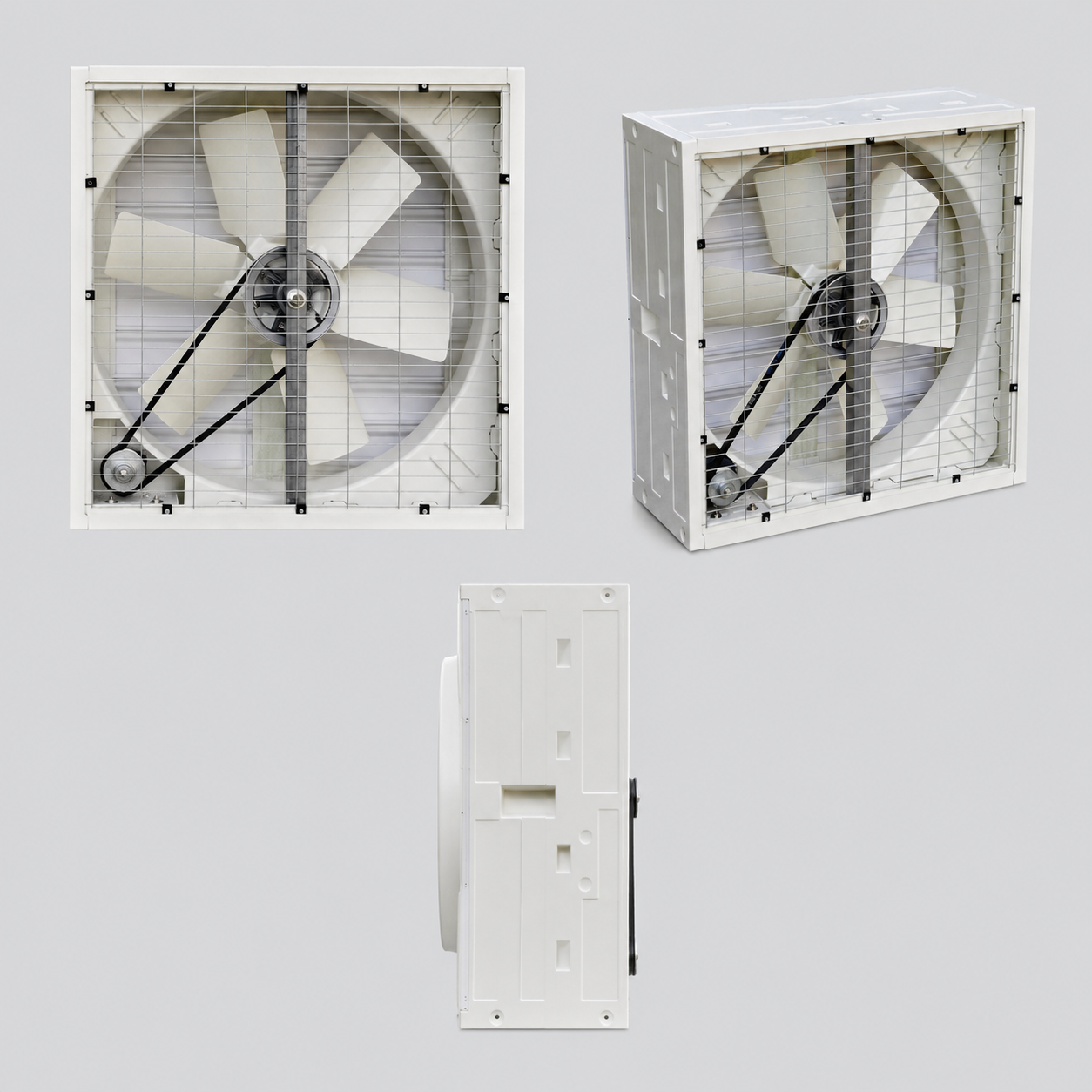

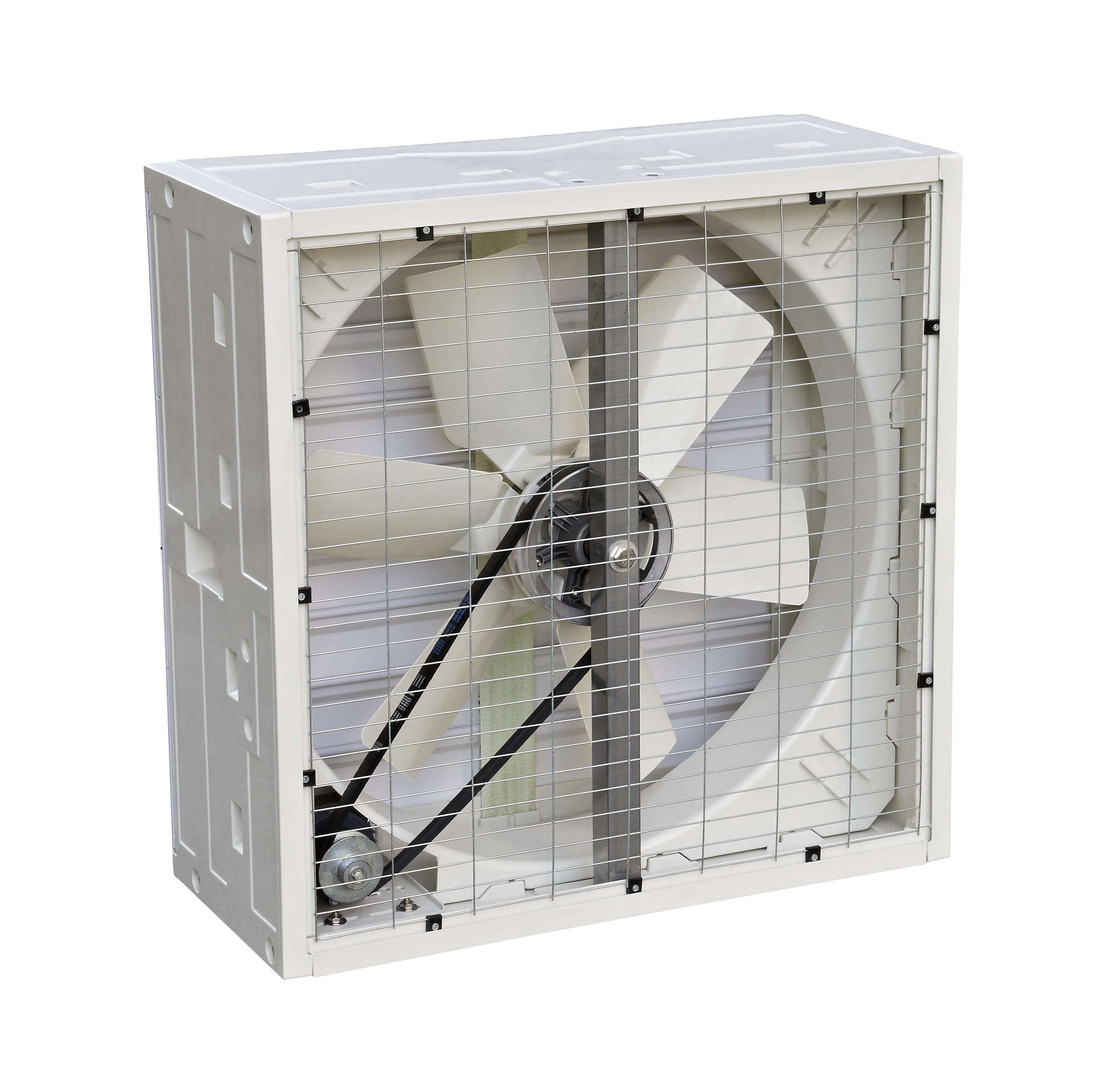

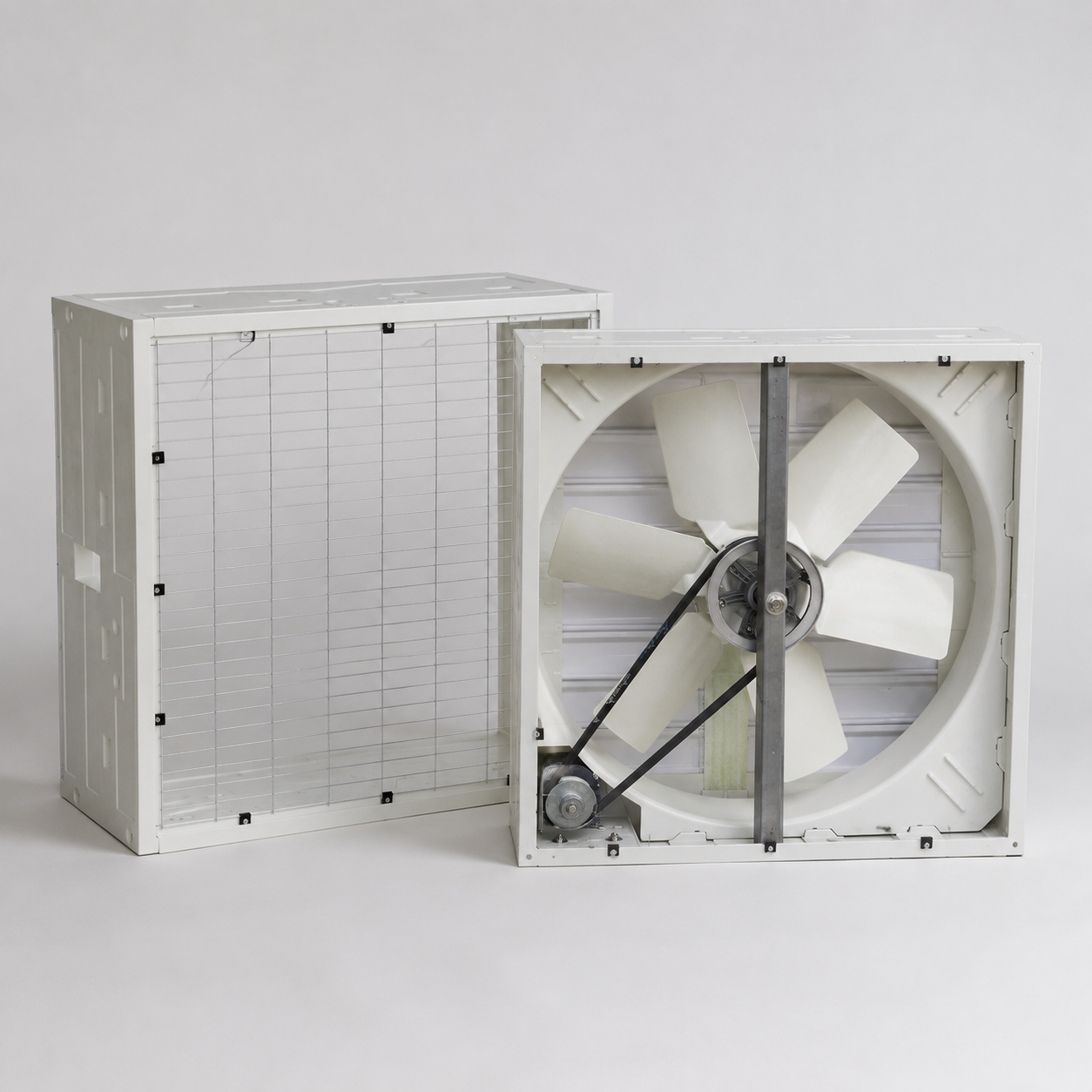

NTF3 Negative Pressure Fan

NTF3 Negative Pressure Fan

Product category:
Negative-pressure Exhaust Fan
Product code:
P-728
Model:
NTF3

Function & Use (Application Scenarios)

Electrical accessories and other products, negative pressure fan products are mainly applicable to negative pressure fans, which are usually called exhaust fans, industrial exhaust fans or ventilation fans. It is a ventilation and cooling equipment based on the principle of air convection and negative pressure ventilation. It is widely used in large area ventilation, smoke removal and dust removal places, such as various types of

Surprise on inquiry

Product highlights

  • Engineering Application Compatibility
  • Stable and reliable operation
  • Easy system integration

Model

NTF3
Request a QuoteChat on WhatsApp

Main Product Parameters

CategoryOther (Tools / Labor Protection / Machining Equipment)Secondary CategoryNegative pressure fan

Product details

Function and Usage

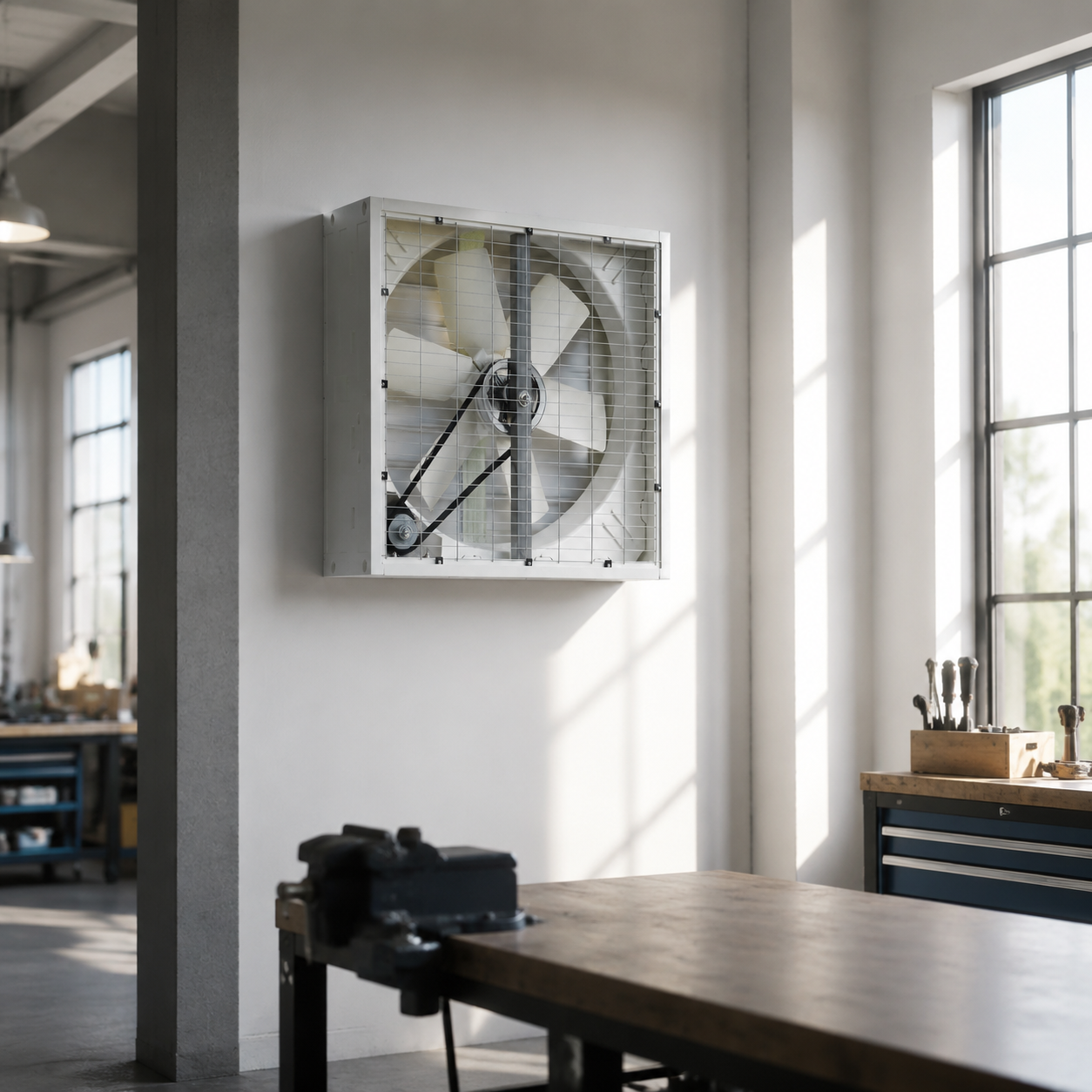

Negative pressure fan, also known as exhaust fan, industrial exhaust fan, or ventilation fan, is a ventilation and cooling equipment based on the principle of air convection and negative pressure ventilation. It is widely used in large-area ventilation, smoke exhaust, and dust removal places, such as various production and manufacturing workshops, large-scale breeding farms, stadiums, gyms, large supermarkets, parking lots, internet cafes, waiting halls, and other crowded places.

Details

Parameter CategoryParameter ItemParameter Value
Product ModelNTF3-L560/2Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A1.4
Motor Rated Power W250
Motor Rated Speed RPM1400
Maximum Airflow m³/h4700
Maximum Air Pressure Pa61
Housing MaterialSMC
Product ModelNTF3-L660/2Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A1.47
Motor Rated Power W370
Motor Rated Speed RPM1400
Maximum Airflow m³/h5900
Maximum Air Pressure Pa98
Housing MaterialSMC
Product ModelNTF3-L760/2Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A2.46
Motor Rated Power W370
Motor Rated Speed RPM1400
Maximum Airflow m³/h10200
Maximum Air Pressure Pa125
Housing MaterialSMC
Product ModelNTF3-L850/2Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A2.38
Motor Rated Power W370
Motor Rated Speed RPM670
Maximum Airflow m³/h8700
Maximum Air Pressure Pa79
Housing MaterialSMC
Product ModelNTF3-L1060/2Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A2.9
Motor Rated Power W550
Motor Rated Speed RPM560
Maximum Airflow m³/h16000
Maximum Air Pressure Pa77
Housing MaterialSMC
Product ModelNTF3-L1260/2Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A5.53
Motor Rated Power W750
Motor Rated Speed RPM560
Maximum Airflow m³/h22500
Maximum Air Pressure Pa106
Housing MaterialSMC
Product ModelNTF3-L1460/2Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A7.26
Motor Rated Power W1100
Motor Rated Speed RPM560
Maximum Airflow m³/h33300
Maximum Air Pressure Pa103
Housing MaterialSMC
Product ModelNTF3-L560/3Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A0.78
Motor Rated Power W250
Motor Rated Speed RPM1400
Maximum Airflow m³/h6000
Maximum Air Pressure Pa55
Housing MaterialSMC
Product Modeld>NTF3-L660/3Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A0.87
Motor Rated Power W370
Motor Rated Speed RPM1400
Maximum Airflow m³/h4400
Maximum Pressure Pa93
Housing MaterialSMC
Model NumberNTF3-L760/3Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A1.05
Motor Rated Power W370
Motor Rated Speed RPM670
Maximum Airflow m³/h10700
Maximum Pressure Pa152
Housing MaterialSMC
Model NumberNTF3-L850/3Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A0.96
Motor Rated Power W370
Motor Rated Speed RPM670
Maximum Airflow m³/h9300
Maximum Pressure Pa84
Housing MaterialSMC
Model NumberNTF3-L1060/3Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A1.17
Motor Rated Power W550
Motor Rated Speed RPM560
Maximum Airflow m³/h15300
Maximum Pressure Pa84
Housing MaterialSMC
Model NumberNTF3-L1260/3Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A1.85
Motor Rated Power W750
Motor Rated Speed RPM560
Maximum Airflow m³/h23200
Maximum Pressure Pa97
Housing MaterialSMC
Model NumberNTF3-L1460/3Z
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A2.35
Motor Rated Power W1100
Motor Rated Speed RPM560
Maximum Airflow m³/h32000
Maximum Pressure Pa95
Housing MaterialSMC
Model NumberNTF3-F800/2D
Rated Voltage V220
Rated Frequency Hz50
Rated Operating Current A1.92
Motor Rated Power W250
Motor Rated Speed RPM1400
