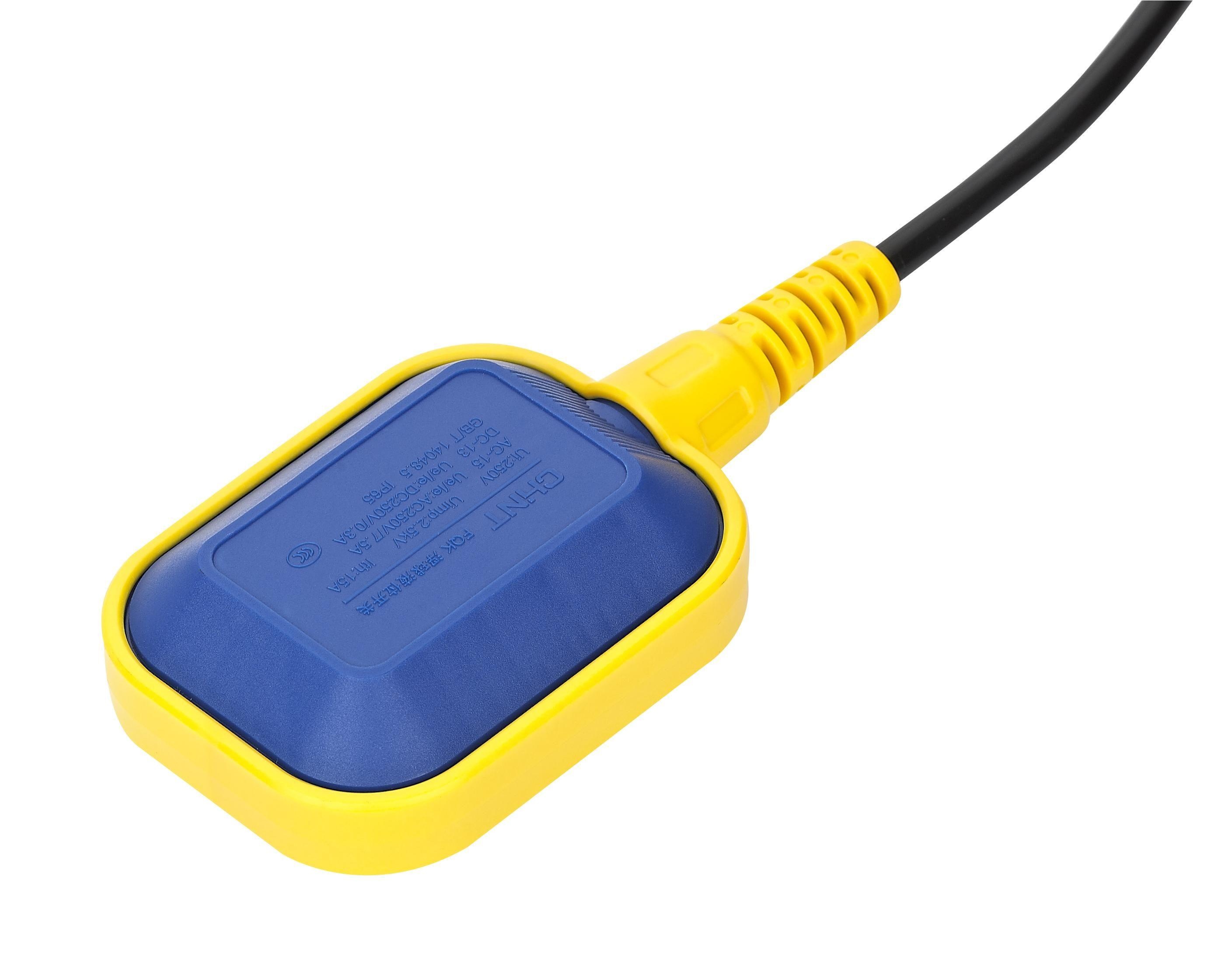

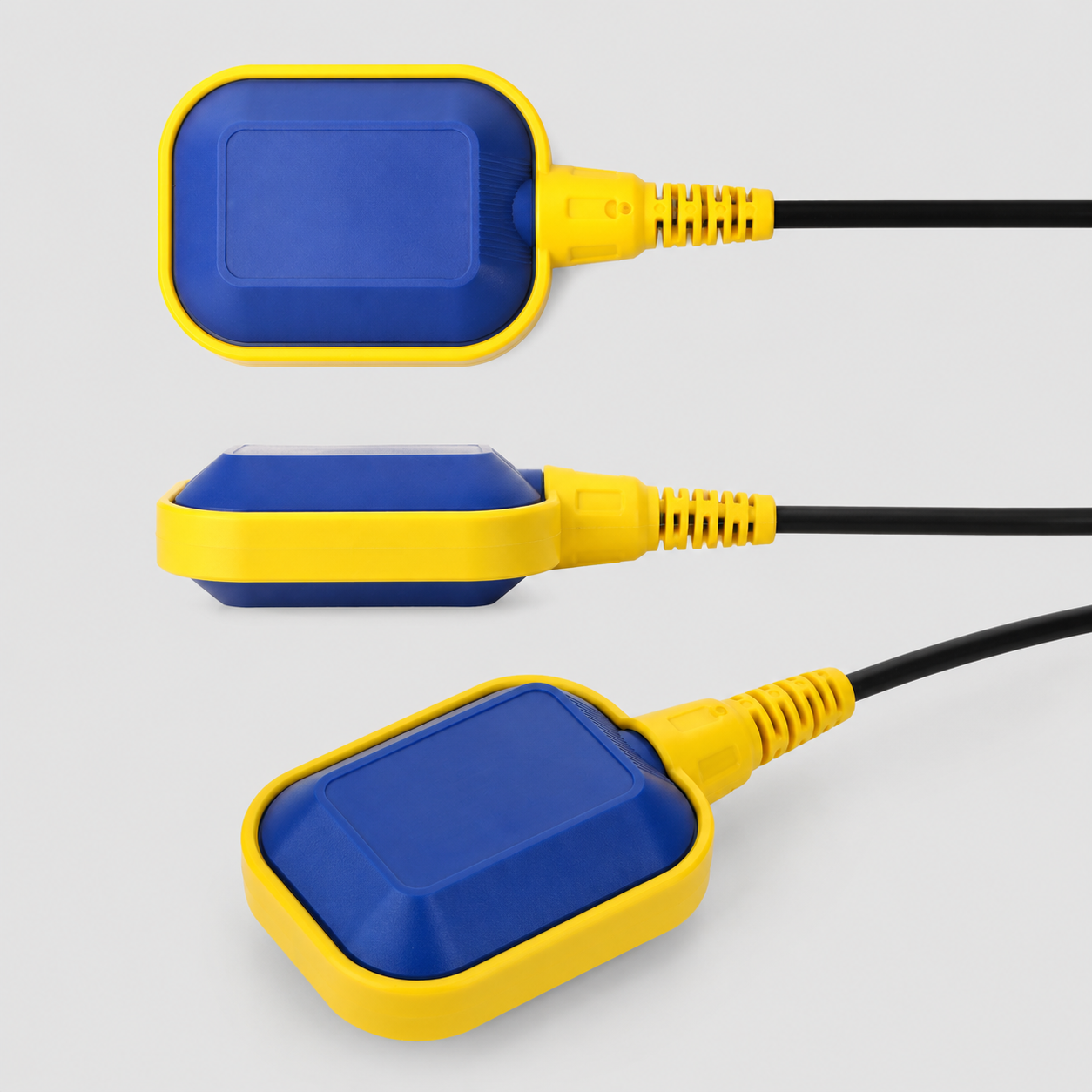

FQK Series Cable Float Switch

Product category:: Float Switch
Product code:: P-729
Model:: FQK

Function & Use (Application Scenarios)

Electrical accessories and other products, float switch products are mainly applicable to FQK float level switches, which are switches that can regulate the liquid level in drums, tanks or wells by using the principle of gravity and buoyancy. The product is easy to operate, convenient to install, safe and reliable, maintenance-free, non-toxic and environmentally friendly. Widely used in home

Surprise on inquiry

Product highlights

Easy installation and maintenance
Engineering Application Compatibility
Stable and reliable operation
Easy system integration

Model

FQK

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryOther (Tools / Labor Protection / Machining Equipment)Secondary CategoryFloat switch

Product details

Function and Application

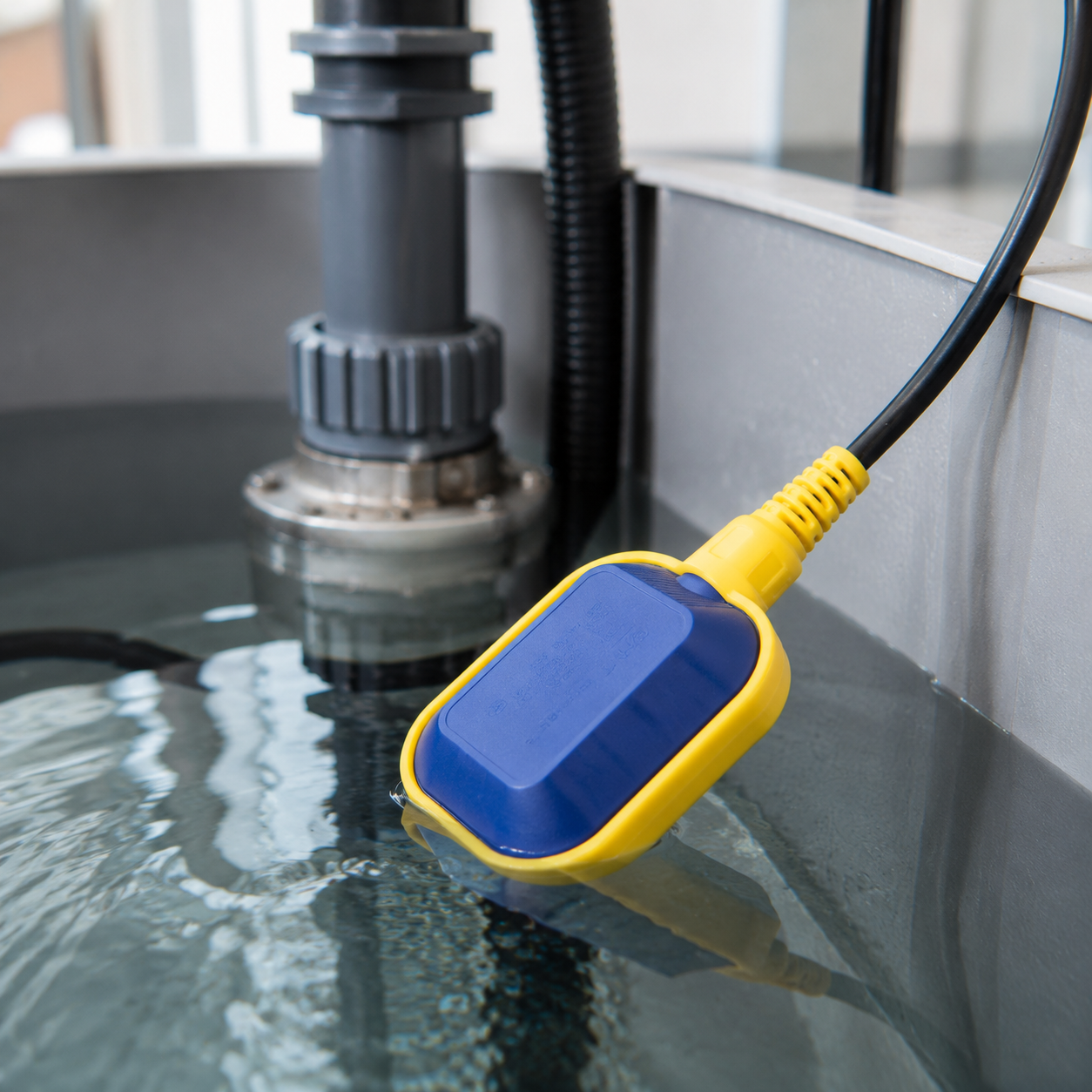

FQK float level switch is a switch that can adjust the liquid level in tanks, troughs or wells by using the principle of gravity and buoyancy. The product is easy to operate, convenient to install, safe and reliable, maintenance-free, non-toxic and environmentally friendly. It is widely used in water tanks, oil, weak acid and weak base pools, barrels, tanks, and containers in homes, factories and mines.

Detailed Specifications

Parameter Category	Parameter Item	Parameter Value
4 Main Technical Parameters and Performance	Technical Parameters	FQK
	Rated Insulation Voltage Ui	250V
	Rated Impact Withstand Voltage Uimp	2.5kV
	Agreed Free Air Heating Current Ith	15A
	Usage Category	AC-15; DC-13
	Rated Operating Voltage Ue	AC250V; DC250V
	Rated Operating Current Ie	AC7.5A; DC0.3A
	Mechanical Life	500,000 times
	Protection Level	IP68
	Cable Length	2m; 3m; 4m; 5m
	Enclosure Shape	Rectangular; Round
