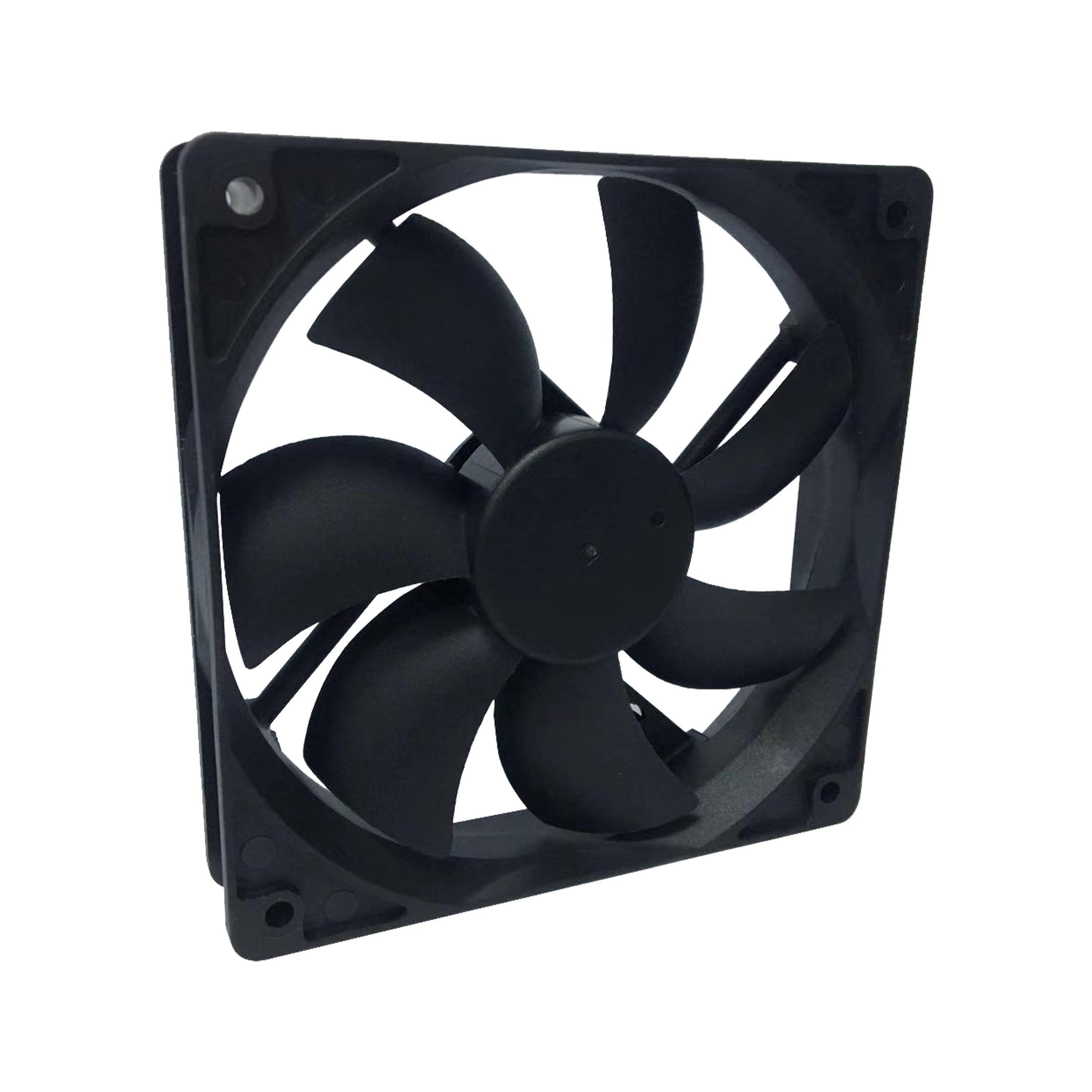

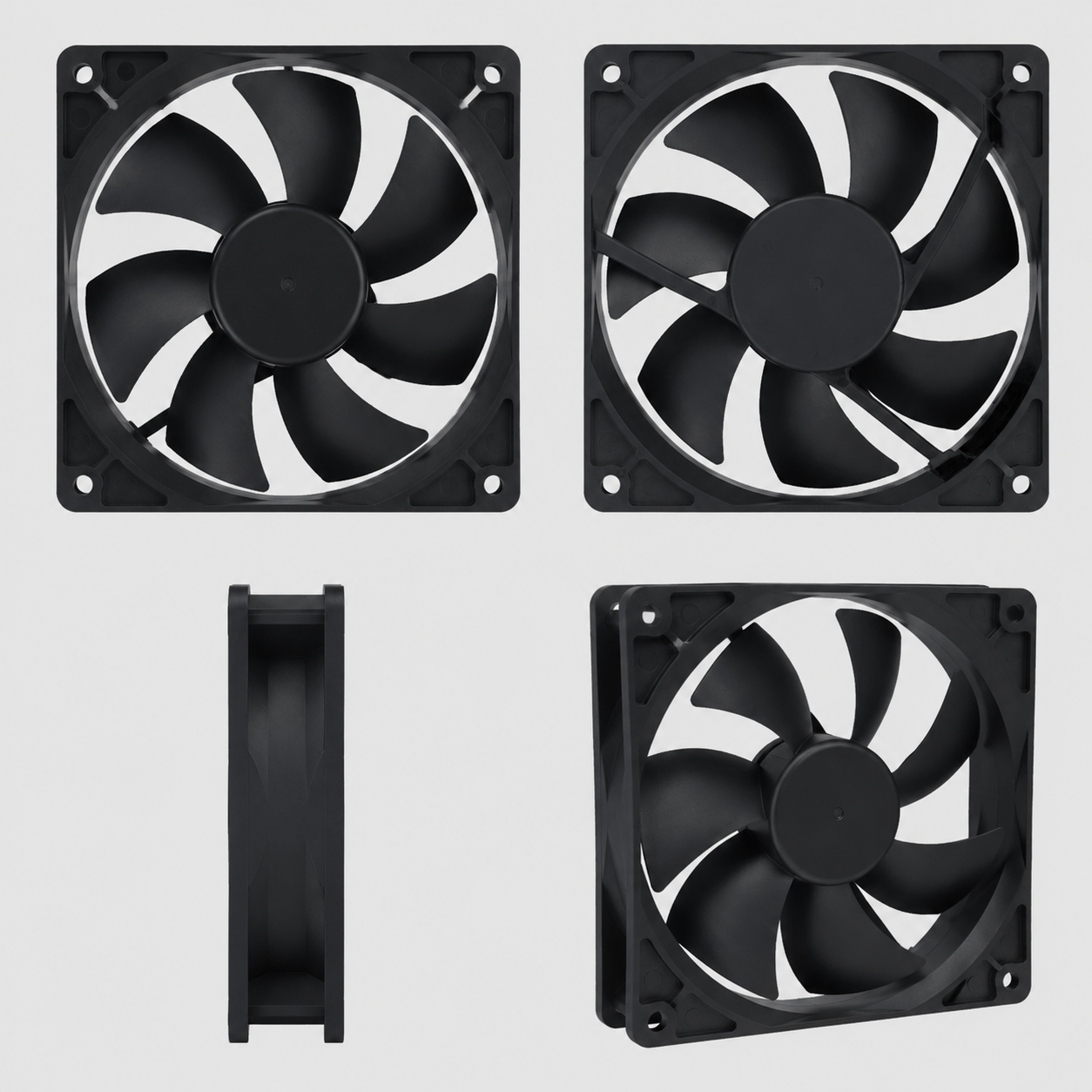

NTF2 Axial Fan

Product category:: Axial Fans and Temperature-control Accessories
Product code:: P-732
Model:: NTF2

Function & Use (Application Scenarios)

Electrical accessories and other products, axial fans and temperature control accessories products are mainly suitable for small axial fans composed of fan impellers and housings. When the fan is working, the blade pushes the air to flow in the same direction as the shaft, with advantages such as low power consumption, fast heat dissipation, low noise, energy saving and environmental protection. Due to its small size, it has a wide range of applications.

Surprise on inquiry

Product highlights

Energy-efficient operation
Reliable cooling design
Engineering Application Compatibility
Stable and reliable operation
Easy system integration

Model

NTF2

Request a Quote Chat on WhatsApp

Main Product Parameters

CategoryOther (Tools / Labor Protection / Machining Equipment)Secondary CategoryAxial Fan and Temperature Control Accessories

Product details

Function and Usage

Small axial fans consist of a fan impeller and a housing. When the fan operates, the blade pushes air to flow in the same direction as the shaft, with advantages such as low power consumption, fast heat dissipation, low noise, energy saving, and environmental protection. Due to its small size, the small axial fan is widely used, mainly for ventilation and heat dissipation of machinery and equipment, such as electrical cabinets, distribution boxes, etc.

Detailed Parameters

Parameter Category	Parameter Item	Parameter Value
	Operating Voltage	AC220V/AC380V
	Voltage Frequency	50Hz
	Temperature Rise During Operation	≤ 80K
	Noise	24dB~75dB
	Insulation Class	B Class
	Operating Temperature	Ball Bearing: -30℃ ~+65℃ / Oil-impregnated: -10℃ ~+60℃
	Lifetime	Oil-impregnated: 30000h / Ball Bearing: 50000h
	Operating Voltage	DC12V/24V
		/
	Temperature Rise During Operation	≤ 50K
	Noise	23dB~70dB
	Insulation Class	A Class
	Operating Temperature	Ball Bearing: -30℃ ~+65℃ / Oil-impregnated: -10℃ ~+60℃
	Lifetime	Oil-impregnated: 30000h / Ball Bearing: 50000h
Product Model	Voltage V	220
	Frequency Hz	50
	Current A	0.07
	Power W	13
	Speed RPM	2300
	Noise dB (A)	24
	Maximum Airflow m³/h	32
	Maximum Airflow CFM	19
	Maximum Static Pressure mm-H₂O	4
NTF2-8025/AC220S
NTF2-8025/AC220B
NTF2-8038/AC220S
NTF2-8038/AC220B
NTF2-9225/AC220S
NTF2-9225/AC220B
NTF2-9238/AC220S
NTF2-9238/AC220B
