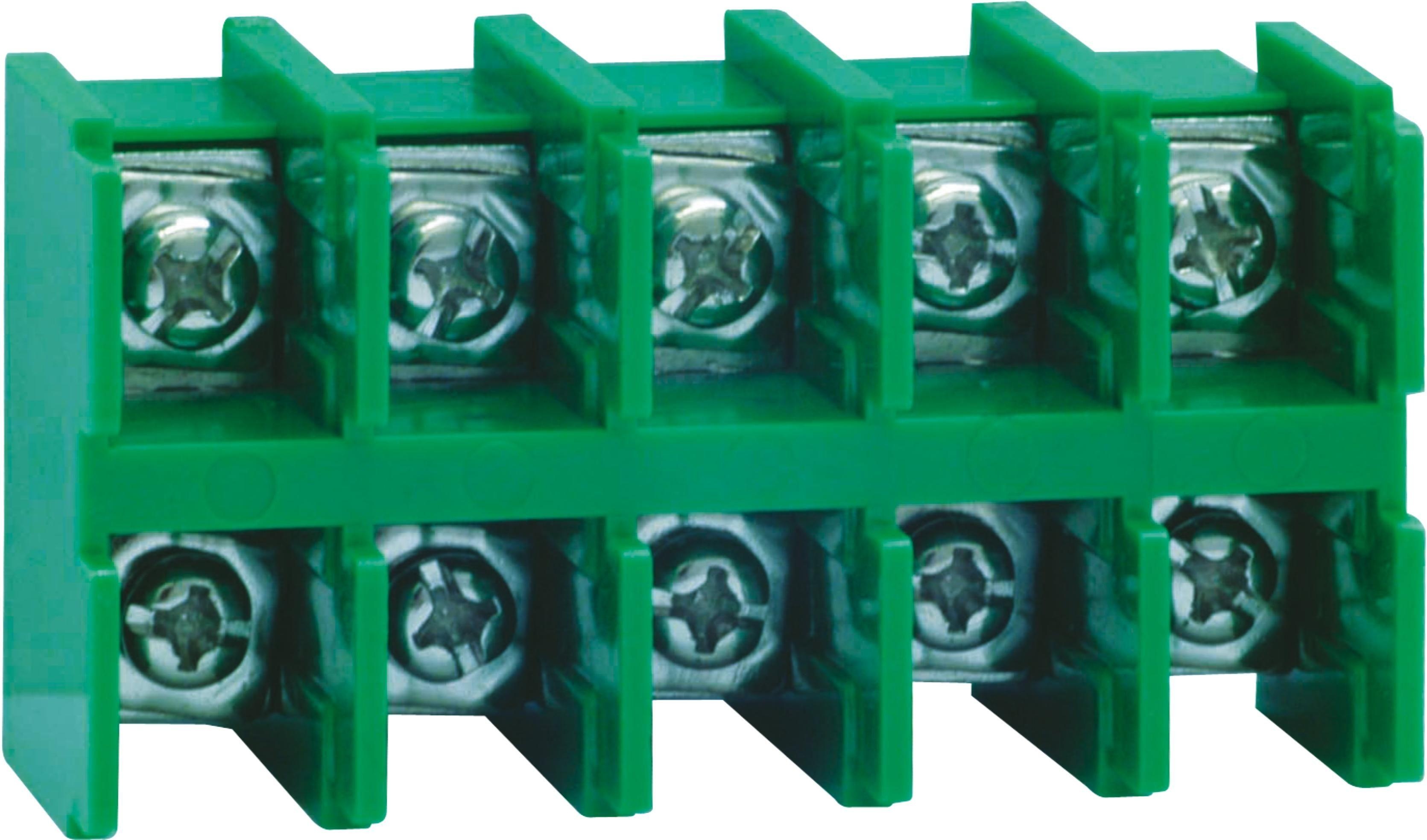

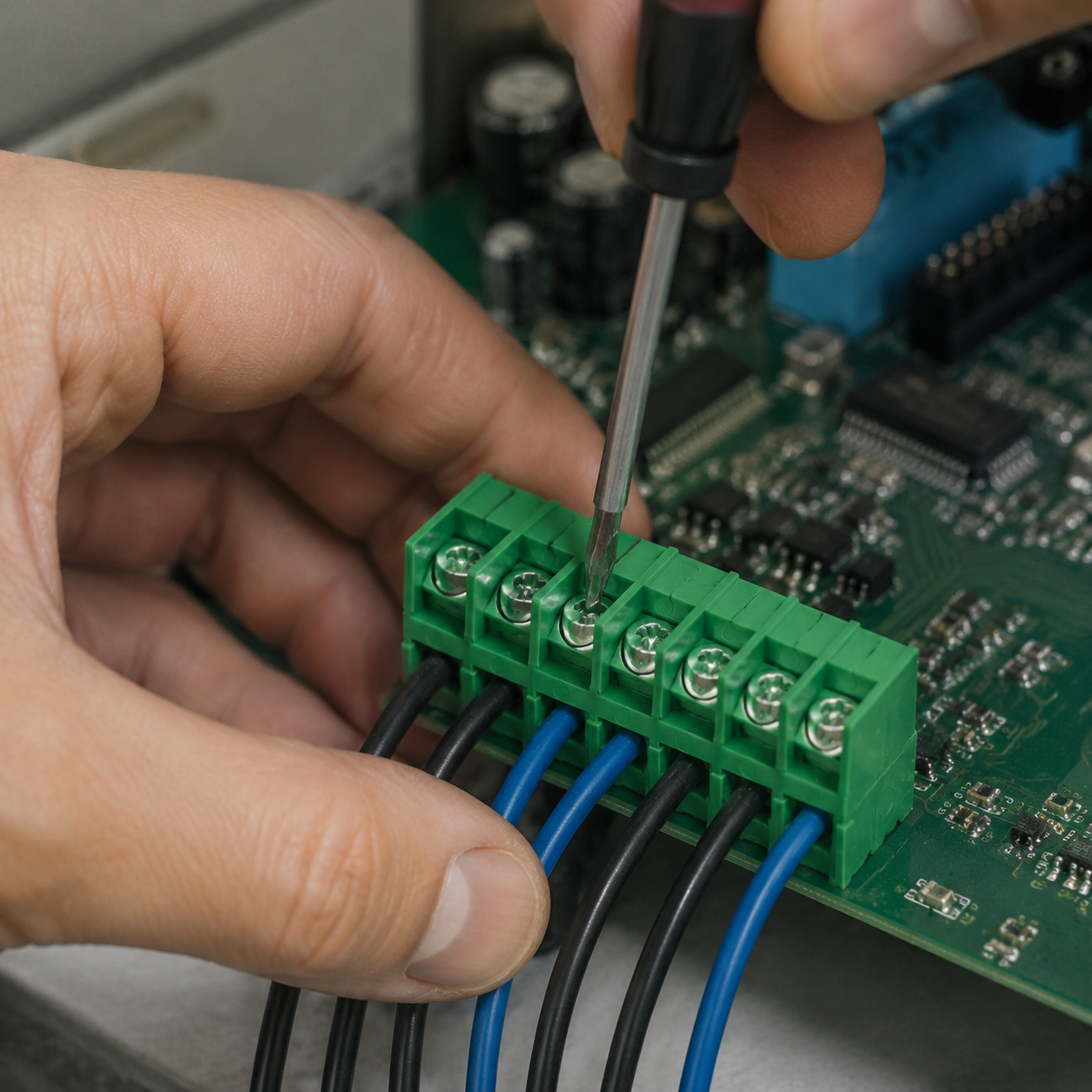

Function and Use

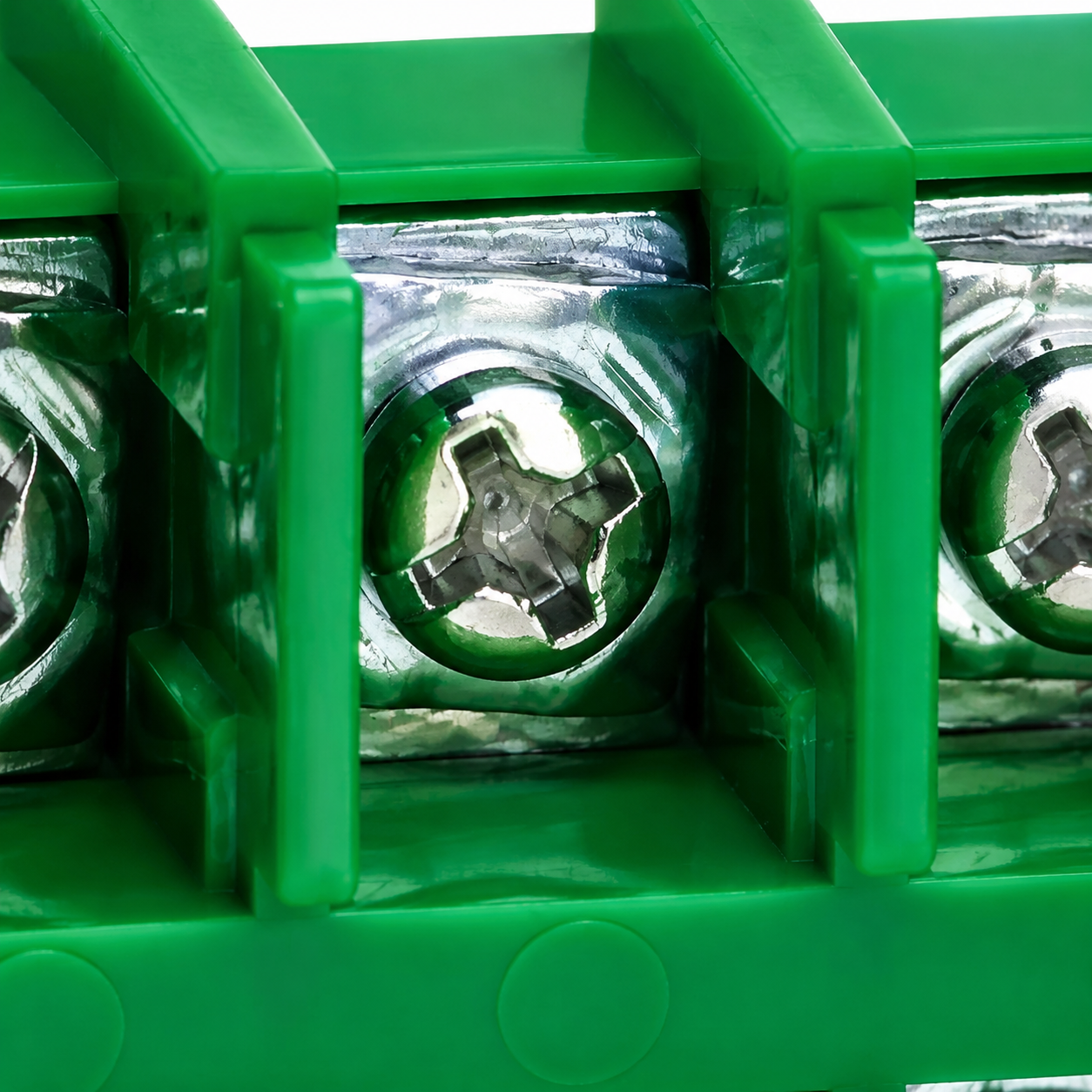

The JF5 series is suitable for connecting copper wires with a frequency of 50Hz or 60Hz, rated voltage up to 660V, and rated cross-sectional area of 1.5~25mm². This product series uses screw pressure connection. The end of the wire needs to be crimped with a terminal sleeve before it can be connected to the terminal. It uses G-type rail installation.

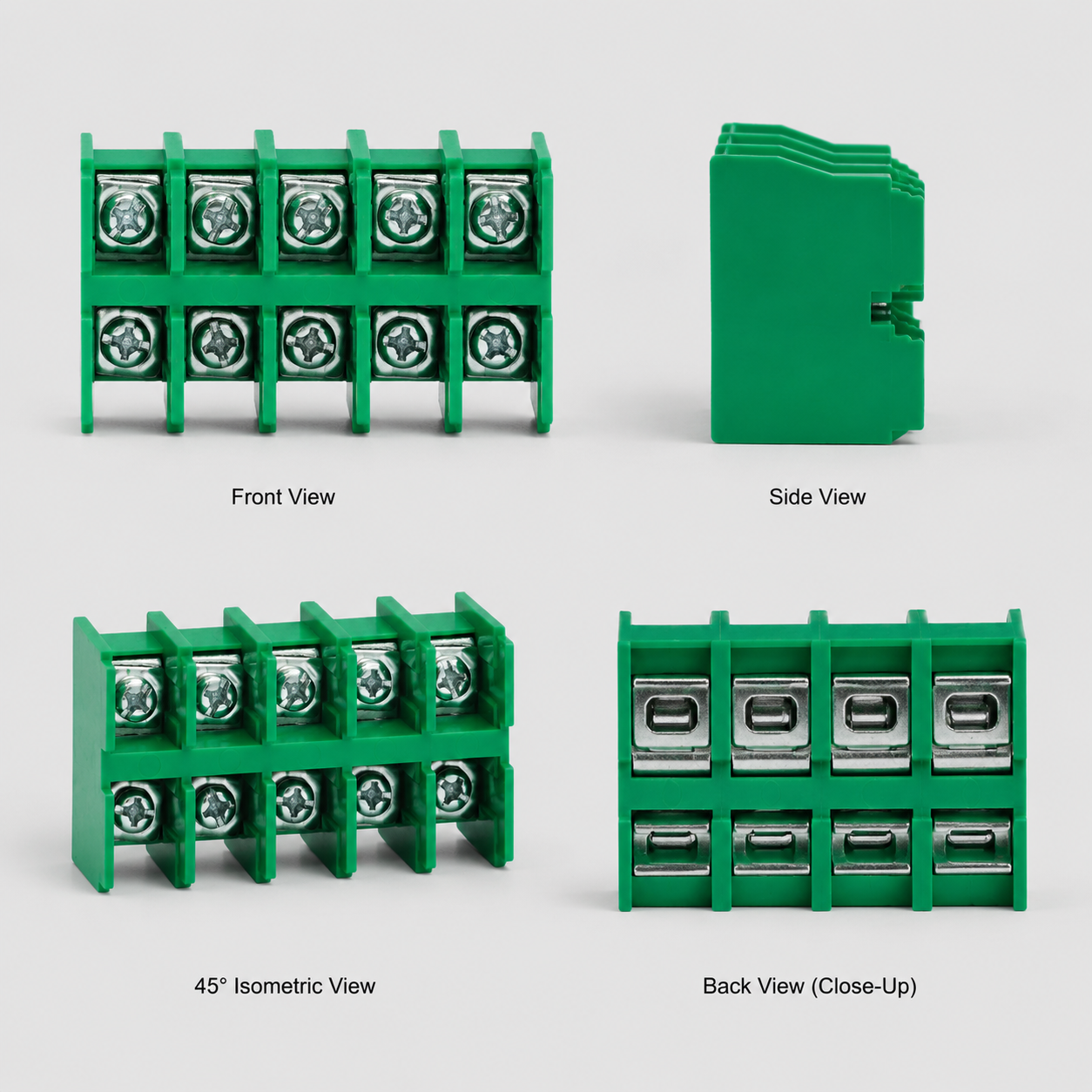

Detail Parameters
| Parameter Category | Parameter Item | Parameter Value |
|---|
| Appearance and Installation Dimensions | Serial Number | 1 |
| Product Model | JF5-1.5/1 |
| Appearance Dimensions (mm) B | 30.3 |
| C | 8.3 |
| H | 28.8 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 2 |
| Product Model | JF5-1.5/10 |
| Appearance Dimensions (mm) B | 30.3 |
| C | 132.5 |
| H | 35.6 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 3 |
| Product Model | JF5-1.5/2 |
| Appearance Dimensions (mm) B | 31.8 |
| C | 19.8 |
| H | 31.8 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 4 |
| Product Model | JF5-1.5/3 |
| Appearance Dimensions (mm) B | 31.3 |
| C | 28.8 |
| H | 31.6 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 5 |
| Product Model | JF5-1.5/5 |
| Appearance Dimensions (mm) B | 31.8 |
| C | 46.8 |
| H | 32.3 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 6 |
| Product Model | JF5-2.5/1 |
| Appearance Dimensions (mm) B | 34.3 |
| C | 10.3 |
| H | 31.3 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 7 |
| Product Model | JF5-2.5/10 |
| Appearance Dimensions (mm) B | 34.3 |
| C | 152.5 |
| H | 40 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 8 |
| Product Model | JF5-2.5/2 |
| Appearance Dimensions (mm) B | 35.3 |
| C | 24.8 |
| H | 35.3 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 9 |
| Product Model | JF5-2.5/3 |
| Appearance Dimensions (mm) B | 35.3 |
| C | 36.3 |
| H | 34.5 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 10 |
| Product Model | JF5-2.5/5 |
| Appearance Dimensions (mm) B | 35.3 |
| C | 59 |
| H | 33.8 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 11 |
| Product Model | JF5-2.5S3/1 |
| Appearance Dimensions (mm) B | 60.7 |
| C | 10.6 |
| H | 54.7 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 12 |
| Product Model | JF5-2.5S3/10 |
| Dimensions (mm) B | 60.7 |
| C | 157.5 |
| H | 60.7 |
| Terminal Screw | M4 |
| Notes | |
| Serial Number | 13 |
| Product Model | JF5-2.5RD/1 |
| Dimensions (mm) B | 46.8 |
| C | 20.5 |
| H | 49 |
| Terminal Screw | M4 |
| Notes | Fuse specification 8×32, maximum rated current 6.3A |
| Serial Number | 14 |
| Product Model | JF5-2.5RD/10 |
| Dimensions (mm) B | 46.8 |
| C | 252.5 |
| H | 55 |
| Terminal Screw | M4 |
| Notes | |
| Serial Number | 15 |
| Product Model | JF5-6/1 |
| Dimensions (mm) B | 45.3 |
| C | 14.8 |
| H | 41.3 |
| Terminal Screw | M5 |
| Notes | |
| Serial Number | 16 |
| Product Model | JF5-6/10 |
| Dimensions (mm) B | 45.3 |
| C | 197.5 |
| H | 48.3 |
| Terminal Screw | M5 |
| Notes | |
| Serial Number | 17 |
| Product Model | JF5-6/2 |
| Dimensions (mm) B | 46.3 |
| C | 33.3 |
| H | 44.8 |
| Terminal Screw | M5 |
| Notes | |
| Serial Number | 18 |
| Product Model | JF5-6/3 |
| Dimensions (mm) B | 46.3 |
| C | 48.3 |
| H | 44.8 |
| Terminal Screw | M5 |
| Notes | |
| Serial Number | 19 |
| Product Model | JF5-6/5 |
| Dimensions (mm) B | 45.8 |
| C | 80 |
| H | 45.5 |
| Terminal Screw | M5 |
| Notes | |
| Serial Number | 20 |
| Product Model | JF5-10/1 |
| Dimensions (mm) B | 49.7 |
| C | 17.2 |
| H | 47.7 |
| Terminal Screw | M6 |
| Notes | |
| Serial Number | 21 |
| Product Model | JF5-10/10 |
| Dimensions (mm) B | 49.7 |
| C | 222.5 |
| H | 55 |
| Terminal Screw | M6 |
| Notes | |
| Serial Number | 22 |
| Product Model | JF5-10/2 |
| Dimensions (mm) B | 50.3 |
| C | 38.3 |
| H | 51.3 |
| Terminal Screw | M6 |
| Notes | |
| Serial Number | 23 |
| Product Model | JF5-10/3 |
| Dimensions (mm) B | 51.3 |
| C | 56.4 |
| H | 51.8 |
| Terminal Screw | M6 |
