Function and Usage

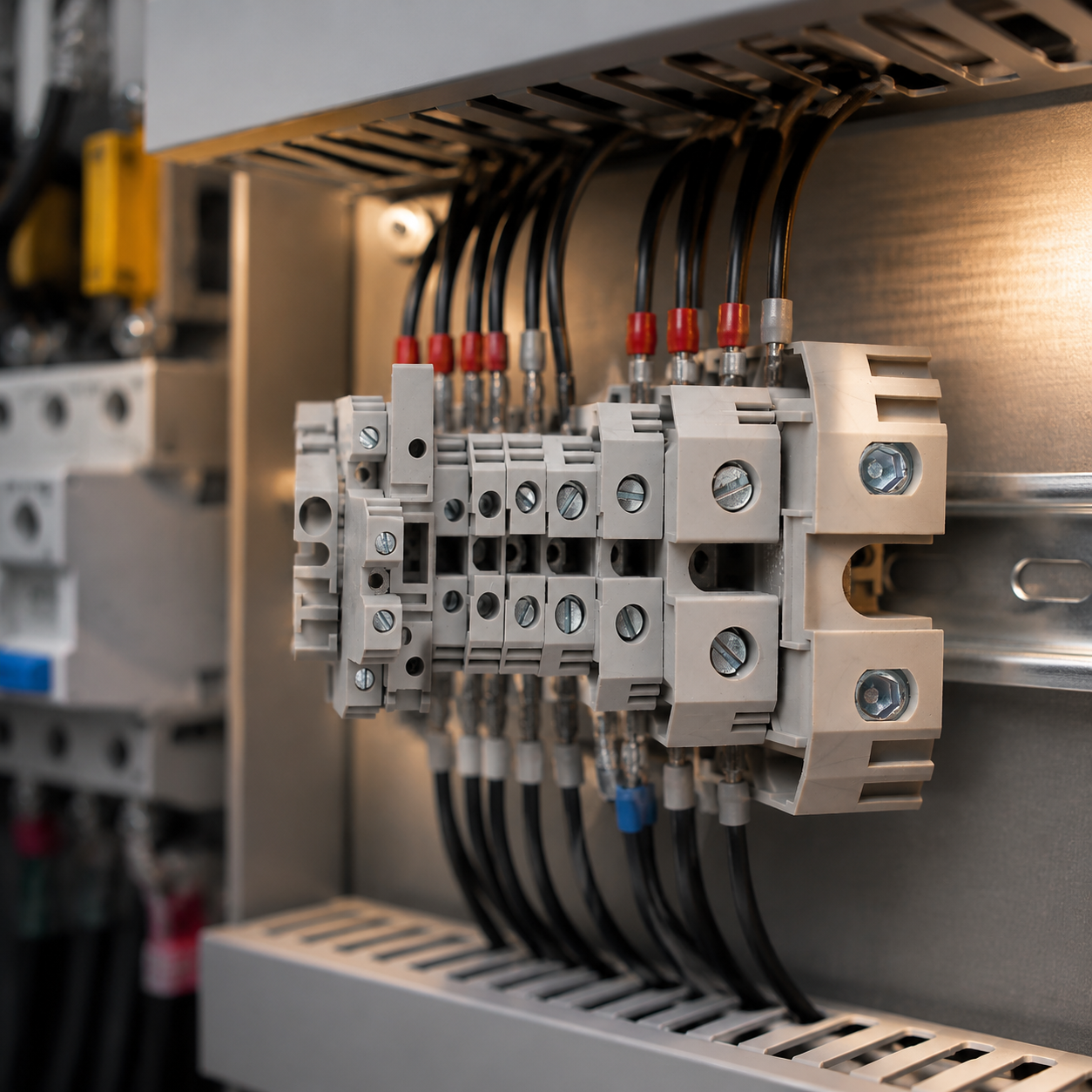

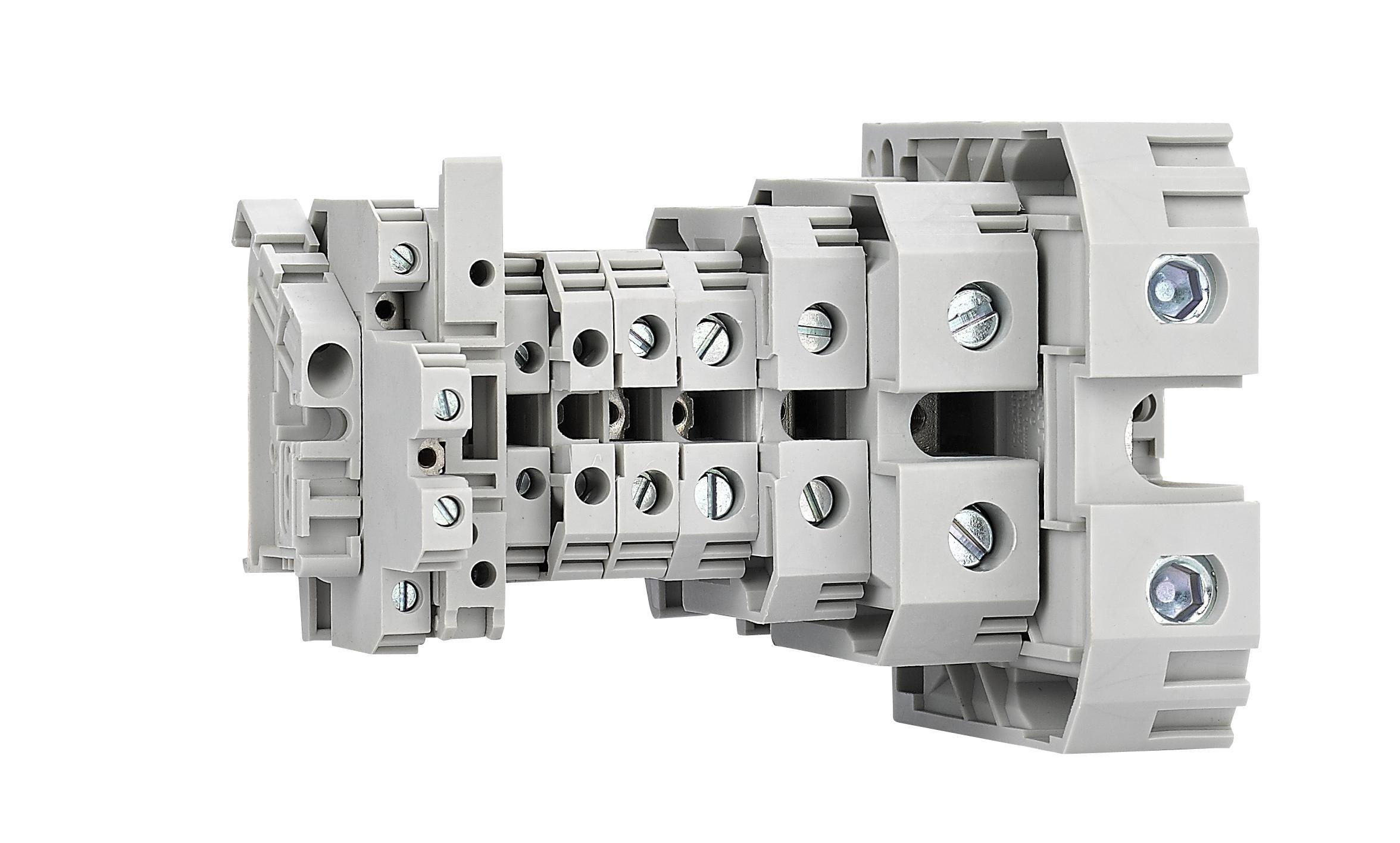

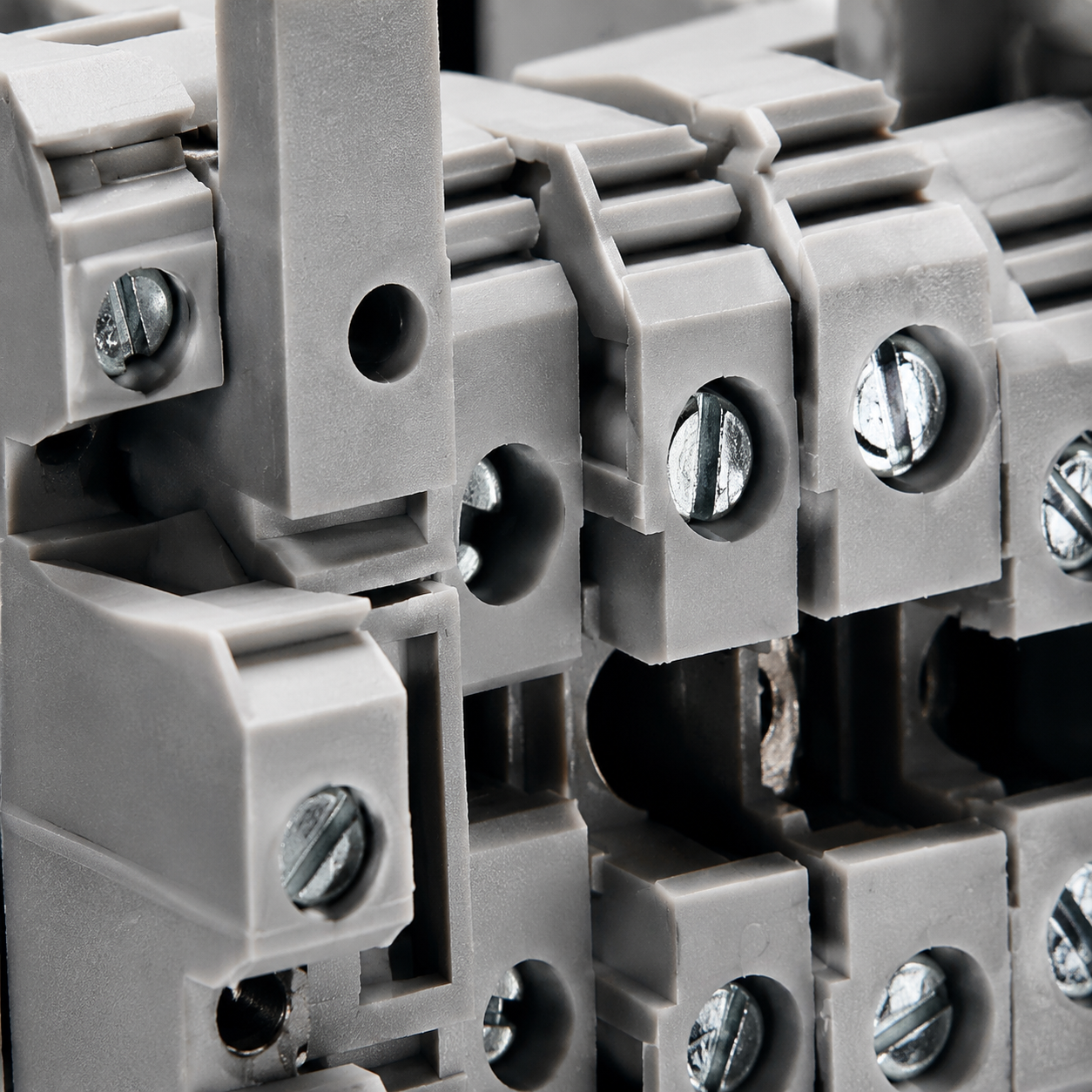

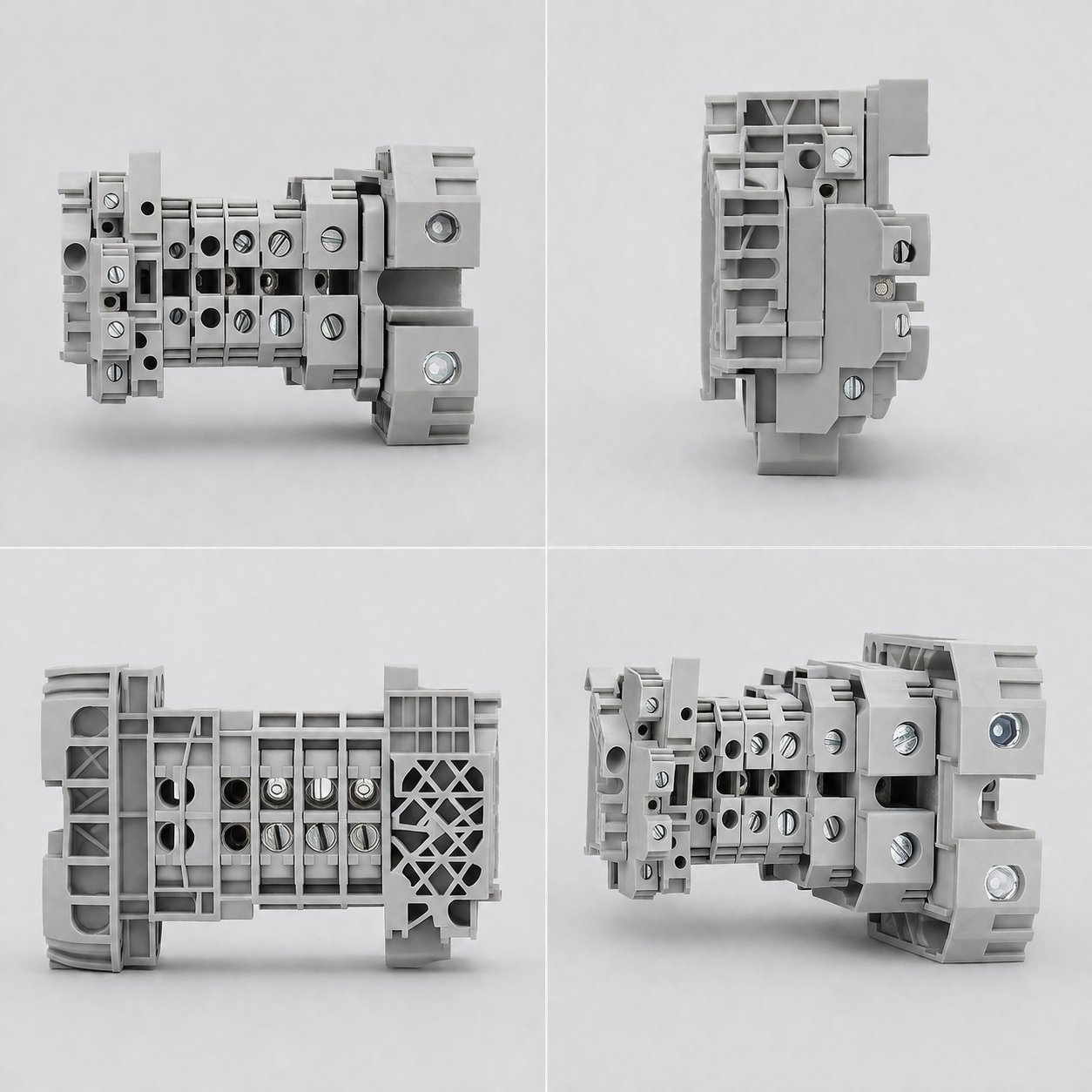

JXB series terminal blocks are used in AC 50Hz or 60Hz, rated voltage up to 800V, rated cross-sectional area 2.5~70mm² power and control circuits for connecting wires. They are installed on TH35 type rail.
Details Parameters
| Parameter Classification | Parameter Item | Parameter Value |
|---|
| 3 Dimensions and Installation Size | Serial Number | 1 |
| Model Specification | JXB-2.5 |
| Dimensions (mm) B | 42 |
| C | 6.1 |
| H | 40 |
| Wiring Screw | M2.5 |
| Notes | |
| Serial Number | 2 |
| Model Specification | JXB-4 |
| Dimensions (mm) B | 42 |
| C | 6.6 |
| H | 45.8 |
| Wiring Screw | M3 |
| Notes | |
| Serial Number | 3 |
| Model Specification | JXB-4S |
| Dimensions (mm) B | 56 |
| C | 6.3 |
| H | 56 |
| Wiring Screw | M3 |
| Notes | |
| Serial Number | 4 |
| Model Specification | JXB-20RD |
| Dimensions (mm) B | 59.5 |
| C | 8 |
| H | 41.5 |
| Wiring Screw | M3 |
| Notes | Fuse specification 5×25, maximum rated current 6.3A |
| Serial Number | 5 |
| Model Specification | JXB-6 |
| Dimensions (mm) B | 42 |
| C | 8 |
| H | 45.8 |
| Wiring Screw | M3.5 |
| Notes | |
| Serial Number | 6 |
| Model Specification | JXB-10 |
| Dimensions (mm) B | 42 |
| C | 10.1 |
| H | 45.8 |
| Wiring Screw | M4 |
| Notes | |
| Serial Number | 7 |
| Model Specification | JXB-16 |
| Dimensions (mm) B | 52 |
| C | 12.1 |
| H | 51.7 |
| Wiring Screw | M4 |
| Notes | |
| Serial Number | 8 |
| Model Specification | JXB-35 |
| Dimensions (mm) B | 59 |
| C | 18.1 |
| H | 62.5 |
| Wiring Screw | M6 |
| Notes | |
| Serial Number | 9 |
| Model Specification | JXB-70 |
| Dimensions (mm) B | 76.5 |
| C | 22.1 |
| H | 79 |
| Wiring Screw | M8 |
| Notes | |
| Serial Number | 10 |
| Model Specification | EW35 (Fixed Part) |
| Dimensions (mm) B | 46 |
| C | 8.5 |
| H | 31 |
| Wiring Screw | |
| Notes | |
