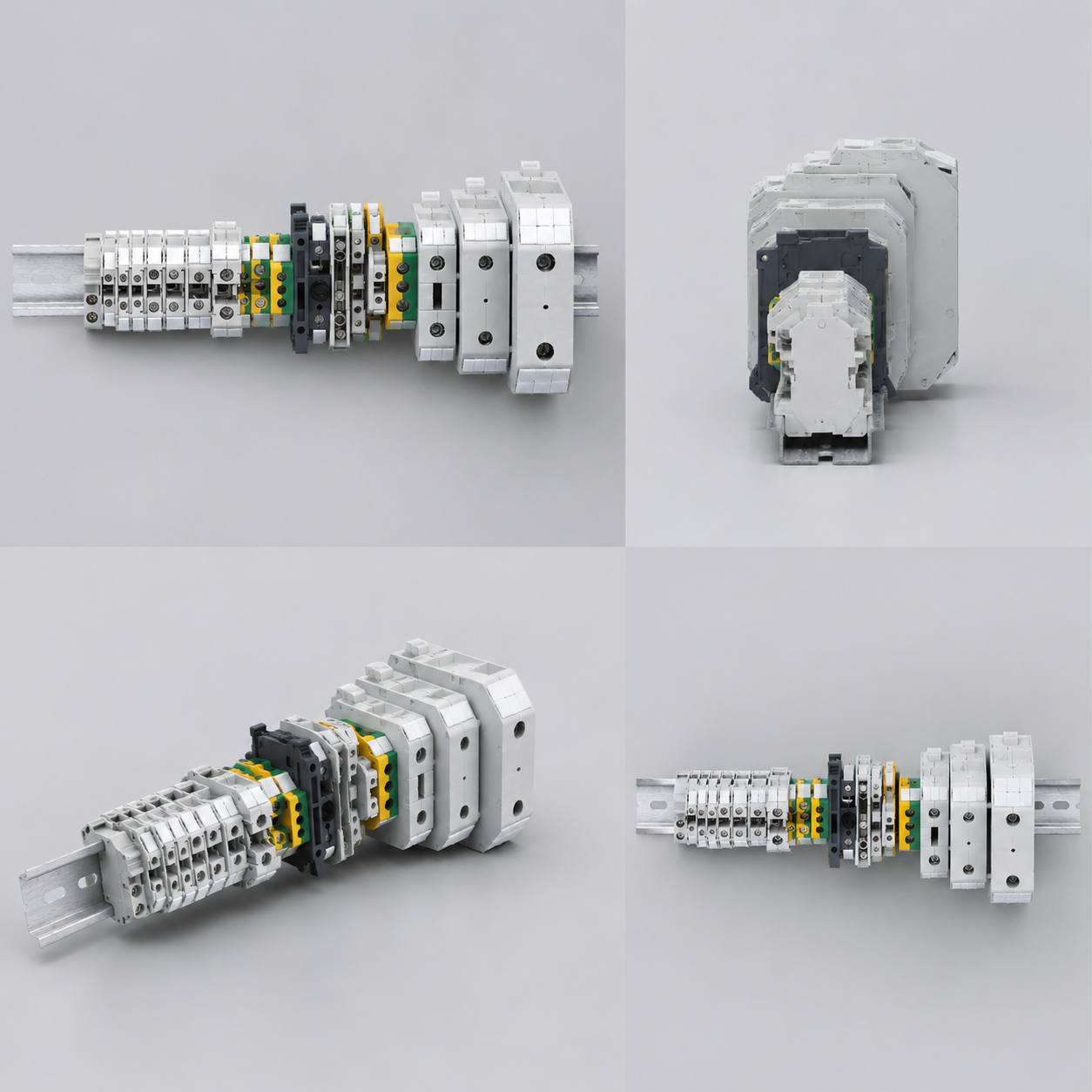

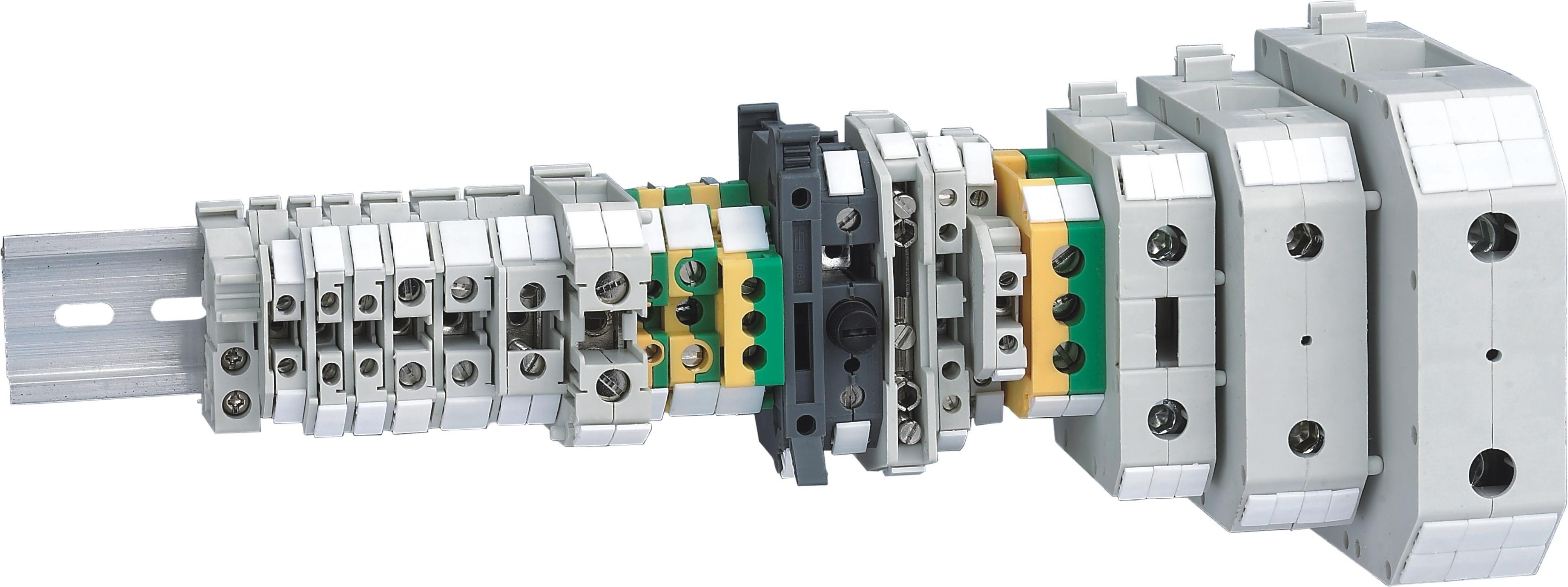

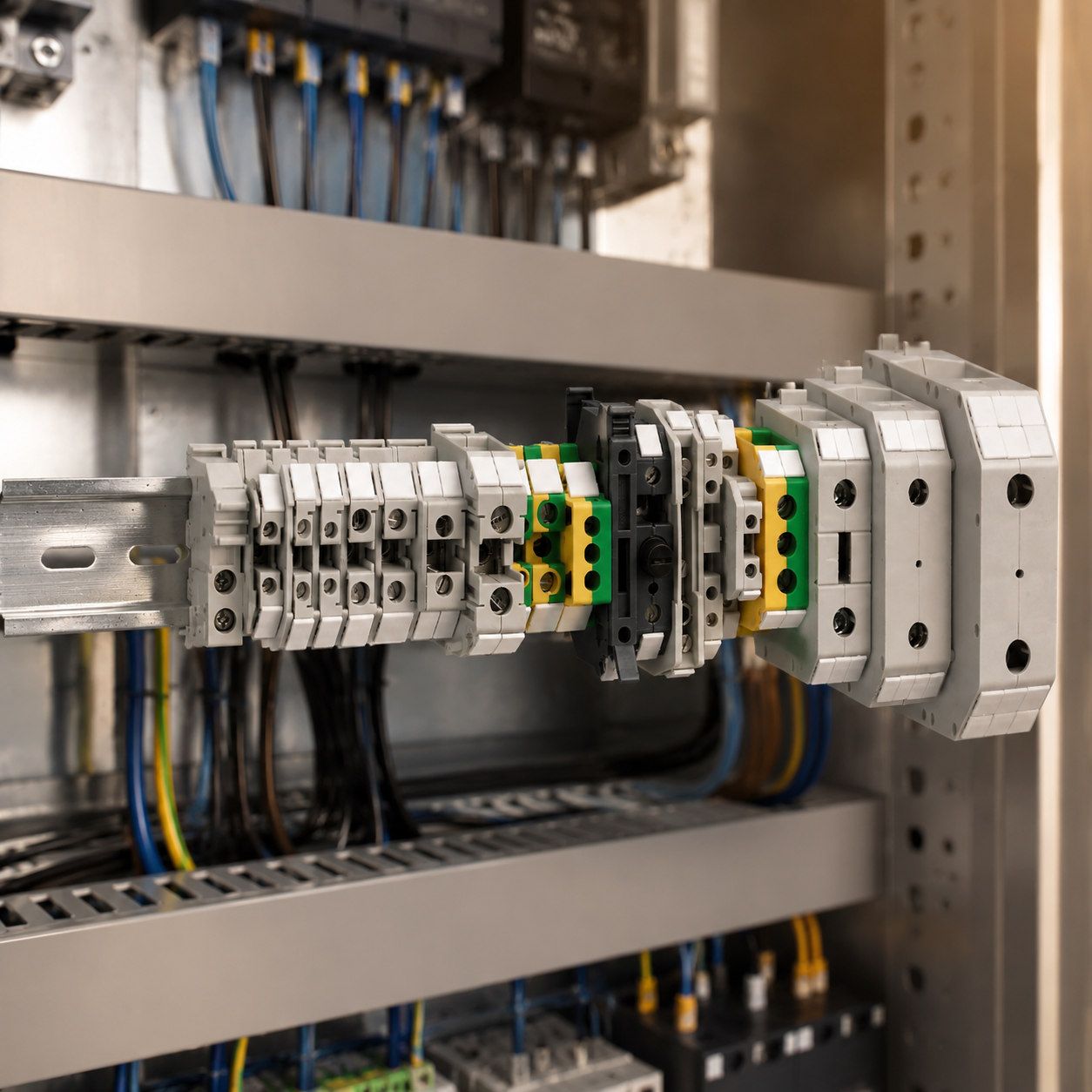

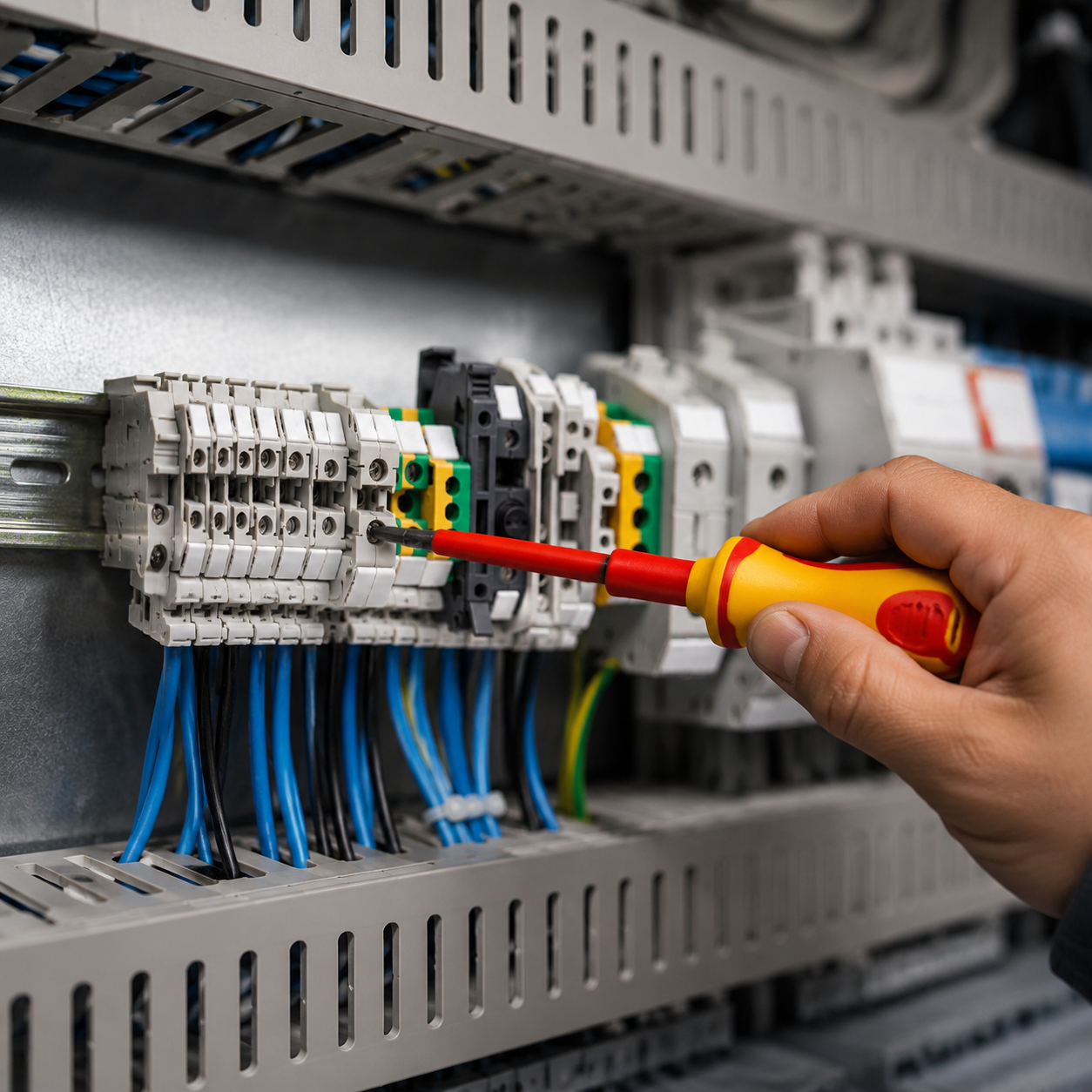

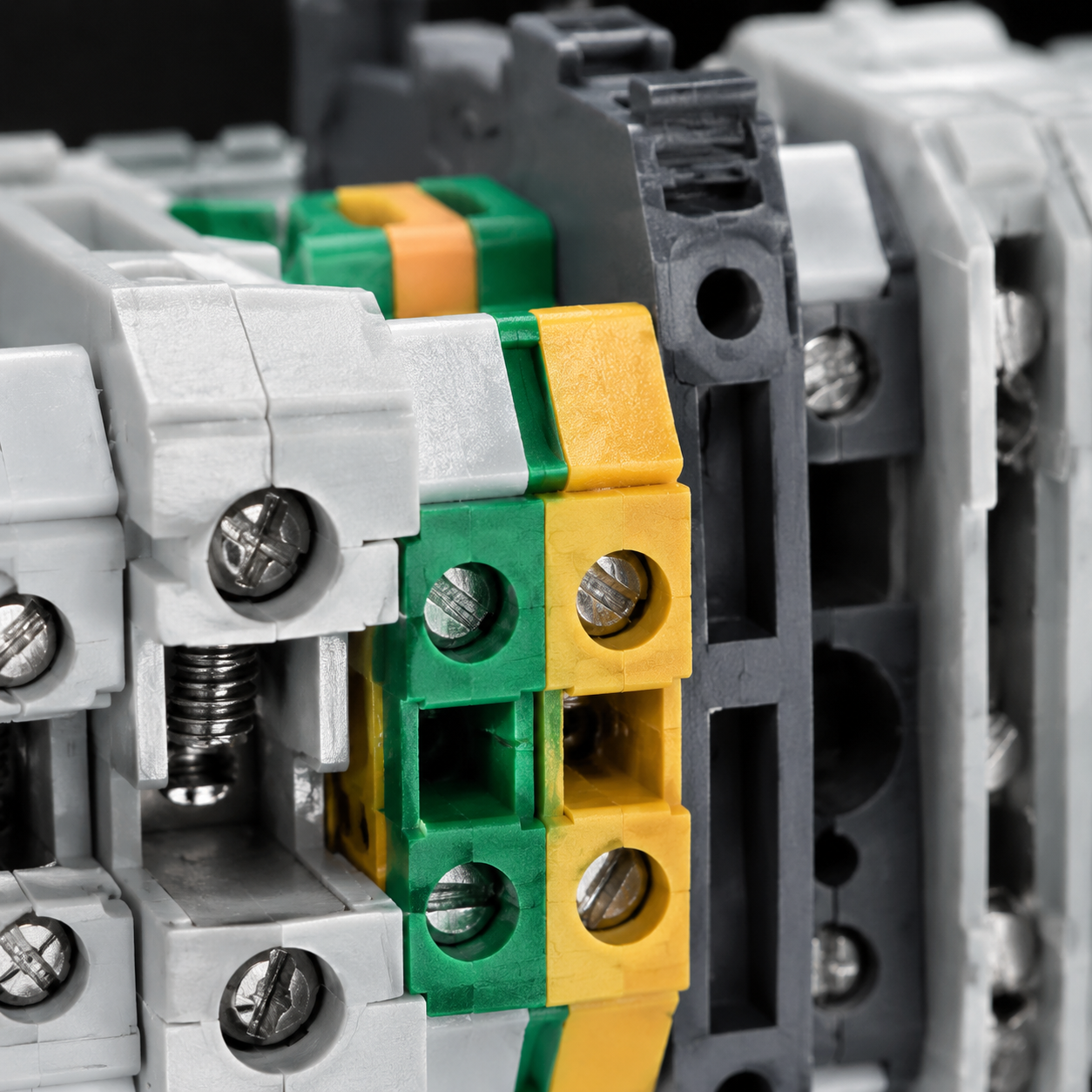

Function and Use
The JCUK series is suitable for AC circuits with a frequency of 50Hz or 60Hz, a rated voltage of up to 1000V, and a rated cross-sectional area of up to 150mm² for use as wire connections. It uses TH35 type rail mounting.
Detail Parameters
| Parameter Category | Parameter Item | Parameter Value |
|---|
| Serial Number | 1 |
| Model Specification | JCUK-2.5N |
| External Dimensions (mm) B | 43 |
| C | 6.2 |
| H | 41 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 2 |
| Model Specification | JCUK-3N |
| External Dimensions (mm) B | 43 |
| C | 5.2 |
| H | 46 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 3 |
| Model Specification | JCUK-5N |
| External Dimensions (mm) B | 43 |
| C | 6.3 |
| H | 46 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 4 |
| Model Specification | JCUK-6N |
| External Dimensions (mm) B | 43 |
| C | 8.2 |
| H | 46.5 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 5 |
| Model Specification | JCUK-10N |
| External Dimensions (mm) B | 43 |
| C | 10.2 |
| H | 46.5 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 6 |
| Model Specification | JCUK-16N |
| External Dimensions (mm) B | 43.5 |
| C | 12.2 |
| H | 51 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 7 |
| Model Specification | JCUK-35N |
| External Dimensions (mm) B | 51 |
| C | 15.5 |
| H | 61 |
| Wiring Screw | M6 |
| Remarks | |
| Serial Number | 8 |
| Model Specification | JCUK-50H |
| External Dimensions (mm) B | 76.5 |
| C | 20.5 |
| H | 76.5 |
| Wiring Screw | M6 |
| Remarks | |
| Serial Number | 9 |
| Model Specification | JCUK-95H |
| External Dimensions (mm) B | 89 |
| C | 25.5 |
| H | 90.5 |
| Wiring Screw | M8 |
| Remarks | |
| Serial Number | 10 |
| Model Specification | JCUK-150H |
| External Dimensions (mm) B | 106 |
| C | 31.3 |
| H | 112.5 |
| Wiring Screw | M10 |
| Remarks | |
| Serial Number | 11 |
| Model Specification | JCUK/S |
| External Dimensions (mm) B | 73 |
| C | 8.3 |
| H | 51 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 12 |
| Model Specification | JCUK/K5 |
| External Dimensions (mm) B | 57 |
| C | 8.7 |
| H | 61.5 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 13 |
| Model Specification | JCUK/DK4 |
| Overall Dimensions (mm) B | 64 |
| C | 6.2 |
| H | 46.5 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 14 |
| Model Specification | JCUK-5JD |
| Overall Dimensions (mm) B | 43 |
| C | 6.5 |
| H | 45.5 |
| Wiring Screw | M3 |
| Remarks | |
| Serial Number | 15 |
| Model Specification | JCUK-6JD |
| Overall Dimensions (mm) B | 43 |
| C | 8.4 |
| H | 46 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 16 |
| Model Specification | JCUK-10JD |
| Overall Dimensions (mm) B | 43 |
| C | 10.5 |
| H | 45.5 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 17 |
| Model Specification | JCUK-16JD |
| Overall Dimensions (mm) B | 43 |
| C | 12.4 |
| H | 52.5 |
| Wiring Screw | M4 |
| Remarks | |
| Serial Number | 18 |
| Model Specification | JCUK-35JD |
| Overall Dimensions (mm) B | 51 |
| C | 15.4 |
| H | 61.5 |
| Wiring Screw | M6 |
| Remarks | |
| Serial Number | 19 |
| Model Specification | JCUK-5RD |
| Overall Dimensions (mm) B | 73 |
| C | 8.5 |
| H | 57 |
| Wiring Screw | M3 |
| Remarks | Fuse Specification 5×25, Maximum Rated Current 6.3A |
| Serial Number | 20 |
| Model Specification | JCUK-10RD |
| Overall Dimensions (mm) B | 63 |
| C | 12.5 |
| H | 56.5 |
| Wiring Screw | M4 |
| Remarks | Fuse Specification 5×20, Maximum Rated Current 10A |
| Serial Number | 21 |
| Model Specification | E/UK (Mounting Component) |
| Overall Dimensions (mm) B | 42.5 |
| C | 9 |
| H | 35 |
| Wiring Screw | |
| Remarks | |
