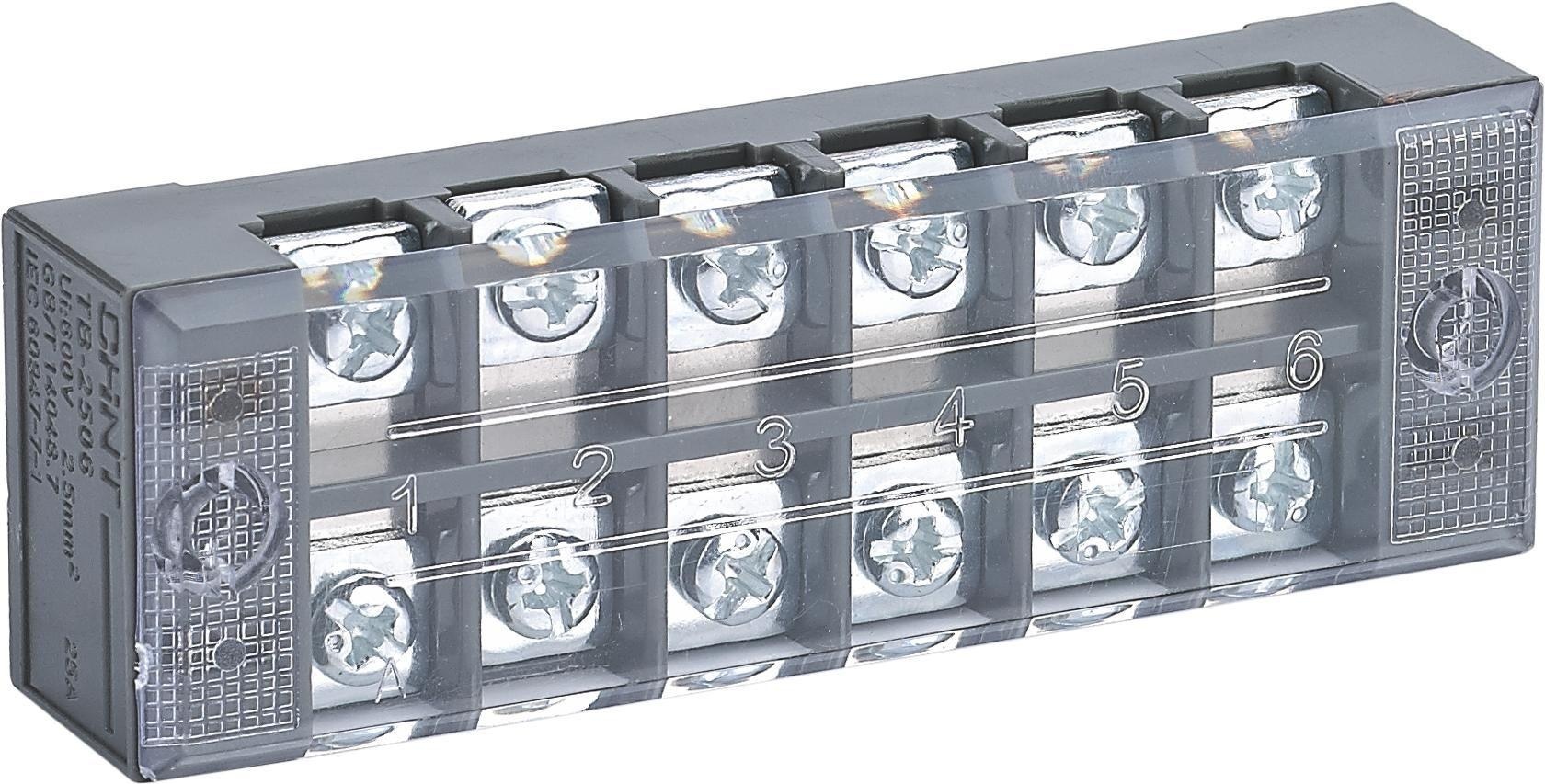

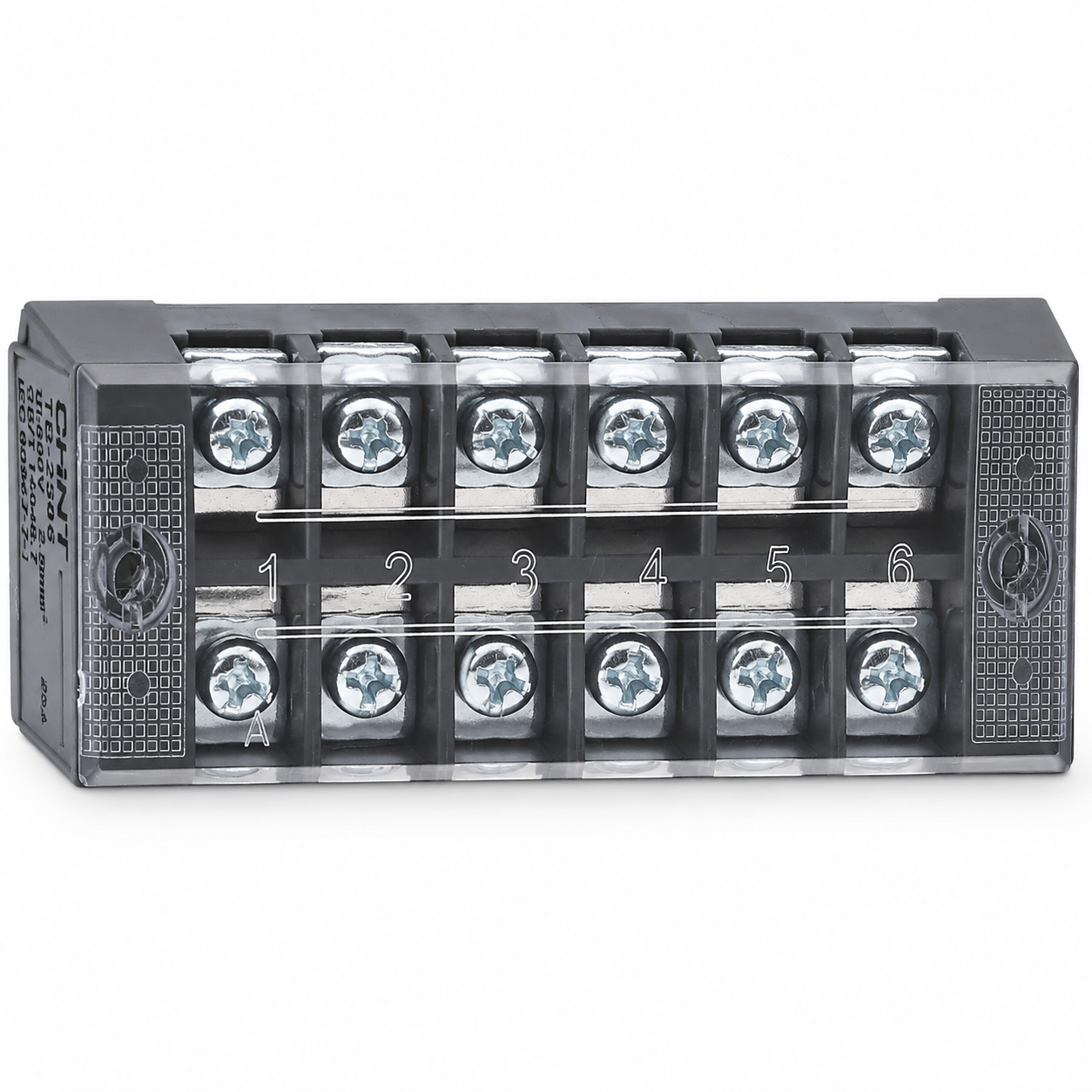

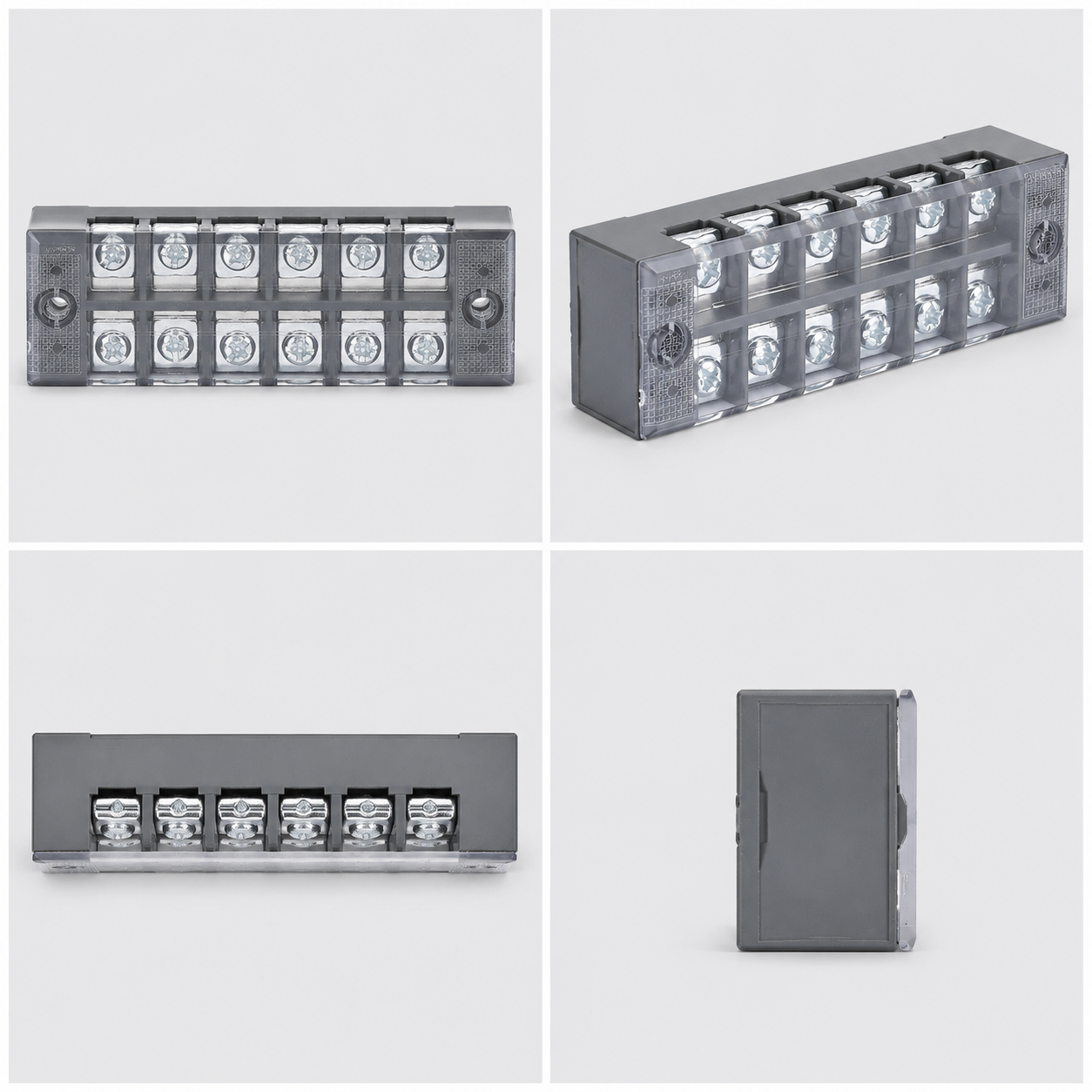

TB Series

TB Series

Product category:
Terminal Blocks
Product code:
P-743
Model:
TB

Function & Use (Application Scenarios)

Electrical accessories and other products, terminal block products are mainly applicable to AC 50Hz or 60Hz, rated voltage up to 600V (pollution degree 1), rated current up to 100A circuits, for connecting wires. This series of products uses screw pressure connection, wire

Surprise on inquiry

Product highlights

  • Convenient installation and maintenance
  • Engineering Application Compatibility
  • Stable and reliable operation
  • Easy system integration

Model

TB
Request a QuoteChat on WhatsApp

Main Product Parameters

CategoryOther (Tools / Labor Protection / Machining Equipment)Secondary CategoryTerminal Block

Product details

Function and Usage

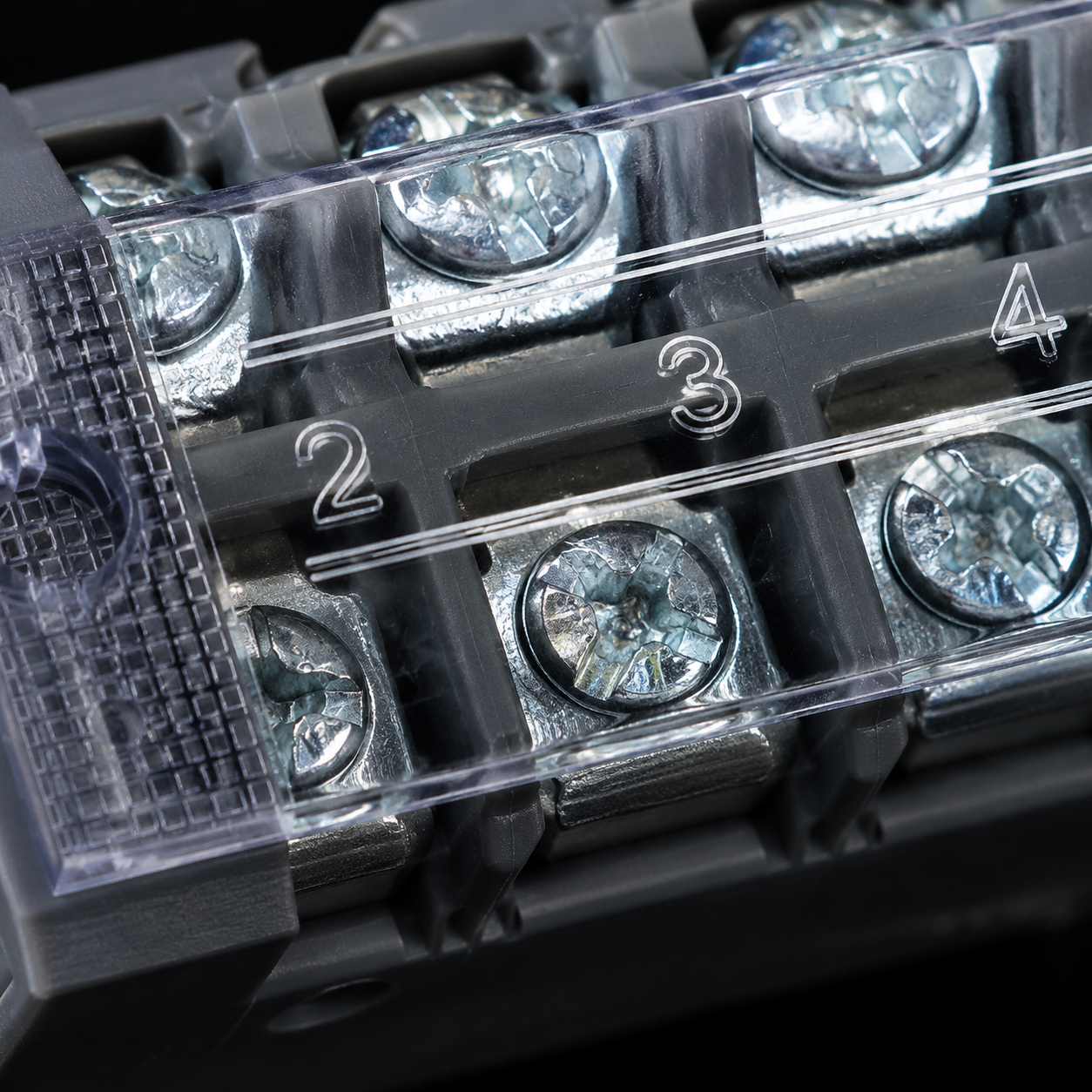

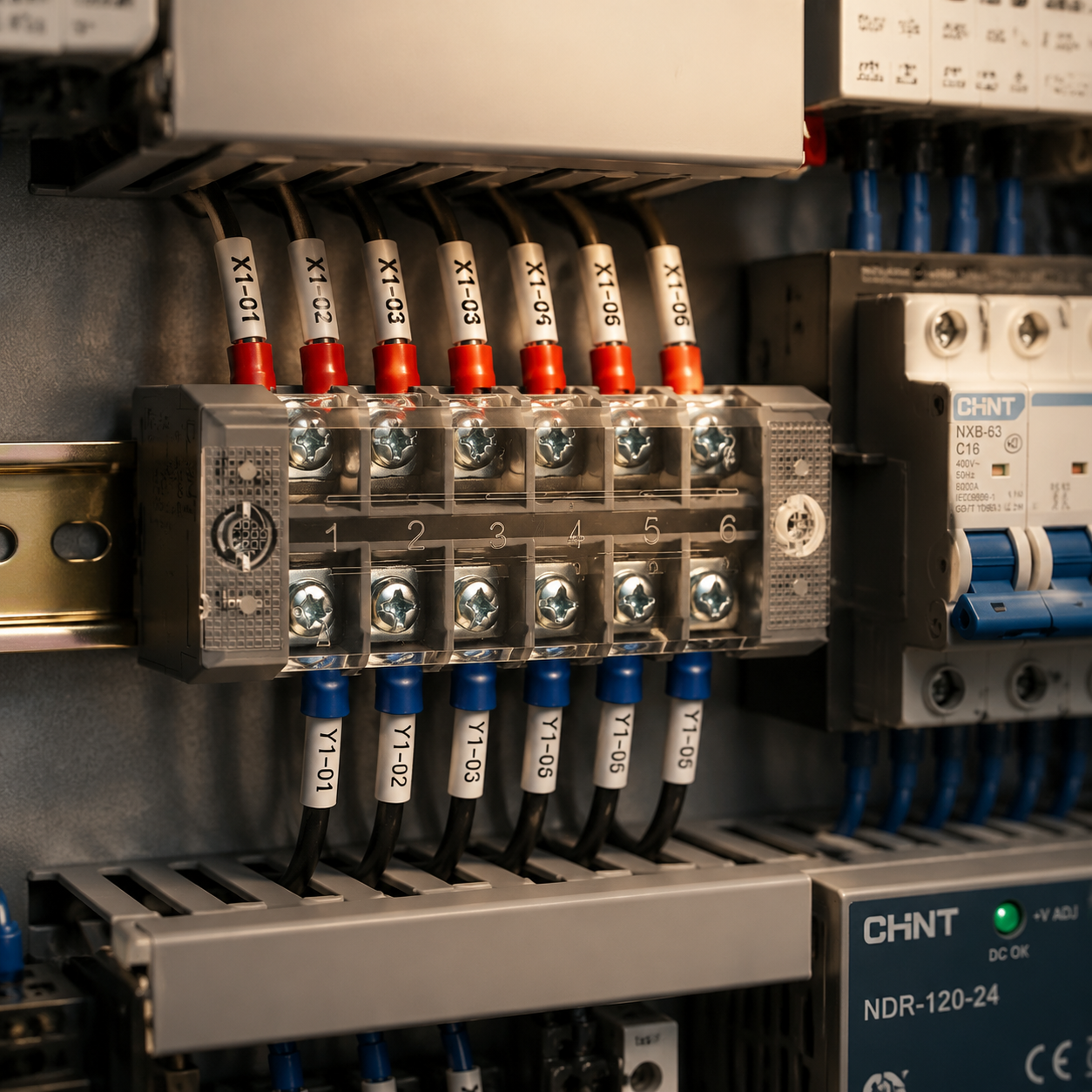

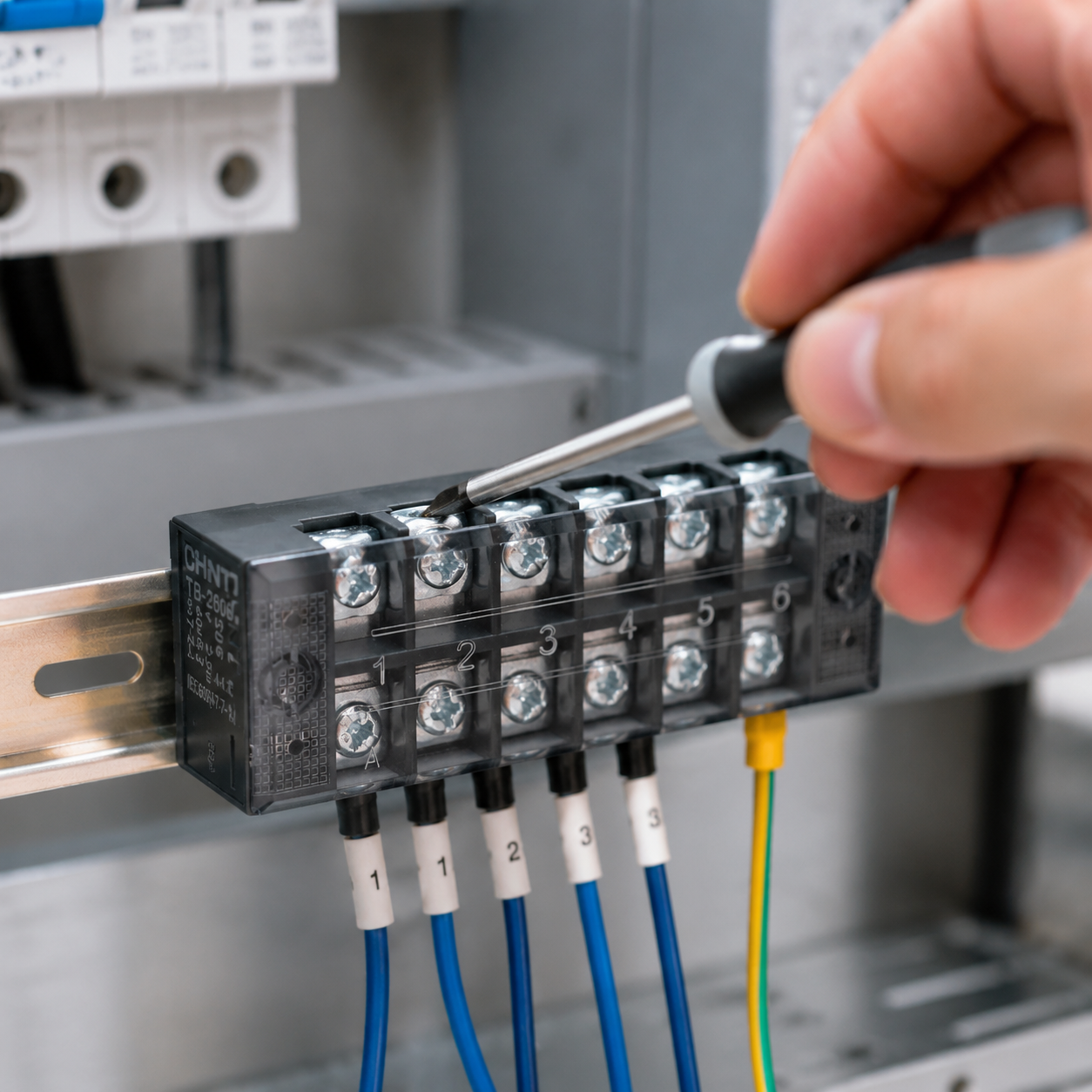

The TB series is suitable for AC circuits with a frequency of 50Hz or 60Hz, rated voltage up to 600V (pollution degree 1), and rated current up to 100A. It is used for connecting wires. This product series uses screw pressure connection. The wire end must be crimped with a terminal sleeve before connecting to the terminal. Screw installation is used.

Detailed Parameters

Parameter CategoryParameter ItemParameter Value
Product ModelTB-1503Rated Current: 15A, Number of Groups: 3, Dimensions (mm): L=45.5, L1=35, D=22.2, E=18, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M3
Product ModelTB-1504Rated Current: 15A, Number of Groups: 4, Dimensions (mm): L=54.3, L1=44, D=22.2, E=18, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M3
Product ModelTB-1506Rated Current: 15A, Number of Groups: 6, Dimensions (mm): L=72.5, L1=62, D=22.2, E=18, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M3
Product ModelTB-1510Rated Current: 15A, Number of Groups: 10, Dimensions (mm): L=107.5, L1=97, D=22.2, E=18, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M3
Product ModelTB-1512Rated Current: 15A, Number of Groups: 12, Dimensions (mm): L=126.2, L1=115, D=22.2, E=18, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M3
Product ModelTB-2503Rated Current: 25A, Number of Groups: 3, Dimensions (mm): L=55.5, L1=44.6, D=30.5, E=20, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M4
Product ModelTB-2504Rated Current: 25A, Number of Groups: 4, Dimensions (mm): L=67.5, L1=56.5, D=30.5, E=20, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M4

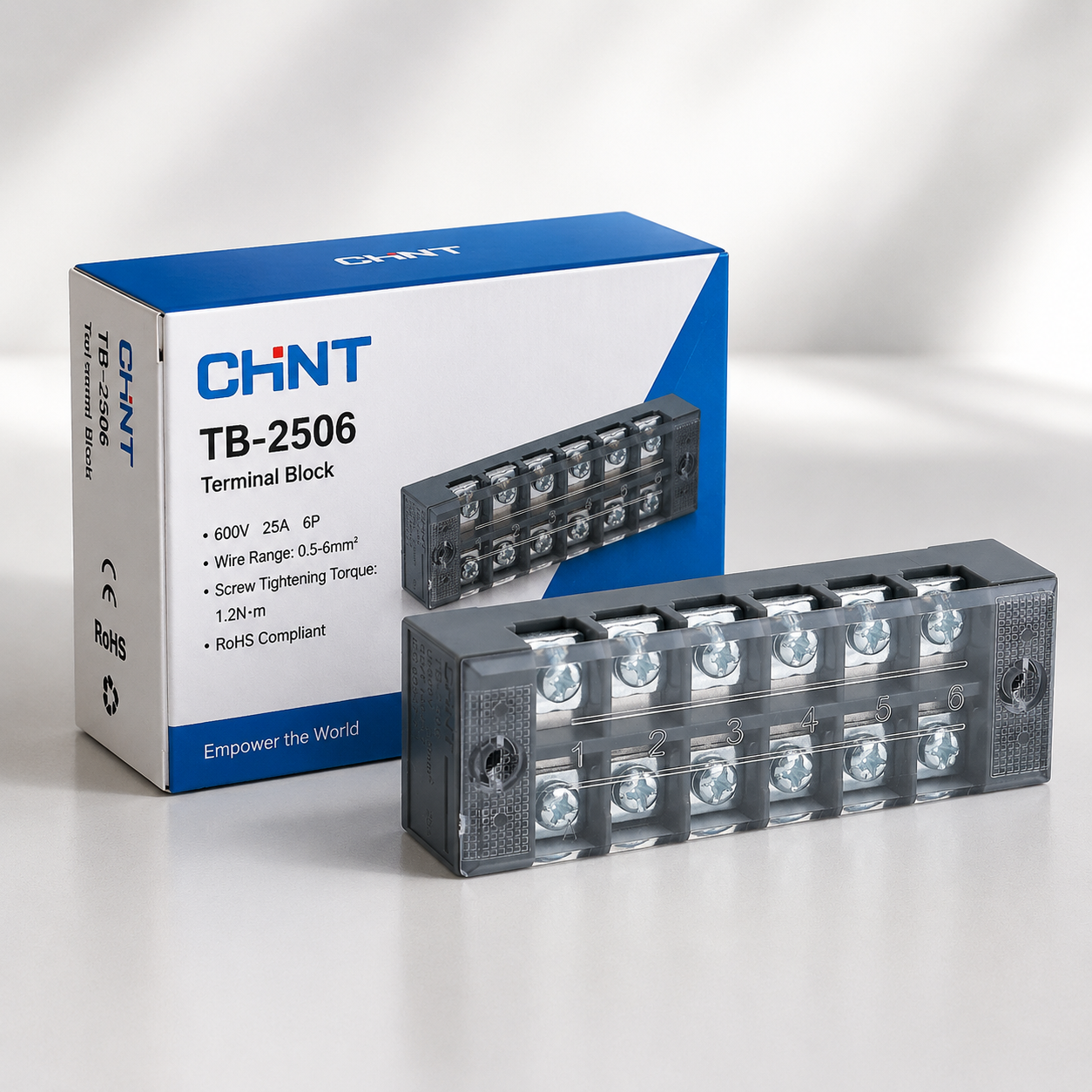

Product ModelTB-2506Rated Current: 25A, Number of Groups: 6, Dimensions (mm): L=92, L1=81, D=30.5, E=20, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M4
Product ModelTB-2512Rated Current: 25A, Number of Groups: 12, Dimensions (mm): L=163.8, L1=152.6, D=30.5, E=20, F=4.2, G=7, Installation Method: Screw Fixed, Terminal Screw: M4
Product ModelTB-4503Rated Current: 45A, Number of Groups: 3, Dimensions (mm): L=70.5, L1=59.2, D=38, E=24, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M5
Product ModelTB-4504Rated Current: 45A, Number of Groups: 4, Dimensions (mm): L=86, L1=75.6, D=38, E=24, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M5
Product ModelTB-4505Rated Current: 45A, Number of Groups: 5, Dimensions (mm): L=103, L1=92.5, D=38, E=24, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M5
Product ModelTB-4506Rated Current: 45A, Number of Groups: 6, Dimensions (mm): L=119.5, L1=109, D=38, E=24, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M5
Product ModelTB-4512Rated Current: 45A, Number of Groups: 12, Dimensions (mm): L=220.5, L1=209.5, D=38, E=24, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M5
Product ModelTB-6003Rated Current: 60A, Number of Groups: 3, Dimensions (mm): L=75, L1=63, D=38, E=30.5, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M6
Product ModelTB-6004Rated Current: 60A, Number of Groups: 4, Dimensions (mm): L=93, L1=81, D=38, E=30.5, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M6
Product ModelTB-10003Rated Current: 100A, Number of Groups: 3, Dimensions (mm): L=86.5, L1=75, D=43.5, E=34.5, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M6
Product ModelTB-10004Rated Current: 100A, Number of Groups: 4, Dimensions (mm): L=108.5, L1=97, D=43.5, E=34.5, F=5, G=7.2, Installation Method: Screw Fixed, Terminal Screw: M6
