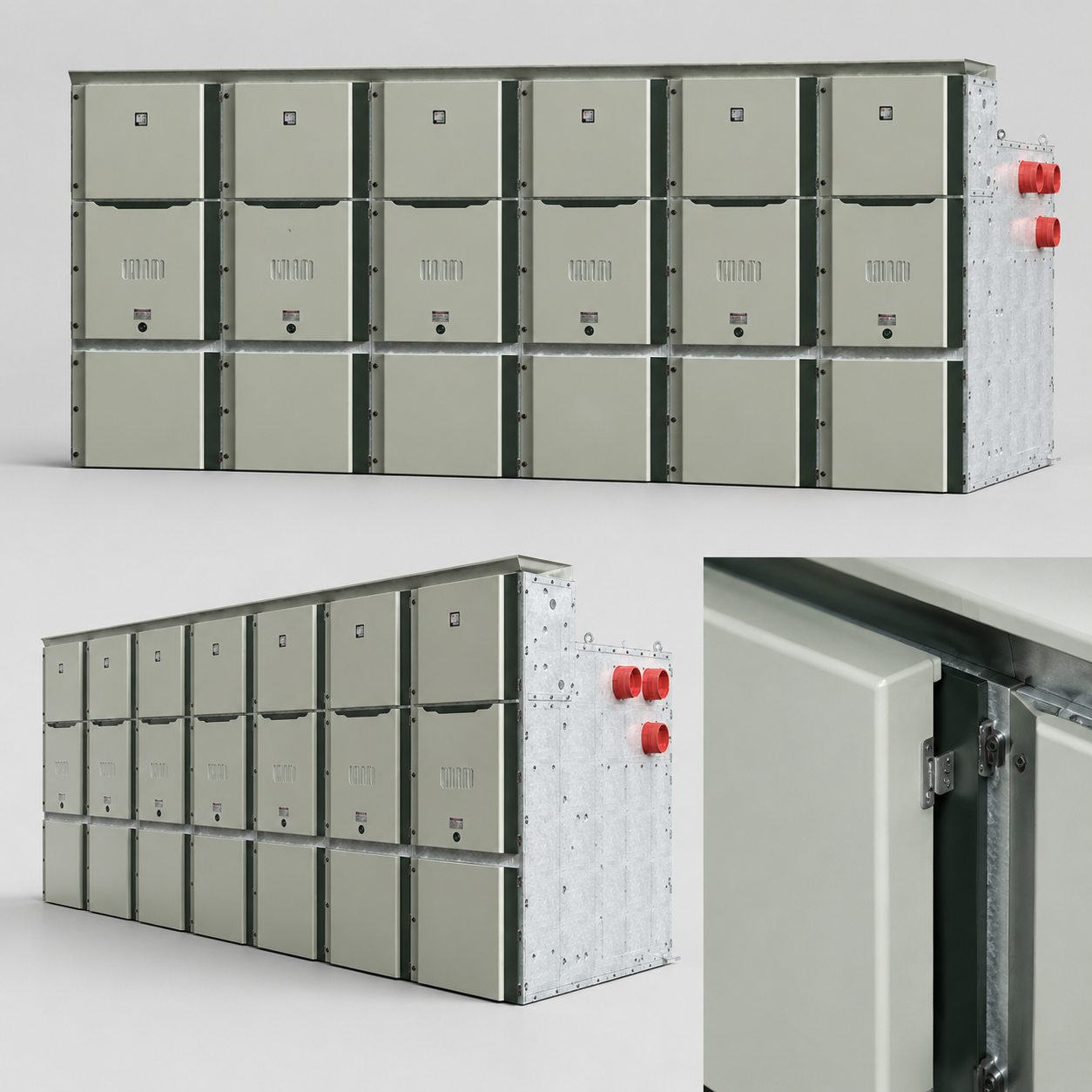

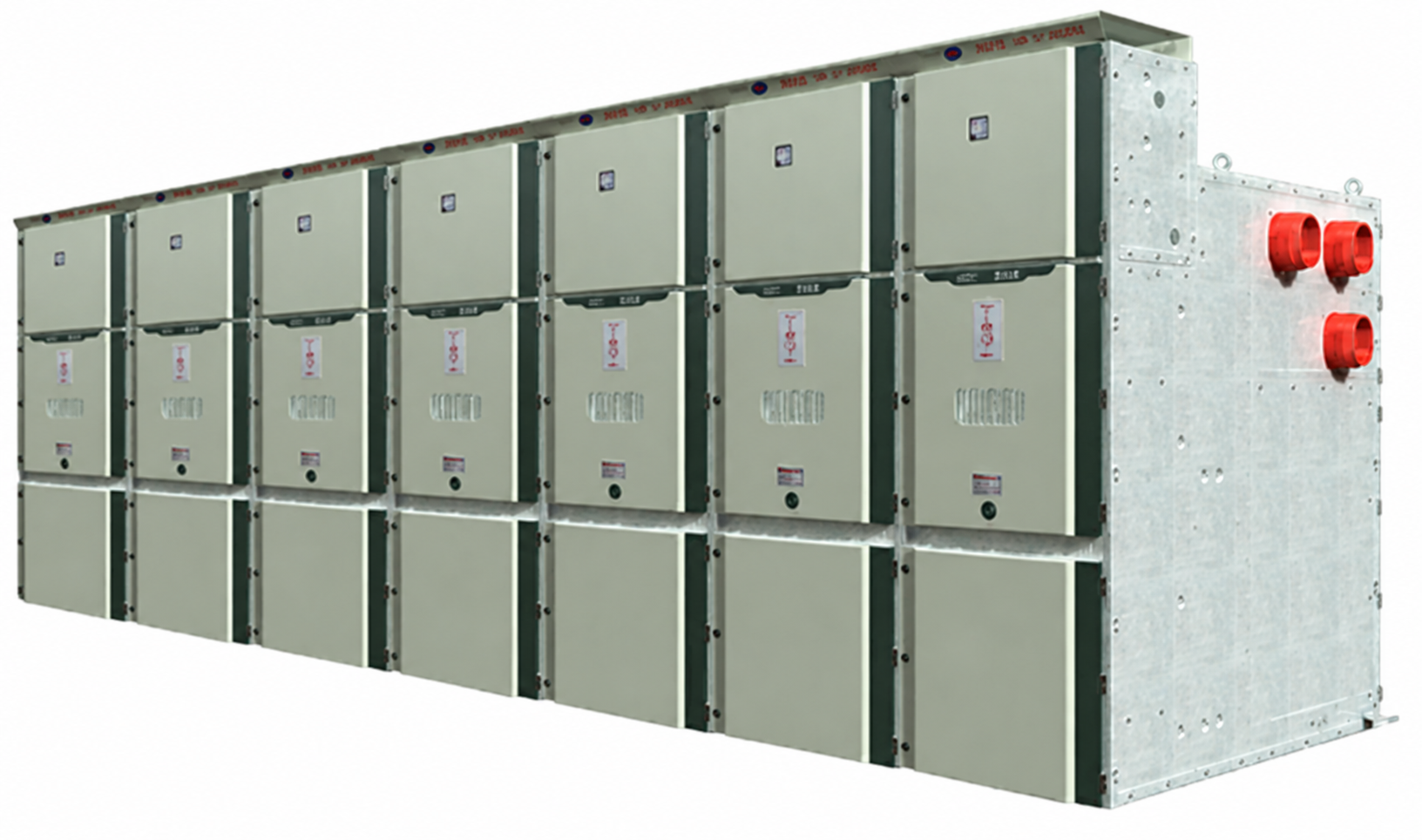

Product featuresIt adopts air insulation design and has passed the type test verification of an authoritative third-party organization; it uses high-quality aluminum-zinc plate and is formed by multiple bending in a CNC machining center. It uses high-strength solid rivets to connect the cabinet. The cabinet has high strength and strong corrosion resistance; it is produced using automated tooling assembly lines, with high shell assembly accuracy and excellent interchangeability; it uses full three-dimensional simulation design to be precise and efficient.Technical parametersRated voltage: 3.6kV, 7.2kV, 12kV, 24kV, 40.5kV; rated current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A, 5 000A; rated short-circuit breaking current (effective value): 25kA, 31.5kA, 40kA, 50kA; protection level: IP30/IP40, up to IP43; application altitude: 0~5600M; cabinet size W*D*H: (600/650/700/800/1000/1400/1680)*(900/1000/1450/1610/1800/2800)*(1900/2300/2400/2800); Conventional solutions: incoming cabinet, metering cabinet, PT cabinet, busbar cabinet, lifting cabinet, feeder cabinet
Series product nameHXGN, KYN28A-12, KYN61-40.5, MVnex-5, XGN15-12 marine low voltage cabinetBrandJST
Functional use: AC metal-enclosed medium-voltage switchgear, equipped with complete five-proof interlocking, safe and reliable. Support integrated intelligent monitoring system to achieve remote fault warning. It adopts environmentally friendly materials and modular design to adapt to new energy and smart grid application scenarios. The product has obtained EU CE certification and has Schneider (MVnex-12) and Siemens (NXAirS LP) authorized medium voltage cabinet qualifications.
Detailed description: Product features:
It adopts air insulation design and has passed the type test verification by an authoritative third-party organization.

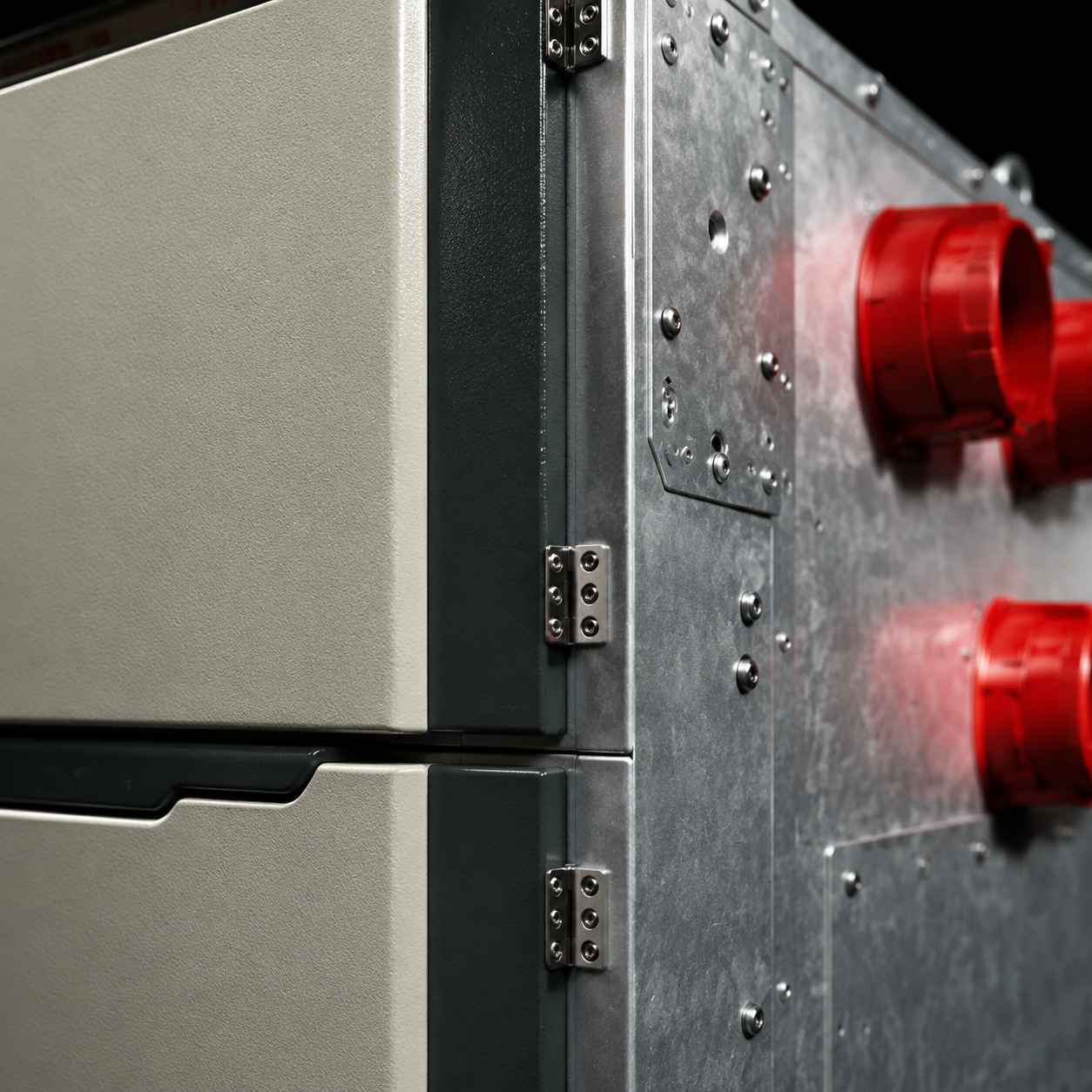

It is made of high-quality aluminum-zinc-coated plates and is formed by multiple bending in a CNC machining center. It is connected by high-strength solid rivets. The cabinet body has high strength and strong corrosion resistance.
Produced using automated tooling lines, the shell assembly has high precision and excellent interchangeability.
The application of full three-dimensional simulation design is accurate and efficient.
Technical parameters:
Rated voltage: 3.6kV, 7.2kV, 12kV, 24kV, 40.5kV
Rated current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A, 5000A
Rated short-circuit breaking current (effective value): 25kA, 31.5kA, 40kA, 50kA
Protection level: IP30/IP40, up to IP43
Application altitude: 0~5600M
Cabinet size W*D*H: (600/650/700/800/1000/1400/1680)*(900/1000/1450/1610/1800/2800)*(1900/2300/2400/2800)
Conventional solutions: incoming cabinet, metering cabinet, PT cabinet, bus tie cabinet, lifting cabinet, feeder cabinet
Series product names: HXGN, KYN28A-12, KYN61-40.5, MVnex-5, XGN15-12 marine low-voltage cabinet
