Our CGIS series products use SF6 gas or environmentally friendly gas as the insulating medium, with current levels covering 1250A~3150A. They are specially designed for primary power distribution applications and have the characteristics of high safety, reliability, miniaturization and maintenance-free.

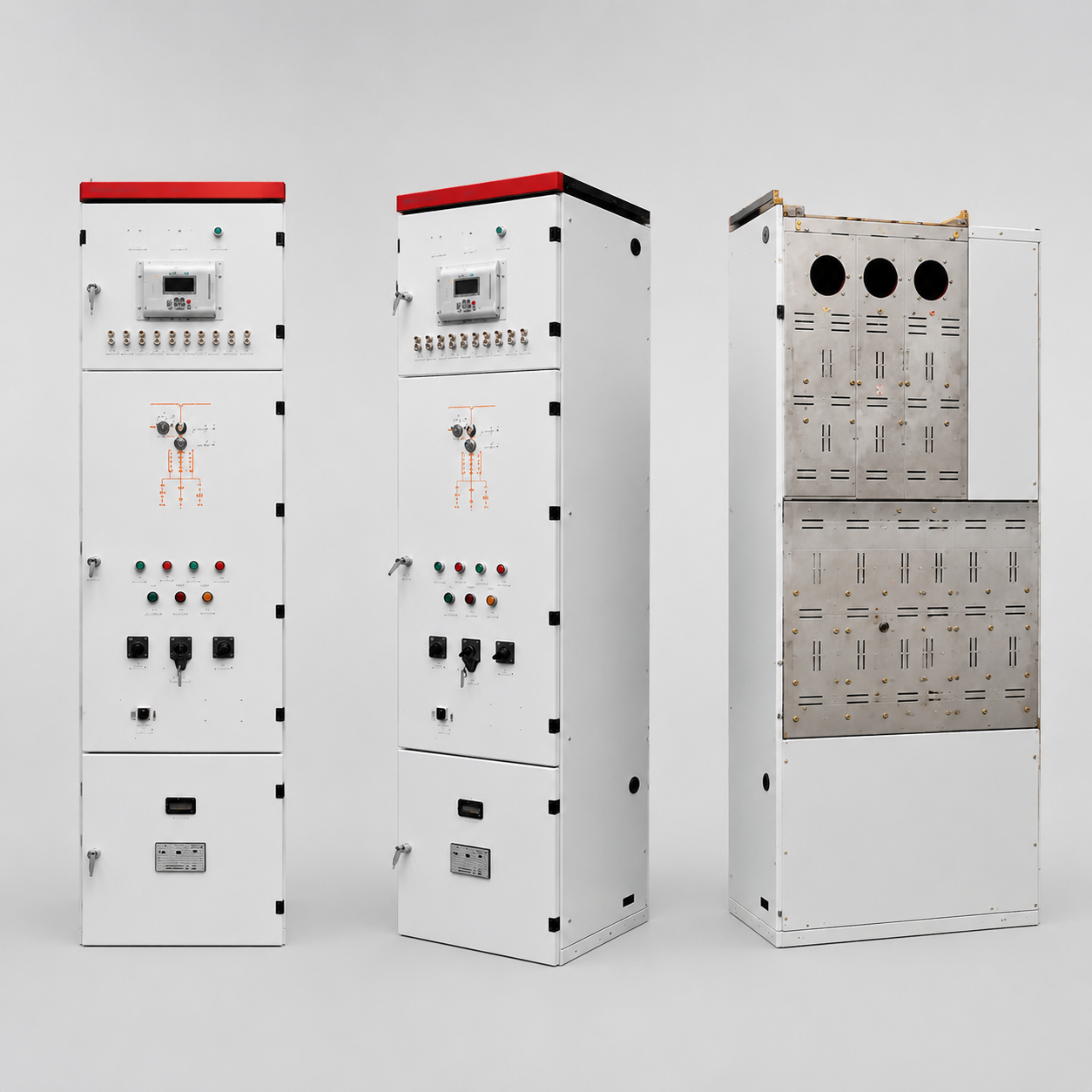

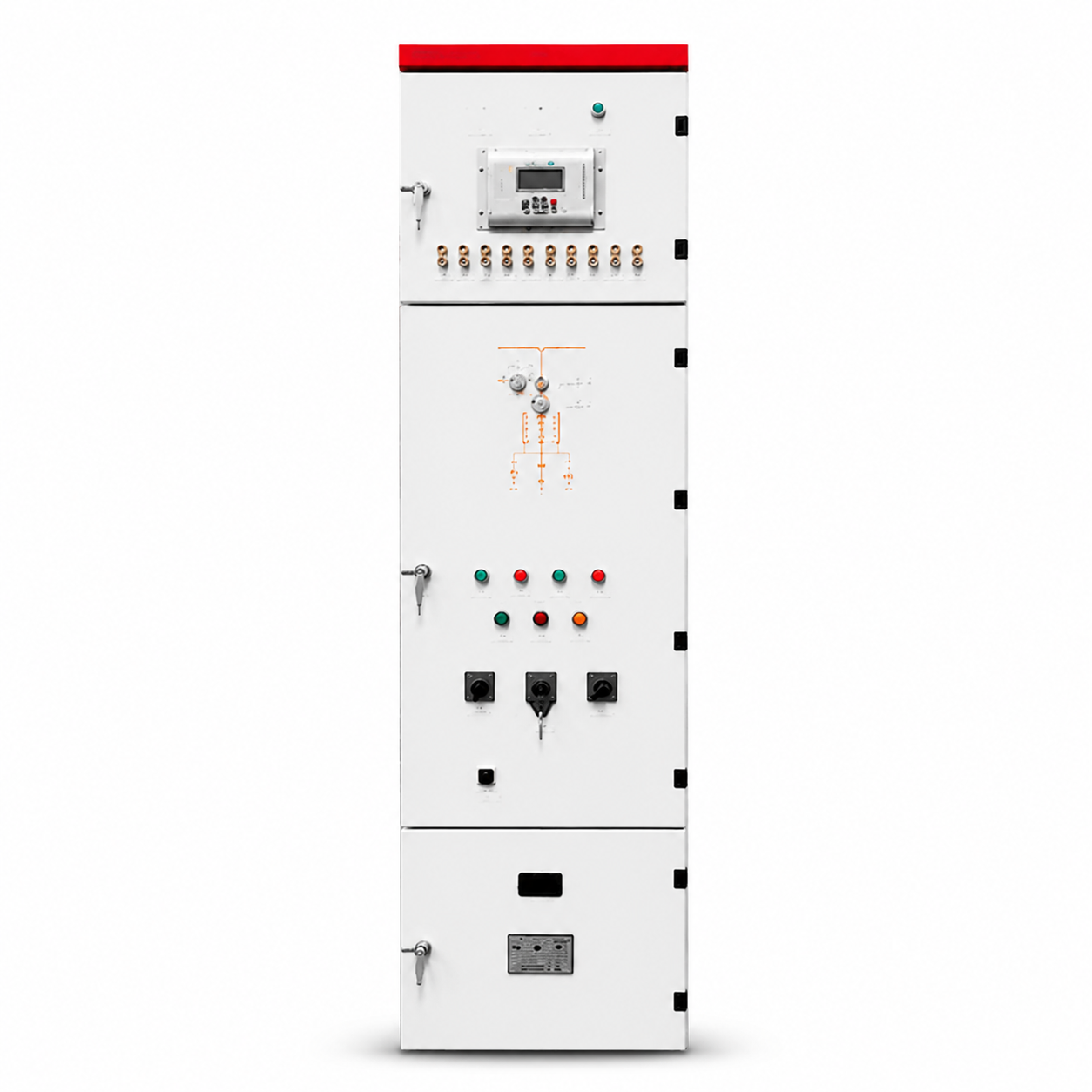

Category nameGas insulated metal enclosed switchgearClassificationJ10X | RMU inflatable ring main unit J20X | C-GIS inflatable cabinet J30X | GIS inflatable cabinet (72.5kV)

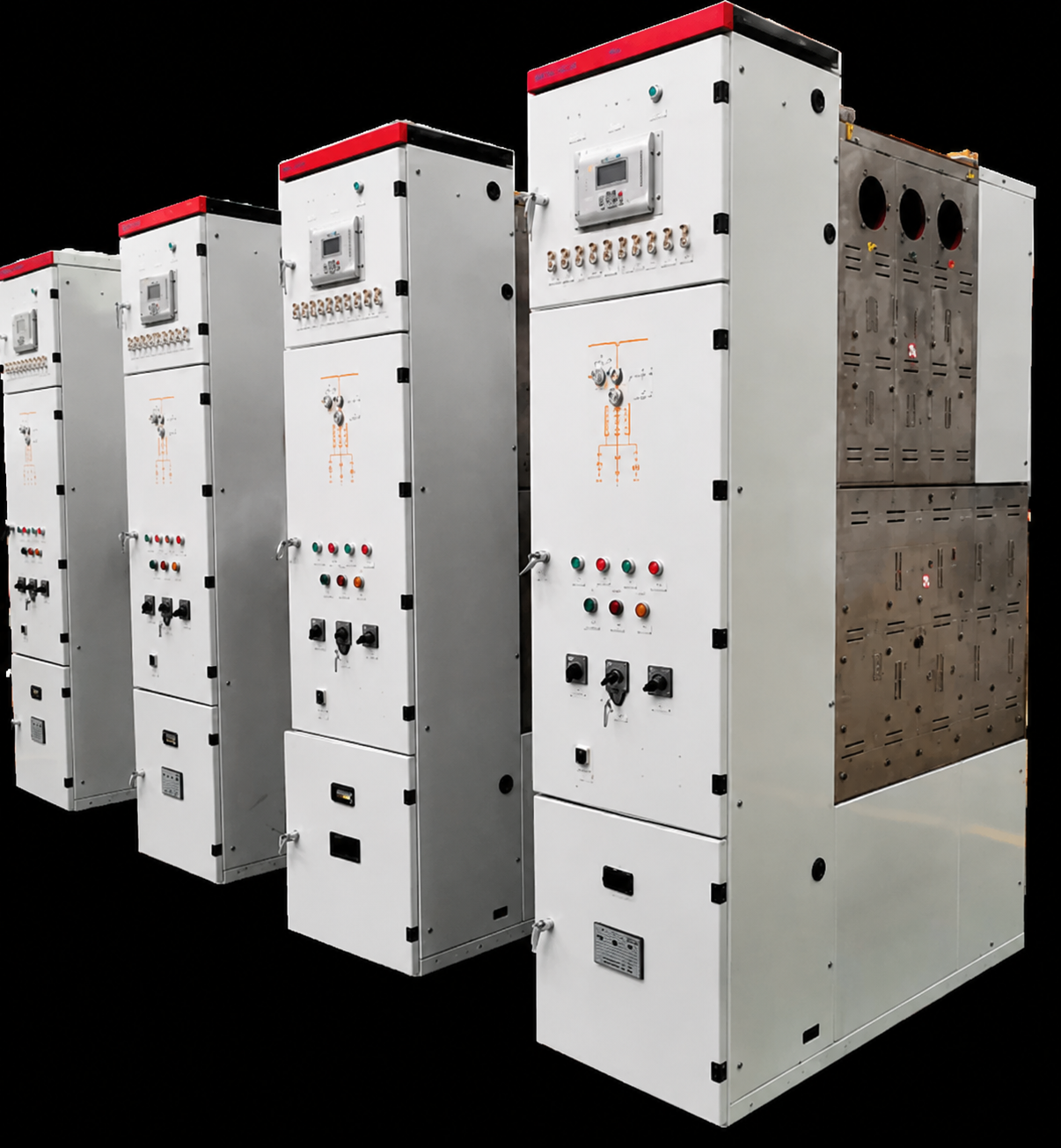

Product featuresC-GIS, box-type micro-positive pressure gas-insulated metal-enclosed switchgear; has the characteristics of high safety, reliability, miniaturization and maintenance-free; it is used in primary power distribution, substations, and rail transit; it is widely used in 12~40.5kV primary boost/step-down transformers and rail transit substationsTechnical parametersRated voltage: GMU-12 is 12kV; GMU-40.5 is 40.5kV; rated frequency: 50, 60Hz; power frequency withstand voltage (phase to phase, ground/fracture): GMU-12 is 42/48kV; G MU-40.5 is 95/118kV; lightning impulse withstand voltage (phase to phase, ground/fracture): GMU-12 is 75/85kV; GMU-40.5 is 185/215kV; rated current: GMU-1 2 is 1250A, 3150A; GMU-40.5 is 1250A, 2500A, 3150A; rated short-time withstand (current/time): 31.5/4, 40/4kA/s; insulation medium: SF6/ Dry air; annual average leakage rate: ≤0.01%; IAC level: AFLR/1s; SF6 air box protection level: IP67; front panel protection level: IP3X; rated inflation pressure (20℃): 0.03MPa
BrandJST

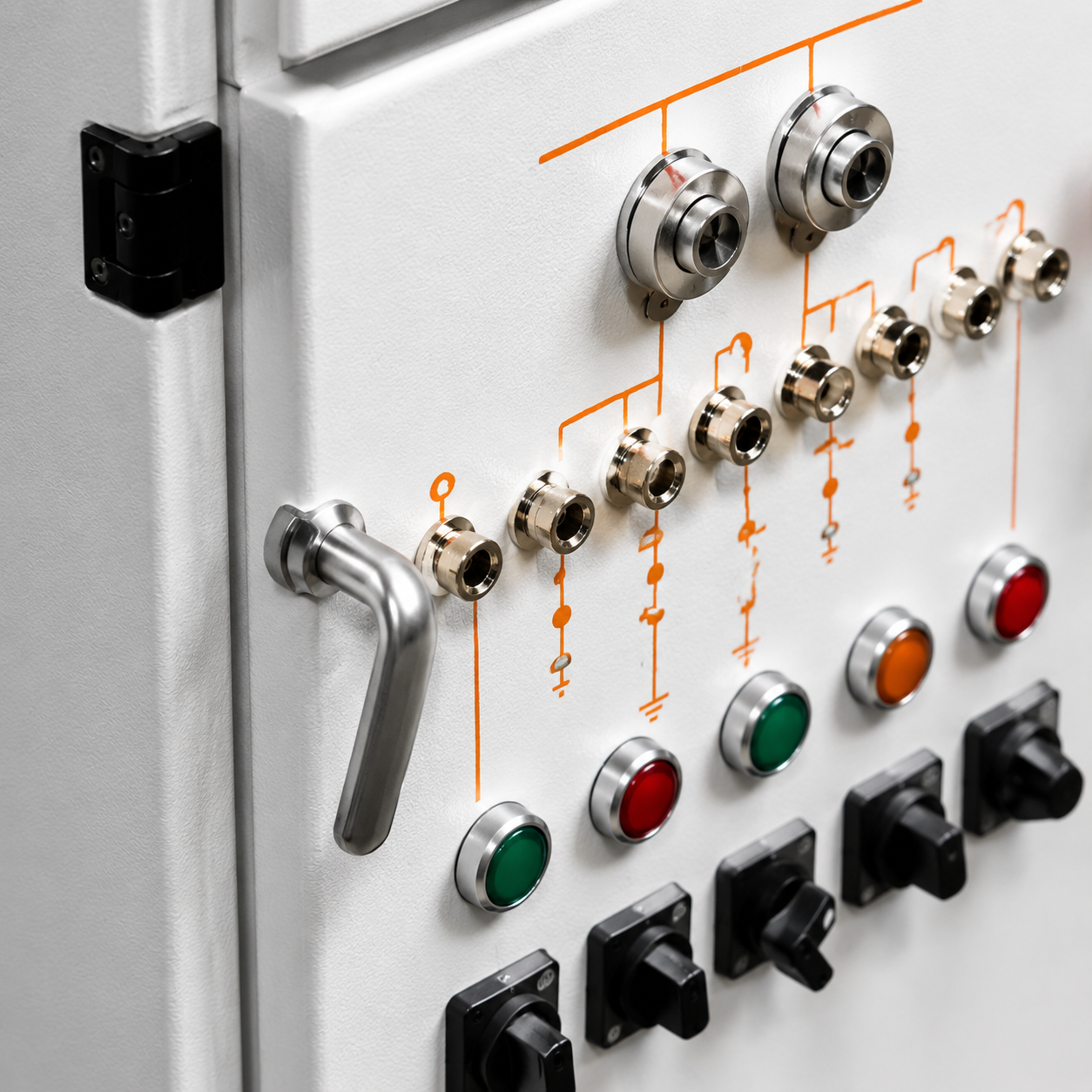

Product details
Functional use: Our CGIS series products use SF6 gas or environmentally friendly gas as the insulating medium, with current levels covering 1250A~3150A. They are specially designed for primary power distribution applications and have the characteristics of high safety, reliability, miniaturization and maintenance-free.
Detailed description: Product features:
C-GIS, box-type micro-positive pressure gas-insulated metal-enclosed switchgear;
It has the characteristics of high safety, reliability, miniaturization and maintenance-free;
It is used in primary power distribution, substations, and rail transit;
Widely used in 12~40.5kV primary boost/step-down transformers and rail transit substations.
Technical parameters:
Rated voltage: GMU-12 is 12kV; GMU-40.5 is 40.5kV
Rated frequency: 50, 60Hz
Power frequency withstand voltage (phase to phase, ground/fracture): GMU-12 is 42/48kV; GMU-40.5 is 95/118kV
Lightning impulse withstand voltage (phase to phase, ground/fracture): GMU-12 is 75/85kV; GMU-40.5 is 185/215kV
Rated current: GMU-12 is 1250A, 3150A; GMU-40.5 is 1250A, 2500A, 3150A
Rated short-time withstand (current/time): 31.5/4, 40/4kA/s
Insulating medium: SF6/dry air
Annual average leakage rate: ≤0.01%
IAC level: AFLR/1s
SF6 air box protection level: IP67
Front panel protection level: IP3X
Rated inflation pressure (20℃): 0.03MPa
Requirements confirmation
Check application scenarios, rated parameters, quantities and drawings.
Factory matching
Review supplier capacity, certificates and production schedules.
Order transaction
Confirm the business terms, contract and information list.
Shipping control

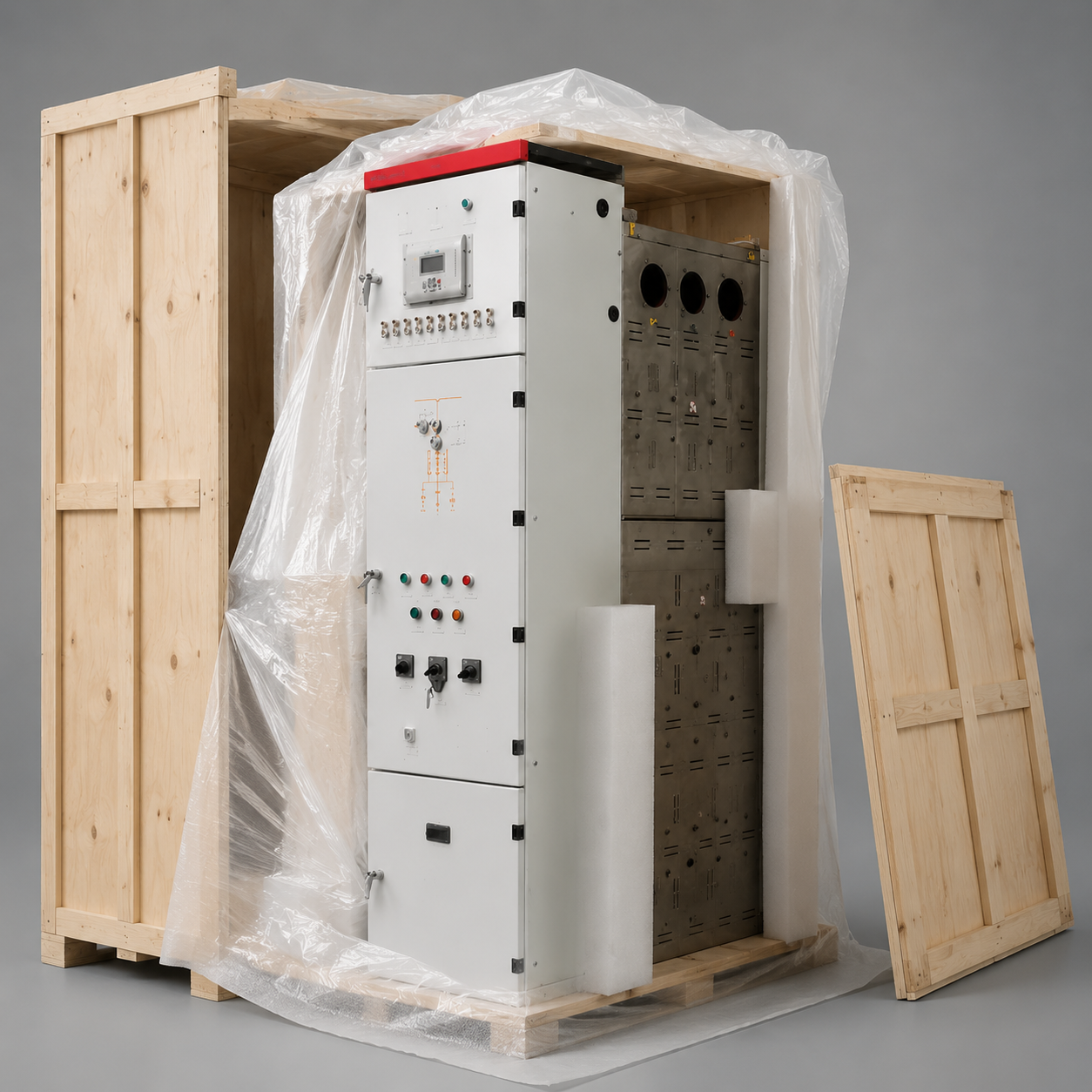

Track packaging, inspection records and logistics status.
