Energy storage battery compartment · Product code P-295
Product category:
energy storage
Product code:
P-295
Model:
Energy storage battery compartment
Function & Use

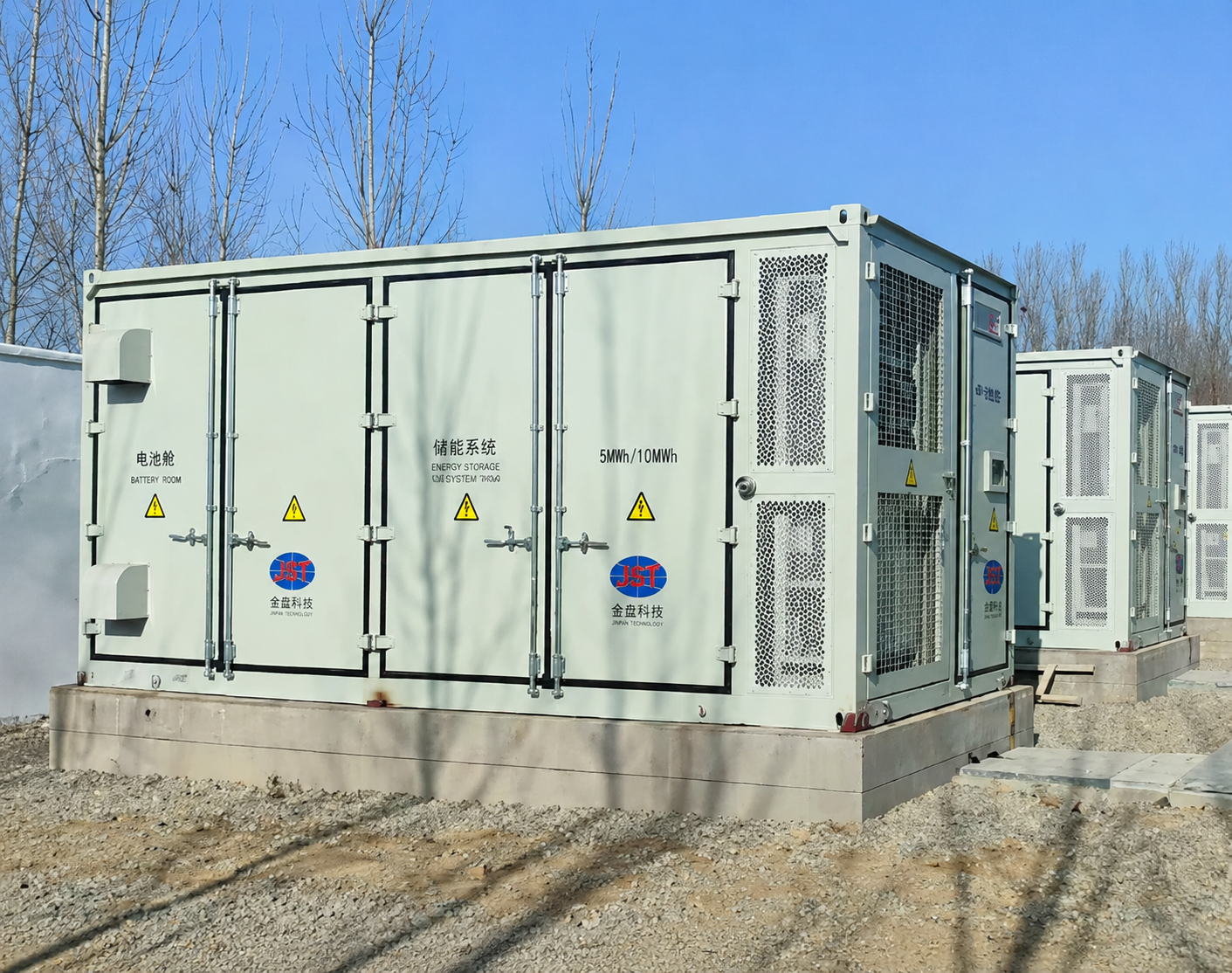

The energy storage battery cabin adopts a container-integrated design. The cabin integrates lithium iron phosphate batteries, battery control cabinets, temperature control systems, lighting systems and automatic fire protection systems, and supports access to energy storage converter systems. The system has a high degree of integration and strong environmental adaptability, which can reduce the workload of on-site installation, debugging and later maintenance.
Category nameEnergy storage series productsClassificationEnergy storage battery compartment
Product featuresHighly integrated: Integrated design meets the double-sided power output requirements in the cabinet, integrating the energy storage battery system, battery management system, monitoring system, thermal management system and fire protection system into one; safe and reliable: the BMS battery management system has multi-level protection functions, accurately sensing overvoltage, undervoltage, overcurrent, overtemperature, etc. protection; integrating extravehicular firefighting technology and gas firefighting + water firefighting dual firefighting linkage technology to achieve comprehensive cabin-level safety and dual safety; smart and friendly: the liquid-cooled intelligent power system has excellent design, controllable temperature and integration, which improves application scenarios and can flexibly cut peaks and valleys, smooth fluctuations, peak shaving and valley filling and other transformation functionsProduct parametersProduct model: LPF-1500V-3344kWh/5015kWh/6688kWh; battery type: lithium iron phosphate square aluminum shell; battery capacity (Ah): 314; charge and discharge times Rate: 0.5C/0.25C; Rated capacity (kWh): 3343.794/5015.961/6687.948; Nominal voltage (V): 1331.2; Battery temperature control method Type: liquid cooling; shell material: container; working altitude: ≤2000 meters (no derating); operating temperature range: -25~45℃; protection level: no less than IP54; anti-corrosion level: no less than C3; fire protection plan: fire alarm + gas automatic fire protection + water fire protection (optional); communication interface: Ethernet/RS485; communication protocol: Modbus-TCP/Modbus-RTU
BrandJST
Product details
Functional use: The energy storage battery cabin adopts a container-integrated design. The cabin integrates lithium iron phosphate batteries, battery control cabinets, temperature control systems, lighting systems and automatic fire protection systems, and supports access to energy storage converter systems. The system has a high degree of integration and strong environmental adaptability, which can reduce the workload of on-site installation, debugging and later maintenance.
Detailed description: Product features:
Highly integrated: Integrated design meets the double-sided power output requirements in the cabinet, integrating the energy storage battery system, battery management system, monitoring system, thermal management system and fire protection system into one;
Safe and reliable: The BMS battery management system has multi-level protection functions, accurately sensing overvoltage, undervoltage, overcurrent, overtemperature and other protections; integrating extravehicular firefighting technology and gas firefighting + water firefighting dual firefighting linkage technology to achieve comprehensive and dual safety at the cabin level;
Smart and friendly: The liquid-cooled smart power system has excellent design, temperature controllability and integration, which improves application scenarios' transformation functions such as flexible peak and valley cutting, smooth fluctuations, peak regulation and valley filling.
Product parameters:
Product model: LPF-1500V-3344kWh/5015kWh/6688kWh
Cell type: Lithium iron phosphate square aluminum shell
Battery capacity (Ah): 314
Charge and discharge rate: 0.5C/0.25C
Rated capacity (kWh): 3343.794/5015.961/6687.948
Nominal voltage (V): 1331.2
Battery temperature control method: liquid cooling

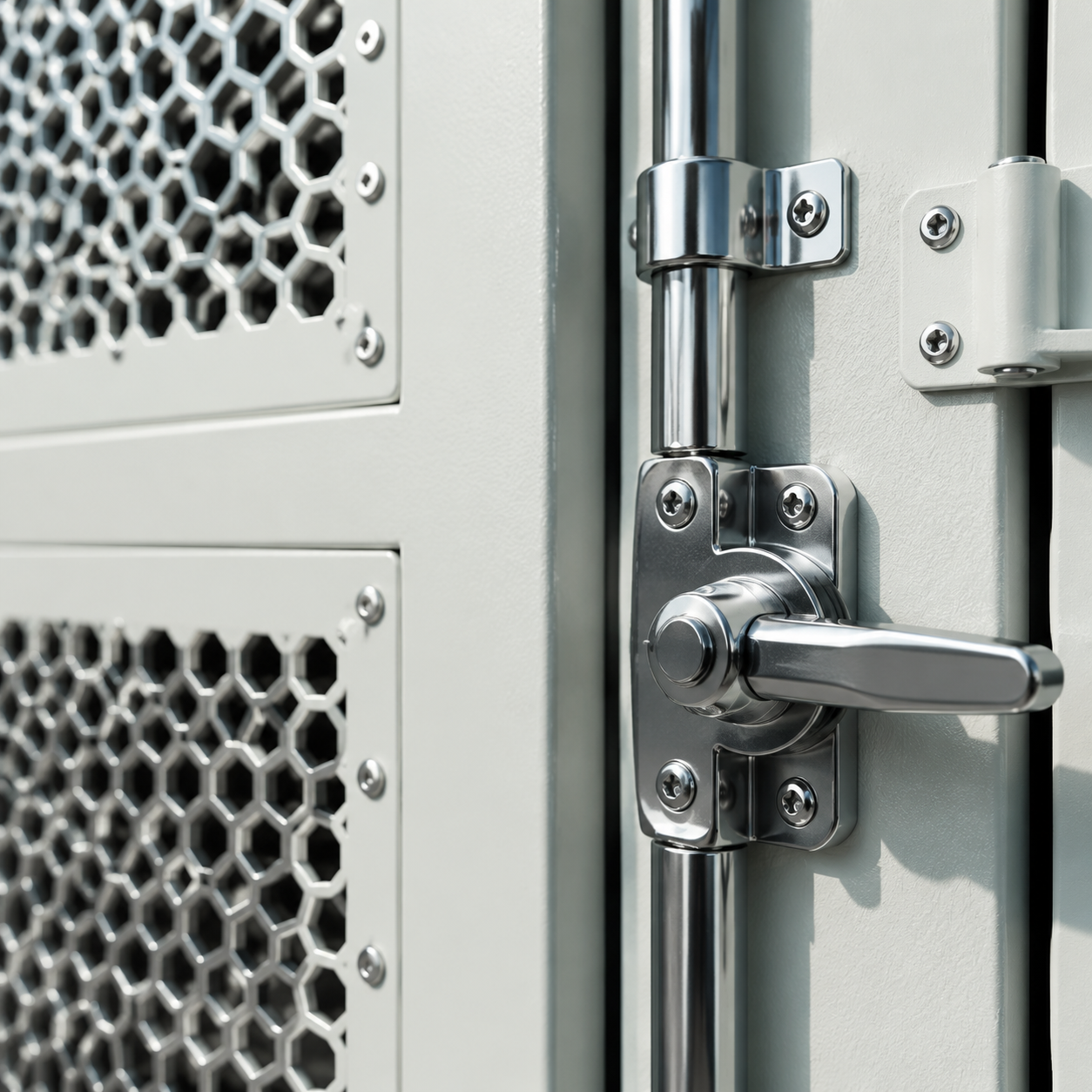

Shell material: container
Working altitude: ≤2000 meters (no derating)
Operating temperature range: -25~45℃
Protection level: no less than IP54
Anti-corrosion grade: no less than C3
Fire protection plan: fire alarm + gas automatic fire protection + water fire protection (optional)
Communication interface: Ethernet/RS485
Communication protocol: Modbus-TCP/Modbus-RTU
Requirements confirmation
Check application scenarios, rated parameters, quantities and drawings.
Factory matching
Review supplier capacity, certificates and production schedules.
Order transaction
Confirm the business terms, contract and information list.
Shipping control

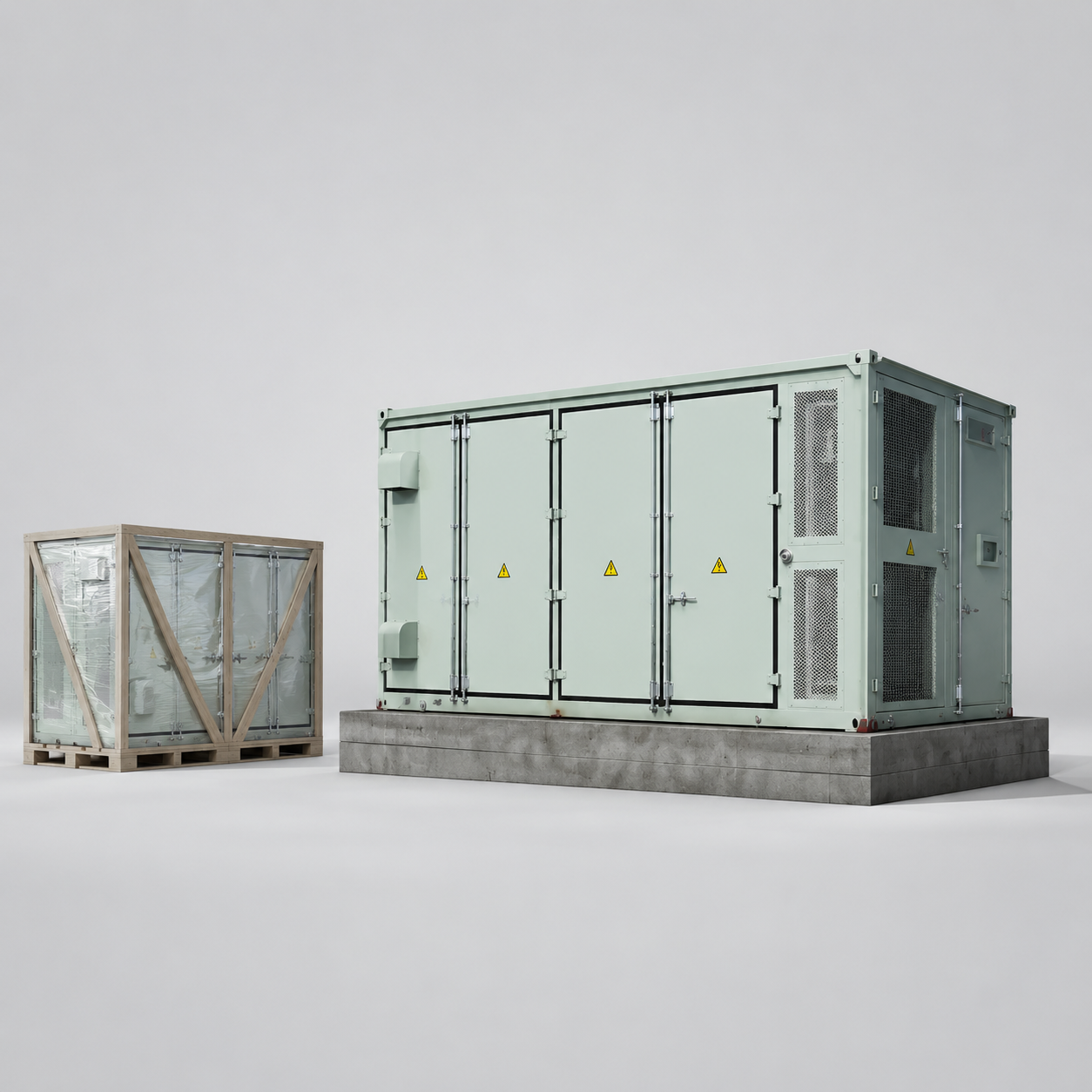

Track packaging, inspection records and logistics status.
