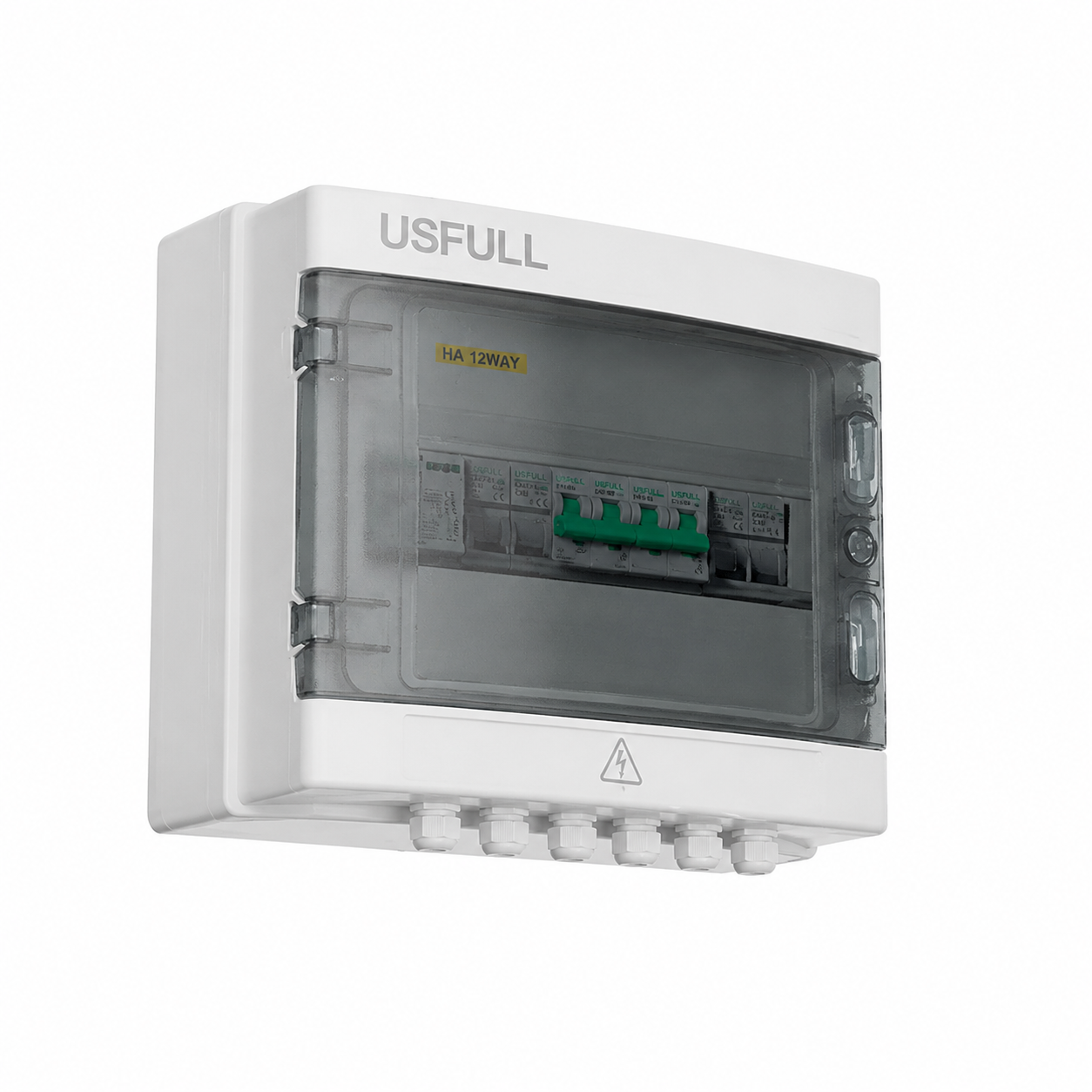

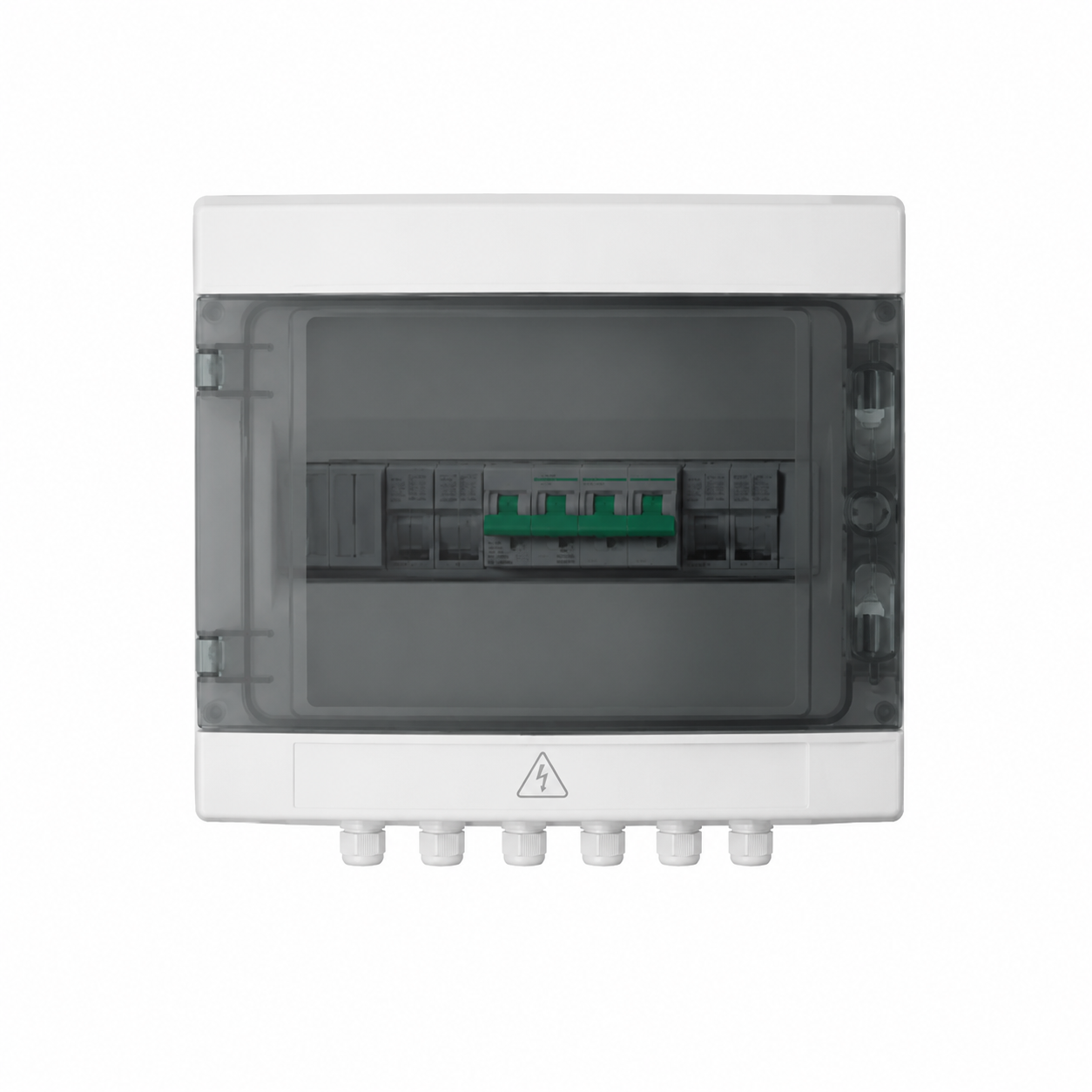

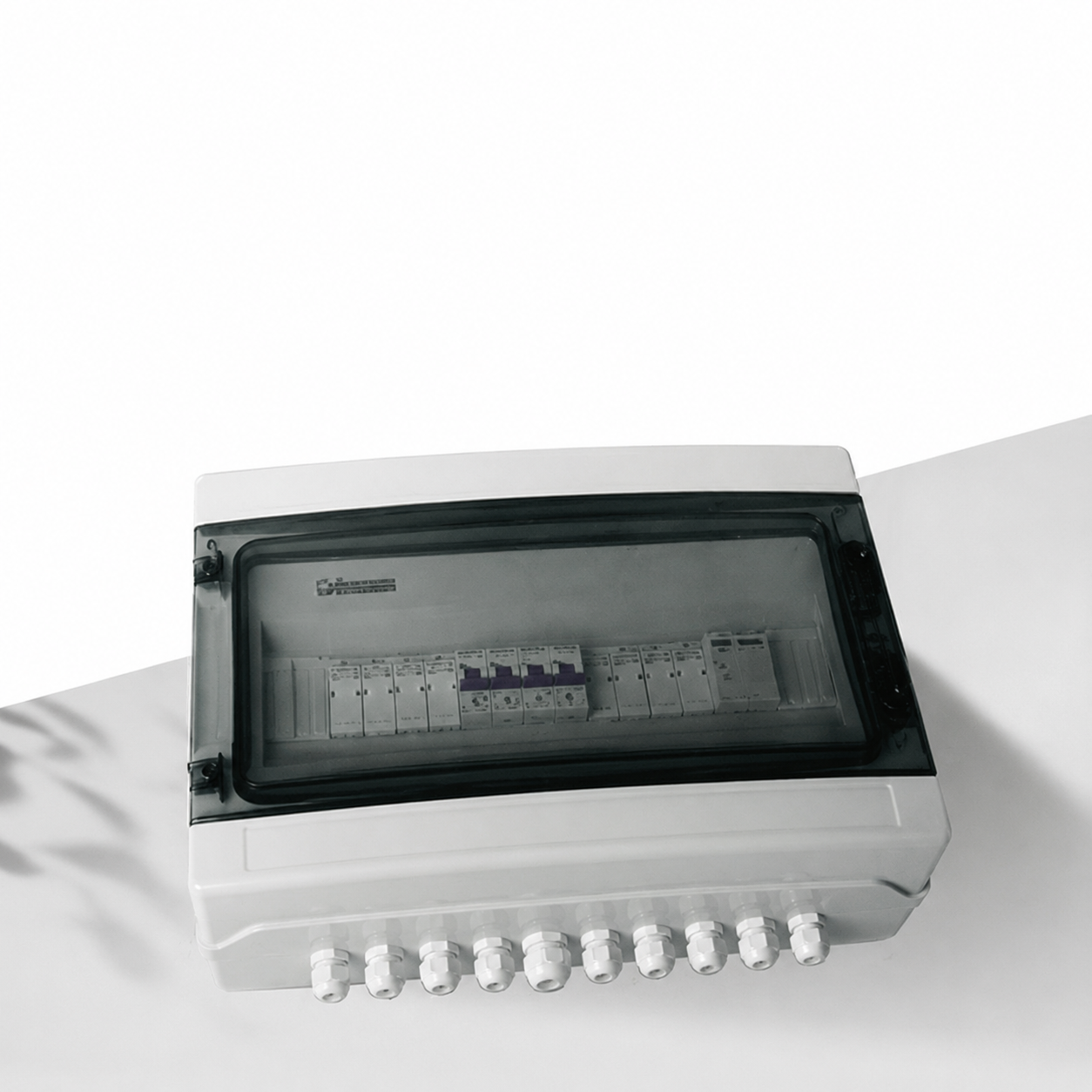

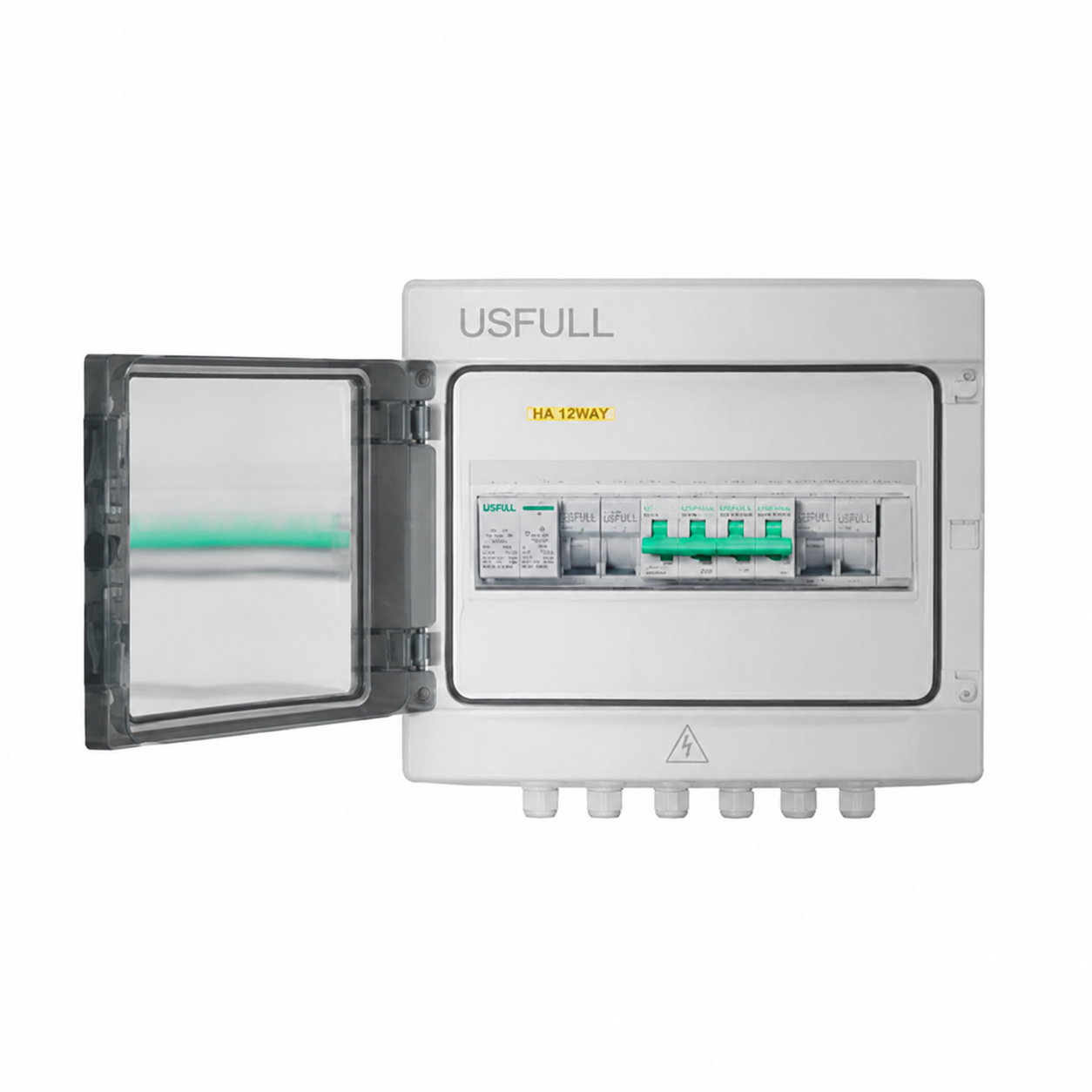

Combiner box photovoltaic lightning protection energy storage 1500V · P-107

Combiner box photovoltaic lightning protection energy storage 1500V · Product code P-107

Product category:: Combiner box
Product code:: P-107
Model:: [24 in and 1 out] No anti-reverse, no monitoring

Function & Use

The combiner box is suitable for power engineering scenarios such as photovoltaic systems and energy storage applications. It can undertake power supply and distribution, connection, control or protection functions to facilitate on-site integration, stable operation and subsequent maintenance.

Specification options

Surprise on inquiry

Product highlights

Photovoltaic system adaptation
Power station supporting use
Applicable to energy storage scenarios
Support project customization
Protection level is clear

Model

[24 in and 1 out] No anti-reverse, no monitoring

Request a Quote Chat on WhatsApp

Main Product Parameters

BrandMan Yi/USFULLSeriesFUCB-MDP series

Model[8 in and one out] no anti-reverse and no monitoring, [12 in and one out] no anti-reverse and no monitoring, [16 in and one out] no anti-reverse and no monitoring, [20 in and one out] no anti-reverse and no monitoring, [24 in and one out] no anti-reverse No monitoring, [8 in and one out] with anti-reverse and monitoring, [12 in and one out] with anti-reverse and monitoring, [16 in and one out] with anti-reverse and monitoring, [20 in and one out] with anti-reverse and monitoring, [24 in and one out] with anti-reverse and monitoring, the default setting for orders is 1500V. For other needs, please contact customer serviceInstallation methodWall-mounted installation

Shell protection levelIP65Cover materialPC plastic

Processing and customizationYesProduct certificationCE

Shell materialsteelMain sales areasglobal

Packaging parameter 1Specifications: [8 in and one out] No anti-reflection, no monitoring; Length (cm): 460; Width (cm): 660; Height (cm): 180; Volume: 54648000; Weight (g): 6835Packaging parameter 2Specifications: [12 in and one out] No anti-reflection No monitoring; Length(cm): 560; Width(cm): 660; Height(cm): 180; Volume: 66528000; Weight(g): 8320

Packaging parameter 3Specifications: [16 in and one out] No anti-reflection No monitoring; Length(cm): 650; Width(cm): 660; Height(cm): 180; Volume: 77220000; Weight(g): 9660Packaging parameter 4Specifications: [20 in and one out] No anti-reflection No monitoring; Length(cm): 750; Width(cm): 660; Height(cm): 180; Volume: 89100000; Weight(g): 11140

Packaging parameter 5Specifications: [24 in and one out] No anti-reflection No monitoring; Length(cm): 840; Width(cm): 660; Height(cm): 200; Volume: 110880000; Weight(g): 12610Packaging parameter 6Specifications: [8 in and one out] with anti-reverse and monitoring; Length (cm): 460; Width (cm): 660; Height (cm): 180; Volume: 54648000; Weight (g): 6835

Packaging parameter 7Specifications: [12 in and one out] with anti-reverse and monitoring; Length (cm): 560; Width (cm ): 660; Height (cm): 180; Volume: 66528000; Weight (g): 8320Packaging parameter 8Specifications: [16 in and one out] with anti-reflection and Monitoring; Length(cm): 650; Width(cm): 660; Height(cm): 180; Volume: 77220000; Weight(g): 9 660

Packaging parameter 9Specifications: [20 in and one out] with anti-reverse and monitoring; Length (cm): 750; Width (cm): 660; Height (cm): 180; Volume : 89100000; Weight (g): 11140Packaging parameter 10Specifications: [24 in and one out] with anti-reverse and monitoring; Length (cm): 840; Width (cm) : 660; Height (cm): 200; Volume: 110880000; Weight (g): 12610

Packaging parameter 11Specifications: The default position for placing an order is 1500V For other needs, please contact customer service; Length(cm): 840; Width(cm): 660; Height(cm): 200; Volume: 110880000; Weight(g): 12610

Requirement confirmation

Application, rating, quantity and drawings are checked first.

Factory matching

Supplier capacity, certificates and production slot are reviewed.

Order transaction

Confirm commercial terms, sign the commercial contract, and confirm the related document checklist.

Shipment control

Packing photos, inspection records and delivery status are tracked.
