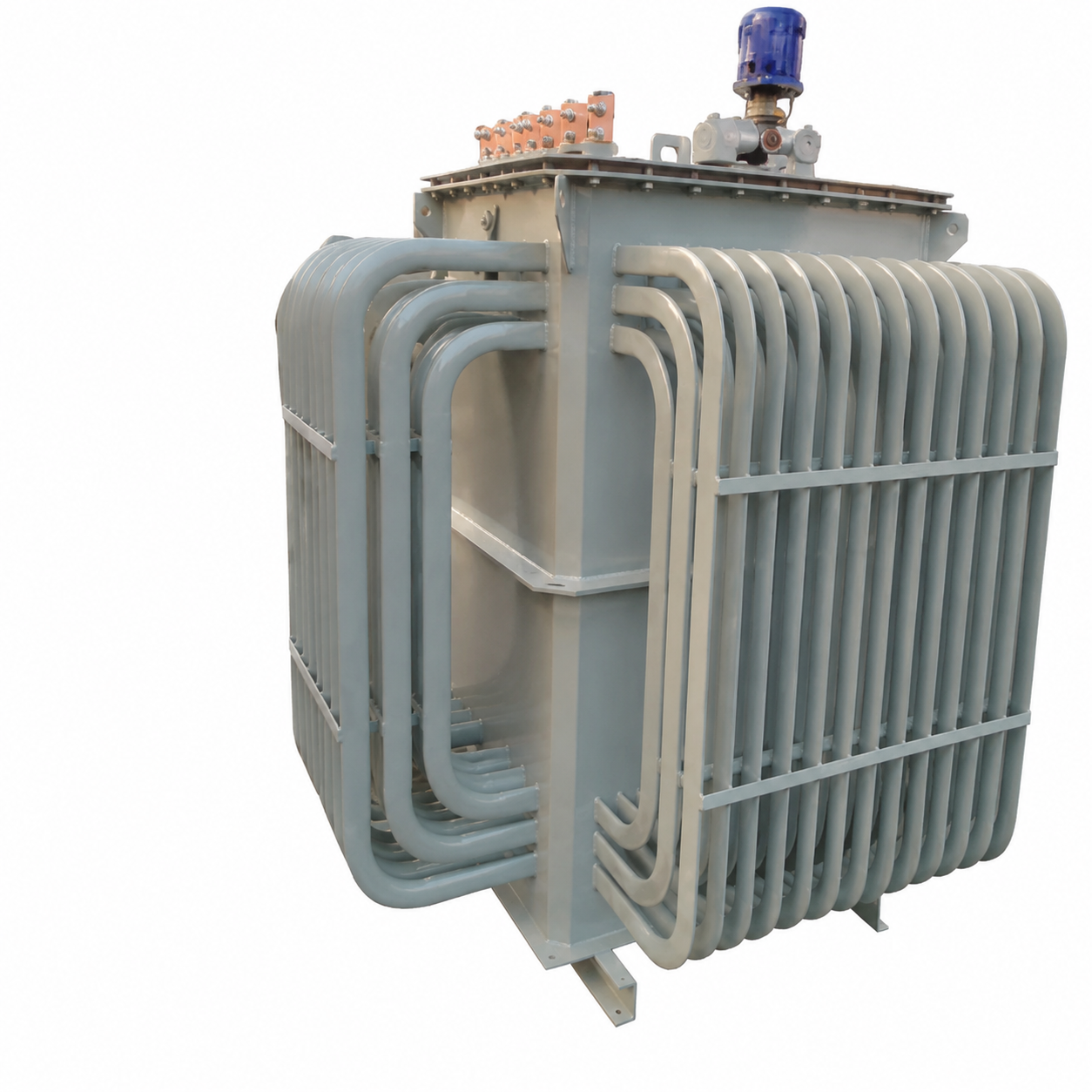

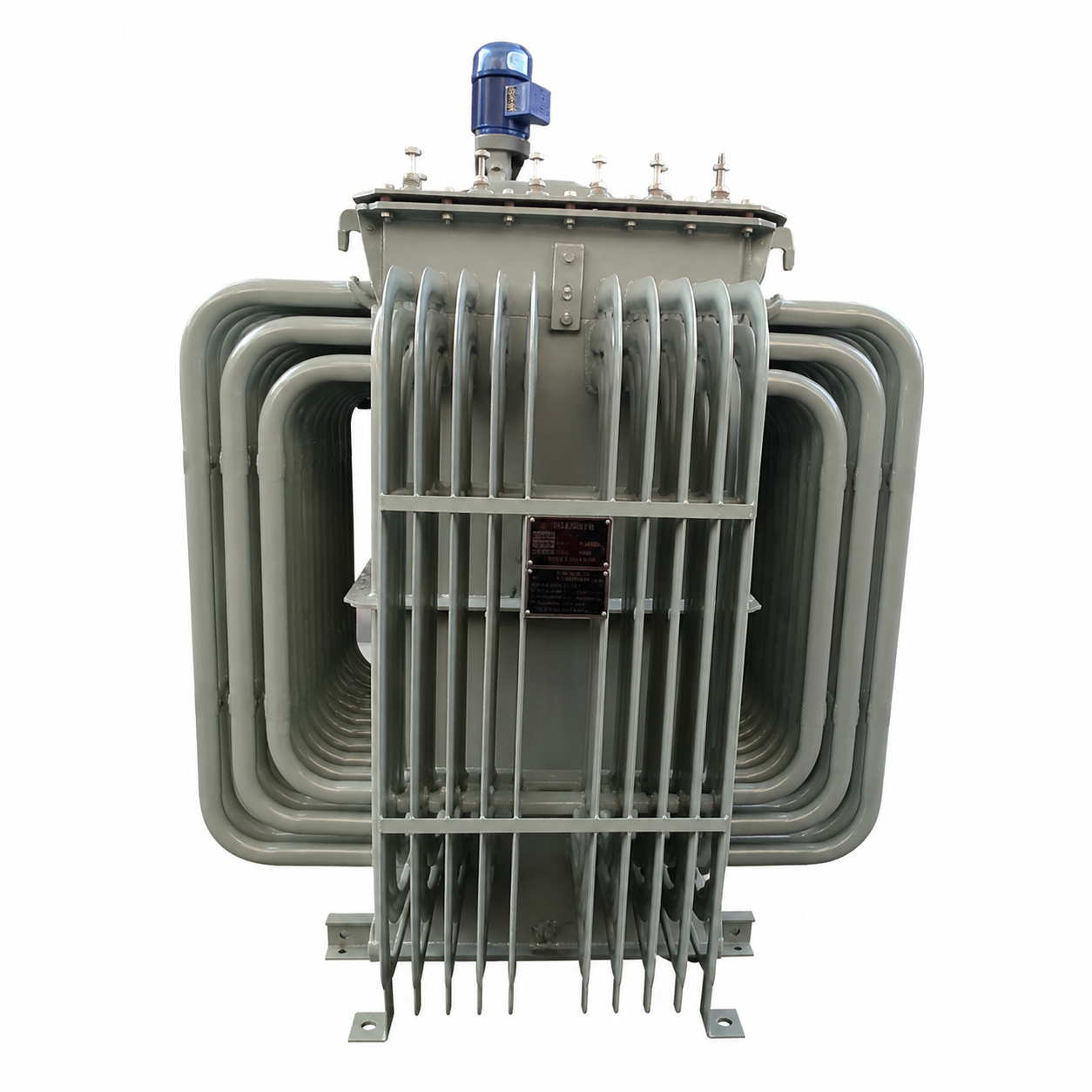

Reactor TKS-800/400V/450V/690V · Product code P-118

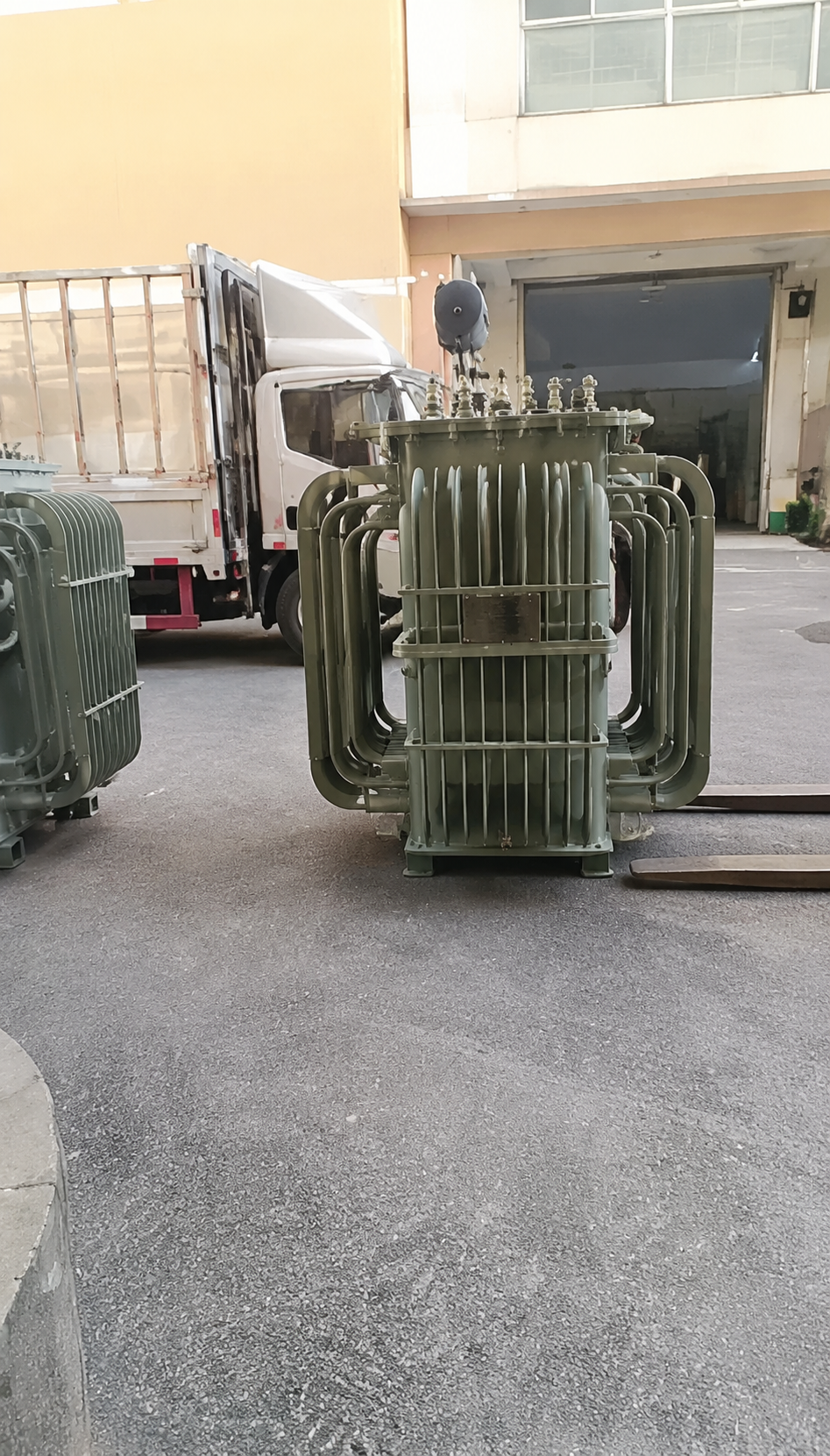

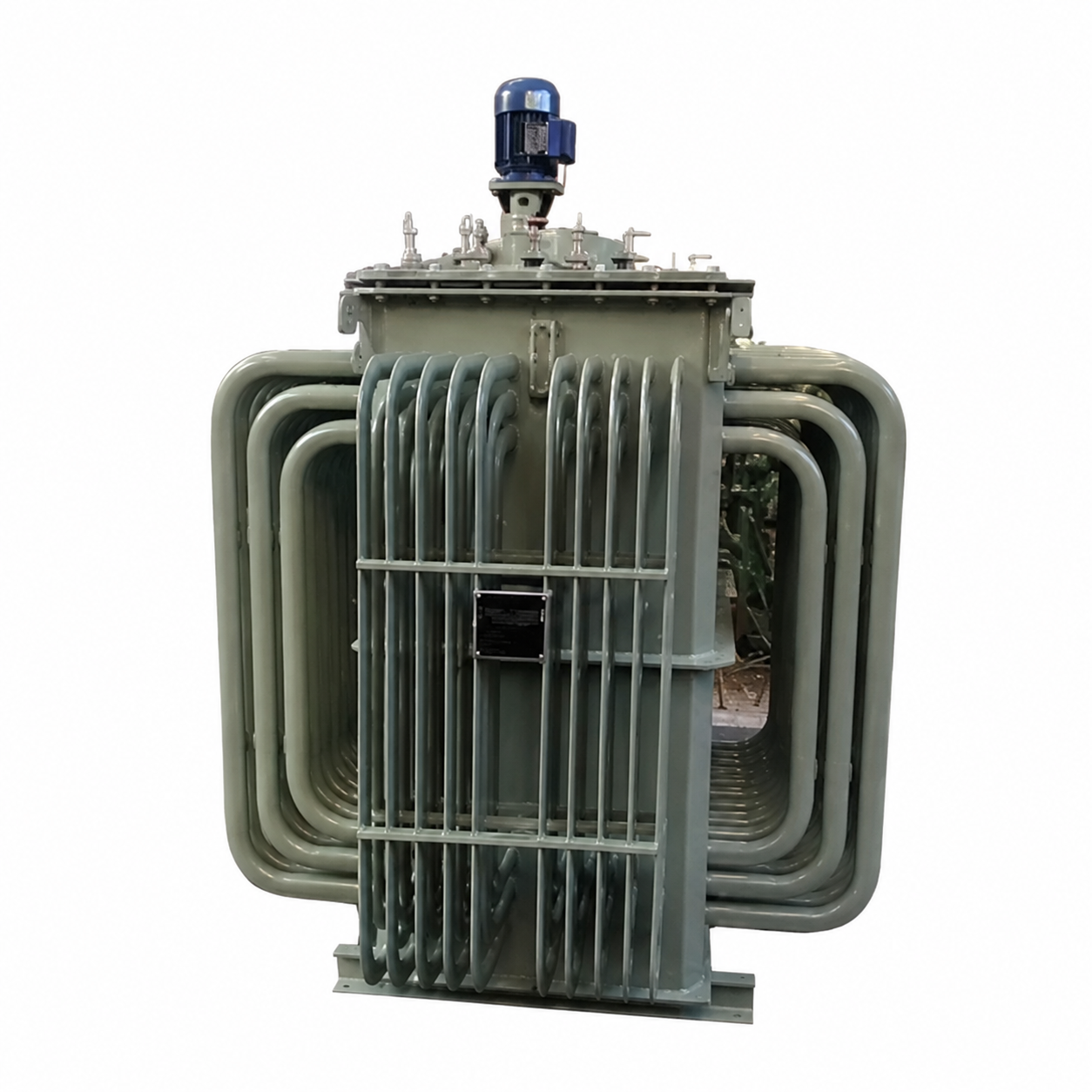

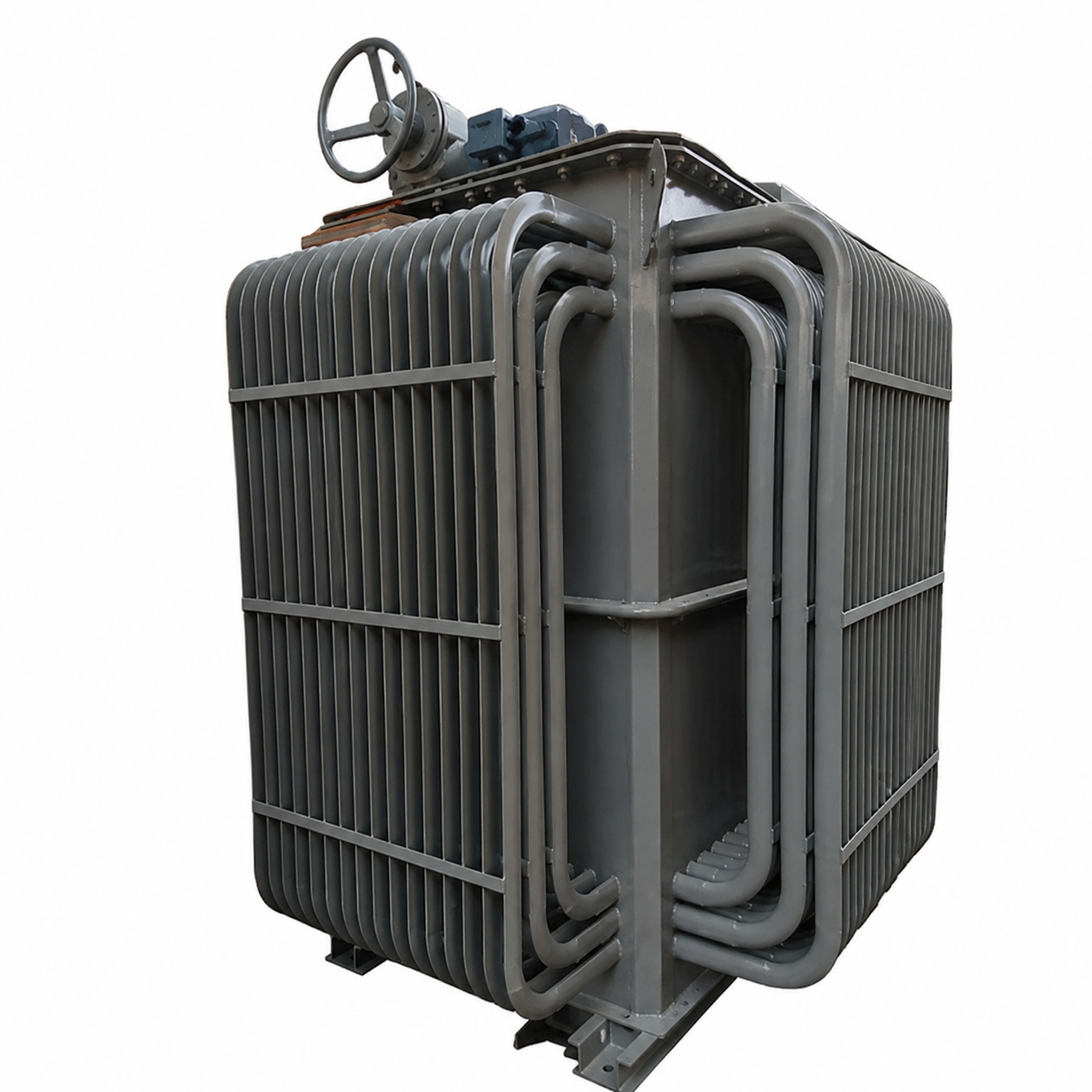

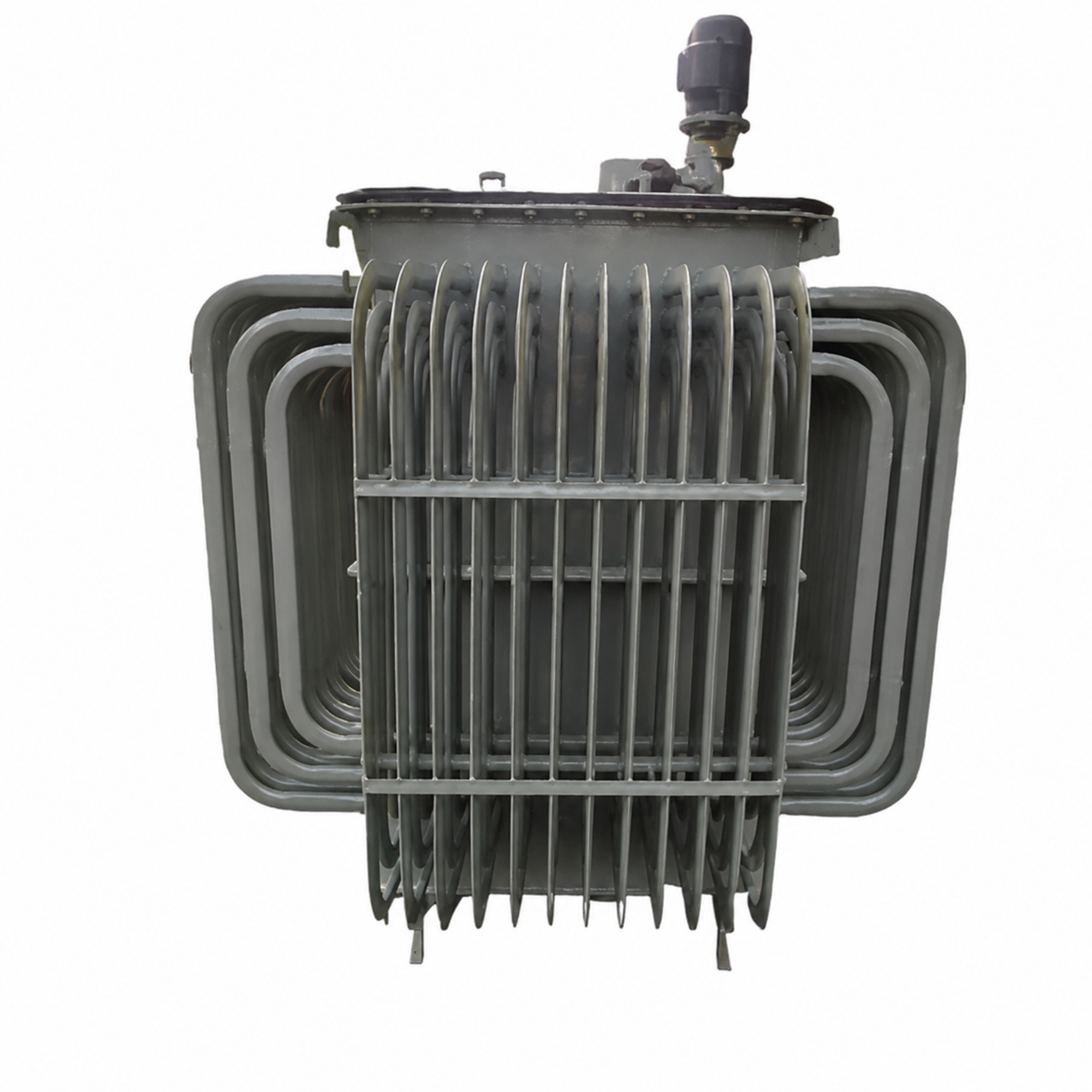

The adjustable reactor is composed of an iron core reactor and an adjusting part installed in the same tank. The adjustable reactor has optimized electromagnetic design, reasonable structural design, good static and dynamic stiffness, beautiful appearance, and easy use and maintenance. In addition, this product also has the following characteristics: a) The cooling method can be oil-immersed self-cooling and dry air cooling; b) The current adjustment range is large, and the current can be adjusted steplessly, smoothly, and continuously; c) The adjustment linearity and stability are good, and it can withstand overload 10% for 1 hour. d) Active and reactive current adjustment do not affect each other, and the load rate and its power factor can be accurately adjusted; e) It has two connection methods, suitable for 50HZ 400V, 690V and 60Hz 450V power supply; f) Easy to operate, reliable operation, and can work continuously for a long time; g) Products with the same voltage and different capacities can be operated in parallel; h) The product complies with the requirements of the machinery industry standards of the People's Republic of China JB/T 8749 "General Technical Requirements for Voltage Regulators", JB/T 10093 "Induction Voltage Regulators" and related electrical specifications.
