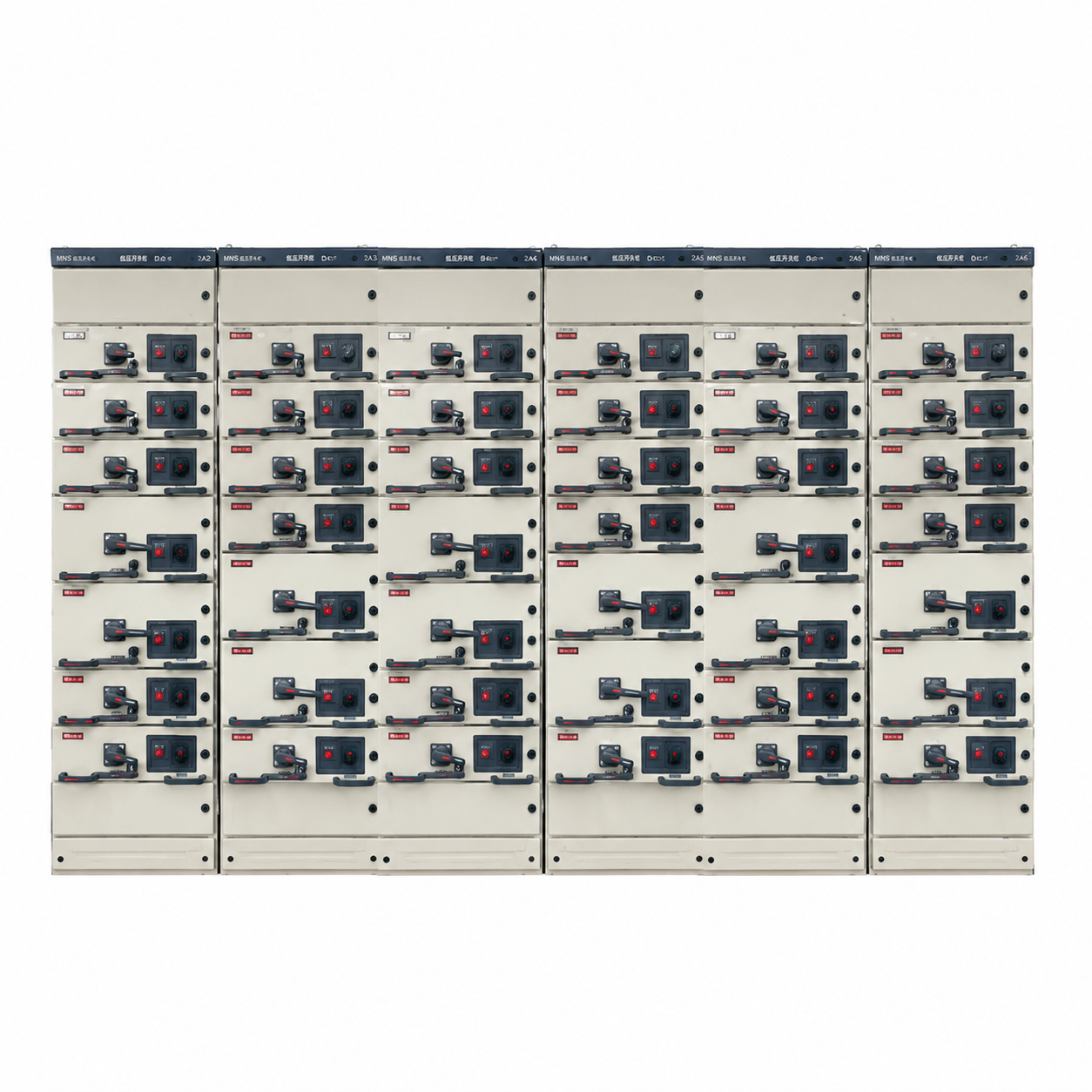

Low-voltage withdrawable switch cabinet/drawer-type distribution cabinet Engineering complete cabinet GCS 1000A-4000A · P-003

Low-voltage withdrawable switch cabinet/drawer-type distribution cabinet Engineering complete cabinet GCS 1000A-4000A · Product code P-003

Product category:
Low voltage withdrawable switch cabinet
Product code:
P-003
Model:
GCS line entry cabinet

Function & Use

The low-voltage draw-out switch cabinet is designed for high-current engineering power distribution systems. It can complete cabinet combinations such as incoming wires, outgoing wires, connections, metering and compensation. It is suitable for customization according to drawings and connecting to low-voltage power distribution networks in factories, parks and buildings.

Specification options

Surprise on inquiry

Product highlights

  • High current loop adaptation
  • Cabinet combinations are more flexible
  • Support drawing customization
  • Contact metering configurable
  • Suitable for engineering power distribution

Model

GCS line entry cabinet
Request a QuoteChat on WhatsApp

Main Product Parameters

Processing and customizationYesBrandOthers
ModelGCSRated current630A、1000A、1250A、1600A、2000A、2500A、3150A（A）
Short circuit making current20kA、30kA、40kA、50kA（KA）Shell protection levelip44
Overall dimensions800*600*2200（mm）Model quotationGCS incoming cabinet, GCS capacitor compensation cabinet, GCS outlet cabinet, GCS communication cabinet, GCS metering cabinet
Main downstream platformsIndependent station, otherMain sales areasAfrica, Southeast Asia, Northeast Asia, Middle East, others
Has licensable private labelYesBusbar rated current630A、1250A、1600A、2000A、2500A、3150A
SpecificationsIncoming cabinetShell materialgalvanized steel plate

Requirement confirmation

Application, rating, quantity and drawings are checked first.

Factory matching

Supplier capacity, certificates and production slot are reviewed.

Order transaction

Confirm commercial terms, sign the commercial contract, and confirm the related document checklist.

Shipment control

Packing photos, inspection records and delivery status are tracked.
